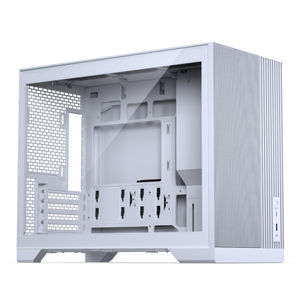

Elevate your gaming PC build with the Phanteks XT M3 Tempered Glass Micro ATX Case, engineered for powerful performance in a compact footprint. This sleek white tower supports Micro-ATX and Mini-ITX motherboards and is fully compatible with rear-connection motherboards for versatility. Designed with cooling in mind this case offers extensive cooling options with support for up to nine 120mm fan (top, front, rear, and bottom), and a dedicated 360mm top radiator support for optimal airflow. Featuring a clear tempered glass side panel to showcase your components, alongside versatile storage options, the XT M3 provides exceptional clearance for high-end graphics cards of up to 430mm in length.
Features
XT M3
Compact Micro ATX Gaming Chassis
The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.
With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.
Compact Gaming Chassis
- Supports a total of nine 120 fans for powerful cooling within this compact chassis.
- Dedicated 360 radiator space in the top of the chassis.
- Triple fan locations in the bottom for direct GPU cooling.
Organised by Design
- Spacious cable routing area for clean and efficient management.
- Fully compatible with Rear-Connect mainboards for streamlined builds.
Fan Positions
- 3x 120 mm top fans.
- 2x 120 mm front fans.
- 1x 120 mm rear fan.
- 3x 120 mm bottom fans.
Radiator Positions
- 1x 360 top radiator up to 410 x 122 x 60 mm
Storage
SSD Storage Bracket
Supports 2x 2.5″ SSD drives.
HDD Storage Bracket
Supports 1x 3.5” HDD drive.
Specifications
General Data
| Model Number |
PH-XT325M_WT01 |
| Case Dimensions |
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in |
| Form Factor |
Compact microATX tower |
| Mainboard Support |
Micro-ATX | Mini-ITX |
| Materials |
Steel chassis | Tempered glass window | ABS plastic |
| Colour |
White |
| Expansion Slots |
4 |
| Vertical GPU Support |
No |
| Internal 2.5″ Positions |
2 |
| Internal 3.5″ Positions |
1 |

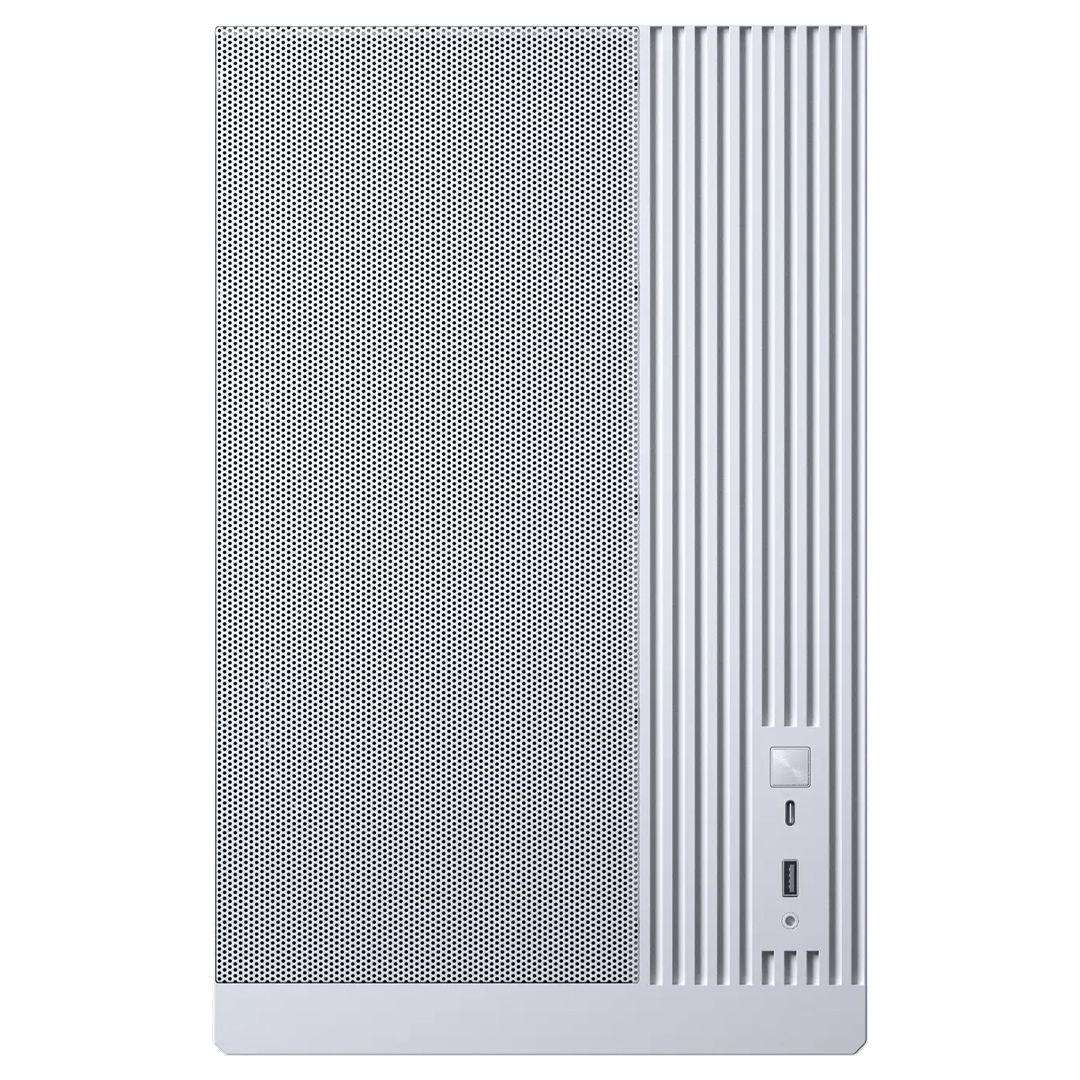

| Front I/O |
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button |
| Net Weight |
5.57 kg | 12.28 lbs |
| Warranty |
5 Years Limited |
| What's Included |
1x XT M3 chassis
1x SSD bracket Pre-installed
1x HDD bracket Pre-installed |
| Accessory Box |
9x Zip ties
1x Stand-off removal tool
1x GPU support |
| Screws |
17x Mainboard | SSD screws
5x Power supply screws
4x HDD screws
1x Mainboard stand-off |
Fan
| Total Fans |
9 x 120 mm |
| Top |
3 x 120 mm |
| Front |
2 x 120 mm |
| Rear |
1 x 120 mm |
| Bottom |
3 x 120 mm |
Radiator
Clearance
| CPU Cooler Height |
175 mm | 6.88 in |
| GPU Length |
430 mm | 15.94 in
Without front fans installed |
| GPU Width |
175 mm | 6.88 in |
| Power Supply |
150 mm | 5.90 in |
| Top 360 Radiator (Length x Width x Height) |
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in |
Backed by a 5 year Phanteks warranty.
