The Ubiquiti G6 Instant Camera is an all weather, plug and play 4k WiFi camera that features two-way audio, light sensor and IR night vision for up to 6m. It also comes with an included wall mount.
Features
G6 Instant
Plug-and-play, 4K WiFi-connected camera with a 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and two-way audio.
Note. Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
EU version comes with EU power plug only.
Deployment
Build Features

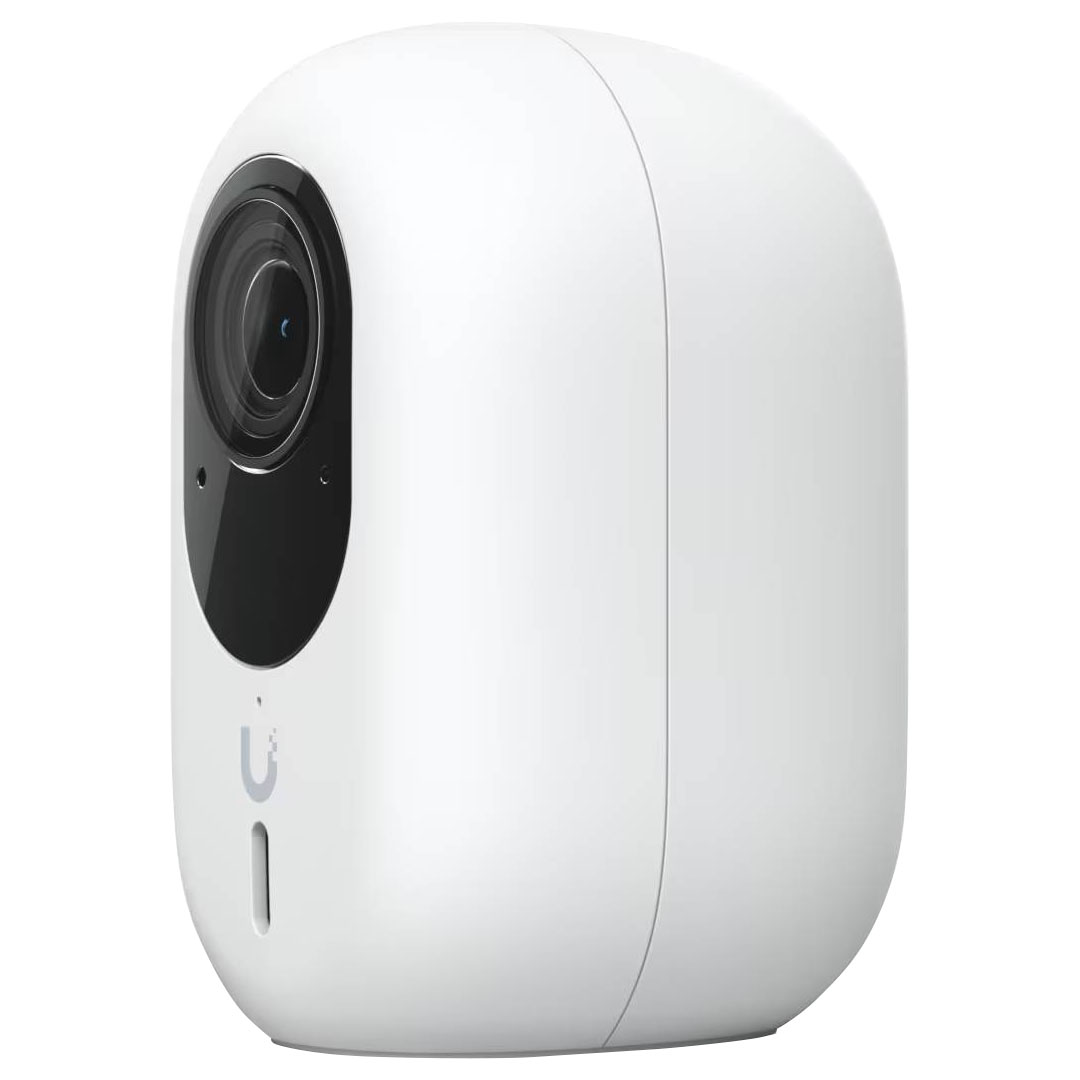

Front

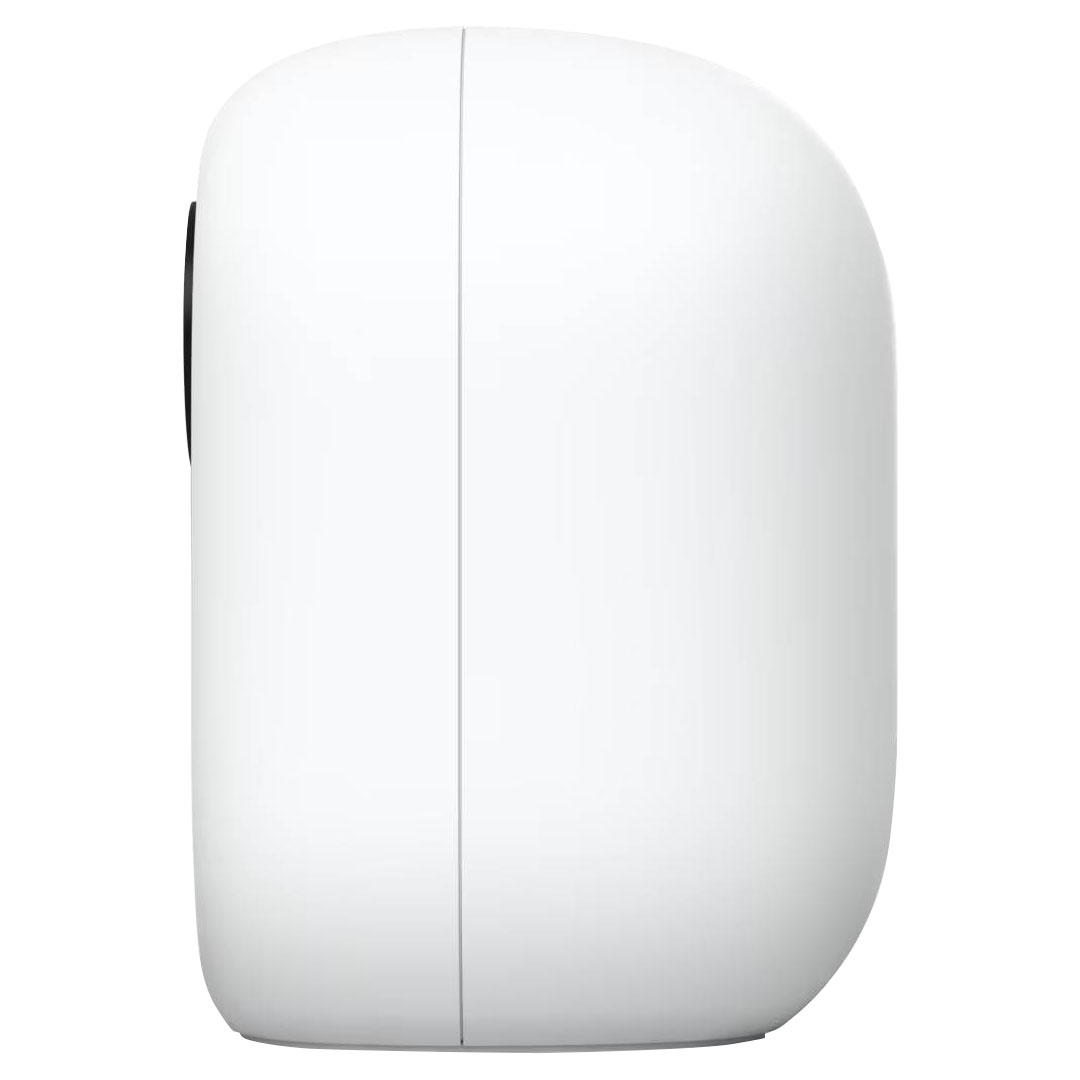

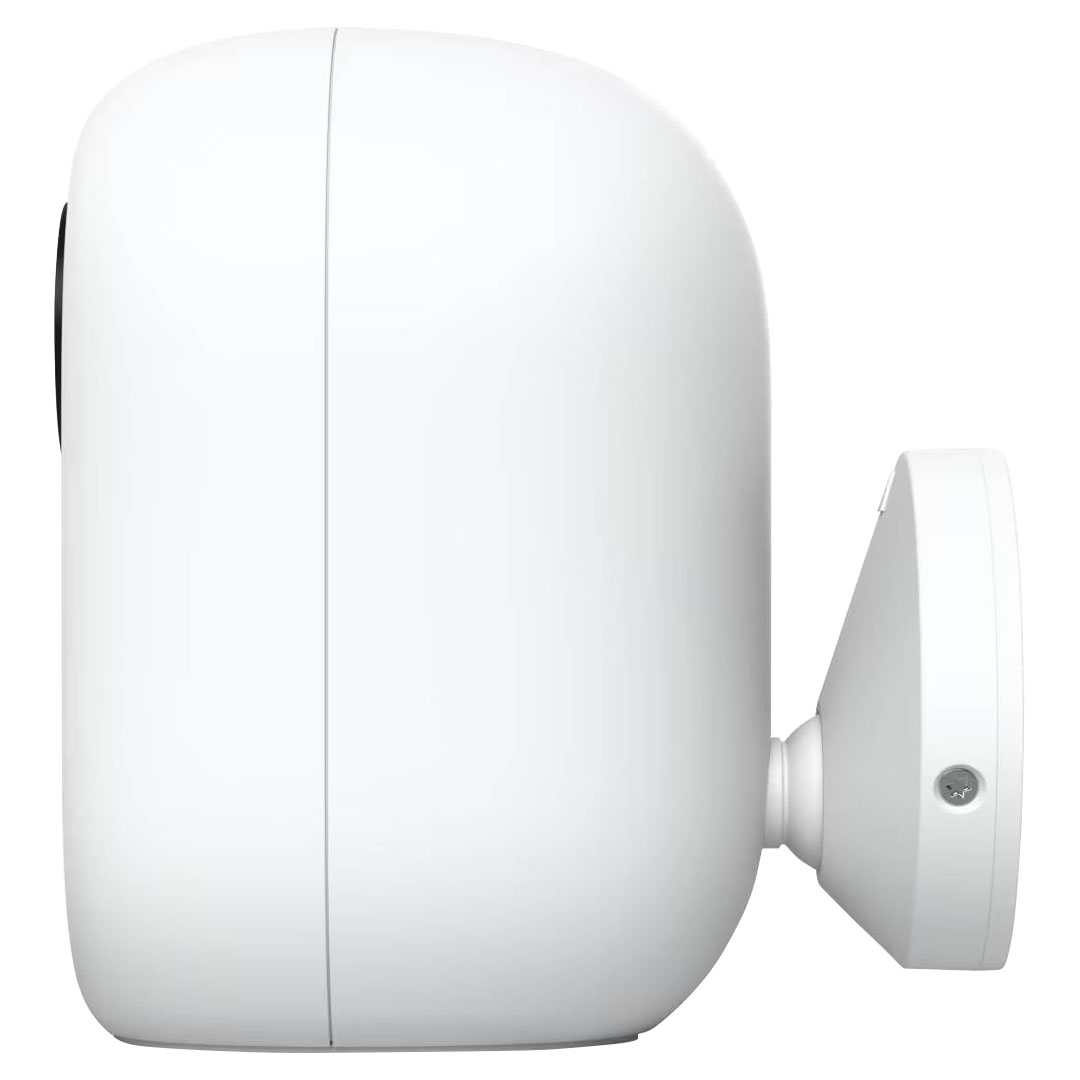

Side

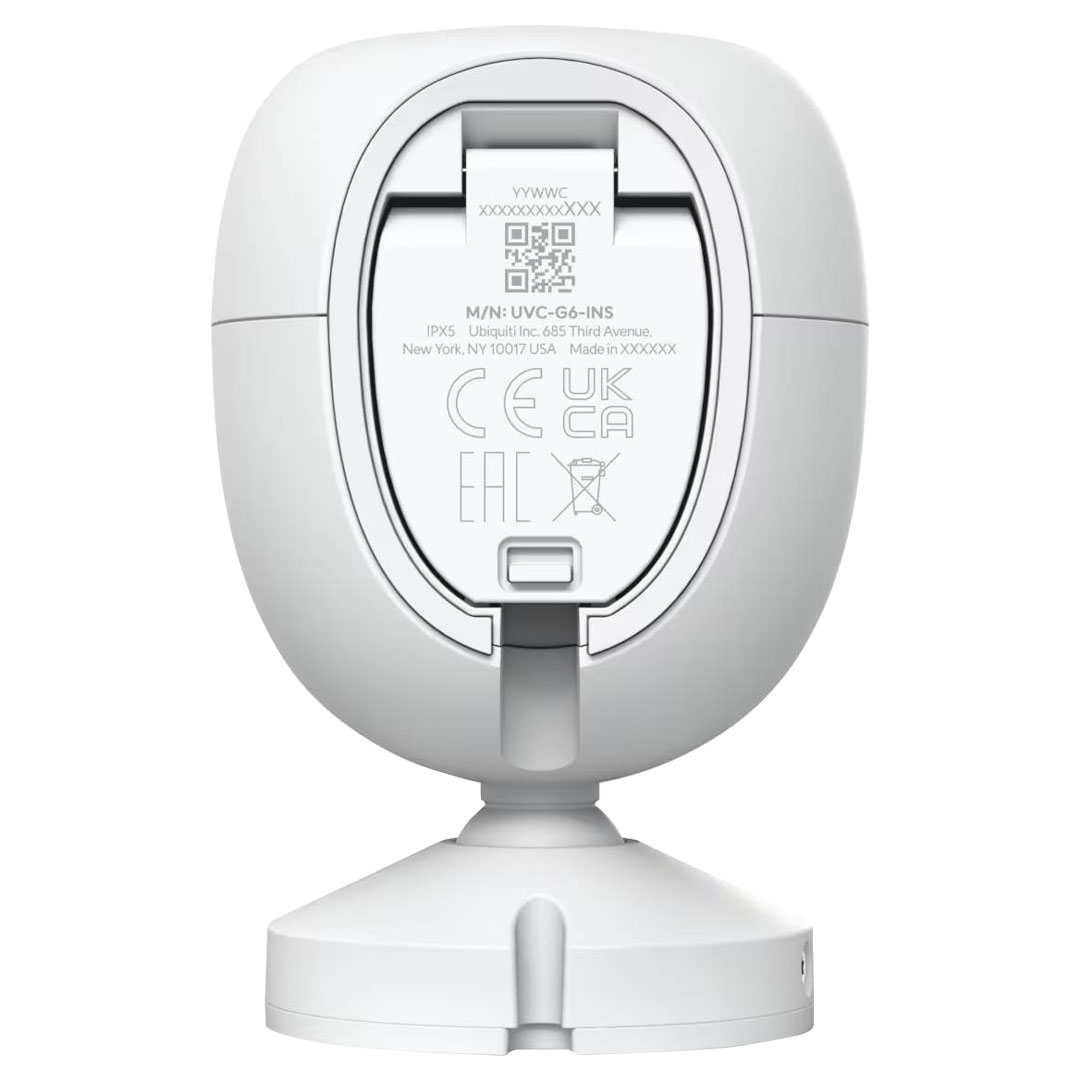

Back
Specifications
General Data
| Model Number |
UVC-G6-INS-W |
| Dimensions |
81.7 x 50.1 x 57.2 mm (3.2 x 2 x 2.3") |
| IR Night Vision |
6 m (20 ft) |
| Face Recognition |
Yes |
| Licence Plate Recognition |
Yes |
| Smart Detections (People, Vehicles, Animals) |
Yes |
| Resolution |
4K |
| Field of View |
H: 109.9°, V: 56.7°, D: 134.1° |
| Audio |
Two-way audio |
| Weatherproofing |
IPX5 |
| Tamper Resistance |
IK04 |
| Mounting |

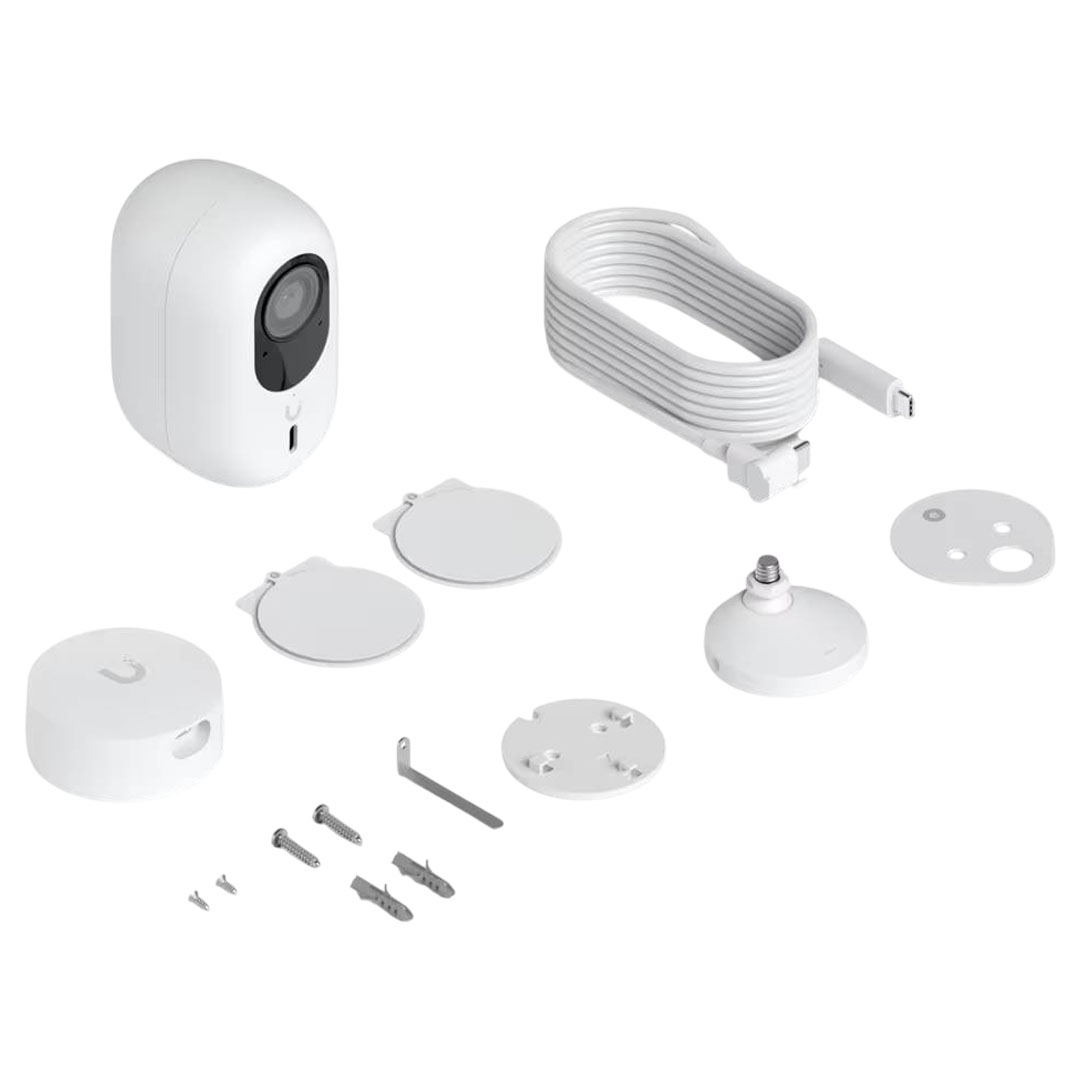

Wall mount accessory (Included) |
| UniFi Application Suite |
Protect: Yes |
Performance
| Networking Interface |
802.11 a/b/g/n/ac WiFi
Bluetooth |
| Video |
Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate: 30 FPS
Resolution: 8MP 3840 x 2160 (16:9) |
| Optics |
Sensor: 1/1.8” 8MP
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption |
7W |
| Supported Voltage Range |
5V DC, 2A |
| Power Method |
5V, 2A USB power adaptor (Included)
PoE to USB-C adaptor (Not included) |
| Processor |
Quad-core Arm® Cortex®-A53 based chip |
| Weight |
180 g (6.3 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Expansion Slot |
MicroSD card |
| Button |
(1) Factory-reset |
| Cable |
Cable Connector Type: USB Type-C to USB Type-C
Cable Diameter: 3 mm (0.1")
Cable Length: 2 m (6.6 ft)
Jacket Material: Thermoplastic elastomer |
| Ambient Operating Temperature |
-20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity |
0 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
Backed by a 1 year Ubiquiti warranty.
