The Ubiquiti UniFi WiFi 7 Long Range Access Point is a high performance access point leveraging advanced WiFi 7 technology and 5 spatial streams to provide powerful and long-range wireless coverage to enterprise environments. It features max data rates of up to 4.3 Gbps with WiFi 7, and is powered with PoE. This access point and can be ceiling or wall mounted.
Features
U7 Long-Range
Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Deployment
Build Features

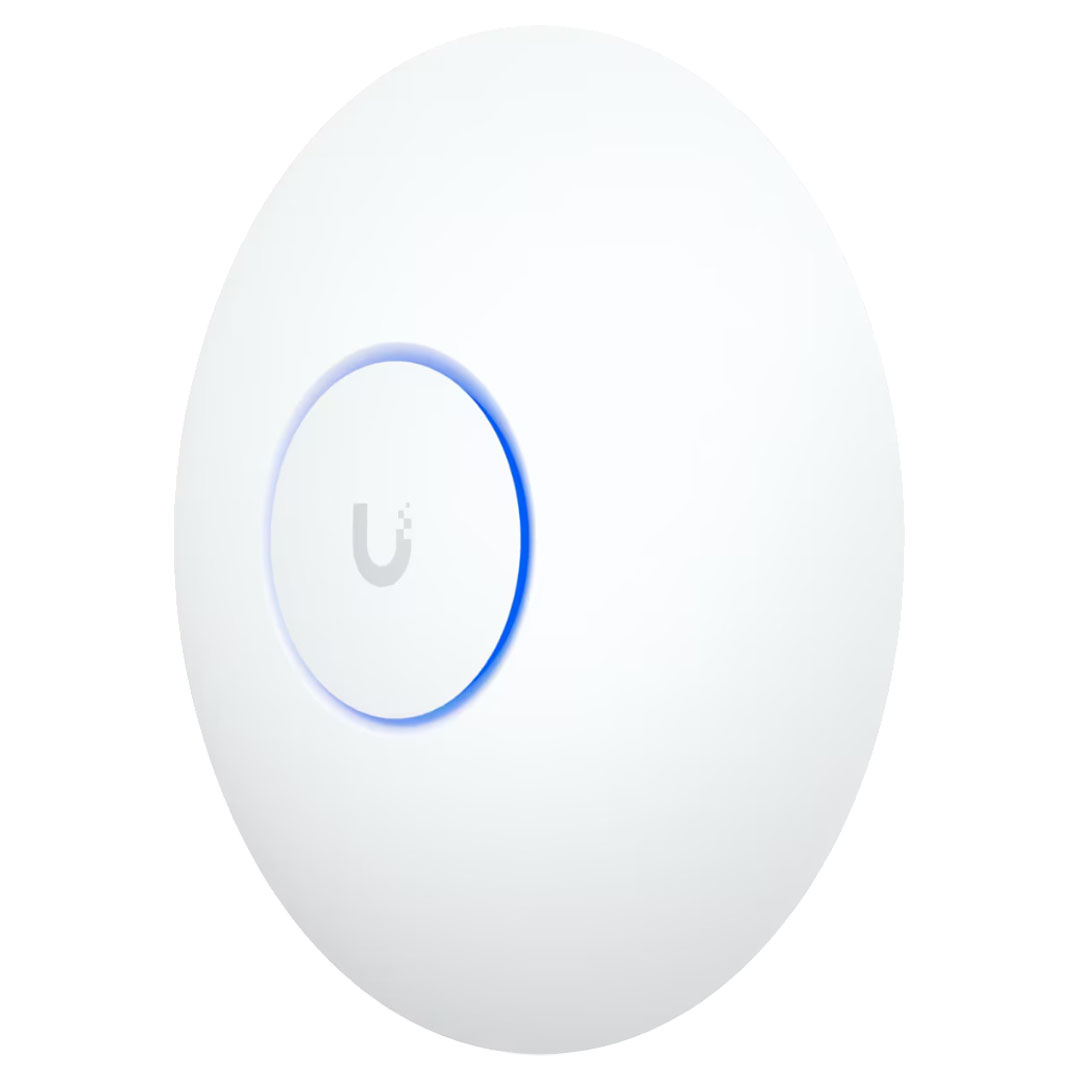

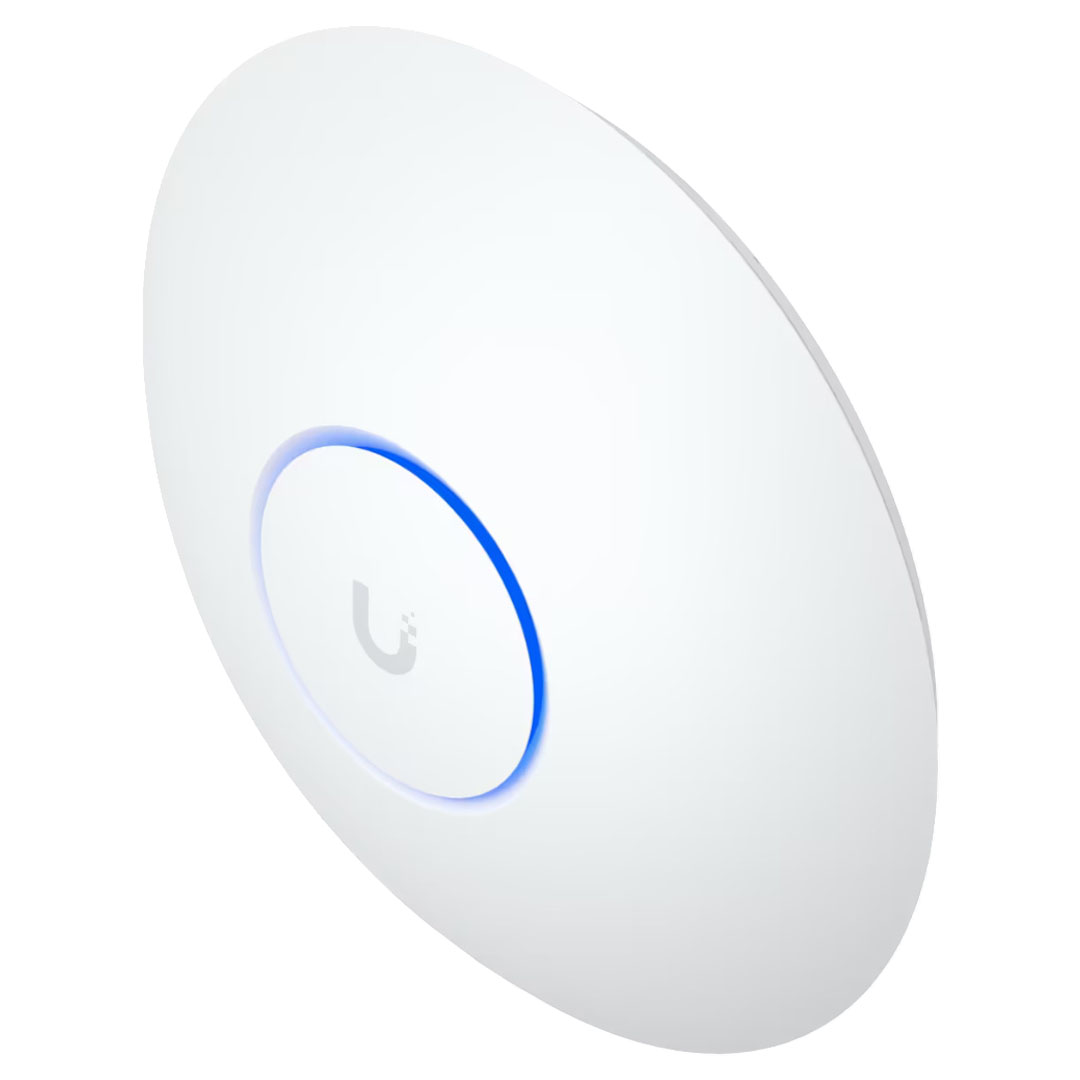

Front View

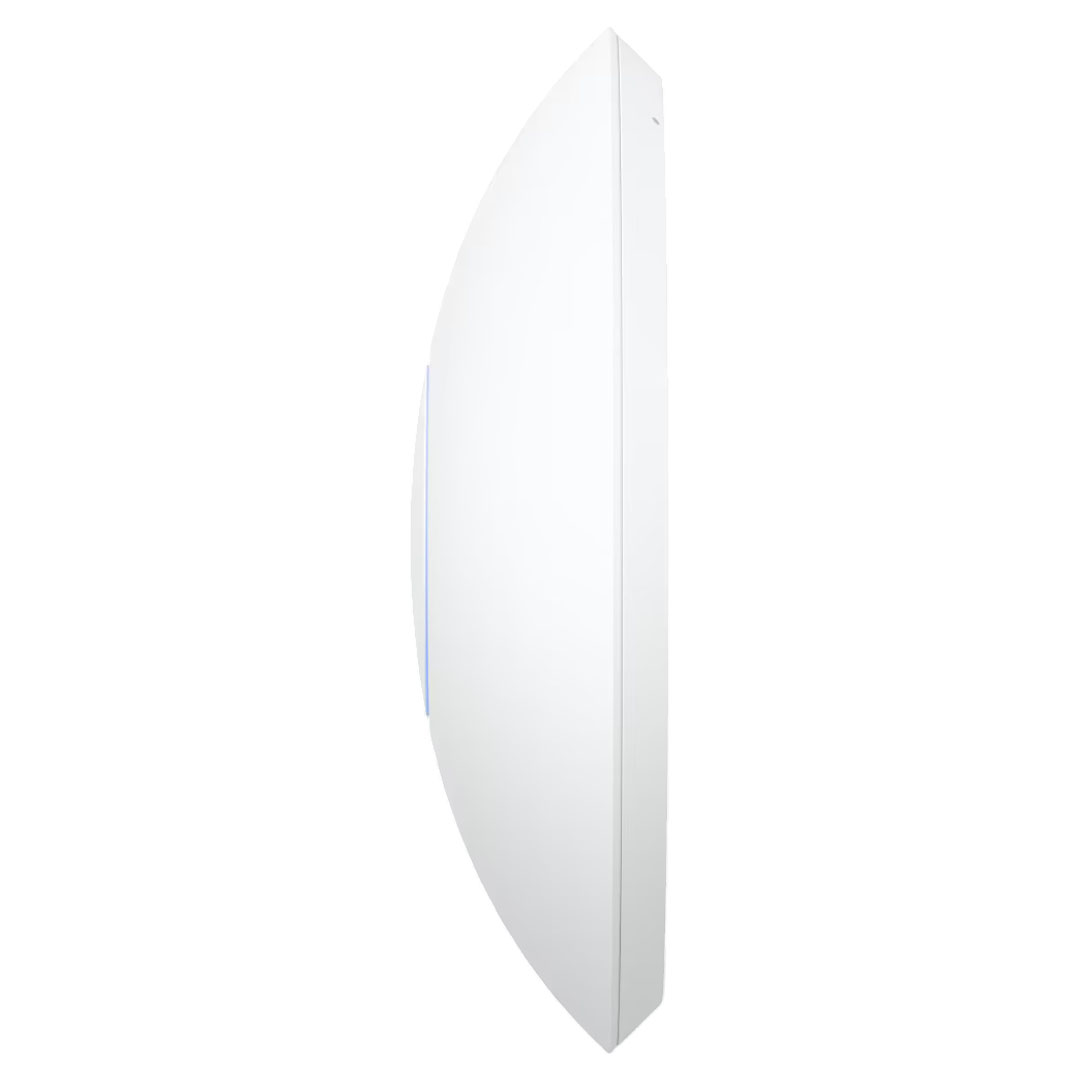

Side View

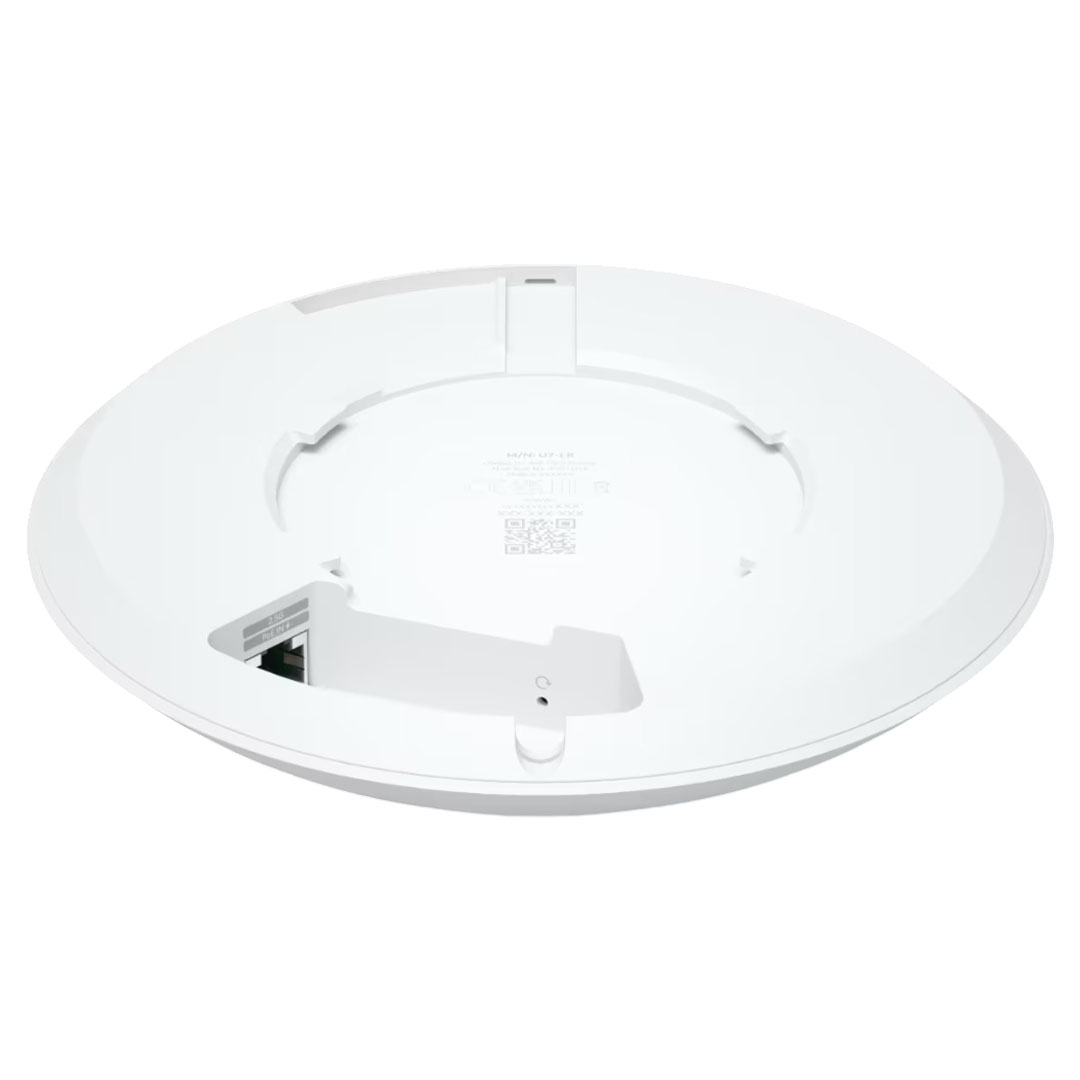

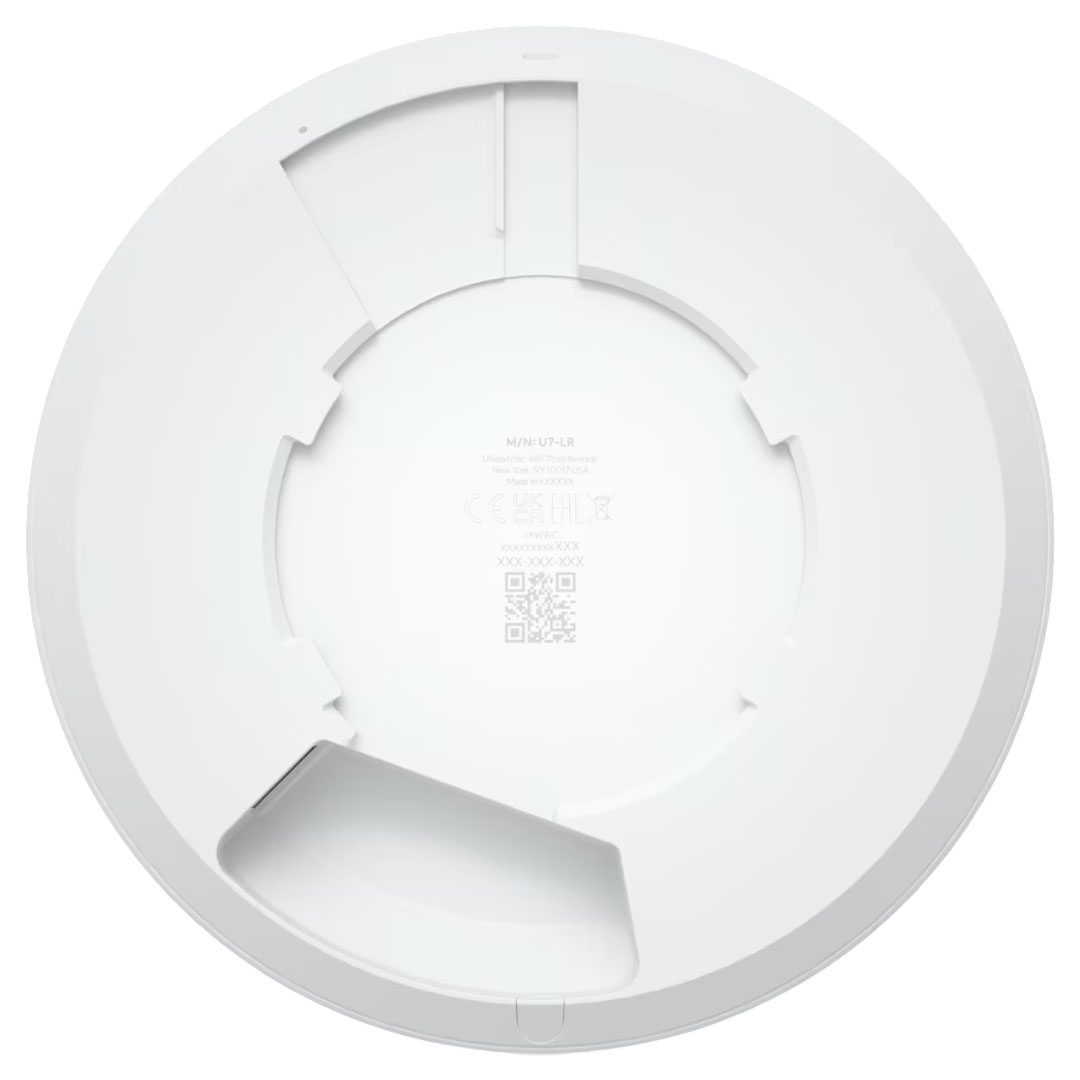

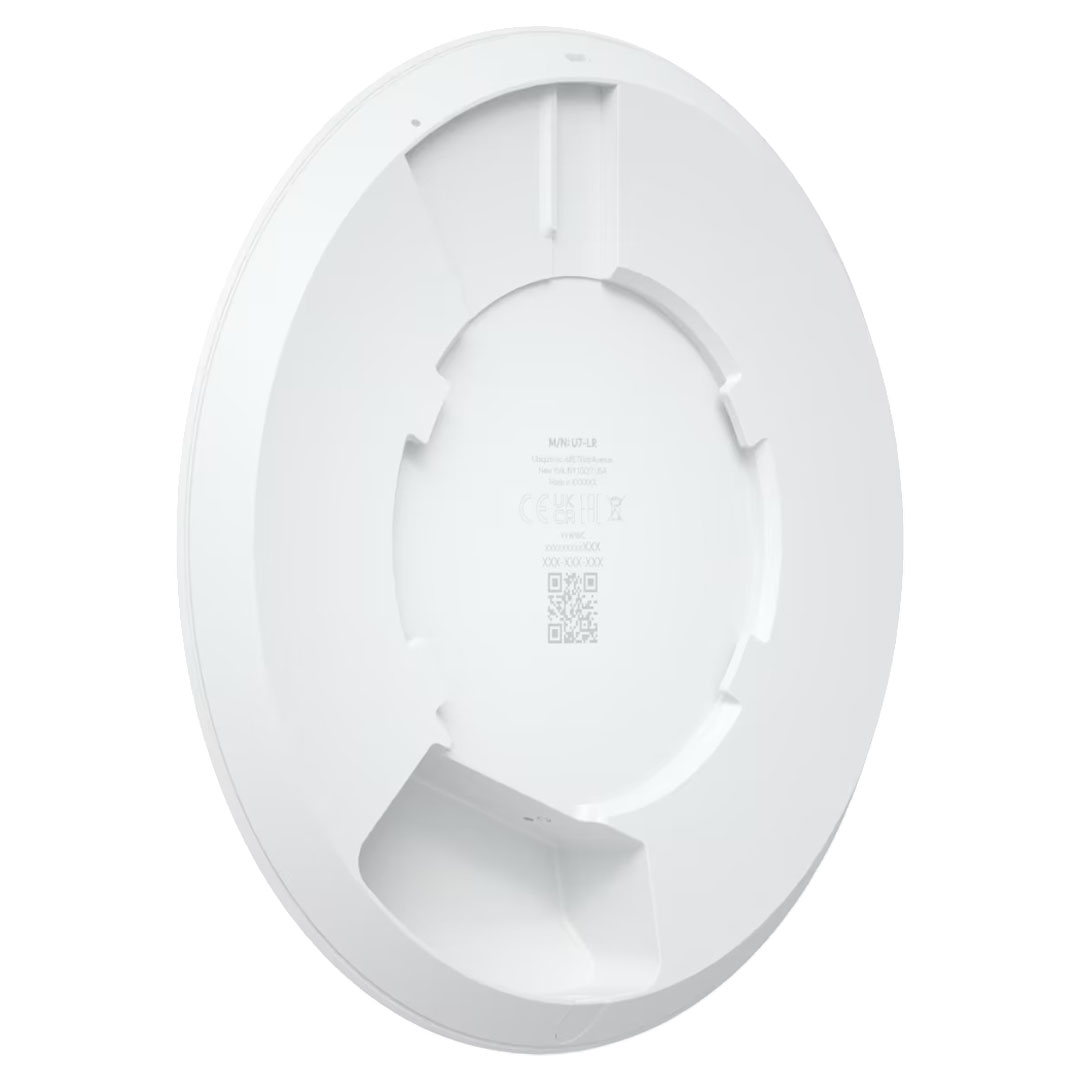

Back View
Specifications
General Data
| Model Number |
U7-LR |
| Dimensions |
Ø175.7 x 43 mm, (Ø6.9 x 1.7") |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
5 |
| Coverage Area |
160 m2 (1,750 ft2 ) |
| Max. Client Count |
300+ |
| Uplink |
2.5 GbE |
| Mounting |
Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method |
PoE |
Performance
| MIMO |
5 GHz - 3 x 3 (DL/UL MU-MIMO)
2.4 GHz - 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
5 GHz - 4.3 Gbps (BW160)
2.4 GHz - 688 Mbps (BW40) |
| Antenna Gain |
5 GHz - 6 dBi
2.4 GHz - 4 dBi |
| Max. TX Power |
5 GHz - 27 dBm
2.4 GHz - 26 dBm |
| Supported Data Rates |
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Captive Hotspot Portal |
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS Over TLS (RadSec) |
Yes |
| Dynamic RADIUS-Assigned VLAN |
Yes |
Hardware
| Max. Power Consumption |
14 W |
| Supported Voltage Range |
42.5 — 57 V DC |
| Networking Interface |
(1) 2.5 GbE RJ45 port |
| Weight |
448 g (15.8 oz) |
| Management |
Ethernet |
| Enclosure Material |
Polycarbonate, Aluminium alloy |
| Mount Material |
Polycarbonate, galvanised steel (SGCC) |
| LEDs |
System - White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
| Ambient Operating Temperature |
-30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
Software
| Application Requirements |
UniFi Network
Version 9.1.120 and later
Mobile App
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later |
Backed by a 1 year Ubiquiti warranty.
