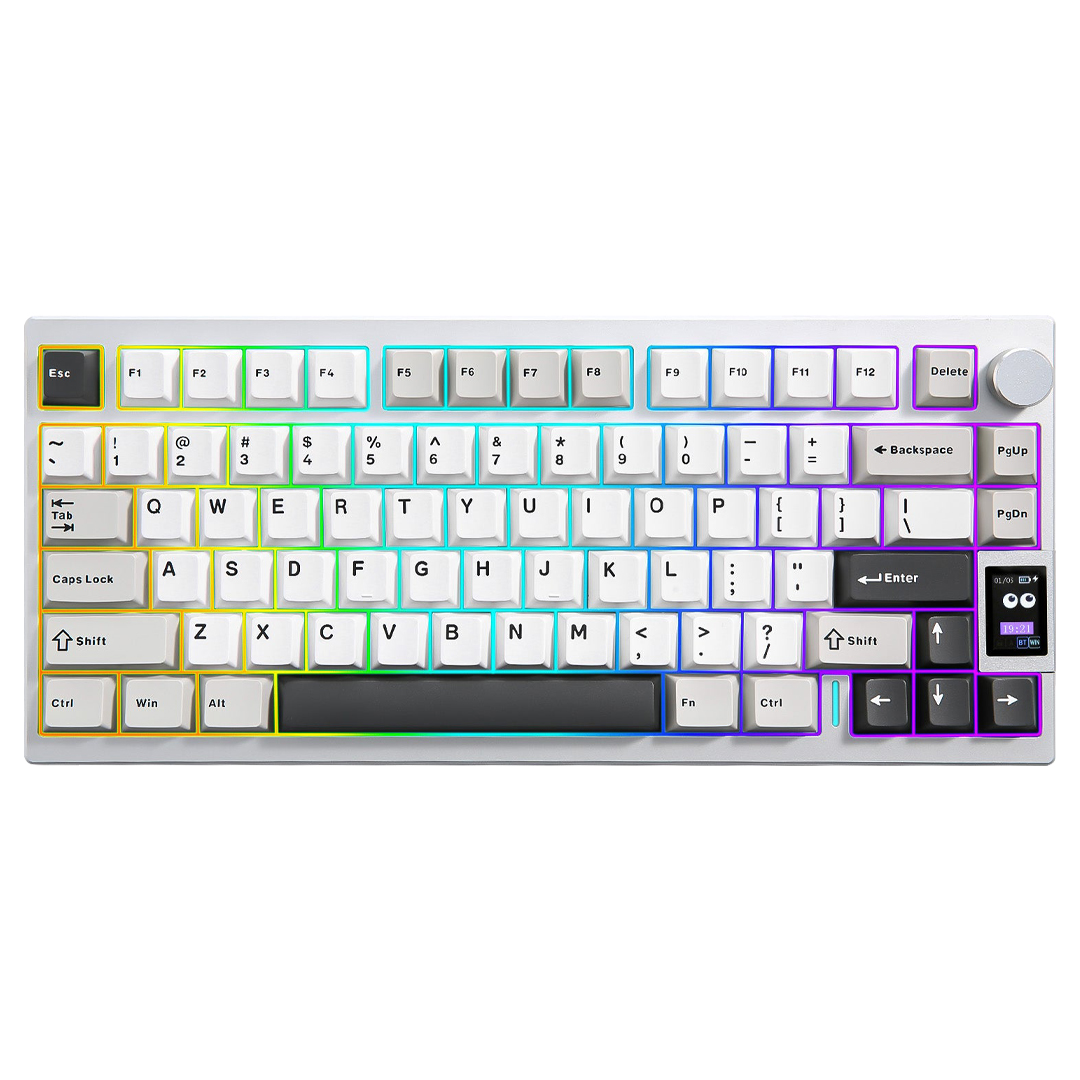

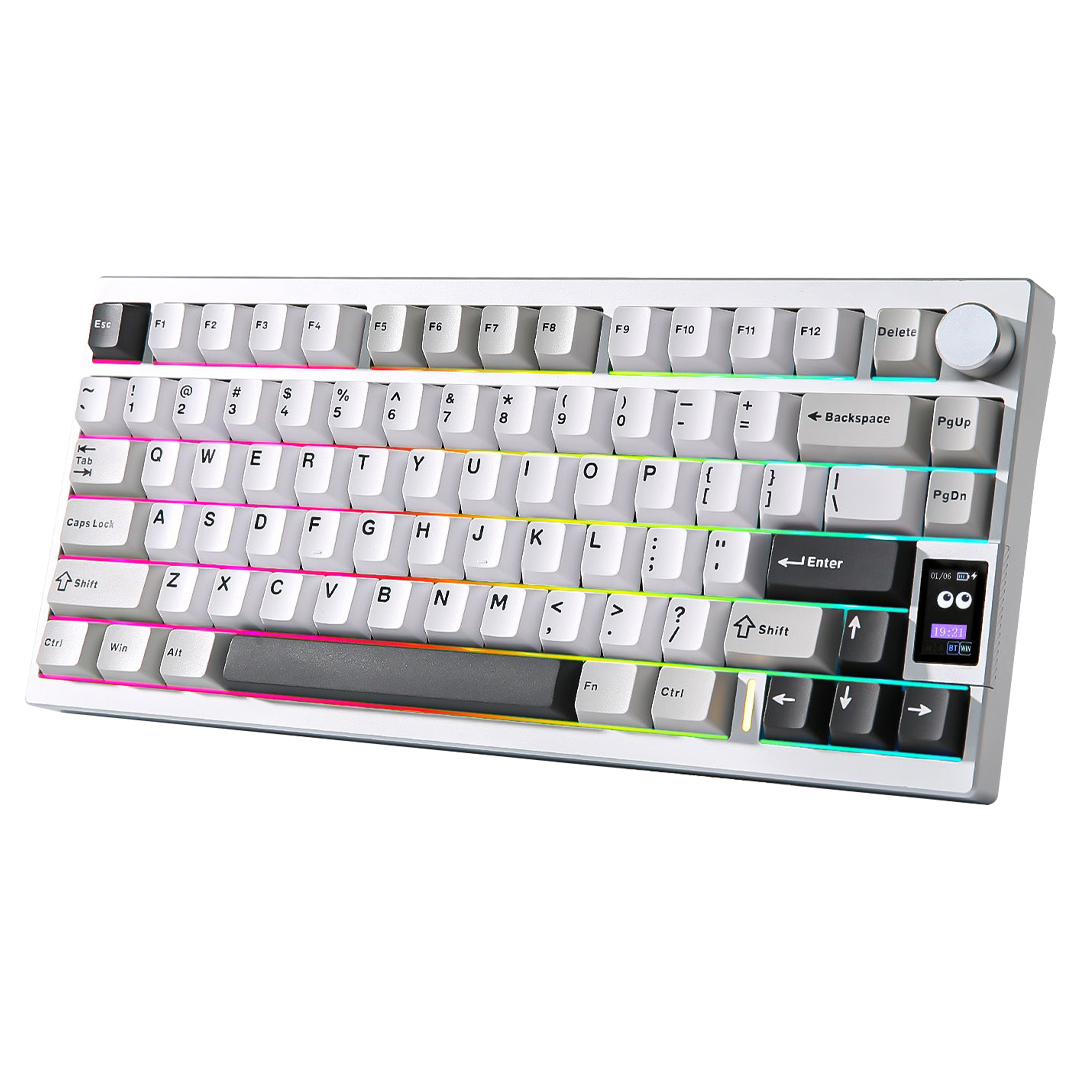

The YUNZII AL80 Tri-Mode Hot-Swap Aluminium Mechanical Keyboard in White is a premium 75% layout keyboard featuring a CNC-machined aluminium case, a customisable LCD screen, and a multifunctional rotary knob. It offers tri-mode connectivity (Bluetooth, 2.4GHz wireless, and USB-C wired), supports hot-swappable switches compatible with most MX-style options, and includes QMK/VIA programmability for extensive customisation. With a gasket-mounted structure, pre-lubed linear switches, and a 6000mAh battery, it delivers a smooth, quiet typing experience complemented by vibrant RGB lighting and durable double-shot PBT keycaps.
Features
YUNZII AL80 QMK/VIA Aluminium LCD Mechanical Keyboard
Custom LCD Keyboard &Vibrant RGB
YUNZII AL80 wireless mechanical keyboard features a customisable LCD screen that can display time, GIFs, photos, battery status, connection mode, and more. The RGB gaming keyboard has over 20 backlight modes,1.68 million RGB colours, and south-facing LEDs. Shortcut keys or drivers support adjusting various dynamic RGB effects, allowing you to experience the infinite fun of RGB.
- QMK/VIA Support
- PBT Keycaps Cherry Profile
- Adjustable RGB
- BT/2.4G/Wired
- CNC Knob
- Hot Swap
- LCD Screen
- Gasket Mount
- 6000mAh Battery
Tri-Mode Connection
Tri-Mode Connectivity with Extended Battery Life
The YUNZII AL80 wireless mechanical keyboard offers tri-mode connectivity with Bluetooth, 2.4G wireless, and USB Type-C options. Effortlessly connect up to 5 devices and multiple systems, such as Windows, Mac, Linux, Android, and iOS, and enjoy 1000hz polling rate lag-free performance. Powered by a 6000mAh battery, this anodised aluminium keyboard supports long, uninterrupted sessions for gaming or work, ensuring you stay focused without constant recharging.
Supports simultaneous connection of various devices, supports Windows/Mac/Linux/Android/IOS systems.
Hot-Swappable Mechanical Keyboard
Full Key Hot Swappable & Pre-Lubed Linear Switches
As a hot-swappable mechanical keyboard, the YUNZII AL80 gaming keyboard is compatible with 3pin/5pin mechanical switches, which can be compatible with all MX switches including Gateron, Cherry, etc, offering endless customisation options for a truly personalised setup. The AL80 gaming keyboard is equipped with pre-lubed linear switches. Known for their creamy, smooth sound, these linear switches are ideal for gaming and everyday use.
- Supports 3/5 Pins Switch
- Single Key Slotted
- South Facing RGB
- LOG LED
Gasket Structure
75% Aluminium Keyboard with Gasket Mount
YUNZII AL80 features a compact 75% layout and gasket-mounted structure for a thocky and creamy typing sound. The creamy keyboard has multiple layers of sound-absorbing material, reducing noise and enhancing typing comfort. The anodised aluminium frame ensures durability while delivering a smooth, satisfying experience, making it perfect for both work and gaming setups where sound quality and aesthetics are key.
1. Function Knob
2. LCD Screen
3. Double Shot PBT Keycaps
4. Keyboard Frame
5. Mechanical Switches
6. PC Plate
7. Sandwich Foam
8. IXPE Switch Pad
9. PET Pad
10. PCBA
11. Switch Foam
12. PET Pad
13. Keyboard Bottom Case
14. Non Slip Bottom Silicone
15. Glossy Metal Plate
16. 6000mAh Battery
17. Gaskets
QMK/VIA Support for Full Customisation
Fully Customise Your Keyboard
With QMK/VIA support, you can dive into the full customisation fun, full key remapping, macro programming, RGB control, and so on. This thocky keyboard allows you to programme every key, including the metal mechanical knob, for a completely personalised experience. It is ideal for gaming setups, PC accessories, and enthusiasts looking for the ultimate custom aluminium mechanical keyboard.
- Customise RGB
- GIF Image Display
- Key Setting
- Macro Setting
RGB Backlight Control
- Fn + ↑ : Backlight Brightness+
- Fn + ↓ : Backlight Brightness-
- Fn + ← : Backlight Speed-
- Fn + → : Backlight Speed+
- Fn + Delete : Turn off backlight
- Fn + PgUp : Side Backlight Brightness+
- Fn + PgDn : Side Backlight Brightness-
- Fn + R Ctrl : Check Battery Level
- Fn + | : Switch Backlight Colour
- Fn + Enter: Switch Backlight Light Effect
Pre-Lubed Custom Switches
Large Capacity Battery
- Fast Charging
- Durability
- Long-lasting ON
- 36h with RGB
- 96h RGB Off
- 12h Charging
FN+ Function
Fn+S: Windows
- Fn+Spacebar: Reset Keyboard
- Fn+F1=Screen Brightness ↓
- Fn+F2=Screen Brightness ↑
- Fn+F3=Choose a window or desktop (Win+Tab)
- Fn+F4=Computer
- Fn+F5=Email
- Fn+F6=Homepage
- Fn+F7=Previous Song
- Fn+F8=Play/Pause
- Fn+F9=Next Song
- Fn+F10=Mute
- Fn+F11=Volume ↓
- Fn+F12=Volume ↑
- Fn+1/2/3=BT1/2/3
- Fn+4=2.4G
Fn+A: MacOS
- Fn+Spacebar: Reset Keyboard
- Fn+F1=Screen Brightness ↓
- Fn+F2=Screen Brightness ↑
- Fn+F3=Mission Control
- Fn+F4=Launchpad
- Fn+F5=No Function
- Fn+F6=No Function
- Fn+F7=Previous Song
- Fn+F8=Play/Pause
- Fn+F9=Next Song
- Fn+F10=Mute
- Fn+F11=Volume ↓
- Fn+F12=Volume ↑
- Fn+1/2/3=BT1/2/3
- Fn+4=2.4G
Bluetooth Mode
1. Switch the mode button to the Bluetooth mode.
2. Short press FN+1/2/3 to select a channel, long press to the pairing mode.
3. Select YUNZII AL80 BT1/BT2/BT3 for pairing.
4. Connect successfully, The LOG LED light up.
2.4G Wireless Mode
1. Switch the mode button to the 2.4G Wireless mode.
2. Long press Fn+4, the LOG LED flash green fast.
3. Plug the dongle into an empty USB port.
4. Connect successfully, The LOG LED light up.
Multifunctional CNC Knob & LCD Screen
