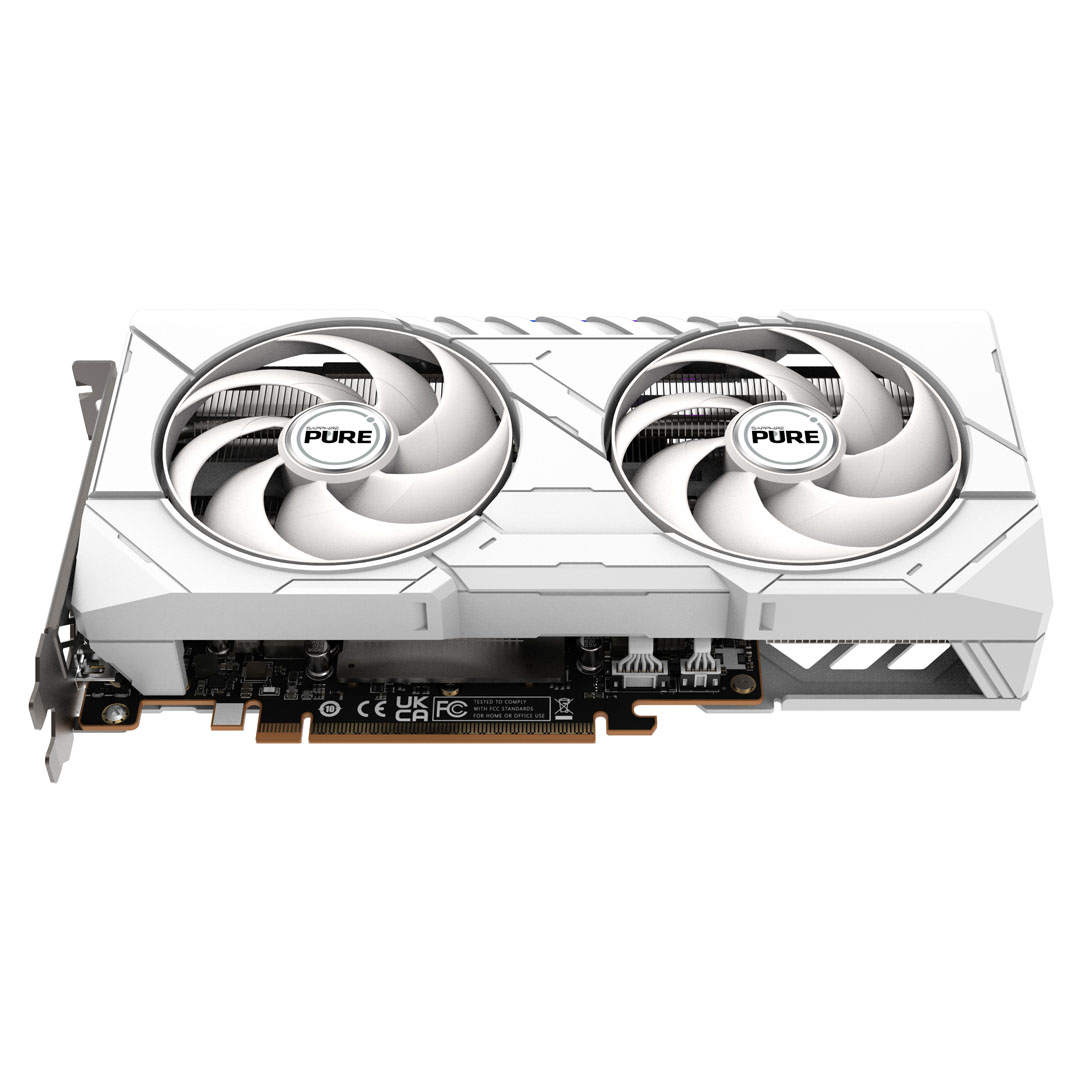

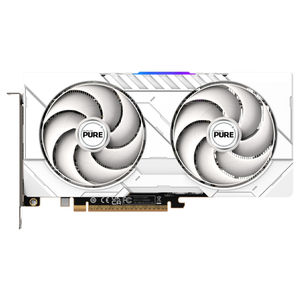

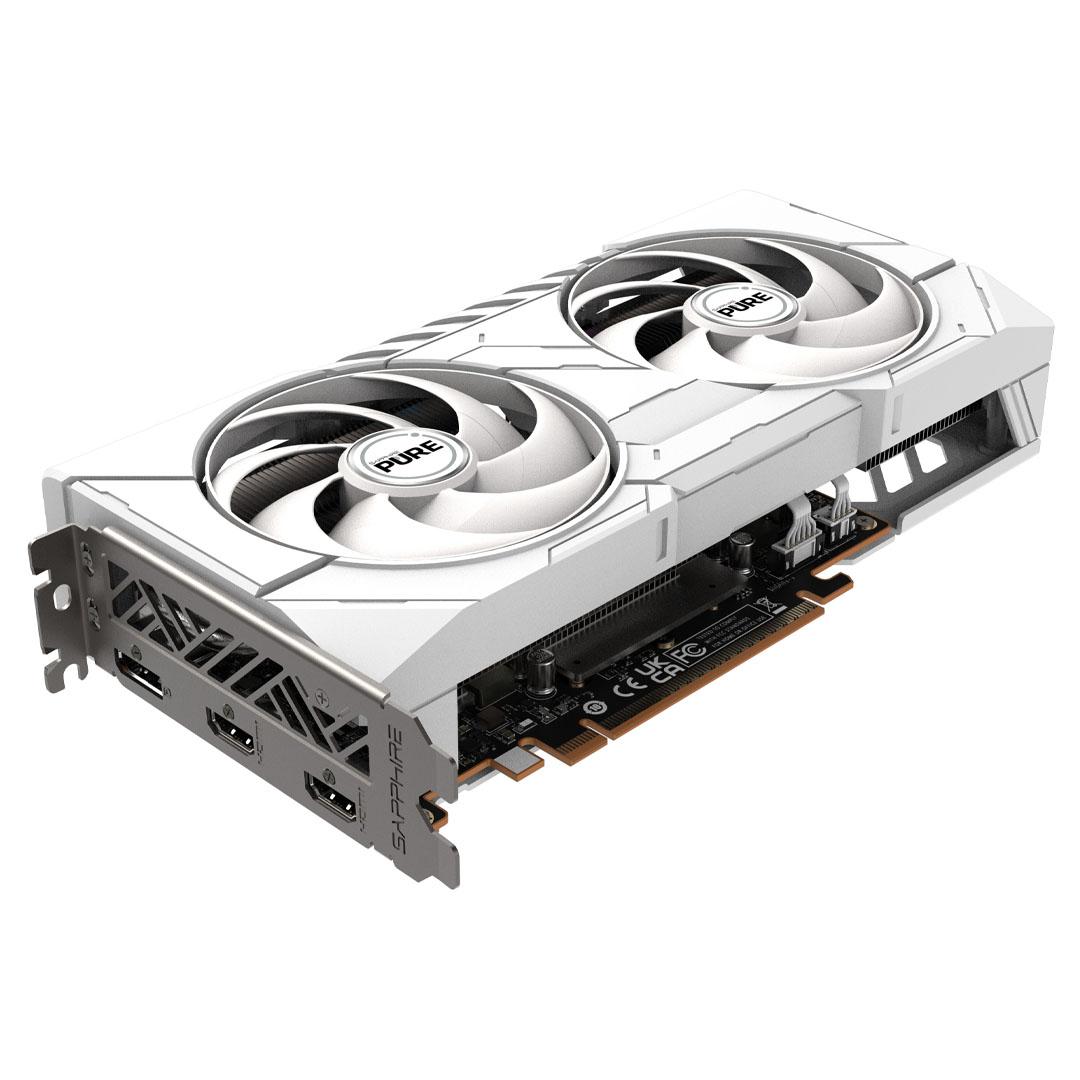

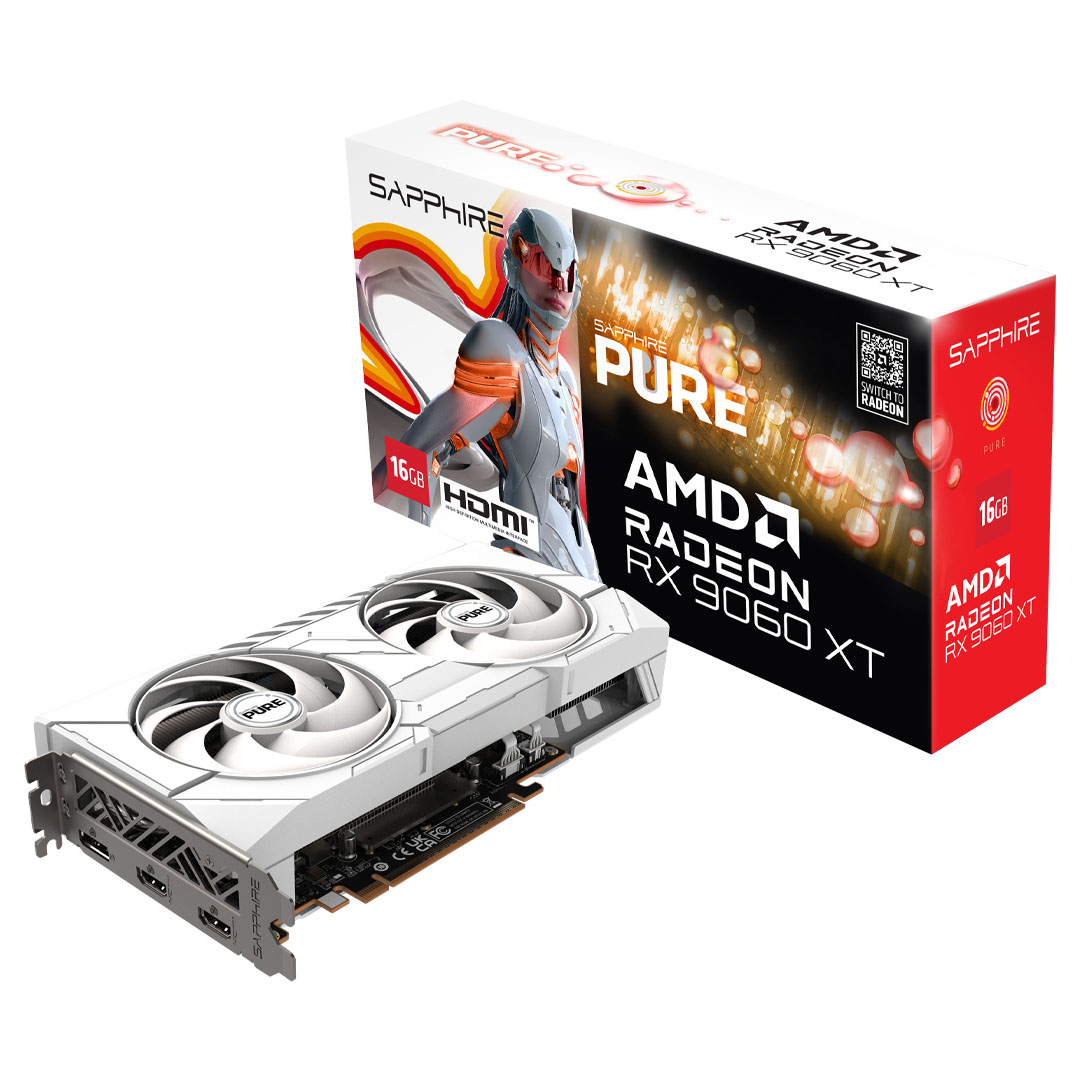

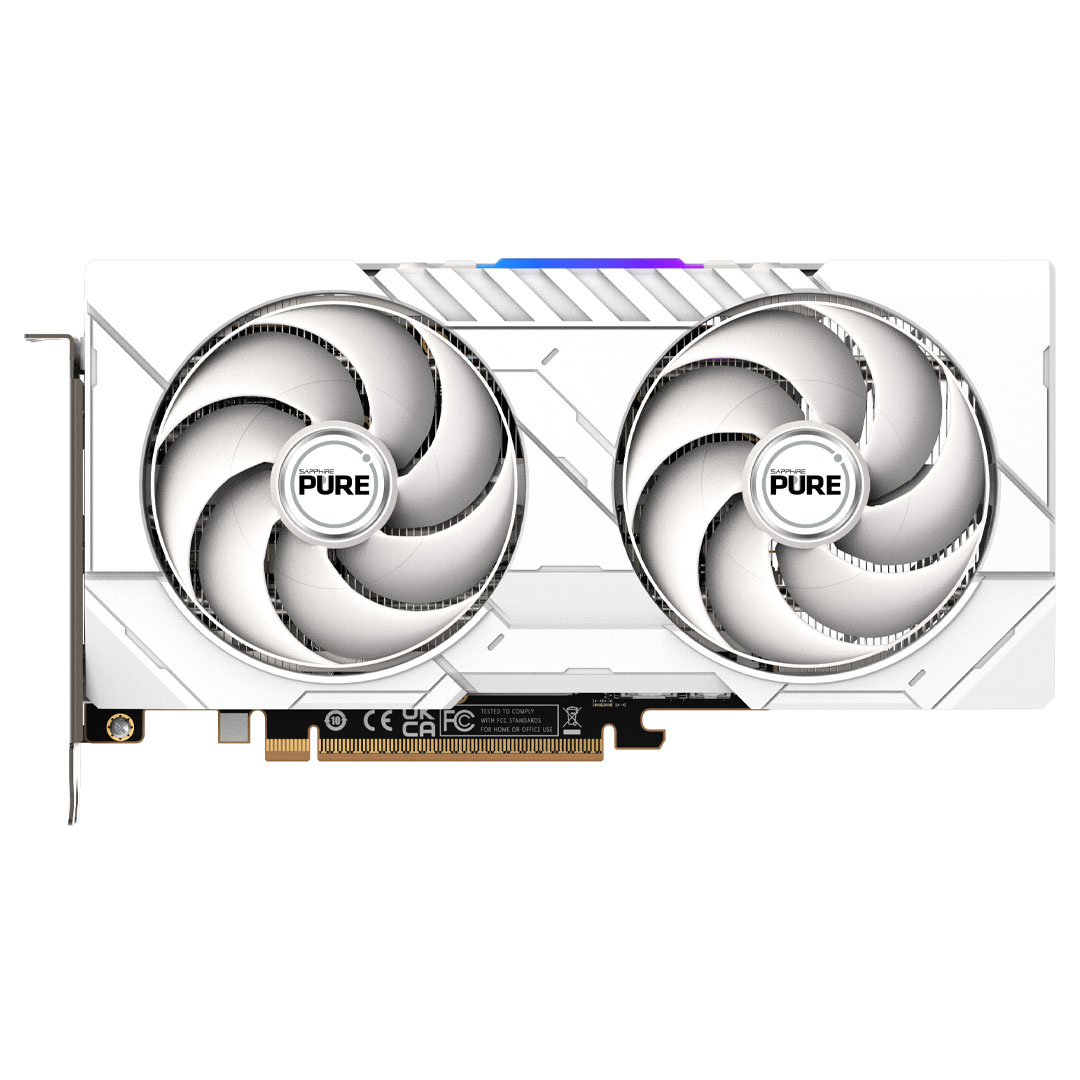

Sapphire Radeon RX 9060 XT Pure Gaming GDDR6 16GB

On sale! (normally $699) The Sapphire Radeon RX 9060 XT Pure Gaming GDDR6 16GB graphics card features a 2700MHz game clock, 3290MHz boost clock, 16GB GDDR6 128-bit memory interface, 20 Gbps memory speed, PCIe 5.0, 2 x HDMI 2.1, 1 x DisplayPort 2.1a, AMD RDNA 4 Architecture and DirectX 12 Ultimate support.

Features

---

Pure AMD Radeon™ RX 9060 XT GPU

• Honeywell PTM7950 Thermal Interface Material (TIM)
• AeroCurve Fan Blade
• Free Flow
• Frame Defence
• Integrated Cooling Module
• Dual-X Cooling Technology
• High TG Copper PCB
• Optimised Composite Heatpipes
• Metal Backplate
• ARGB SAPPHIRE Logo
• Two-Ball Bearing Fans
• 9-Phase Digital Power Design
• Fuse Protection
• Intelligent Fan Control
• Precision Fan Control
• TriXX Supported
• Performance vs. Efficiency Quicksets
• Glow!
• TriXX Boost
• External RGB LED MB Synchronisation

AMD

• AMD RDNA™ 4 Architecture
• 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
• AMD HYPR-RX with AFMF 2
• AMD FidelityFX™ Super Resolution 4 with AI Upscaling
• DisplayPort™ 2.1a
• AMD Radiance Display™ Engine
• AMD Fluid Motion Frames 2 technology
• AMD Radeon™ Anti-Lag 2 technology
• AV1 Encode/Decode
• AMD FidelityFX™ technologies
• Microsoft® DirectX® 12 Ultimate
• AMD Noise Suppression
• AMD Freesync™ technology
• AMD Infinity Cache
• 16 GB of GDDR6 on 128-bit Memory Bus
• AMD smart technologies
• AMD Software: Adrenalin Edition™ application

Free Flow

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimises airflow paths. By reducing turbulence and channelling air efficiently, it maximises heat dissipation, ensuring consistent performance even under heavy thermal loads.

Frame Defence

The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.

AeroCurve Fan Blade

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimised static pressure, and enhanced cooling efficiency for demanding applications.

Honeywell PTM7950 TIM

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

Optimised Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

Integrated Cooling Module

Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

High TG Copper PCB

The GPU is mounted on to the high-density 10 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

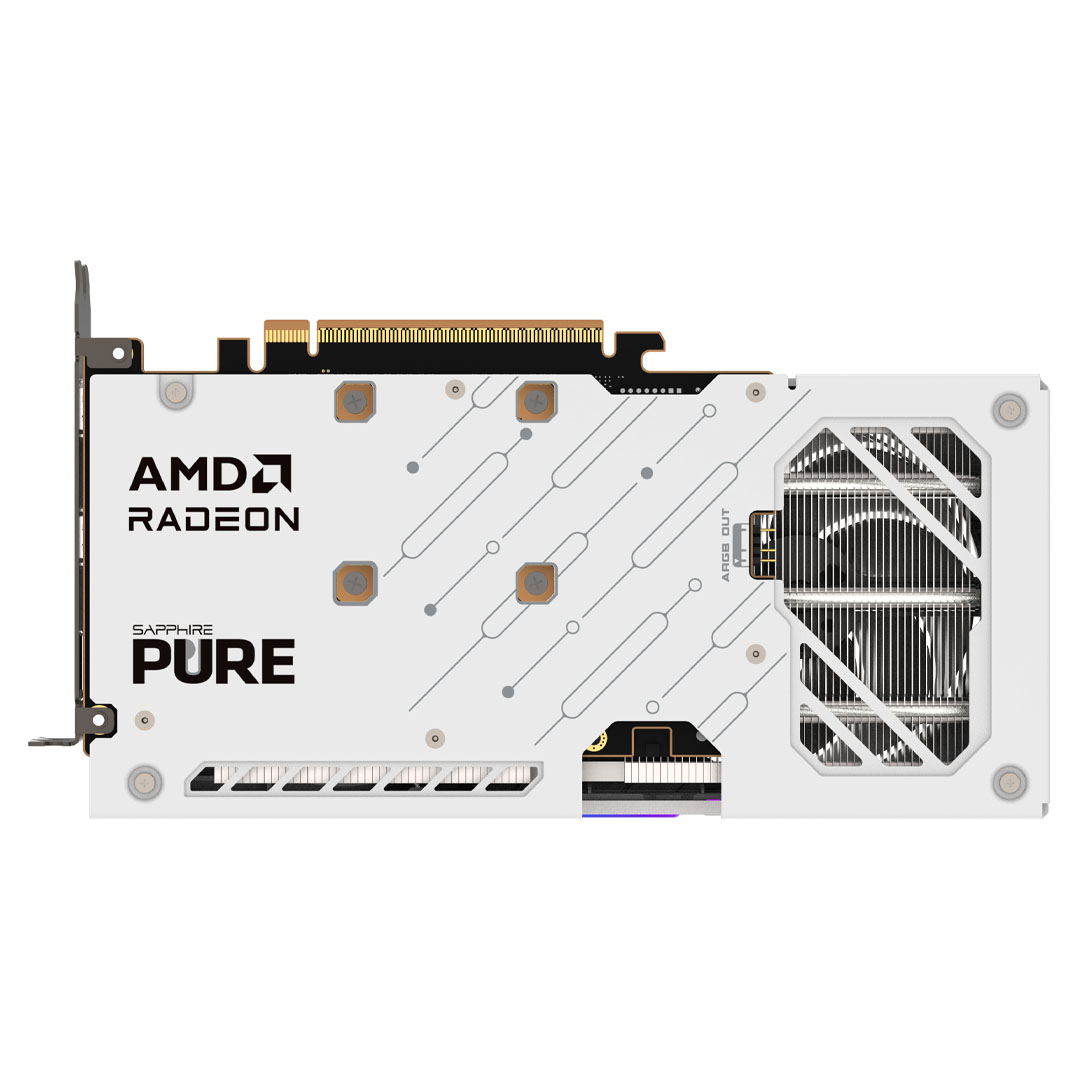

Tough Metal Backplate

The all-aluminium backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in test results. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

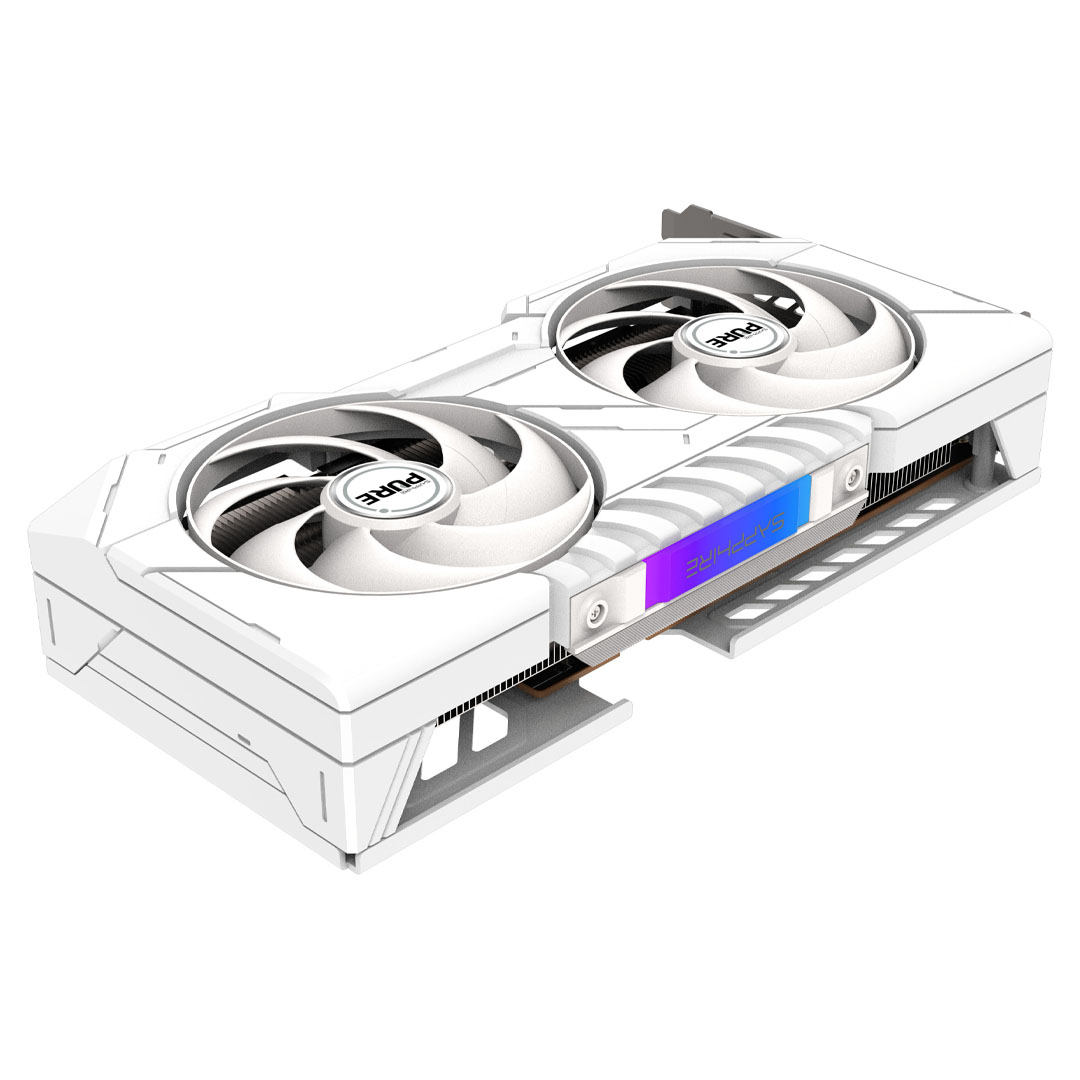

ARGB LED SAPPHIRE Logo

The newly integrated ARGB LED SAPPHIRE Logo grants customisation opportunities for a more personalised aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution.

External ARGB Control Sync

Enable the external synchronisation of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.

Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Digital Power Design

SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency.

Make Every Play Count

Designed for Lightning-Fast Gaming, Powered by AMD RDNA™ 4

Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced ray tracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology (AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors graphics cards. See AMD FidelityFX Super Resolution for additional information. GO-1876.) and AMD HYPR-RX (AMD HYPR-RX works on the AMD Radeon™ RX 7000 Series GPUs and newer or the Ryzen 7040 Series APUs with integrated RDNA 3 graphics and newer. AMD HYPR-RX allows various features within AMD Software to interoperate, working at the same time, including Radeon Super Resolution, FidelityFX Super Resolution, Radeon Anti-Lag, Radeon Boost, and AMD Fluid Motion Frames where applicable to select titles. GD-225A.) for ultra-smooth, ultra-responsive gameplay that makes every play count.

Powerful AI Enhanced Visuals

Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen ray tracing, supercharged with AMD FidelityFX™ Super Resolution 4 (AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors graphics cards. See AMD FidelityFX Super Resolution for additional information. GO-1876.) ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.

Performance Made Easy

The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimisation with AMD HYPR-RX (AMD HYPR-RX works on the AMD Radeon™ RX 7000 Series GPUs and newer or the Ryzen 7040 Series APUs with integrated RDNA 3 graphics and newer. AMD HYPR-RX allows various features within AMD Software to interoperate, working at the same time, including Radeon Super Resolution, FidelityFX Super Resolution, Radeon Anti-Lag, Radeon Boost, and AMD Fluid Motion Frames where applicable to select titles. GD-225A.). Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.

Future-Ready Tech

Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology (AMD Smart Access Memory technology is compatible with AMD Radeon RX 5000 Series GPUs or later, Ryzen 3000 Series CPUs or later (excluding Ryzen 5 3400G and Ryzen 3 3200G (PUs), AMD desktop kits (48005 Series and later), and an AMD 500 Series motherboard or later with the latest BIOS update available at the vendor website. OEM support is required. For additional information see AMD Smart Access Memory. GD-178.), AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
