The ROG Crosshair X870E Extreme WiFi 7 DDR5 motherboard is an ultra-premium E-ATX platform engineered for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, offering next-gen connectivity and extreme overclocking capabilities. It features a robust 20+2+2 power stage design with dual ProCool II connectors, massive VRM heatsinks, and integrated backplate cooling for optimal thermal management. Designed for uncompromising speed, it includes dual PCIe 5.0 x16 slots, five M.2 slots (three onboard, two via ROG DIMM.2), and support for up to 256GB of high-speed DDR5 memory. The board delivers cutting-edge networking with WiFi 7, Marvell AQtion 10 Gb Ethernet, and extensive USB support including two USB4 ports, and multiple 20Gbps and 10Gbps ports. At the heart of its interface is a stunning 5inch full-color LCD display, providing real-time system monitoring and customisable animations. Combined with AI Overclocking, AI Cooling II and AI Networking, this motherboard delivers unmatched power and personalisation for high-end PC builds.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features

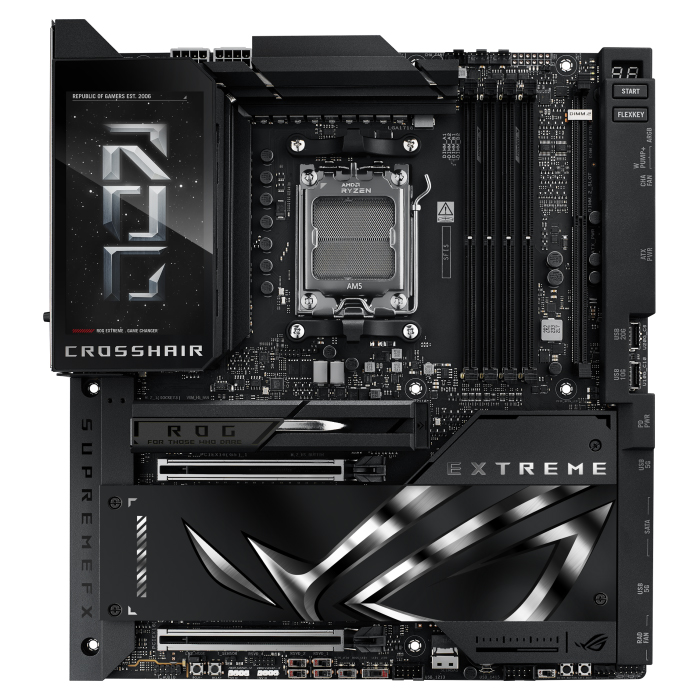

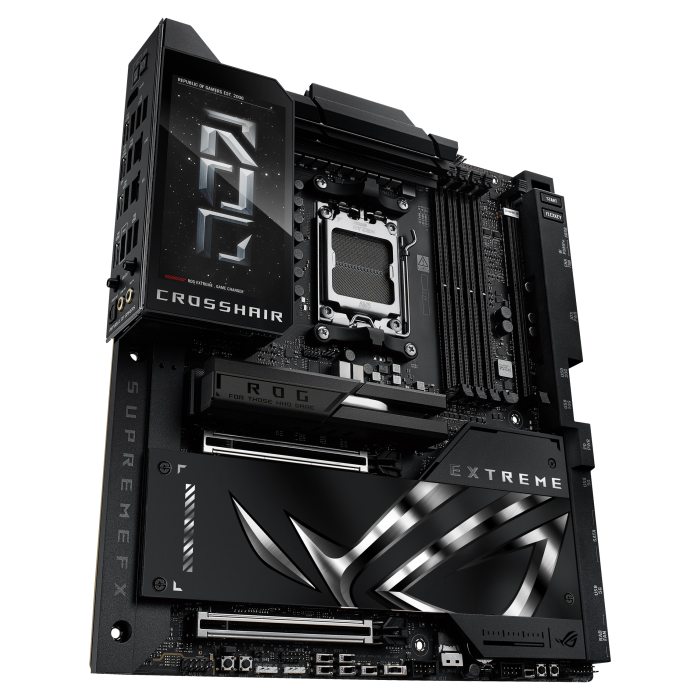

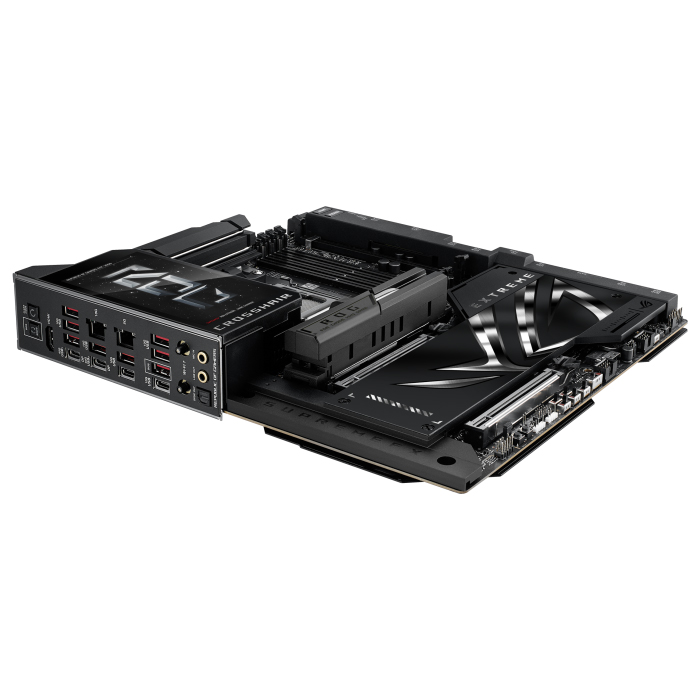

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalised style.
- Teamed Power Solution
- Overclocking - Effortless performance boost
- AI Networking II
- AI Cooling II - One-click fan tuning
- DDR5 - Max. 256 GB, AEMP
- NitroPath DRAM Technology, AEMP
- Extensive Gen 5 - x3 onboard M.2 Slots, and x2 PCIe 5.0 x16 Slots
- ROG Q-DIMM.2
- WIFI 7
- EZ PC DIY
- USB4®
Extreme Power & Performance
- Dual Procool II Power Connectors
- 20(110A)+2(110A)+2(80A) Power Stages
- Expansion Slots
2 x PCIe 5.0 x16 Slots
- AMD AM5 Socket
For AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- DDR5, 4 X DIMM
Max. 256 GB
Dual Channel
- 5 x M.2 Slots
2 x M.2 22110 (PCIe 5.0 x4)
1 x M.2 2280 (PCIe 5.0 x4)
2 x M.2 22110 (PCIe 4.0 x4) (via ROG Q-DIMM.2 Card)
Comprehensive Cooling
- Integrated I/O Cover & VRM Heatsinks
- Heatsinks for three M.2 Slots - With backplates and thermal pads
- Multiple 4-Pin PWM Fan Headers
- ROG DIMM.2 Card Heatsinks
Total Gaming Immersion
- Full Colour 5” LCD Display
- SupremeFX 7.1 ALC4082 Audio Codec
ESS® ES9219 QUAD DAC
120 dB SNR stereo playback output
110 dB SNR recording input
LED-illuminated audio jacks
Dolby Atmos
- 1 X 6-PIN ARGB GEN 2 Header TO Support 2 X ARGB GEN 2 Header
- 2 X 3-PIN Addressable GEN 2 RGB Header

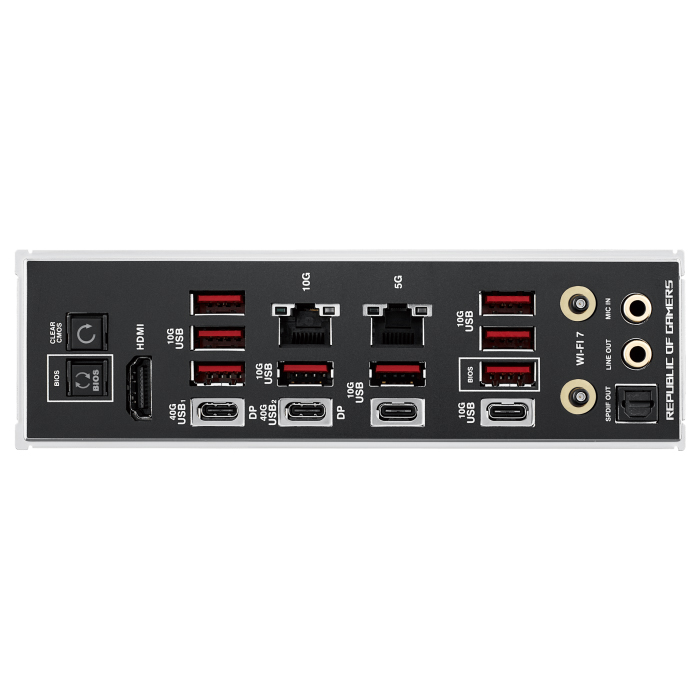

Full Connectivity
- BIOS Flashback™ Button
- Clear CMOS Button
- 1 X HDMI® PORT
- 2 X USB4® (40Gbps) ports
- MARVELL® 10Gb Ethernet port
- REALTEK 5Gb Ethernet port
- 10 X USB 10Gbps ports
(2 x USB Type-C® + 8 x Type-A)
- WI-FI 7
- Optical S/PDIF OUT
- 2 X GOLD-PLATED AUDIO JACKS
- 1 X USB 20Gbps
USB Type-C® front panel connector supports QC4+
- 1 X USB 10Gbps
USB Type-C® front panel connector
- 4 X SATA 6GB/S
- 1 X SLIMSAS connector
supports PCIe 4.0 x 4 mode
Asus AI Intelligence
Asus AI Cache Boost
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
AMD Ryzen 99950X3D-RTX 4090-ROG Crosshair X870E Hero
Geekbench Al (Higher is better)
- Default: 51786
- Al Cache Boost - 54392: +5.03%
- Al Cache Boost & Turbo Game Mode - 56757: +9.60%
UL Procyon - Al Computer Vision Benchmark (Higher is better)
- Default: 1426
- Al Cache Boost - 1485: +4.14%
- Al Cache Boost & Turbo Game Mode - 1702: +19.0%
Topaz Video Al (Lower is better)
- Default: 153 sec
- Al Cache Boost - 148 sec: +3.27%
- Al Cache Boost & Turbo Game Mode - 145 sec: +5.23%
AMD Ryzen 7 9800X3D-RTX 4090-ROG Crosshair X870E Hero
UL Procyon - Al Computer Vision Benchmark (Higher is better)
- Default: 1490
- Al Cache Boost - 1680: +12.75%
ASUS AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS. ( Availability of ASUS AI Advisor may vary by region.)
AI Overclocking
Tuning is now faster and smarter than ever before.
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
AI Cooling II
Balance the thermals and acoustics of any build with a single click.
A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
AI Networking II
AI Networking II combines intelligent technologies to continuously optimise network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7(Features may vary by model.).
Traffic Monitor
Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button (The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.) for improved network performance.
Fast Check
Armoury Crate's Fast Check empowers users to rapidly detect WiFi signal strength.
Direction Finder
Armoury Crate's Direction Finder (The Direction Finder is only compatible with connections in the 5GHz and 6GHz bands) helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.
GameFirst
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimises networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customisable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user's experience, GameFirst is now integrated into Armoury Crate.
Performance
Overclocking
Dynamic OC Switcher
Dynamic OC Switcher maximises CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
- Multi-Threaded Performance - Manual OC (Ex: > 35A, < 80°)
- Single-Threaded Performance - AMD PBO (Ex: ≤ 35A, ≥ 80°)
Example:
If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.
Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.
In its simplest form, you can maximise base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
Examples:
Base Clock
- For this CPU, the base clock (BCLK) can be stably increased to give an extra boost during lightly threaded workloads.
- At Level 1, the BCLK is set to 104, and it remains at that frequency until the current reaches 35A.
- Then the BCLK drops down to 102, and stays in that Level 2 range up until 55A.
- From that point on, the CPU is using most or all of its threads, so the BCLK scales back to the default 100.
EDC
- By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts.
- During lightly threaded workloads, below 35A, the Level 1 EDC is set to a low value, in this case 60.
- As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance.
- Once the CPU passes 70A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.
PPT
- In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically the short-term value (“Fast”) is used.
- Until the CPU reaches 70°, it can run at full performance, so 350W is set to give plenty of overhead.
- At that point, the power limit reduces to 220W, to let the CPU start reducing heat.
- If it is still under sustained load and keeps getting hotter, then a more stringent 165W PPT is set at 85°.
Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X870E Apex features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.
Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
- Crystal Oscillator
- Clock Generator
- CPU Clock - Separate CPU BCLK from other components for a stable overclocking edge
- SoC-Connected Components - IGPU, Memory, Infinity Fabric, NBIO
PBO Enhancement
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.
By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
Overclocker's Toolkit
The ROG Overclocker’s Toolkit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.
- Safe Boot Button - Instantly reset the PC and boot directly into Safe mode.
- BCLK Buttons - Adjust the BCLK frequency to improve system performance.
- Probeit - Includes eighteen integrated measurement points for advanced tuning.
- Retry Button - Instantly initiates a hard reset with just a press.
- RSVD Switch - Helps the system boot under extreme temperatures (≤ -120°C)
- LN2 Mode - Jumper to enable special options and functions for liquid-nitrogen (LN2) overclocking.
- BIOS Switch - Switches between BIOS 1 and 2.
- Slow Mode Switch - Reduces the CPU ratio to 8X to keep the system stable during setup for extreme overclocking.
Memory
DDR5 Domination
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair X870E Extreme(Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.)
NitroPath DRAM Technology
NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimised signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinforced DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.
- Frequency up to 400 MT/s higher
- Gold finger stub >70% shorter Gold finger stub
- Slot retention force enhanced by 57%
* The feature is patented. Images are for illustrative purposes only. Actual size and length may vary with DDR5 connector.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.
Power Solution
ROG Ultimate Power Solution
20(110A)+2(110A)+2(80A) Power Stages
- 20 - VCORE (110A)
- 2 - SoC (110A)
- 2 - MISC (80A)
8 + 8-pin ProCool II Power Connectors
Dual ProCool connectors ensure a snug and reliable connection to the EPS 12V power lines.
20+2+2 Power Stages
The VRM features 20+2+2 power stages, each rated to handle up to 110 amps
10K Black Metallic Capacitors
Input and output filtering is provided by solid-polymer capacitors rated for high operating temperatures.
MicroFine Alloy Chokes
Each power stage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
Cooling
VRM Heatsink Array
VRM heatsinks on the MOSFETs and chokes are connected by an embedded heatpipe to increase mass and surface area for dissipation
High-Conductivity Thermal Pads
Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
3D VC M.2 Heatsink
The 3D vapor chamber M.2 heatsink offers a larger heat dissipation area, connected to extended heat pipes through a temperature equalisation plate to form a vacuum chamber, significantly improving cooling for PCIe 5.0 M.2 SSDs.
M.2 Heatsinks and Backplates
Large aluminum heatsinks provide extensive surface area to cool mounted M.2 drives, and three onboard M.2 slots have dedicated backplates for additional heat dissipation.
Chipset Heatsink
A dedicated heatsink draws heat away from the chipset to maintain optimum operating temperature.
Thermal Management
- An extensive array of headers line the ROG Crosshair X870E Extreme for precise cooling control and monitoring.
- Multiple temperature sources - Each header can be set to monitor and react to user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 4 or UEFI.
- 4-pin fan headers - Every onboard header supports auto-detection of DC or PWM fans.
- AIO pump header
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customisable functionality for new X870E / X870 motherboards, empowering you to build your dream gaming rig.
Connectivity
PCIe 5.0
Fully embracing the new standard, the ROG Crosshair X870E Extreme offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.
Onboard M.2 Slots
Three Onboard M.2 Slots
The ROG Crosshair X870E Extreme features three onboard PCIe 5.0 M.2 slots, which offer blistering 16 GB/s speeds.
It also features a SlimSAS Connector, which supports PCIe 4.0 x4 mode via a transfer cable. The cable is purchased separately.
Expansion Slots
Both x16 expansion slots offer PCIe 5.0 with incredible speeds up to 64 GB/s for compatible devices, fully supporting next-gen graphics cards. To bear the weight of massive graphics cards, they are also protected with SafeSlot retention brackets which can be released easily, thanks to PCIe Slot Q-Release Slim.
ROG DIMM.2 Card
The ROG Q-DIMM.2 expansion card lets you easily mount two PCIe 4.0 M.2 drives next to the memory module slots, where the card’s large heatsinks convect heat directly into the path of chassis airflow. (M.2 drive not included.)
USB Ports
Two USB4® Type-C® Ports
Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.
One USB 20Gbps & One USB 10Gbps Type-C Front Panel Connector
The USB 20Gbps front-panel connector features Quick Charge 4+ technology that can rapidly charge devices up to 60W (Requires a PCIe power supply cable to be plugged into the nearby 8-pin connector.).
WIFI 7
The revolutionary WiFi 7 is up to 4.8X times faster than standard WiFi 6 (WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. 320 MHz channels in the 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions.), thanks to tech like 320 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
5GB Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.
10GB Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Marvell® Aqtion 10Gbps Ethernet.
ASUS WiFi Q-Antenna
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
Wireless Signal Reception Improvement - Versus previous-generation antenna
- Up to +6% - 6GHz
- Up to +18% - 5/2.4 GHz
Gaming Audio
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 110 dB signal-to-noise ratio to the line-in jack for pristine recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec and an integrated ESS® ES9219 Quad DAC capable of reaching-114dB THD+N for superior front-panel output. This combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.
Audio Line Shielding
Blocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.
Switching MOSFETS
Unique design allows the codec's impedance-sensing function to be ported with either the front or rear headphone outputs.
Capacitors
Fine-quality components that produce a warmer, natural sound with exceptional clarity and fidelity.
ALC4082 Codec
Instead of the conventional high-definition audio (HDA) interface, the ALC4082 codec uses a USB interface to deliver studio-level sound reaching up to 32-bit 384 kHz audio resolution.
ESS® ES9219 QUAD DAC
The ESS® ES9219 QUAD DAC integrated QUAD DAC amplifier is capable of providing -114 dB total harmonic distortion (THD+N) for standard audio devices, and it can ramp up to 2Vrms on supported audiophile hardware. In addition, the 121 dB dynamic range (DNR) provides an extremely low noise-floor, further accentuating dynamics and punch.
Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
EZ PC DIY
PCIE® Slot Q-Release
With PCIe® Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users will no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.
M.2 Q-Release
The M.2 heatsink features a convenient switch (Switch may be a lever or button, depending on motherboard model.) to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
M.2 Q-Slide
This new sliding M.2 latch design supports sizes 2242 and 2260 for easy device installation.
New M.2 Q-Latch
The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
Q-LED
Q-LED is a set of troubleshooting lights to give PC builders quick indicators to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. Q-LED can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.
Start Button
This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.
Q-Code
The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.
BIOS FlashBack™ & Clear CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Advanced Mode
When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
My Favourites
Quickly locate tuning options and add preferred tools to your favourites list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.
GPU Post
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Software
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
Dolby Atmos
Dolby Atmos expands on traditional surround sound systems by adding height channels, allowing sounds to be interpreted as three-dimensional objects. This creates an immersive audio experience, giving the sensation of sound coming from above, below, and around the listener.
ASUS Glidex
ASUS Glidex is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
- Mirror
- Extend (PC to Mobile)
- Extend (PC to PC)
- Unify Control
HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
AIDA64 Extreme
The ROG Crosshair X870E Extreme includes a one-year AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers.
Armoury Crate
Armoury Crate is a software utility designed to give you centralised control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customise RGB lighting and effects for compatible devices and synchronise them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
Personalisation
Boundless Creativity, Endless Style.
The ROG Crosshair X870E Extreme features a full-Colour 5-inch LCD screen that can show exclusive ROG animations, system information and even personalised services* through Armoury Crate, empowering gamers to define their unique style on a vibrant display.
Sliding LCD Panel
The ROG Crosshair X870E Extreme features an LCD panel over the rear I/O that can slide to the right to avoid fan obstruction, letting users fully enjoy the bold aesthetic of this flagship platform.
Dare to Be Green
At the Republic of Gamers, they are on a mission to create a sustainable future where all gamers can flourish on the planet we all call home.
Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilise post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.
Build for the Most Advanced Pc for Gaming and Creating
When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking(Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.) capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
Backed by a 3 year ASUS warranty.
