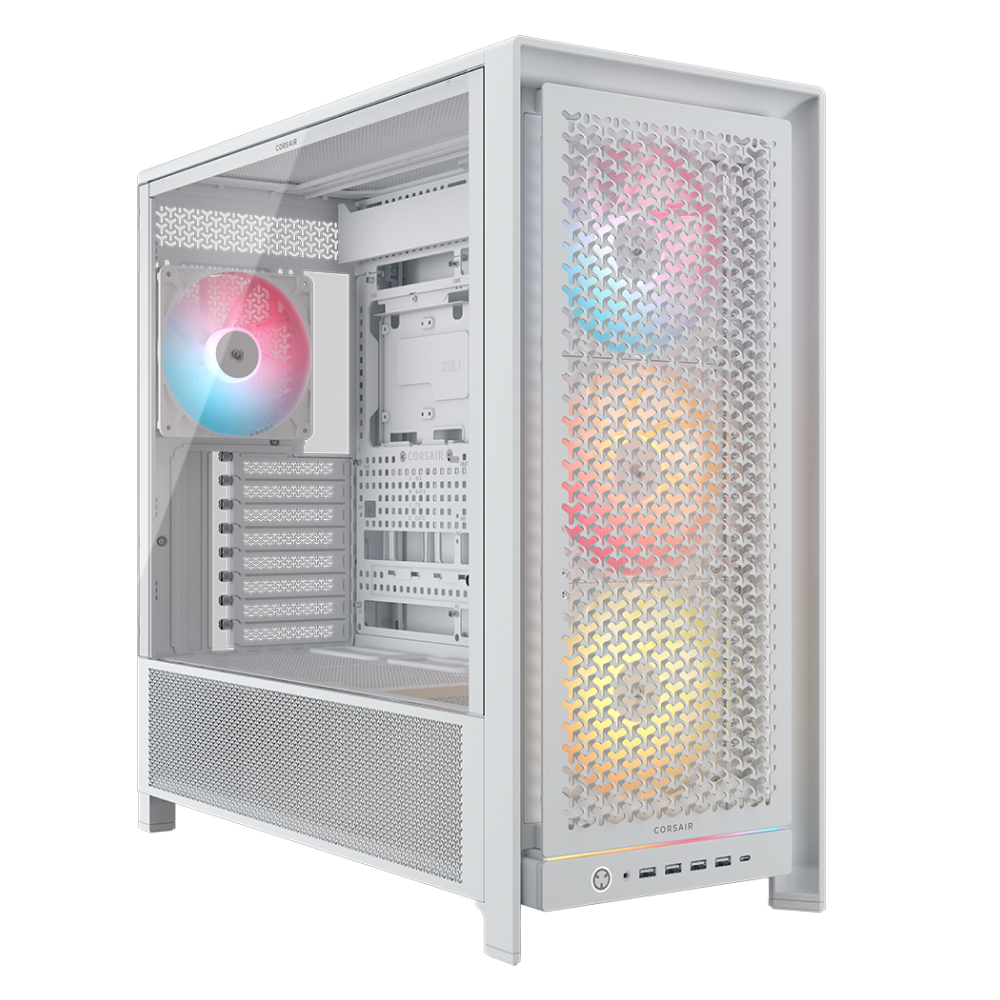

Elevate your PC build with the Corsair Frame 5000D RS ARGB Modular High Airflow Mid-Tower Case, designed for exceptional performance and aesthetic customisation. This innovative case features a unique modular system, allowing for flexible component arrangements including the motherboard tray and I/O panel. Optimised for superior cooling, it boasts a 3D Y-Pattern front panel and supports extensive radiator configurations, including a 420mm top radiator, and support for up to fourteen 120mm fans (front, top, side PSU shroud, bottom and rear). The InfiniRail fan mounting system simplifies cooling setup, with four pre-installed RS140 ARGB fans (front and rear) ensure efficient airflow. Its spacious interior accommodates the latest high-end graphics cards up to 450mm in length and is ready for reverse-connection motherboards, simplifying cable management for a cleaner look.
Features
Corsair Frame 5000D RS ARGB Airflow Mid Tower Case
FRAME Modular Case System
The revolutionary FRAME system redefines customisation, allowing you to upgrade components like the motherboard tray to billet aluminum, replace the front I/O panel with different USB ports, and swap out the front intake panel for a new look. This case evolves with your needs, offering a variety of options for future upgrades and aesthetic changes.
Clean Lines or Turbo Cooled
The internal side panel near the motherboard tray serves as a cable cover for clean cable management, or it can be removed to mount fans on the side for increased cooling potential.

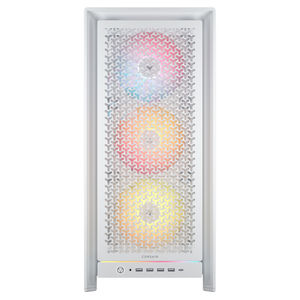

3D Y-Pattern Airflow Panel
Optimised for high airflow and minimal restriction, the steel front panel is perforated in three dimensions with a Y-pattern that provides a low-obstruction path for cool air.
Top 420mm Radiator Support
Take your cooling to the next level with a top-mounted 420mm radiator and additional room for 360mm radiators on the front or side.
InfiniRail™ Fan Mounting Options
Mount up to 14x 120mm fans simultaneously for optimal airflow, or easily adjust the InfiniRail™ fan mounts for 140mm or 200mm fan locations. The combinations are nearly endless for tailored cooling solutions.
Four RS140 ARGB Fans Included
Includes four RS140 ARGB PWM daisy-chainable fans for simply great cooling – no separate controller needed. These fans are controlled through one 4-pin PWM connector and one +5V ARGB connector on your compatible motherboard, delivering vibrant lighting and efficient cooling.
Supports Reverse Connection Motherboards
Validated with ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth motherboards, the case provides plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can't see them.
Versatile Connectivity
The FRAME 5000D offers four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 2 Type-C front I/O panel. The I/O ports are conveniently relocated to the bottom of the case for easy access when your PC is on your desk.
Drives, Drives, Drives
Included drive trays support dual 3.5" hard drives or four 2.5" SSDs. These can be removed entirely to make room for custom liquid cooling components and cables.
Solid GPU Support (Literally)
Modern graphics cards are larger and heavier than ever, which is is why every 5000D comes with an included GPU Anti-sag stabilisation arm.
Just a Bit Bigger
GPUs are getting bigger and hotter, which is why the FRAME 5000D was designed slightly longer and wider than most other mid-tower cases, ensuring ample space and airflow.
Built for iCUE Link
Designed from the ground up for easy iCUE LINK integration, the FRAME 5000D features cable hooks, increased tie-downs, and a dedicated mounting pocket for an iCUE LINK System Hub (sold separately).
Touches of Elegance
The FRAME 5000D includes numerous features showcasing CORSAIR's attention to detail, such as external cable management points, captive screws, fully color-matched rivets, screws, plastic components, an attractive Frost White option, and built-in rotatable PCI slots for vertical GPU mounting.
RapidRoute 2.0

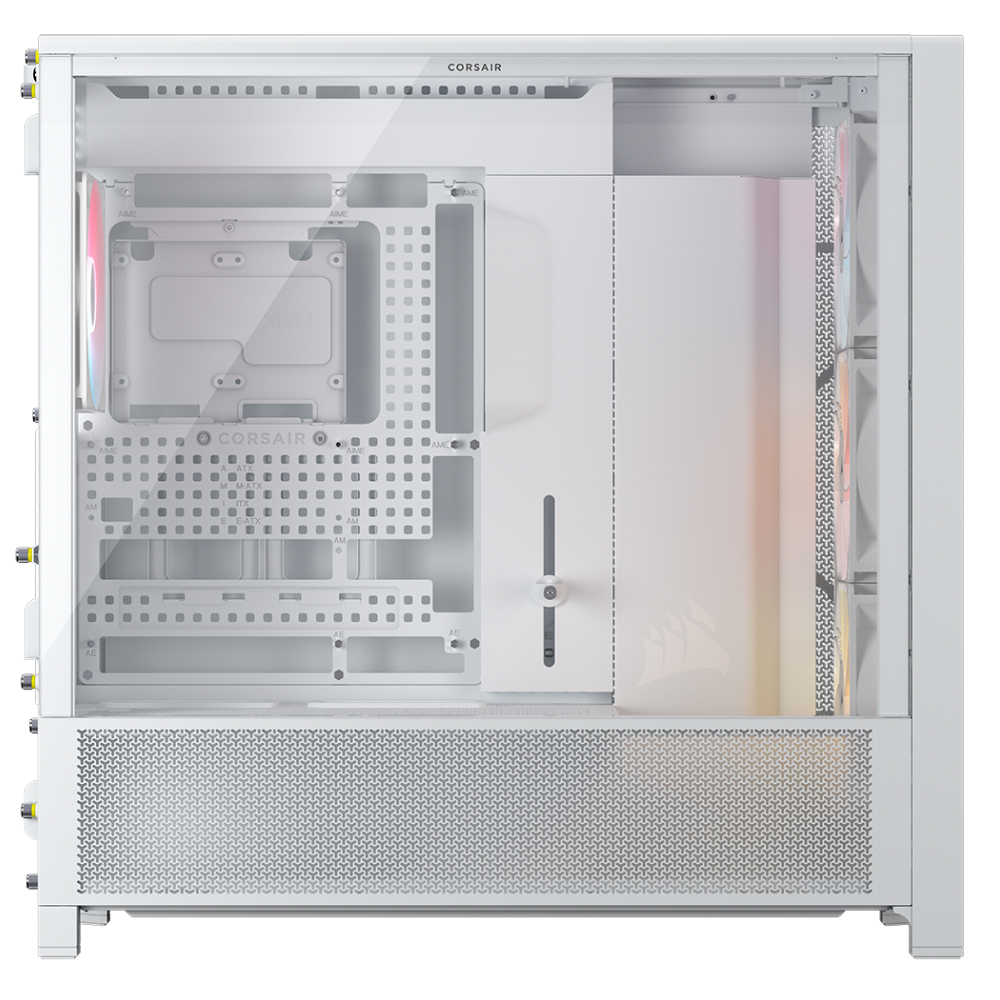

FRAME 5000D features the next generation of CORSAIR's cable-routing hardware, with a pegboard-style motherboard tray allowing for custom mounting points for tie-downs and buckles. It includes several types of cable clips, or you can 3D print your own, along with six cinching straps and two wire loom pairs to secure extra cable lengths for a tidy interior.
Backed by a 2 year Corsair warranty.
