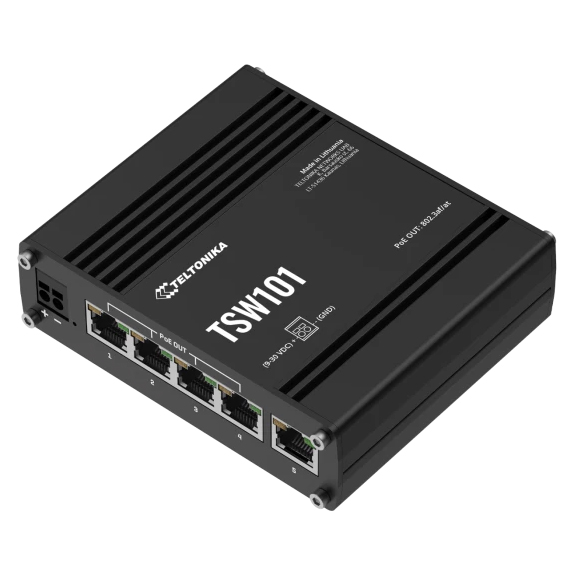

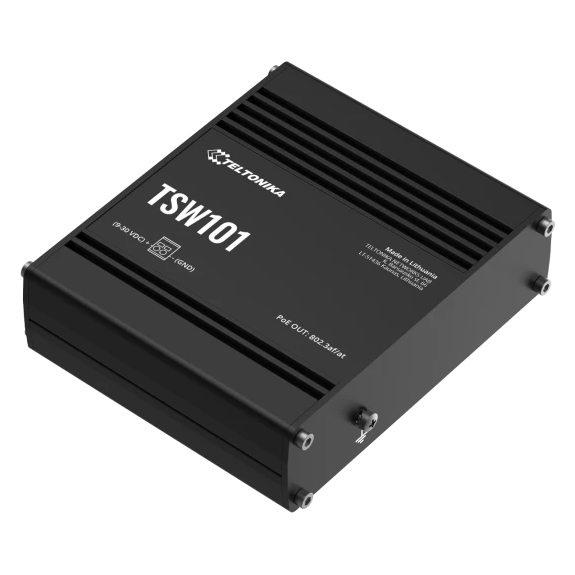

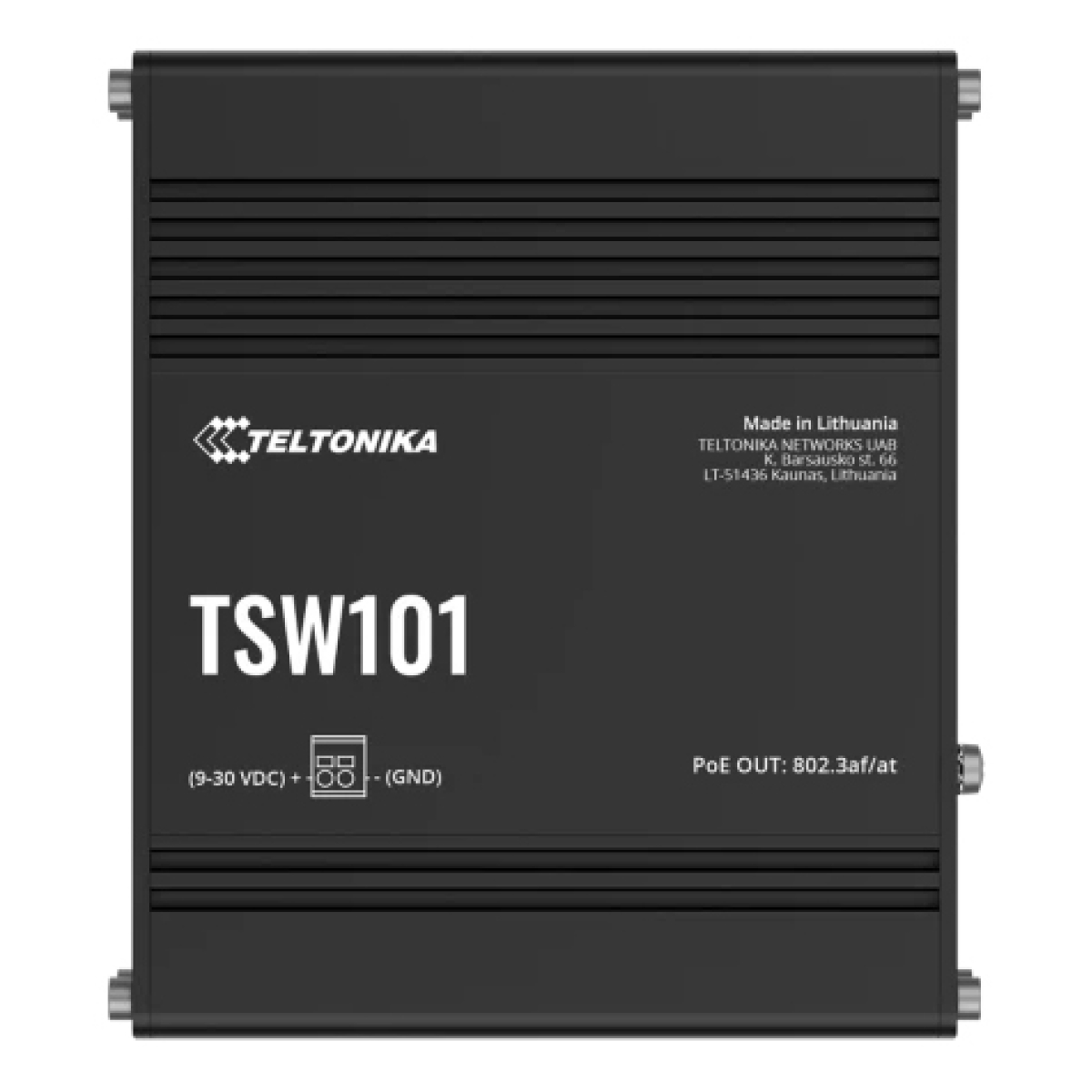

The Teltonika TSW101 Automotive POE+ Switch features 5x gigabit ethernet ports with 4 supporting PoE+ at 30W each and totaling for a PoE power budget of 60W. With a 2-pin industrial DC power socket this switch is easy to install in an automobile for automotive-friendly communication. It includes a strong industrial casing, being able to withstand harsh temperatures from -40 degC to 75 degC and an IP30 rating.
VIDEO
Features
Automotive PoE+ Switch
The TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications. Featuring five Gigabit Ethernet ports, including four with PoE+ support, the TSW101 can power your end devices while connecting them to the Internet. This automotive switch can be powered by 12 V or 24 V car battery, requiring no additional PSU.
Plug and Play: No configuration needed
PoE+: 4 x PoE+ ports with 802.3af and 802.3at support
Gigabit Ethernet: 5 x Gigabit Ethernet ports with speeds of up to 1000 Mbps
Industrial Design: Rugged aluminium housing
Use Case
Transportation
Automotive-friendly communication system in fire trucks.
Smart City
PoE+ Switch for a Hassle-Free Parcel Terminal Setup.
Specifications
General Data
Model Number
TSW101
Standard Package
TSW101
Ethernet
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Industrial Protocols
Profinet
Profinet Class A conformance (available with optional order code)
PoE Out
PoE Ports
Port 1-4
PoE Standards
802.3af and 802.3at Alternative A
PoE Max Power Per Port (At PSE)
30 W
Total PoE Power Budget (At PSE)
60 W
Maximum Ethernet Cable Length
100 m
Performance Specifications
Bandwidth (Non-Blocking)
10 Gbps
Packer Buffer
128 KB
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Power
Connector
2-pin industrial DC power socket
Input Voltage Range
9 – 30 VDC
PoE-Out Input Voltage Range
9 – 30 VDC
Power Consumption
Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
PSU
12 V or 24 V car battery-powered. No additional PSU is required.
Physical Interfaces
Ethernet

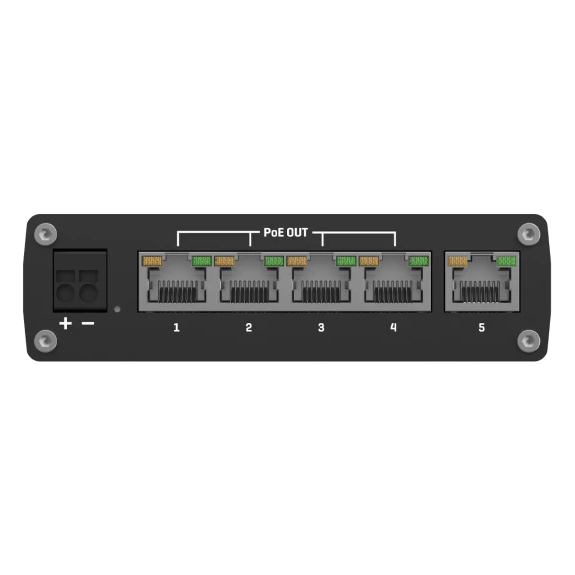

5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Other

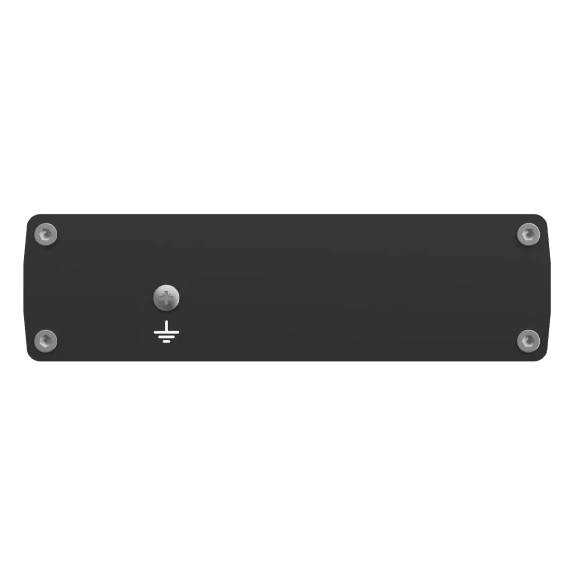

1 x Grounding screw
Physical Specification
Casing Material
Aluminium housing
Dimensions (W x H x D)
115 x 32 x 95 mm
Weight
384 g
Mounting Options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating Temperature
-40 °C to 75 °C
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory & Type Approvals
Regulatory
CE, REACH, RoHS, WEEE
EMC Emissions & Immunity
Standards
EN 55032:2015 + A11:2020 + A1:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Power Line)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
Safety
Standards
CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
Backed by a 2 year Teltonika warranty.
