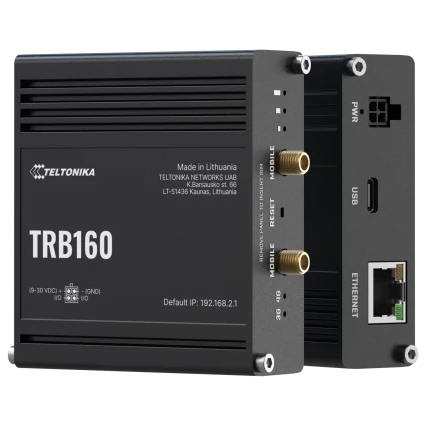

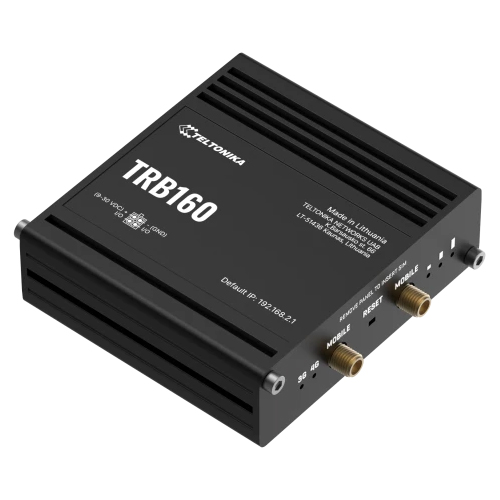

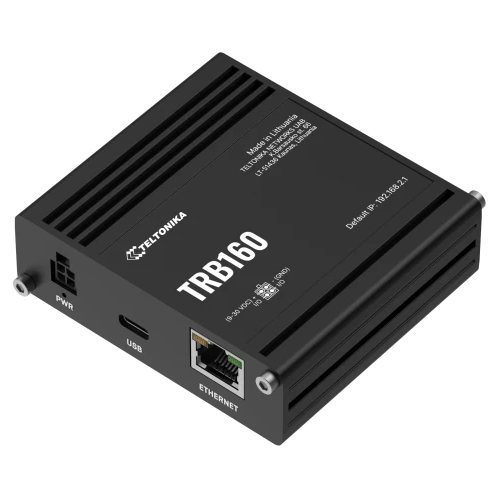

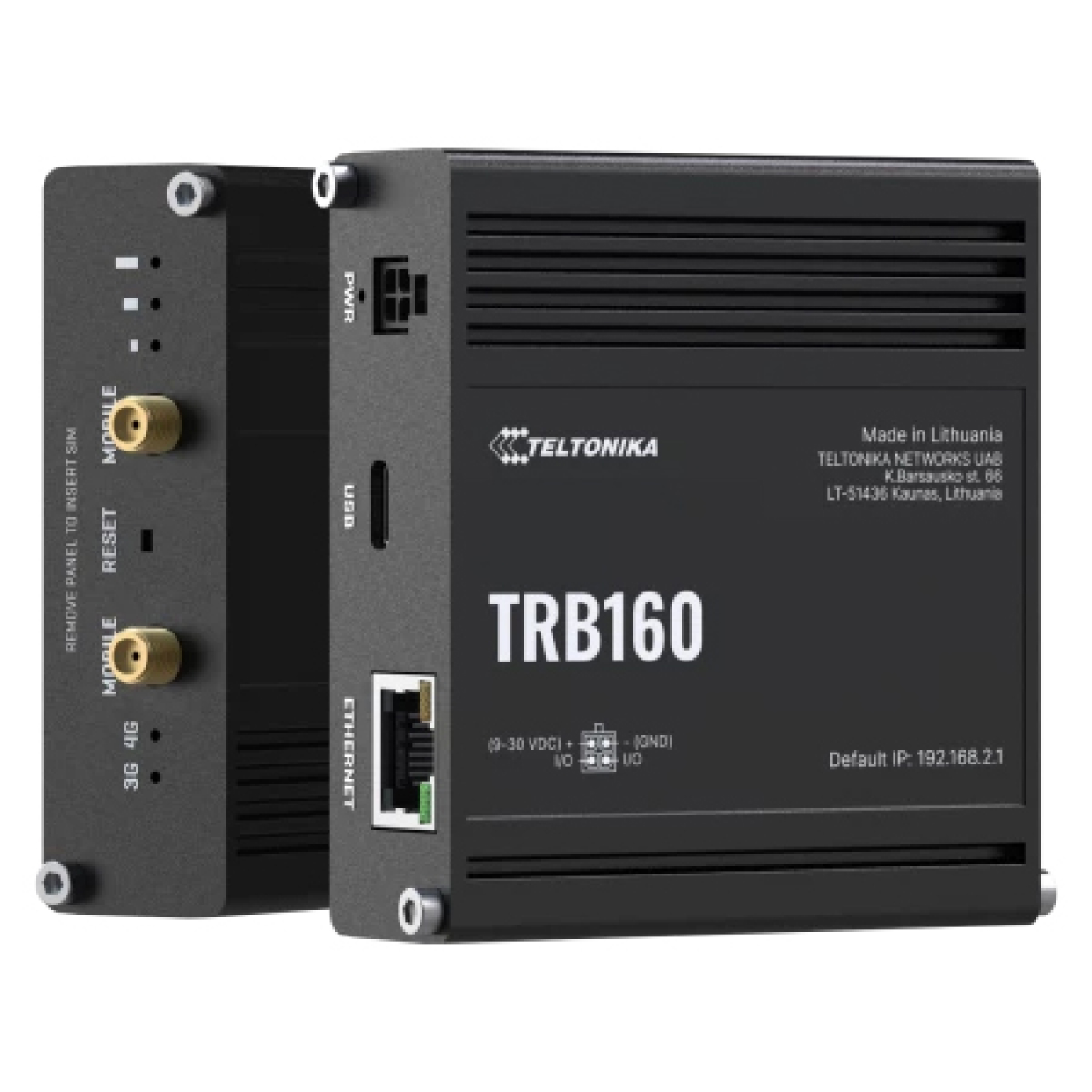

Teltonika TRB160 4G LTE CAT 6 Gateway

TRB160 | Teltonika
$349
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Teltonika TRB160 Gateway features 4G LTE Cat 6 speeds of up to 300Mbp/s, with additional 3G connectivity, IoT support for waste automation and interactive kiosk management. Including RMS for remote management and VPN services.



Features

Teltonika TRB160 4G LTE CAT 6 Gateway Feature 1

4G LTE Cat 6 IoT Gateway

The TRB160 is an ultra-small, lightweight, and energy-efficient IoT gateway equipped with mission-critical LTE Cat 6, Gigabit Ethernet, and a virtual network interface via USB Type-C for simultaneous powering and network data provision. This IoT gateway can reach cellular speeds of up to 300 Mbps with carrier aggregation in a broad range of applications and supports a wide range of industrial-grade protocols for M2M communication.

  • LTE Cat 6: Cellular speeds of up to 300 Mbps with carrier aggregation
  • USB Type-C: For simultaneous powering and network data provision
  • Protocols: OPC UA, Modbus, Data to Server, MQTT, DNP3, DLMS, and more
  • Compactness: Small size, easy installation

Use Case

Teltonika TRB160 4G LTE CAT 6 Gateway Feature 2

Smart City

Waste Management Automation With an Iot Gateway.

Teltonika TRB160 4G LTE CAT 6 Gateway Feature 3

Retail

IoT gateway for remote management of interactive kiosks.

Specifications

General Data

Model Number TRB160
Standard Package TRB160
9 W PSU
2 x Mobile antenna (magnetic mount, SMA male, 3 m cable)
USB Type-C cable (0.8 m)
1 x hex key
Ethernet cable
QSG (Quick Start Guide)
Packaging box

Mobile

Mobile Module 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release Release 12
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow List Operator block/allow list (by country or separate operators)
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band Management Band lock, Used band status display
SIM PIN Code Management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Ethernet

ETH 1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network Topology Visual representation of your network, showing which devices are connected to which other devices
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS Over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load Balancing Balance Internet traffic over multiple WAN connections
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history

Security

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customisable period, start time, warning limit, phone number
Web Filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods

VPN

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programme’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

Supported Modes Client, Server (planned)
Supported Connection Types TCP

MODBUS

Supported Modes Server, Client
Supported Connection Types TCP
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Protocol HTTP(S), MQTT, Azure MQTT
Data to Server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilise the router's Data to server feature

MQTT Gateway

Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported Modes Station, Outstation
Supported Connection TCP

DLMS/COSEM

DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types TCP
COSEM Allows to scan meter COSEM objects for automatic detection and configuration

API

Teltonika Networks Web API Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud Of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPU Qualcomm, 1.2 Ghz, ARM Cortex-A7
RAM 128 MB
FLASH Storage 256 MB

Firmware / Configuration

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++
Development Tools SDK package with build environment provided
GPL Customisation You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Input / Output

Input Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate event

Power

Connector 1 x 4-pin industrial DC power socket
1 x USB Type-C
Input Voltage Range 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max
USB Type-C: 5 VDC
PoE (Passive) Possibility to power up through ETH port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption Idle: < 0.25 W, Max: < 3.3 W

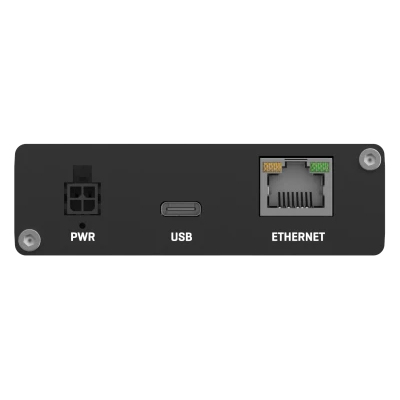

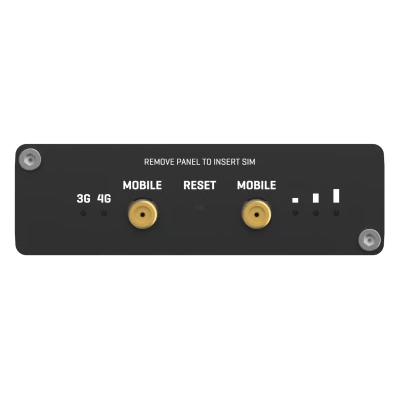

Physical Interfaces

Ethernet 1 x RJ45 port, 10/100/1000 Mbps
I/O’s 2 x Configurable digital I/O on 4-pin power connector
Status LEDs 2 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
SIM 1 x Internal SIM slot (Mini SIM – 2FF), 1.8 V/3 V, eSIM (Optional)
Power 1 x 4-pin power connector
1 x USB Type-C
Antennas 2 x SMA for Mobile
Reset Reboot/User default reset/Factory reset button
Other 1 x Virtual network interface via USB Type-C (For power and network data)

Physical Specification

Casing Material Anodised aluminium housing and panels
Dimensions (W x H x D) 83 x 25 x 74.2 mm
Weight 172 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory CE, UKCA, CB

EMC Emissions & Immunity

Standards EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019+A2:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
EN 55032:2015+A11:2020+A1:2020
EN 55035:2017+A11:2020
ESD EN 61000-4-2: 2009
Radiated Immunity EN IEC 61000-4-3: 2020
EFT EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port) EN 61000-4-5: 2014+A1: 2017
CS EN 61000-4-6: 2014
DIP EN IEC 61000-4-11:2020

RF

Standards EN 301 908-1 V15.2.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.2.1

Safety

Standards CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020
CB: EN IEC 62368-1:2020+A11:2020
Backed by a 2 year Teltonika warranty.
