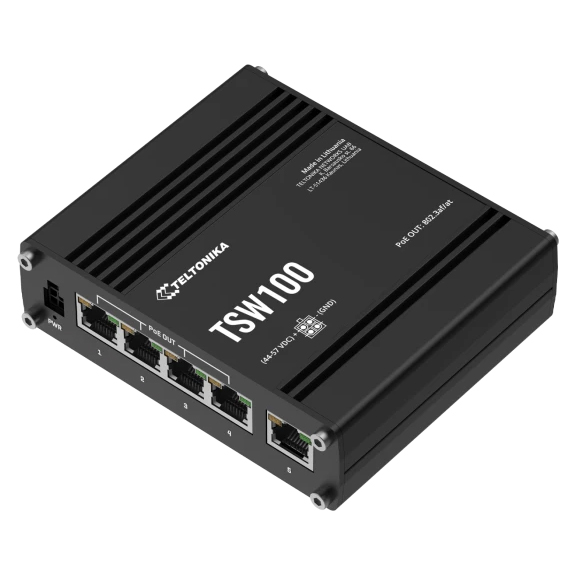

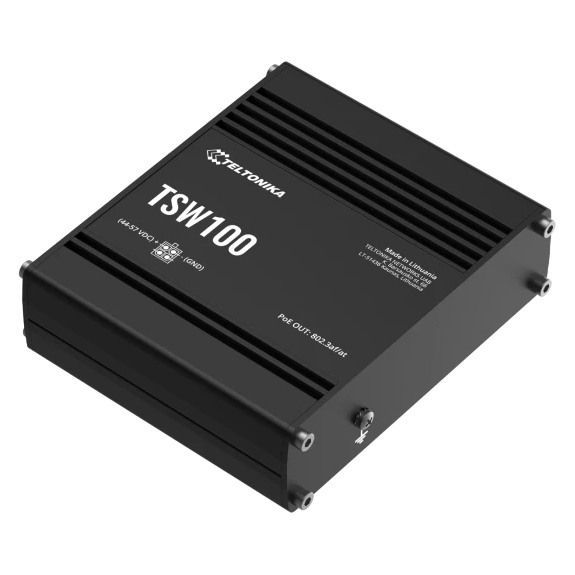

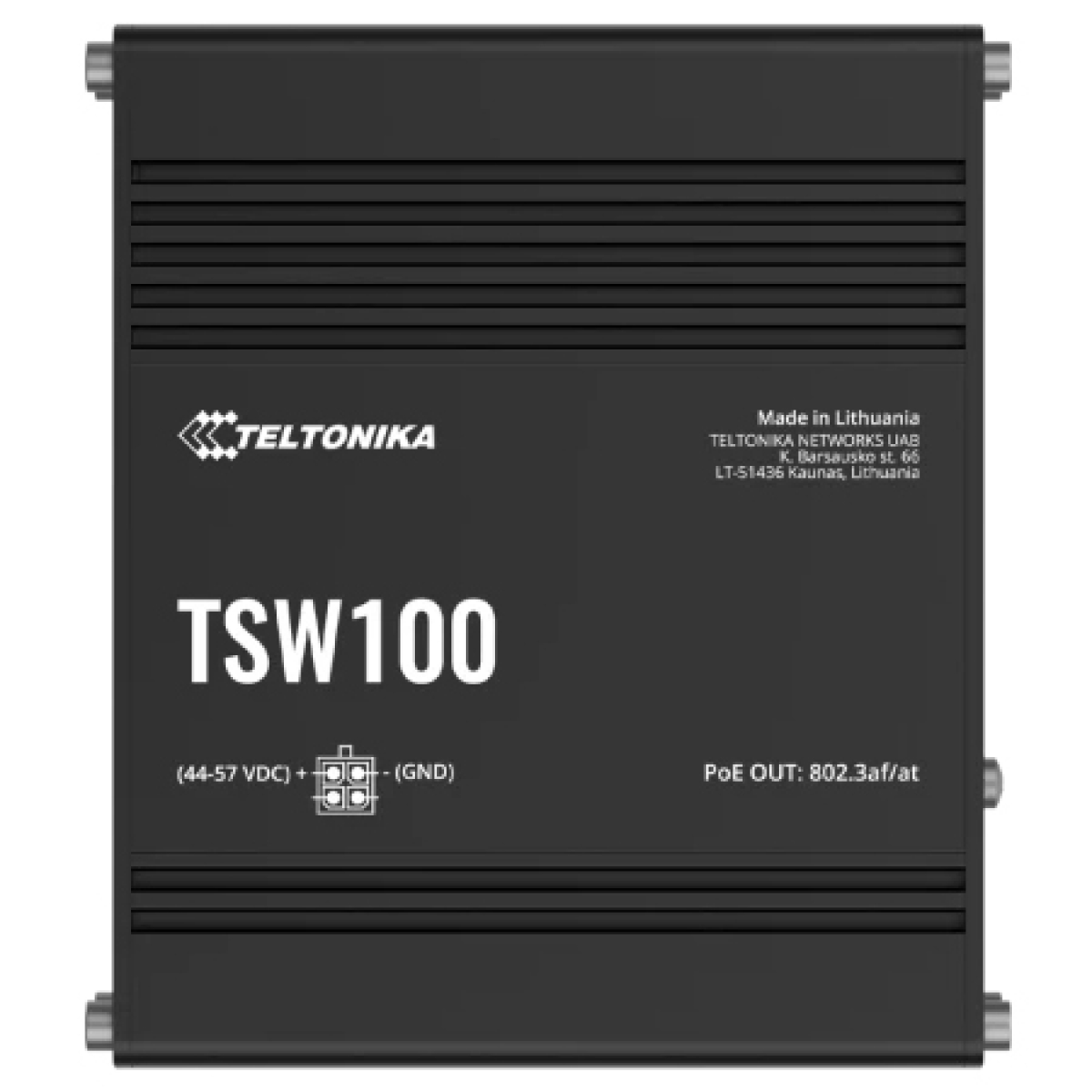

The Teltonika TSW100 5 Port Switch features 5x gigabit ethernet ports with 4 supporting PoE+ at 30W each and totaling in a PoE power budget of 120W. The Teltonika TSW100 has a strong industrial casing, being able to withstand harsh temperatures from -40 degC to 75 degC and an IP30 rating.
VIDEO
Features
Industrial PoE+ Ethernet Switch
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralises the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
PoE+: 4 x PoE+ ports with 802.3af and 802.3at support
Power Budget: Total power budget at PSE up to 120 W
Ethernet: 5 x Gigabit Ethernet with speeds up to 1000 Mbps
Mounting: DIN rail and surface mounting options
Use Case
Smart City
Mobile Router for Medical Supply Inventory Management.
Transportation
Simplifying Border Control With A Vehicle Licence Reader.
Enterprise
PoE technology simplifying office network integrations.
Specifications
General Data
Model Number
TSW100
Standard Package
TSW100
Ethernet
ETH
5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 Series Standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Industrial Protocols
Profinet
Profinet Class A conformance (available with optional order code)
PoE Out
PoE Ports
Port 1-4
PoE Standards
802.3af and 802.3at Alternative A (Order code: TSW100 *1****)
PoE Max Power Per Port (At PSE)
30 W
PoE Power Budget (At PSE)
120 W
Performance Specifications
Bandwidth (Non-Blocking)
10 Gbps
Packer Buffer
128 KB
Mac Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Power
Connector
4-pin industrial DC power socket
Input Voltage Range
7 – 57 VDC
PoE-Out Input Voltage Range
44 – 57 VDC
Power Consumption
Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W
Physical Interfaces

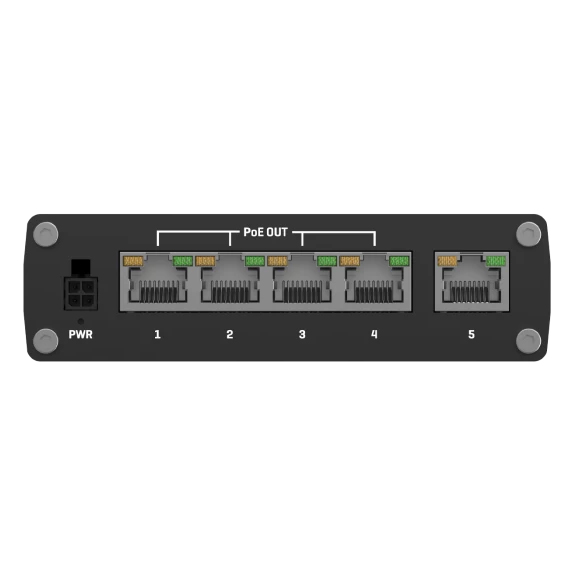

Ethernet
5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 4-pin power connector
Other

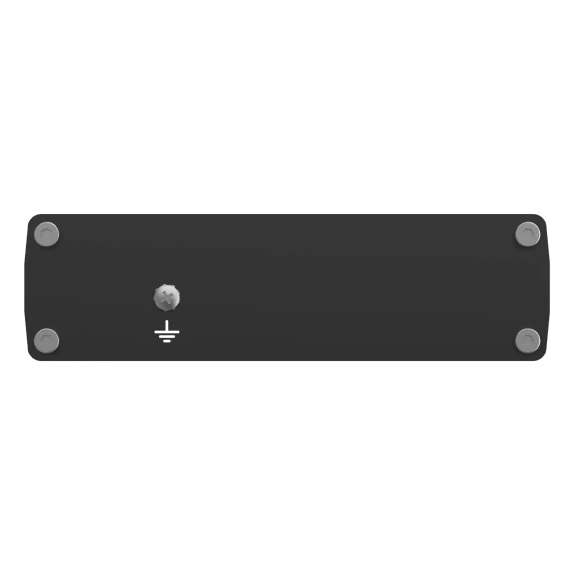

1 x Grounding screw
Physical Specification
Casing Material
Full aluminium housing
Dimensions (W x H x D)
115 x 32.2 x 101.2 mm
Weight
350 g
Mounting Options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating Temperature
-40 °C to 75 °C
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory & Type Approvals
Regulatory
CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC Emissions & Immunity
Standards
EN 55032:2015
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2004
Safety
Standards
IEC 62368-1:2018
Backed by a 2 year Teltonika warranty.
