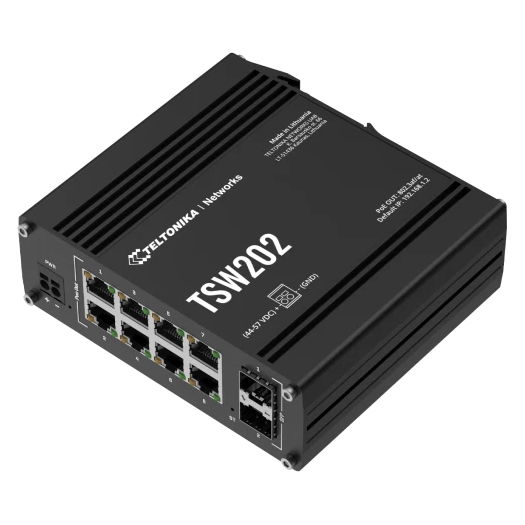

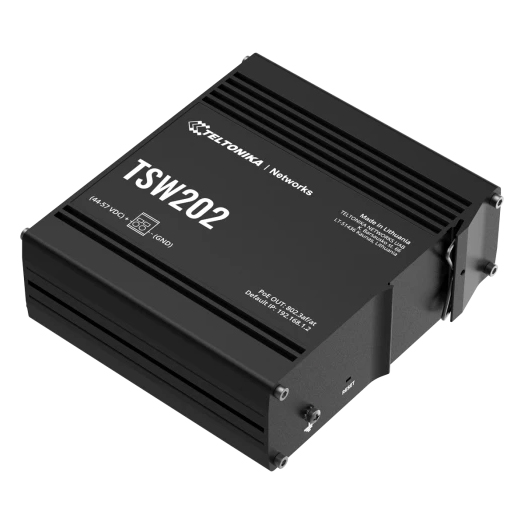

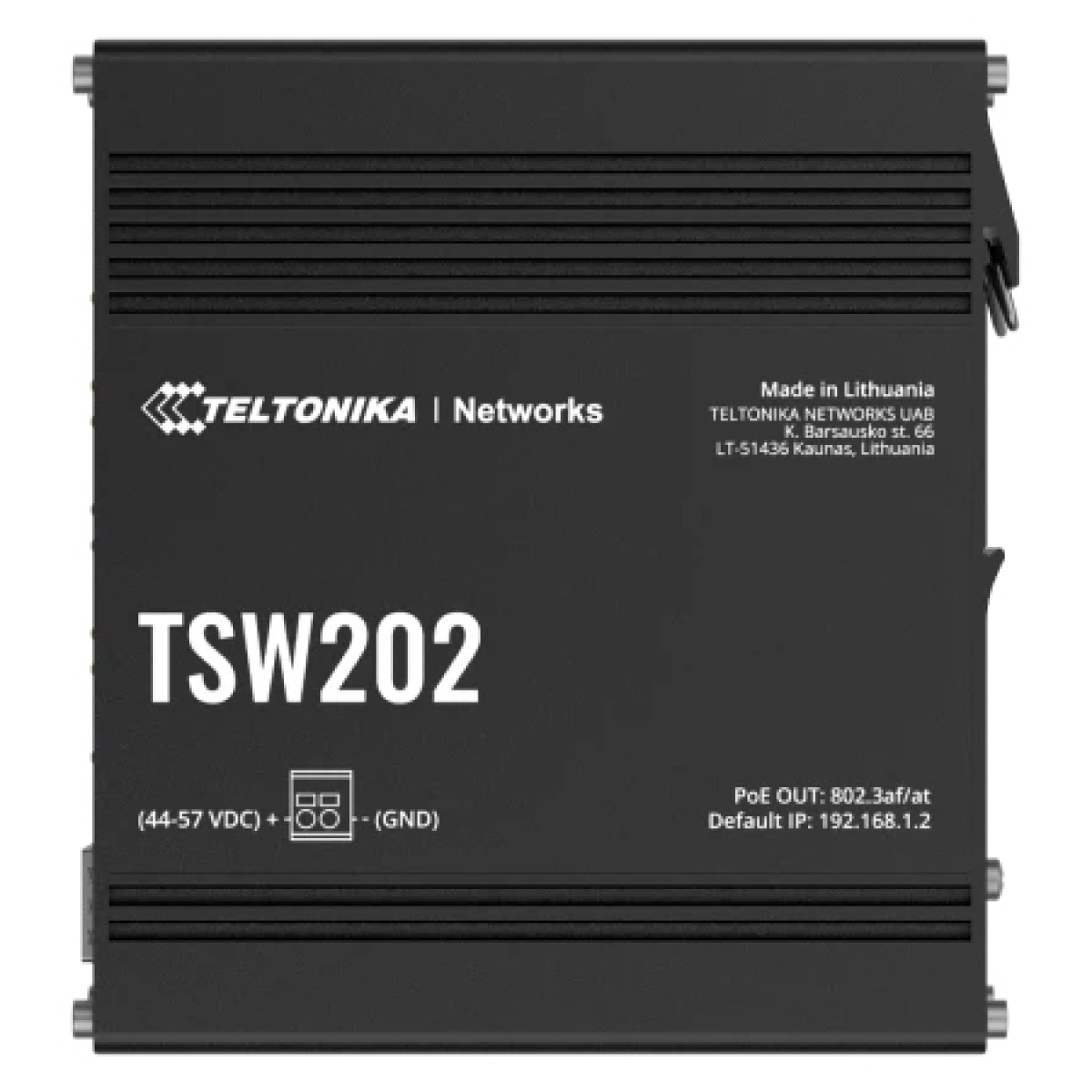

The Teltonika TSW202 Managed Switch features 8 PoE+ ports with 2 fiber optic supported SFP ports for a total PoE power budget of 240W, Teltonika network OS integration, advanced security features, easy automation with PROFINET, and advanced L2 and L3 features.
VIDEO
Features
Managed PoE+ Ethernet Switch
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including Ethernet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
Managed Switch: L2 with additional L3 features for enhanced management and control
PoE+ & SFP: 8 x port PoE+ switch with 2 x SFP ports for fibre optic communication
PROFINET & More: Supports PROFINET for automated data processing alongside other protocols, like Ethernet/IP and MRP
TSWOS: Teltonika Networks OS for switches, intuitively designed for infinite configurations
Use Case
Smart City
Managed Switch for Smart Traffic Management System.
Cellular Router for Network Edge Remote Management.
Industrial & Automation
Managed PoE+ Switch for Smart Logistics Warehouse.
Managed Switch for Superior Car Manufacturing Precision.
Enterprise
Securing Networks with VLAN Tagging in Managed Switches.
Specifications
General Data
Model Number
TSW202
Standard Package
TSW202
Ethernet
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
Fibre
2 x SFP ports
IEEE 802.3 Series Standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
Industrial Protocols
Profinet
Profinet Class B conformance (available with optional order code)
PoE Out
PoE Ports
Port 1 - 8
PoE Standards
802.3af and 802.3at Alternative A (From batch 42)
802.3af and 802.3at Alternative B (From batch 1-41)
PoE Max Power Per Port (At Pse)
30 W
Total PoE Power Budget (At Pse)
240 W
Maximum Ethernet Cable Length
100 m
Services
Ethernet/IP
Yes
SNMP V2, V3
Yes
LLDP
Yes
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
Network
MRP
MRP client role, MRP manager role
L2 Features
Loop protection, Forwarding table, VLAN, STP/RSTP
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
Port Settings
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Security
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
QoS
QoS
Port priority, DSCP priority, 802.1p priority, TOS
Scheduling Method
SP/WFQ/WRR
Bandwidth Control
Rate limiting, storm control
Traffic Shaper
Port-based shaping
Diagnostics
Tools
Cable diagnostic, ping, traceroute, nslookup
Ping Reboot
Capability to restart PoE in a specific port
API
Teltonika Networks Web API (Beta) Support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
System Characteristics
RAM
128MB, DDR3
FLASH Storage
16 MB serial flash
Firmware / Configuration
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA
Update FW
RMS
Update FW/configuration for multiple devices at once
Keep Settings
Update FW without losing current configuration
Firmware Customisation
Operating System
TSWOS (OpenWrt based Linux OS)
Supported Languages
Busybox shell, Lua, C, C++
Development Tools
SDK package with build environment provided
Performance Specifications
Bandwidth (Non-Blocking)
20 Gbps
Forwarding Rate
14.88 Mpps
Packet Buffer
512 KB
MAC Address Table Size
8K entries
Jumbo Frame Support
10000 bytes
Power
Connector
2-pin industrial DC power socket
Input Voltage Range
7 – 57 VDC
PoE-Out Input Voltage Range
44 – 57 VDC
Power Consumption
Idle: < 3 W / Max: 8 W / PoE Max: 248 W

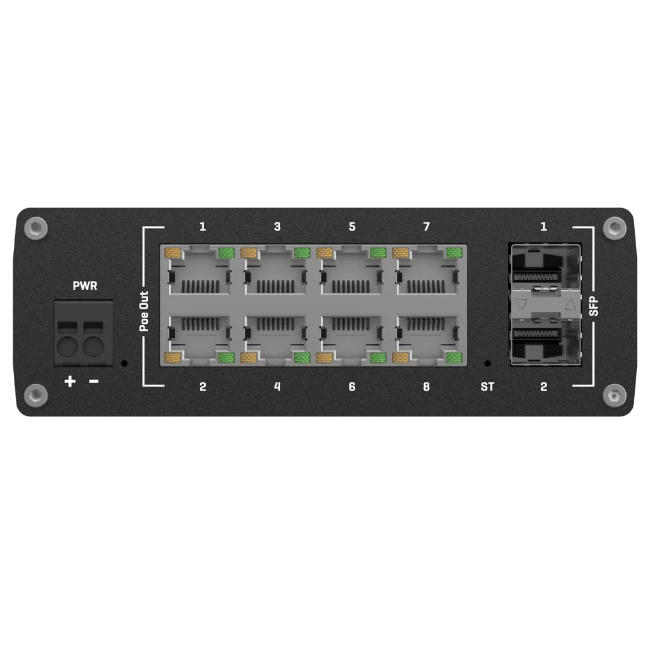

Physical Interfaces
Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
Fibre
2 x SFP ports
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
Power
1 x 2-pin industrial DC power socket

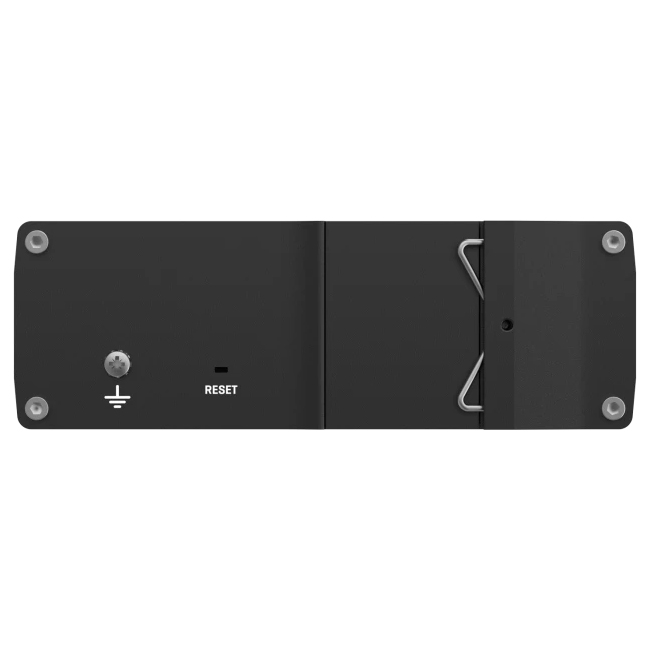

Reset
Software reset button
Other
1 x Grounding screw
Physical Specification
Casing Material
Anodised aluminium housing and panels
Dimensions (W x H x D)
132 x 44.2 x 122.2 mm
Weight
610 g
Mounting Options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating Environment
Operating Temperature
-40 °C to 75 °C
Operating Humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
Regulatory & Type Approvals
Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, NBTC, PROFINET, CITC, RoHS, REACH, WEEE, SDPPI (POSTEL), JATE, Kenya, ICASA, Giteki`, UL Safety
EMC Emissions & Immunity
Standards
EN 55032:2015 + A11:2020 + A1:2020
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN 61000-4-11:2020
Safety
Standards
CE: EN IEC 62368-1:2020 + A11:2020
Safety (Ordinary Locations)
Standards
UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
Backed by a 2 year Teltonika Warranty.
