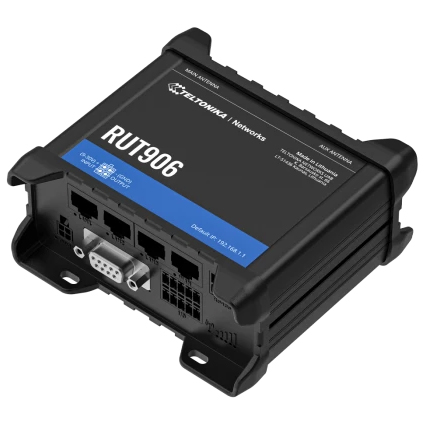

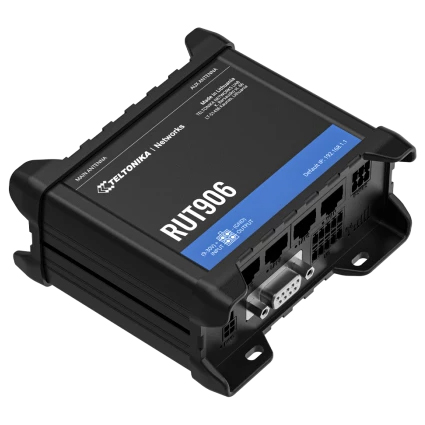

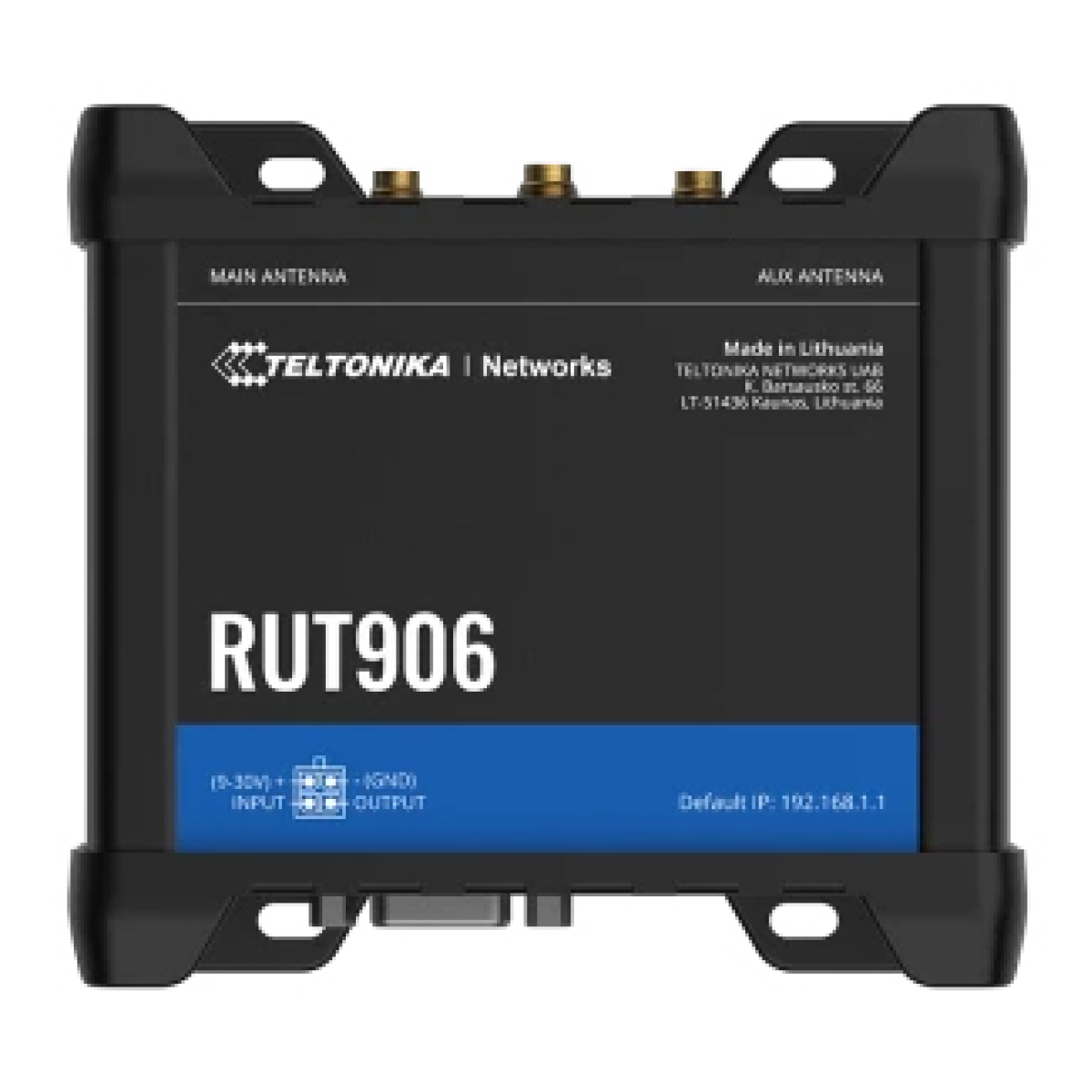

Teltonika RUT906 4G LTE Router

RUT906 | Teltonika
$359
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Teltonika RUT906 is a tough 4G LTE router built for industrial use, offering reliable mobile internet with dual SIM support and speeds up to 150 Mbps. It includes four Ethernet ports, GPS tracking, and serial ports.



Features

Teltonika RUT906 4G LTE Router Feature 1

4G LTE RS232/RS485 Router

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.

  • Connectivity: 4G LTE (Cat 4), 3G, 2G
  • Dual Sim: Auto-failover, backup WAN, and more switching scenarios
  • Interfaces & Protocols: Serial interfaces (RS232 & RS485), MQTT, BACnet, OPC UA, I/Os, Ethernet, and more
  • GNSS: NTRIP, location services and time synchronisation

Use Case

Transportation

Teltonika RUT906 4G LTE Router Feature 2

Cellular router for Wi-Fi hotspot in taxis.

Uninterrupted Connection to the Unwired Edge Cloud.

Anti-covid people counting solution to ensure safety on trams.

Cellular router for public transport connectivity.

On-board entertainment and captive portal.

People Counting in Public Buses with Mobile Router.

Uninterrupted Internet Connectivity in Desert Race.

Efficient Planning of Urban Public Transport Systems.

Teltonika RUT906 4G LTE Router Feature 3

Bolstering the Safety of Road Workers.

Industrial & Automation

Teltonika RUT906 4G LTE Router Feature 4

Cellular Router for Thermal Response Tests.

Automating & Remote Managing Mine Equipment Across Australia.

Connectivity for Mobile Agricultural Machines.

Easy & Customisable Remote Capabilities for Siemens PLCs.

Enabling Control Over a Wastewater Treatment Plant.

Data Collection For Air Compressor Optimisation.

The Connectivity Core of CERNbot.

The Large Hadron Collider’s Spy Bug.

Smart City

Teltonika RUT906 4G LTE Router Feature 5

Temporary camera surveillance solution.

Footfall analytics for optimised public transport.

Interactive Remotely Controlled Playground System.

Teltonika RUT906 4G LTE Router Feature 6

Retail

Digitalising slot machines with cellular router.

Teltonika RUT906 4G LTE Router Feature 7

Enterprise

Upgrading Out-of-band Management with a Cellular Router.

Specifications

General Data

Model Number RUT906
Standard Package Router RUT906
9 W PSU
2 x Mobile antennas (magnetic mount, SMA male, 3 m cable)
2 x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
GNSS antenna (adhesive, SMA male, 3 m cable)
RS485 connector block
I/O connector block
Ethernet cable (1.5 m)
SIM Adaptor kit
QSG (Quick Start Guide)
Packaging box

Mobile

Mobile Module 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release Release 9
SIM Switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow List Operator block/allow list (by country or separate operators)
Band Management Band lock, Used band status display
SIM Idle Protection Service Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN Code Management SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

Wireless

Wireless Mode 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi Security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID ESSID stealth mode
Wi-Fi Users Up to 100 simultaneous connections
Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter Allowlist, blocklist
Wireless QR Code Generator Once scanned, a user will automatically enter your network without needing to input login information
TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP Passthrough Support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection Monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
Firewall Status Page View all your Firewall statistics, rules, and rule counters
Ports Management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network Topology Visual representation of your network, showing which devices are connected to which other devices
Hotspot Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load Balancing Balance Internet traffic over multiple WAN connections
SSHFS Possibility to mount remote file system via SSH protocol
Traffic Management Real-time monitoring, wireless signal charts, traffic usage history
Port Mirroring Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack Prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag-based VLAN separation
Mobile Quota Control Mobile data limit, customisable period, start time, warning limit, phone number
WEB Filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access Control Flexible access control of SSH, Web interface, CLI and Telnet
SSL Certificate Generation Let's Encrypt and SCEP certificate generation methods

VPN

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programme’s code
DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

BACNET

Supported Connection Types RS485, TCP
Supported Modes Router

OPC UA

Supported Modes Client, Server
Supported Connection Types TCP

DNP3

Supported Modes Station, Outstation
Supported Connection Types RS232, RS485, TCP, USB

MODBUS

Supported Modes Server, Client
Supported Connection Types RTU (RS232, RS485), TCP, USB
Custom Registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported Data Formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Protocol HTTP(S), MQTT, Azure MQTT
Data to Server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilise the router's Data to Server feature

MQTT Gateway

Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker

DLMS/COSEM

DLMS Support DLMS - standard protocol for utility meter data exchange
Supported Modes Client
Supported Connection Types RS232, RS485, TCP
COSEM Allows to scan meter COSEM objects for automatic detection and configuration

API

Teltonika Networks Web API (Beta) Support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC Management API over HTTP/HTTPS
RMS Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH Storage 16 MB, SPI Flash

Firmware / Configuration

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep Settings Update FW without losing current configuration
Factory Settings Reset A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Operating System RutOS (OpenWrt based Linux OS)
Supported Languages Busybox shell, Lua, C, C++, and Python, Java in Package manager
Development Tools SDK package with build environment provided
GPL Customisation You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager The Package Manager is a service used to install additional software on the device

Location Tracking

GNSS GPS. (GLONASS, BeiDou, Galileo and QZSS - under development)
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server Software Supported server software TAVL, RMS
Geofencing Configurable multiple geofence zones

Serial

RS232 DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate
RS485 RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate
Serial Functions Console, Serial over IP, Modem

USB

Data rate USB 2.0
Applications Samba share, USB-to-serial
External Devices Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adaptor
Storage Formats FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analogue input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O Juggler Allows to set certain I/O conditions to initiate event

SD CARD

Physical Size Micro SD (internal)
Applications Samba share, Storage Memory Expansion, DLNA
Capacity Up to 2 TB
Storage Formats FAT32, NTFS, ext2, ext3, ext4

Power

Connector 4-pin industrial DC power socket
Input Voltage Range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (Passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power Consumption < 2 W idle, < 7 W Max

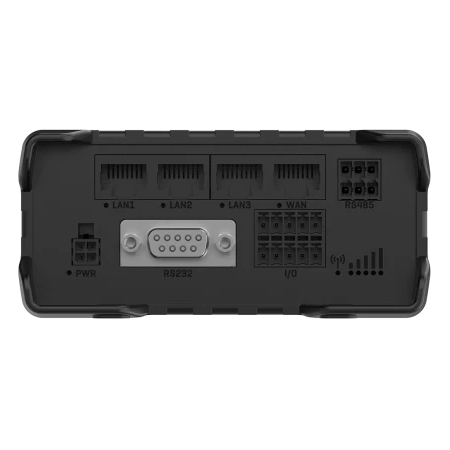

Physical Interfaces

Ethernet 4 x RJ45 ports, 10/100 Mbps
I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector
Status LEDs 1 x Bi-colour connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)
Power 1 x 4-pin power connector
Input/Output 1 x 10-pin industrial socket for inputs/outputs

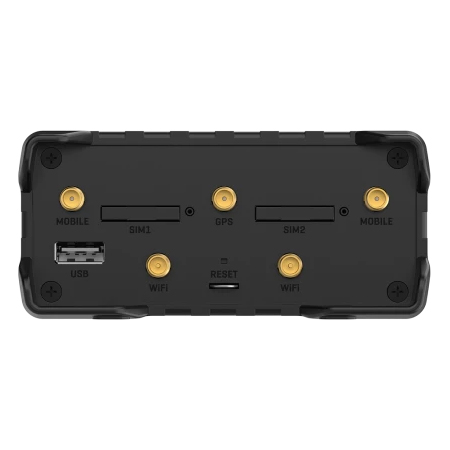

Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reset Reboot/User default reset/Factory reset button

Physical Specification

Casing Material Aluminium housing, plastic panels
Dimensions (W x H x D) 109.5 x 50 x 100 mm
Weight 295 g
Mounting Options DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating Temperature -40 °C to 75 °C
Operating Humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

Regulatory & Type Approvals

Regulatory CE, UKCA, RCM, CB, E-mark

EMC Emissions & Immunity

Standards EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-17 V3.2.4
EN 301 489-19 V2.2.0
EN 301 489-52 V1.2.1
CE: EN 62311 CB: IEC 62368-1:2018
ESD EN 61000-4-2:2009
Radiated Immunity EN IEC 61000-4-3: 2020
EFT EN 61000-4-4:2012
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020

RF

Standards EN 301 908-1;
EN 301 908-2;
EN 301 908-13;
EN 300 328;
Backed by a 2 year Teltonika warranty.

Customer reviews

Customer questions
