The TP-Link ER706WP-4G Omada AX3000 Gigabit VPN Gateway features 4G+ Cat6 up to 300 Mbps, 5x Gigabit ports, 2x Nano SIM Card Slots, seamless integration into Omada SDN, a high-security VPN and multiple security features to protect your network and data.
Features
Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+
Access 4G+ Speed Anywhere, Anytime
- Support 4G+ Cat6 (Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.): Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans ("Text & Data plans" refer to plans supporting both SMS text messaging and data services. Such plans from AT&T may not be compatible with our products.) in the US).
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.)
- 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
- Centralised Management: Cloud access and the Omada app for easy management.
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology. Omada Mesh Technology requires the use of EAPs that support mesh functionality. Please refer to https://www.tp-link.com/en/omada-mesh/product-list/ to confirm which Omada EAPs are compatible with Omada Mesh. Additionally, ER706W-4G also supports standalone mesh. Please refer to https://www.tp-link.com/en/standalonemesh/product-list/ to confirm the specific models.
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN. (For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.)
Get Instant 4G+ LTE Internet up to 300 Mbps
Always-Online with AX3000 WiFi 6
- 5 GHz - 2402 Mbps
- 2.4 GHz - 574 Mbps
- Dual Band
- HE160
- OFDMA
- 1024 QAM
Power over Ethernet, Flexible Network Deployment
- 4x Gigabit PoE+ RJ45 Ports
- Total 45W PoE Power (Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.)
- Compatible with 802.3af/at PoE and non-PoE devices
- Access Point
- IP Camera
- Thin Clients
Ideal for Small Business Networking Use
Combines 4G Internet access, Wi-Fi 6 wireless technology and 4 Gigabit PoE+ out ports all in one device.
- 4G+ Cat6 Gateway (Auto backup between 4G)
- Wi-Fi6 Technology
- Gigabit PoE+ Out Ports
Dual SIM Ensures Business Continuity
In scenarios involving automatic failover mechanisms, backup WAN connections, and various network switching situations, the system ensures business continuity.
Software Defined Networking (SDN) with Cloud Access
Centralised cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud based controller offering the Essentials version of cloud services for free, reducing maintenance costs. (Actual 4G downlink speeds vary between buildings. Factors affecting 4G speeds include the internet service plan, real-time network capacity, equipment and client limitations, and environmental factors.)
Build Features

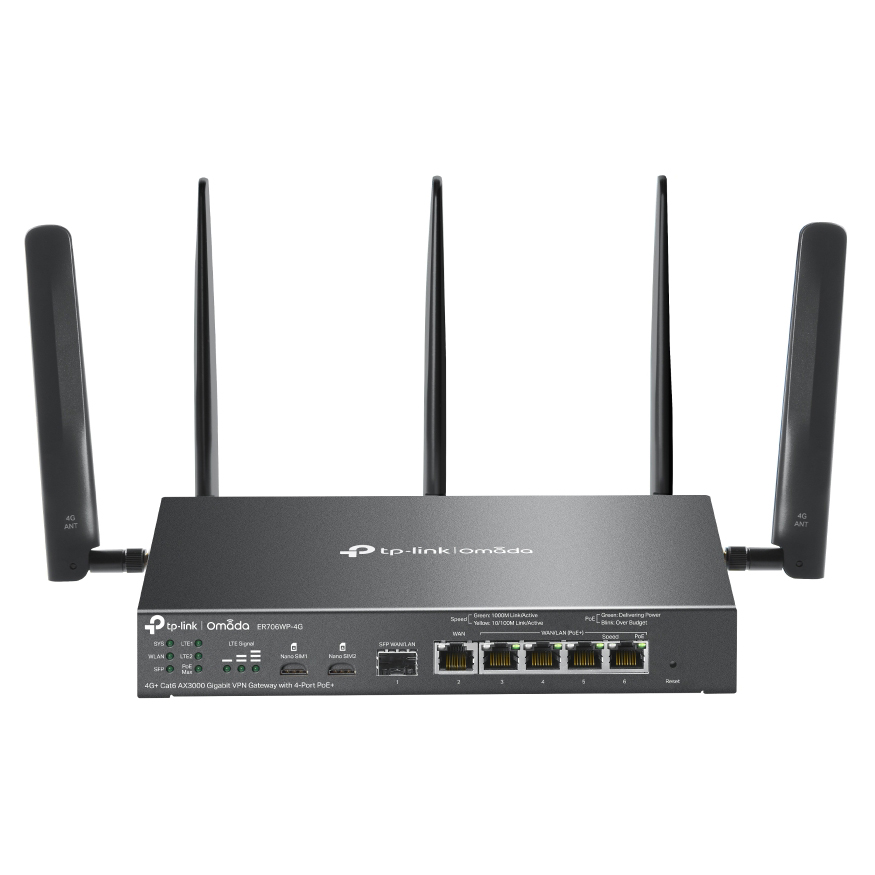

Front View

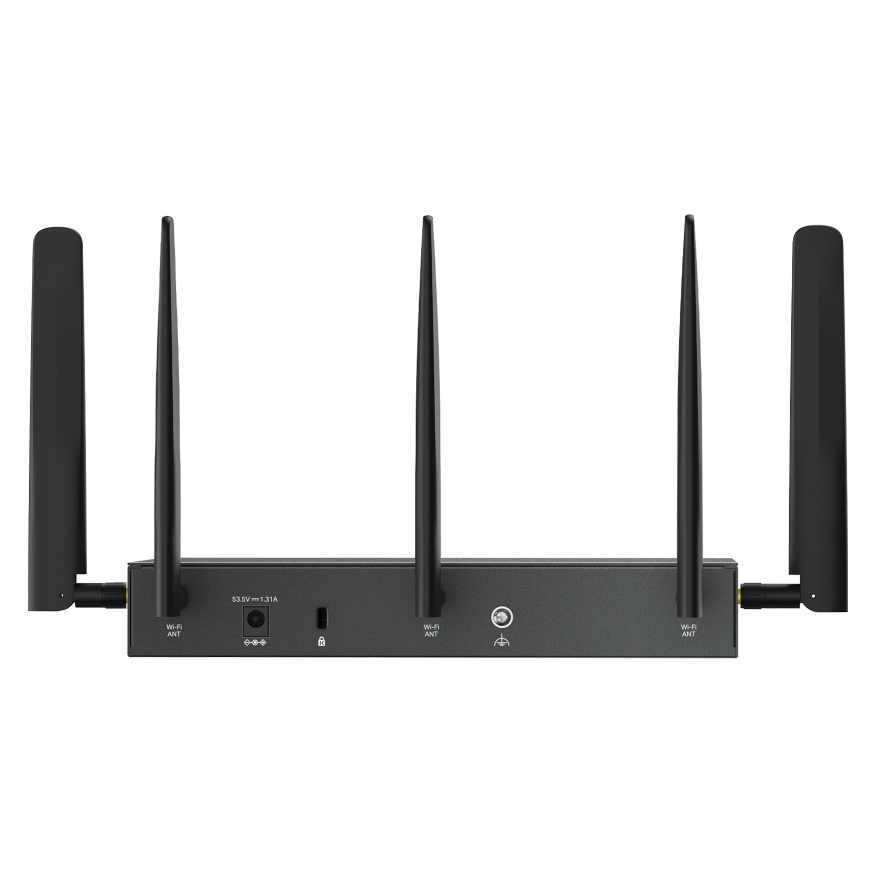

Back View
Specifications
General Data
| Model Number |
ER706WP-4G |
| Certification |
CE, FCC, RoHS |

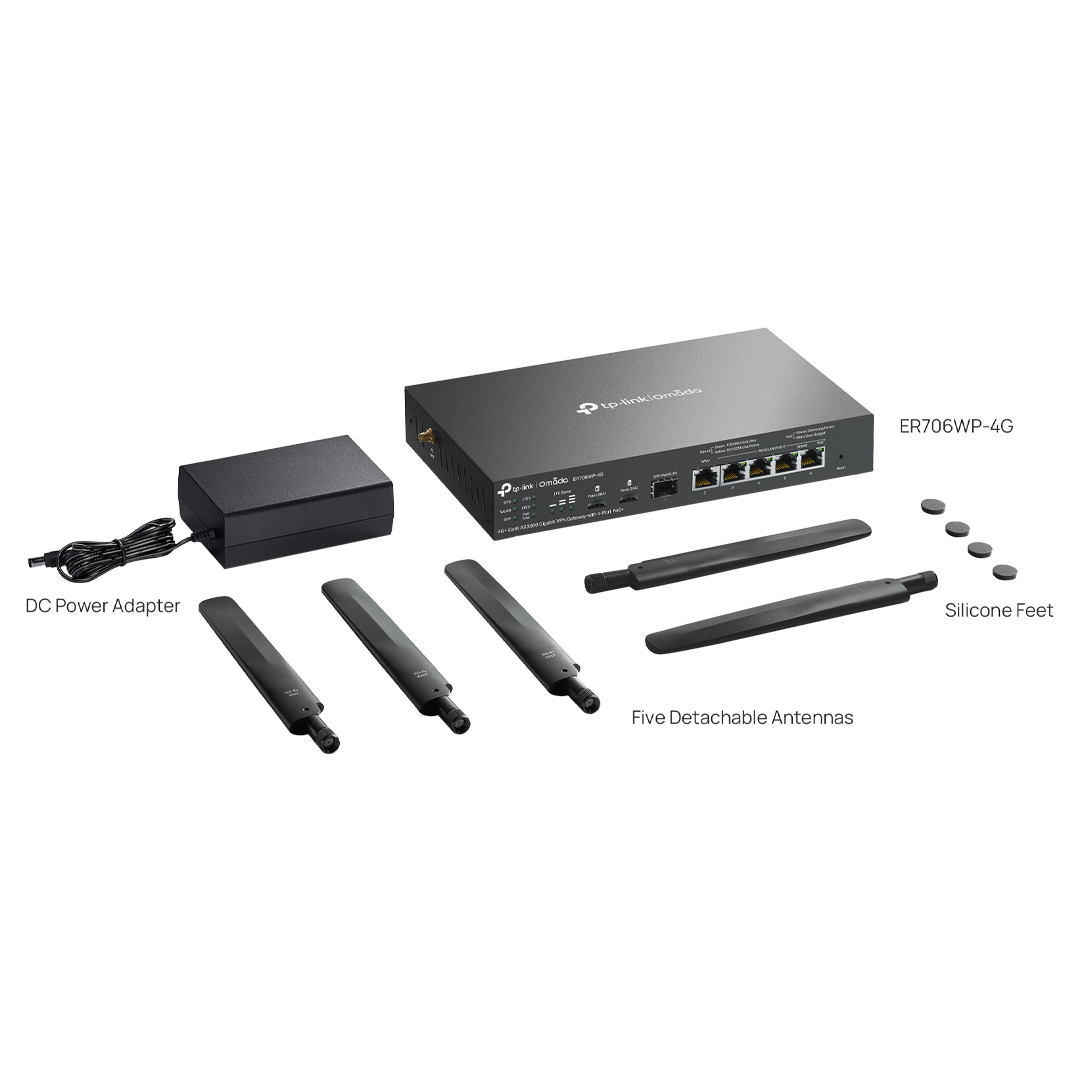

| Package Contents |
ER706WP-4G
Power Adaptor
Quick Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7 / 8 / 8.1 / 10 / 11
MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing |
4G
| Network Type |
LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/
900/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation of EU:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41 |
| SIM Type |
2 x Nano SIM Card( (4G+ Cat6) |
| Frequency |
Downlink: 300 Mbps;
Uplink: 50 Mbps |
Security
| DPI |
Application control via DPI / Updated app library |
| IDS/IPS |
Signature-based IPS/IDS threat detection |
| Access Control |
Source / Destination IP Based Access Control |
| Filtering |
Web Group Filtering (These functions are supported only in Standalone Mode.)
URL Filtering
Web Security (These functions are supported only in Standalone Mode.) |
| ARP Inspection |
Sending GARP Packets
ARP Scanning (These functions are supported only in Standalone Mode.)
IP-MAC Binding |
| Attack Defence |
TCP / UDP / ICMP Flood Defence
Block TCP Scan (Stealth FIN / Xmas / Null)
Block Ping from WAN |
Hardware Features
| Interface |
1 Gigabit SFP WAN / LAN Port
1 Gigabit WAN Port
4 Gigabit LAN / WAN Ports |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Button |
Reset Button |
| Power Supply |
4 Ports PoE+ Output, 45 W PoE Budget |
| Wi-Fi Frequency & Signal Rate |
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160) |
| Flash |
256 MB NAND |
| DRAM |
512 MB DDR4 |
| LED |
SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link / Act, 100 / 10M Link / Act), WAN / LAN (1000M Link / Act, 100 / 10M Link/Act, PoE) |
| Dimensions (W x D x H) |
8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not included) |
| Antenna |
Wi-Fi: Three 5GHz 5.5 dBi & 2.4GHz 4.5 dBi dual-band detachable antennas
LTE: Two 4.0 dBi omnidirectional detachable antennas |

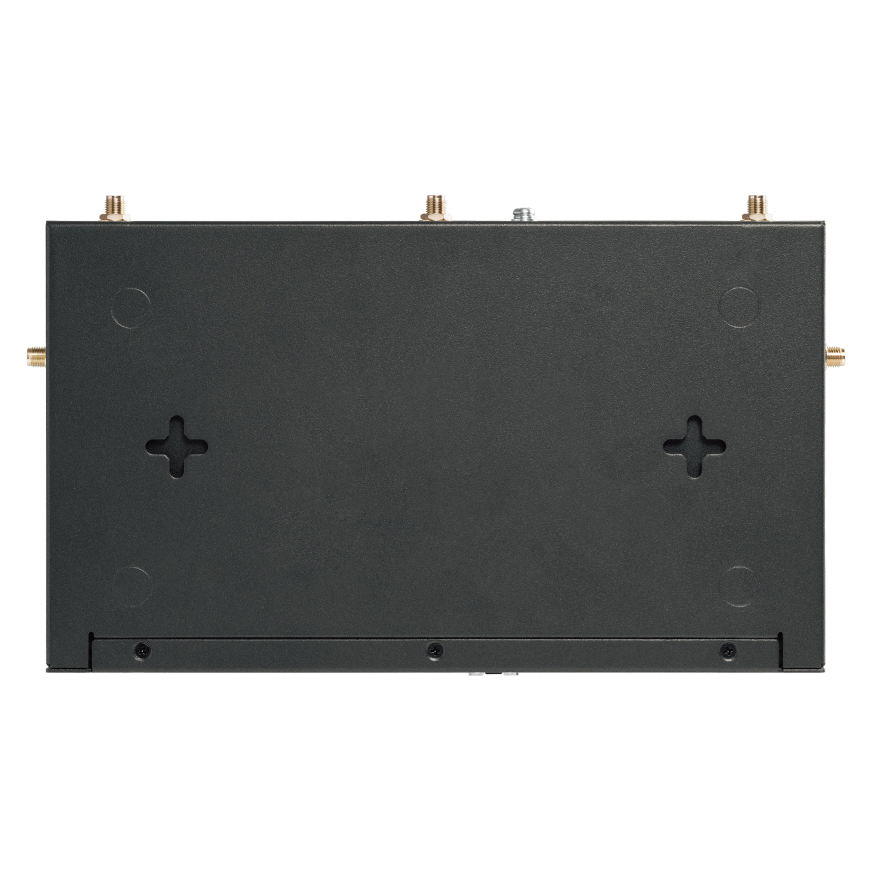

| Mounting |
Desktop / Wall-Mounting / Rackmount |
| Max Power Consumption |
64.9 W with PoE Max; 19.8 W without PoE |
Performance
| IPS Throughput |
TCP: 229 Mbps
UDP: 188 Mbps |
| DPI Throughput |
TCP: 933 Mbps
UDP: 927 Mbps |
| GRE |
Unencrypted: 545.3Mbps
Encrypted: 282.6Mbps |
| WireGuard VPN |
387.7 Mbps |
| Concurrent Session |
150,000 |
| New Sessions /Second |
5,100 |
| NAT (Static IP) |
947.1 Mbps / 940.1 Mbps |
| NAT(DHCP) |
949.2 Mbps / 941.1 Mbps |
| NAT(PPPoE) |
942.6 Mbps / 941.1 Mbps |
| NAT (L2TP) |
875.4 Mbps / 892.0 Mbps |
| NAT (PPTP) |
881.2 Mbps / 895.8 Mbps |
| IPsec VPN Throughput |
ESP-SHA1-AES256: 652.2 Mbps
ESP-SHA256-AES256: 654.4 Mbps
ESP-SHA384-AES256: 646.5 Mbps
ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN |
115.5 Mbps |
| L2TP VPN Throughput |
Unencrypted: 990.0 Mbps
Encrypted: 475.0 Mbps |
| PPTP VPN Throughput |
Unencrypted: 1177.9 Mbps
Encrypted: 177.4 Mbps |
| SSL VPN Throughput |
122.5 Mbps |
| 66 Byte Packet Forwarding Rate |
1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet Forwarding Rate |
81274 pps / 91275 pps |
Wireless Features
| Advanced Functions |
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Rate Limit: Based on SSID/Client
Airtime Fairness
Wireless Encryption: WPA / WPA2 / WPA3 Personal, WPA / WPA2 / WPA3 Enterprise
Multiple SSIDs: 16 in total (8 per radio) |
| Guest Network |
Support |
Basic Functions
| WAN Connection Type |
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP |
| MAC Clone |
Modify WAN Address |
| DHCP |
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customisation
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP |
| SMS |
Receive / Send SMS |
| IPv6 |
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN |
802.1Q VLAN |
| IPTV |
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
Advanced Features
| Access Control |
IP / Port / Protocol / Domain Name Filtering |
| Advanced Routing |
Static Routing
Policy Routing
RIP (These functions are supported only in Standalone Mode.)
OSPF (These functions are supported only in Standalone Mode.) |
| Bandwidth Control |
IP-Based Bandwidth Control |
| Load Balance |
Intelligent Load Balance
Application Optimised Routing
Link Backup (Timing, Failover)
Online Detection |
| NAT |
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering (These functions are supported only in Standalone Mode.)
NAT-DMZ
FTP / H.323 / SIP / IPSec / PPTP ALG
UPnP |
| Session Limit |
IP-Based Session Limit |
VPN
| GRE |
Only in Standalone Mode |
| SSL VPN |
50 Tunnels |
| IPsec VPN |
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS) |
| PPTP VPN |
PPTP VPN Server
PPTP VPN Client (10) (For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.)
50 Tunnels
PPTP with MPPE Encryption |
| L2TP VPN |
L2TP VPN Server
L2TP VPN Client (10) (For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.)
50 Tunnels
L2TP over IPSec |
| OpenVPN |
OpenVPN Server
OpenVPN Client (5) (For PPTP VPN and L2TP VPN, ER706W-4G can connect with up to 10 VPN servers. For OpenVPN, ER706W-4G can connect with up to 5 VPN servers.)
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode |
| WireGuard VPN |
20 Tunnels |
Authentication
| Web Authentication |
No Authentication
Simple Password (These functions are supported only in Controller Mode.)
Hotspot (Local User / Voucher (These functions are supported only in Controller Mode.) / SMS (These functions are supported only in Controller Mode.) / Radius (These functions are supported only in Controller Mode.))
External Radius Sever
External Portal Sever (These functions are supported only in Controller Mode.)
LDAP |
Management Features
| Omada App |
Yes |
| Centralised Management |
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller |
| Cloud Access |
Yes |
| Service |
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation) |
| Maintenance |
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute) (These functions are supported only in Standalone Mode.)
NTP Synchronise (These functions are supported only in Standalone Mode.)
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support |
| Zero-Touch Provisioning |
Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features |
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration |
Backed by a 5 year TP-Link warranty.
