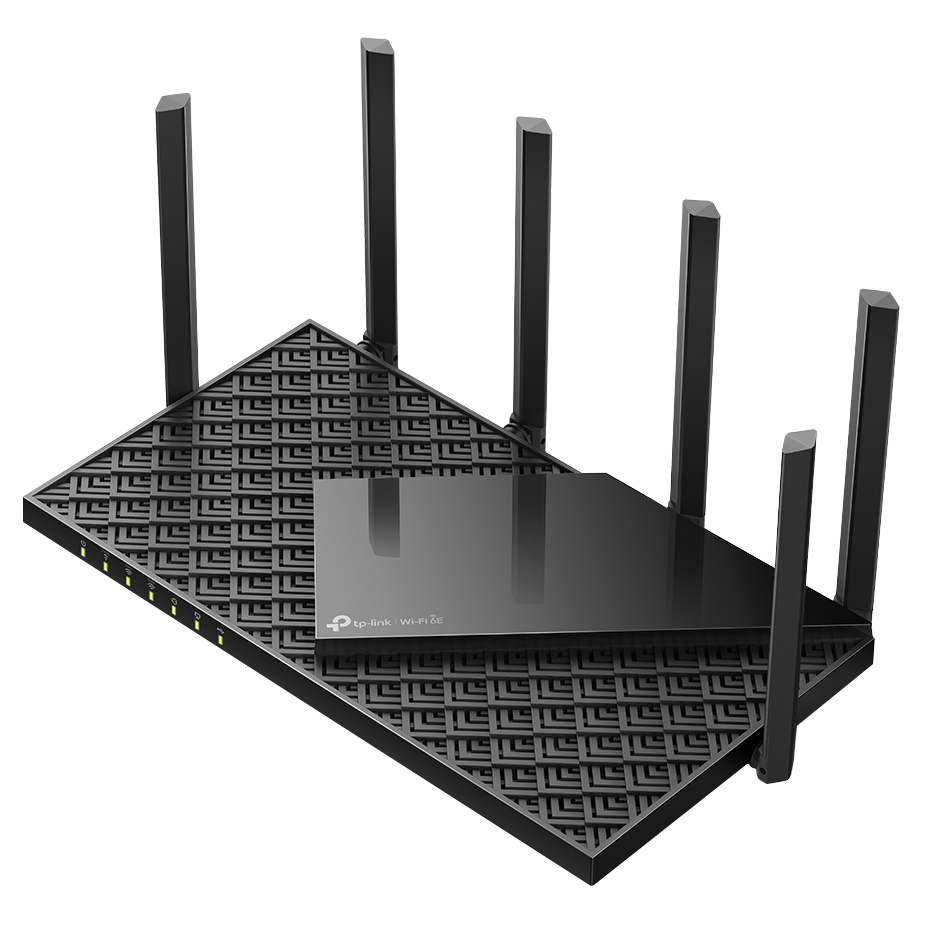

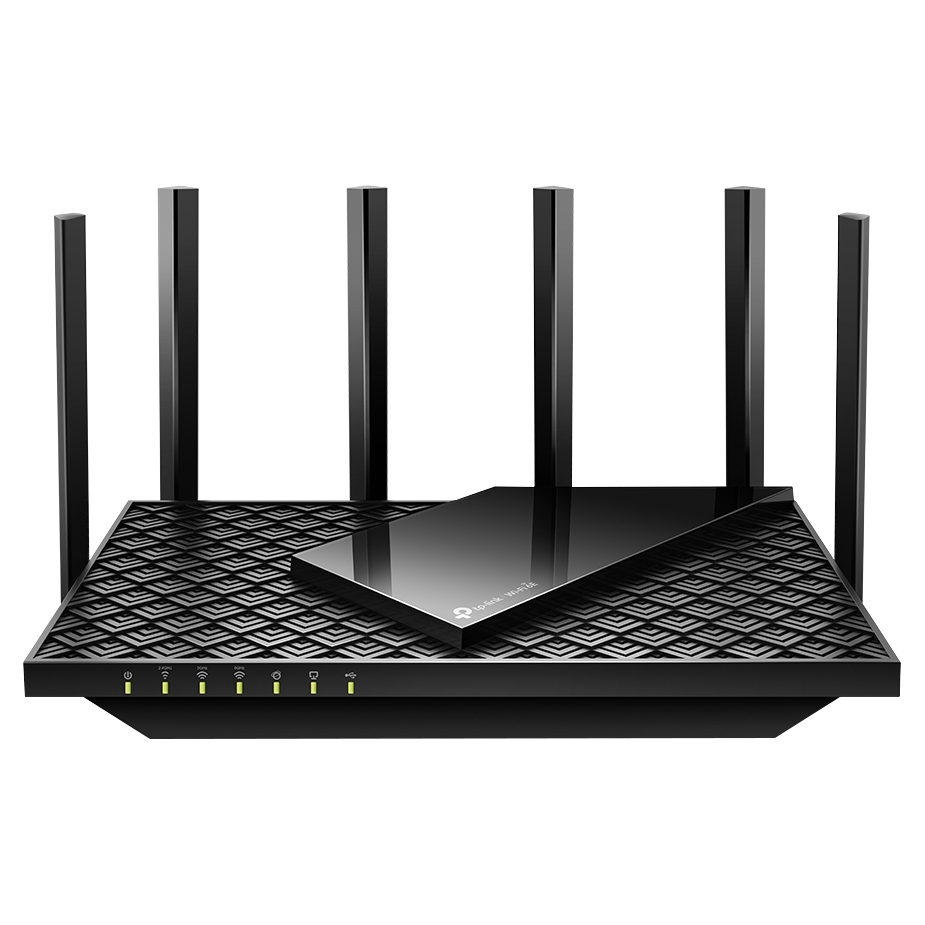

TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

ARCHER-AXE75 | TP-Link
$222
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
Epic Price! The TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router features Wi-Fi 6E technology that allows for less lag, and higher capacity with speeds of 574 on 2.4GHz and 2402Mbps on 5/6GHz, extensive Wi-Fi coverage with 6 x antennas and Beamforming, ventilated design for improved airflow, 1 x USB 3.0 port for media sharing, TP-Link HomeShield, supports OneMesh, and is easy to setup and use via the TP-Link Tether application.

Features

TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router Feature 1

AXE5400 Tri-Band Gigabit Wi-Fi 6E Router

  • AXE5400 Tri-Band - AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps.
  • Cutting-Edge Processing - Armed with a 1.7 GHz Quad-Core CPU.
  • SuperSpeed USB 3.0 - Up to 10x faster transfer speeds than USB 2.0.
  • Wi-Fi 6E Unleashed - The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
  • HomeShield - Customise your home network with enhanced security and control.
  • OneMesh™ - Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
  • Connect More Devices - OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
  • Ultra-Low Latency - Enables more responsive gaming and video chatting.
  • Compatible with Alexa - Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications

General Data

Model Number ARCHER-AXE75
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC, RoHS
Environment Operating Temperature: 0~40 (32 ~104)
Operating Humidity: 10%~90% non-condensing
Dimensions (W x D x H) 10.7 x 5.8 x 1.9 in
(272.5 x 147.2 x 49.2 mm)

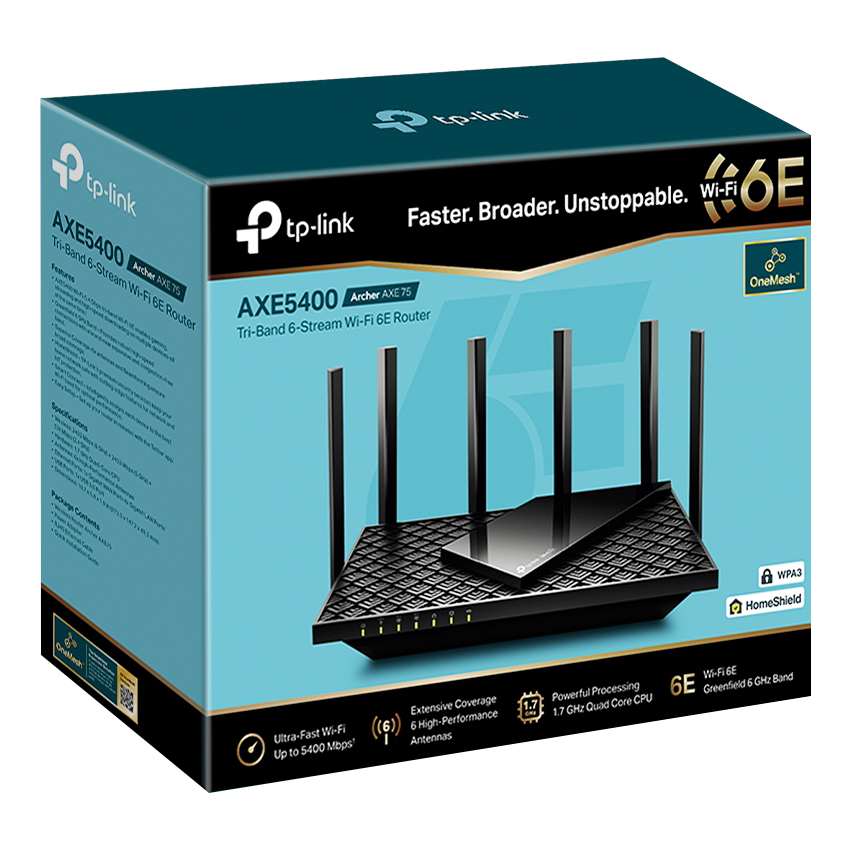

In the Box Wi-Fi Router Archer AXE75
Power adaptor
RJ45 Ethernet Cable
Quick Installation Guide

Wireless

Standards and Protocols IEEE 802.11ax 6 GHz,
IEEE 802.11ax/ac/n/a 5 GHz,
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AXE5400
6 Ghz: 2402 Mbps (802.11ax)
5 Ghz: 2402 Mbps (802.11ax)
2.4 Ghz: 574 Mbps (802.11ax)
WiFi Range 2-3 Bedroom Houses
6x Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously co mmunicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
6 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode

Security

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1x 6 Ghz Guest Network,
1x 5 Ghz Guest Network,
1x 2.4 Ghz Guest Network
VPN Server OpenVPN Server
PPTP VPN Server
L2TP VPN Server
VPN Client Open VPN Client
PPTP VPN Client
L2TP VPN Client
WiFi Encryption WPA,
WPA2,
WPA3,
WPA/WPA2-Enterprise (802.1x)

Hardware

Processor 1.7 Ghz Quad-Core CPU

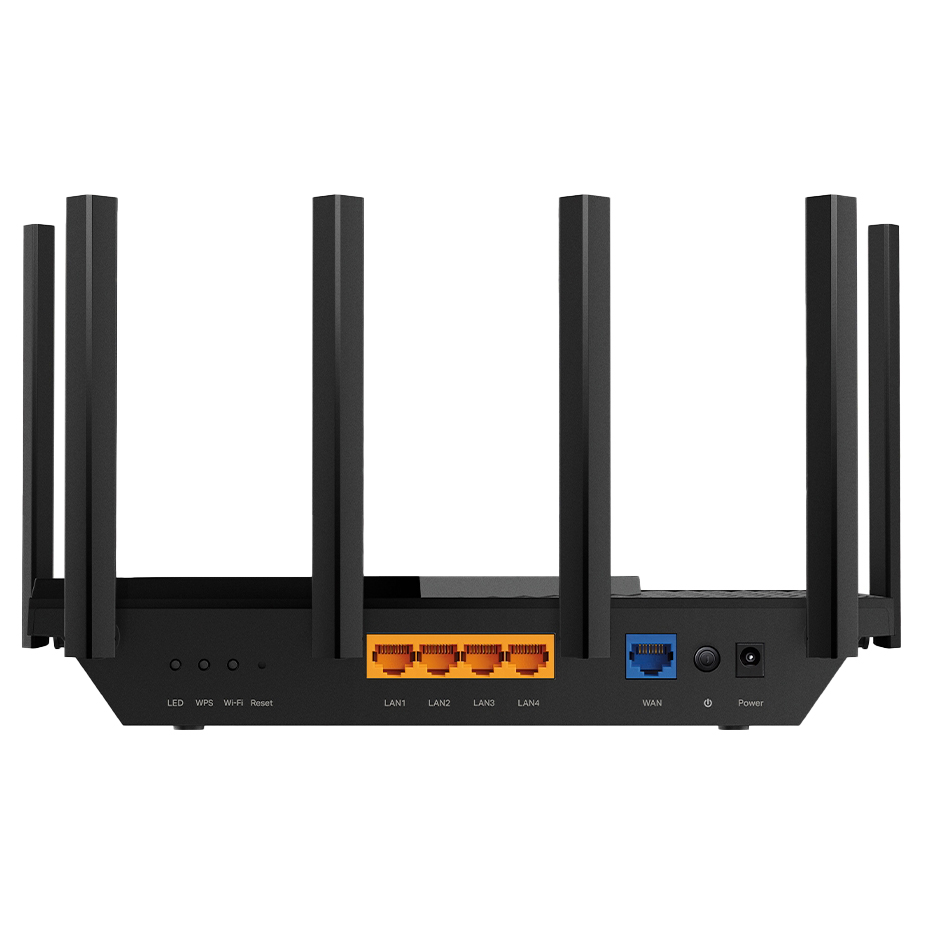

Ethernet Ports 1x Gigabit WAN Port
4x Gigabit LAN Ports
USB Support 1x USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ? 2.5 A

Software

Protocols IPv4
IPv6
Service Kits HomeShield
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
Virtual Server
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Features Tether App
Webpage

Test Data

WiFi Transmission Power FCC: ≤29dBm (2.4 Ghz), ≤28dBm (5 Ghz), ≤22dBm (6 Ghz)
CE: ≤17dBm (2.4 Ghz), ≤27dBm (5 Ghz), ≤20dBm (6 Ghz)
WiFi Reception Sensitivity 2.4 Ghz:
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
5 Ghz:
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
6 Ghz:
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
Backed by a 3 year TP-Link warranty.
