Ubiquiti G3 Starter Kit Pro

UA-G3-SK-PRO | Ubiquiti
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$999
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns

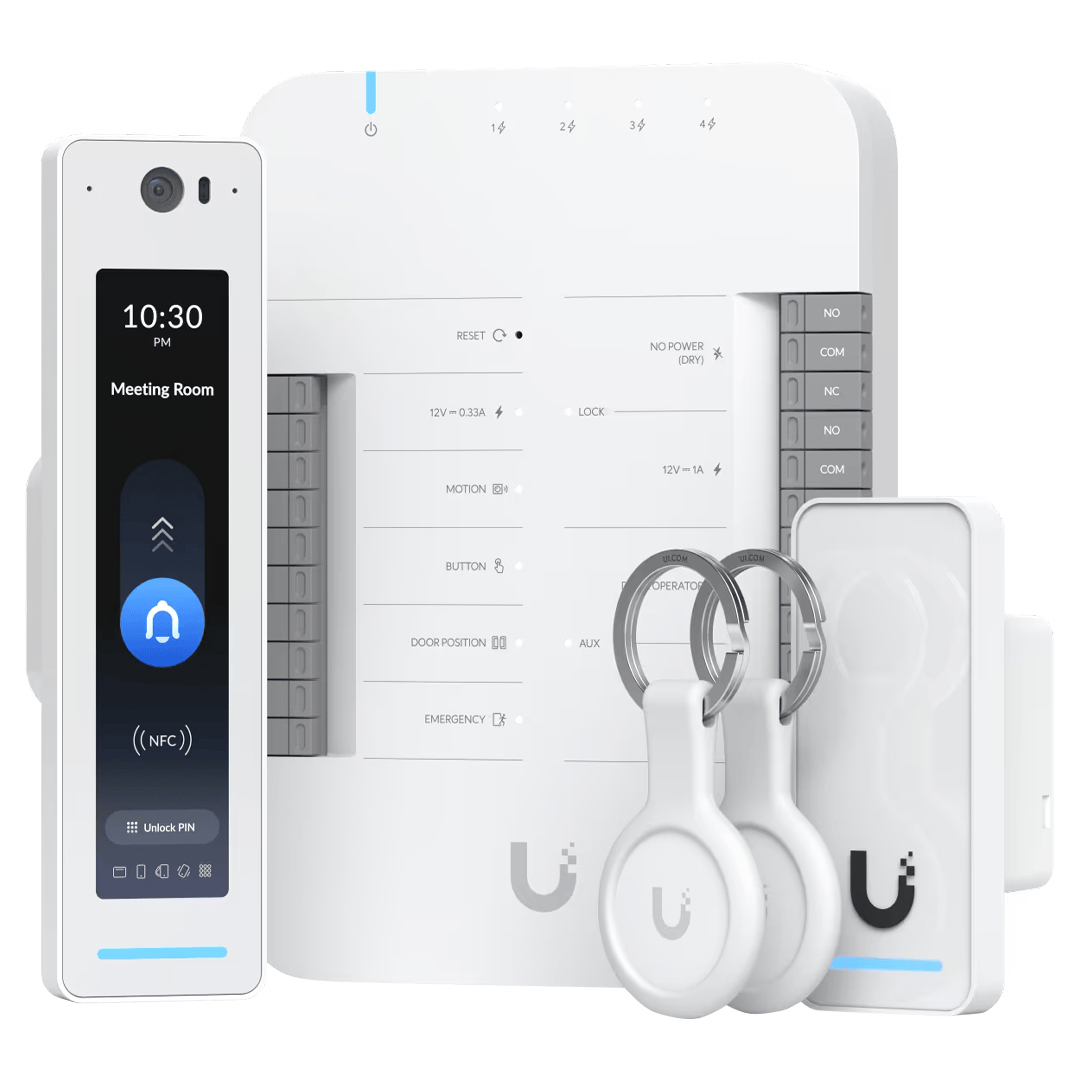

The Ubiquiti G3 Starter Kit Pro includes the UniFi Access Door Hub, Access Reader G3 Pro, an additional Access Reader G3 for door exit or entry, and two pocket key fobs. Managed through the UniFi Access Controller, it allows for seamless management of users, visitors, schedules, and access policies.

Features

Ubiquiti G3 Starter Kit Pro Feature 1

G3 Starter Kit Pro

Starter kit that provides complete entry and exit control for a single door with two readers and Touch Pass support.

Ubiquiti G3 Starter Kit Pro Feature 2

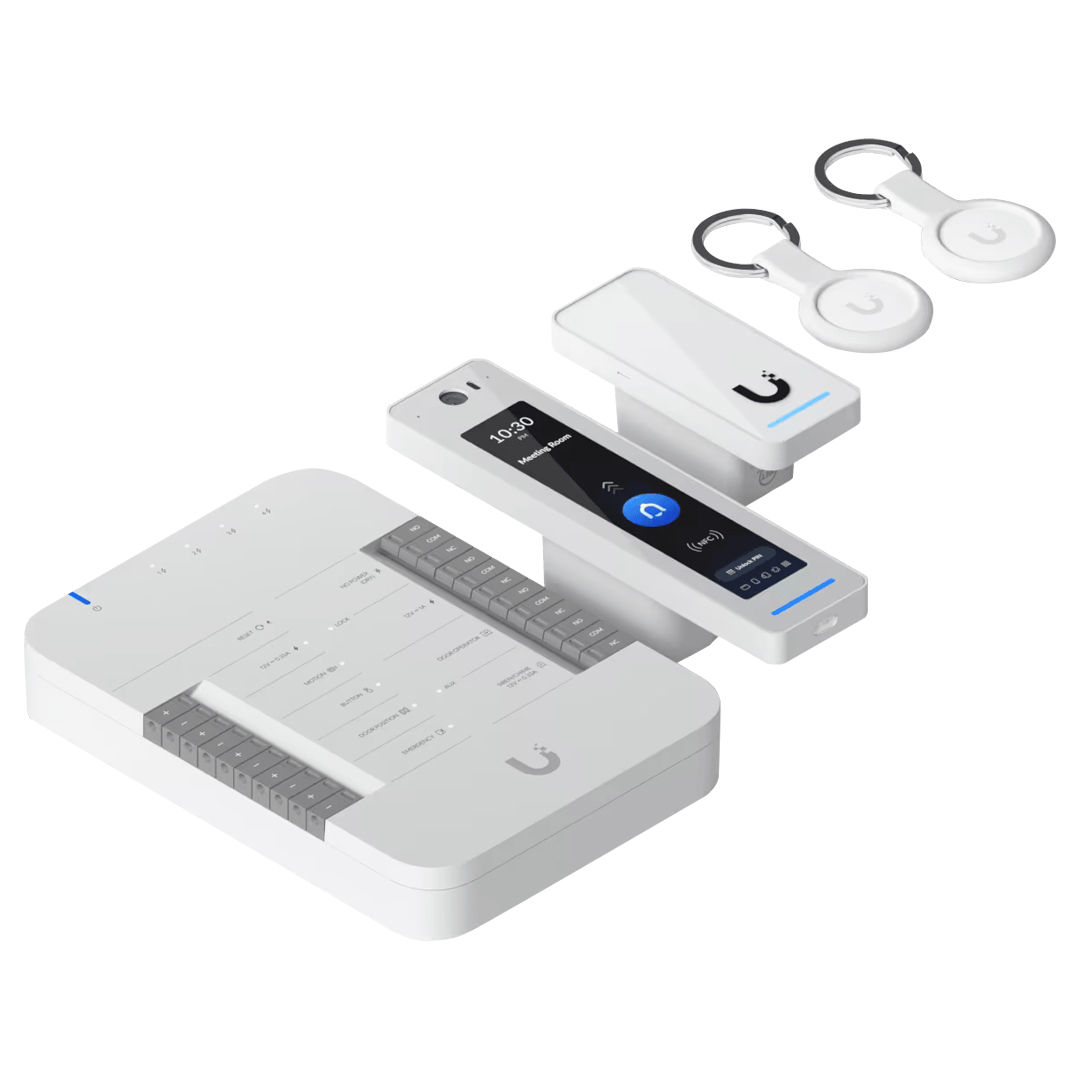

Deployment

Build Features

Door Hub

Ubiquiti G3 Starter Kit Pro Feature 3

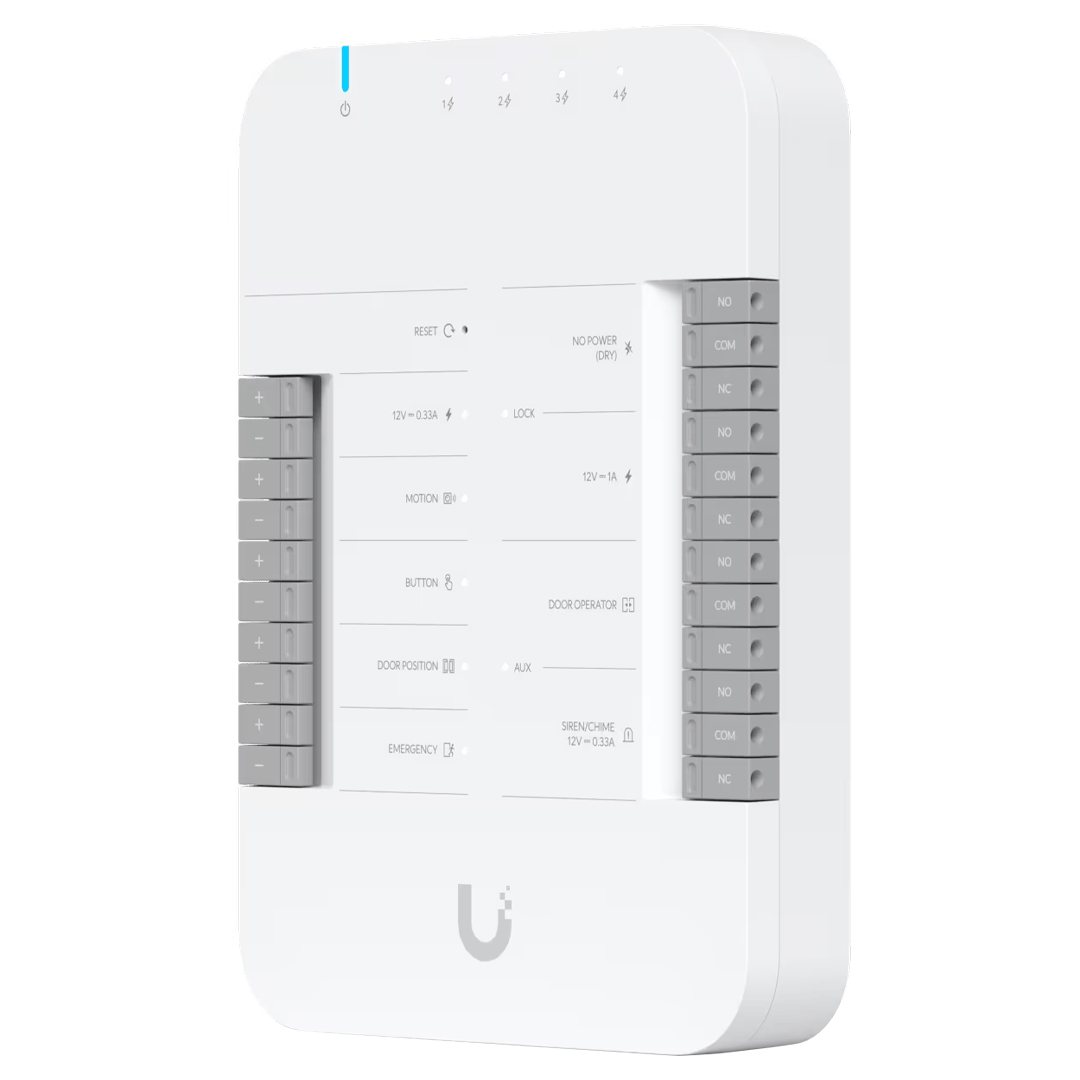

Front View

Ubiquiti G3 Starter Kit Pro Feature 4

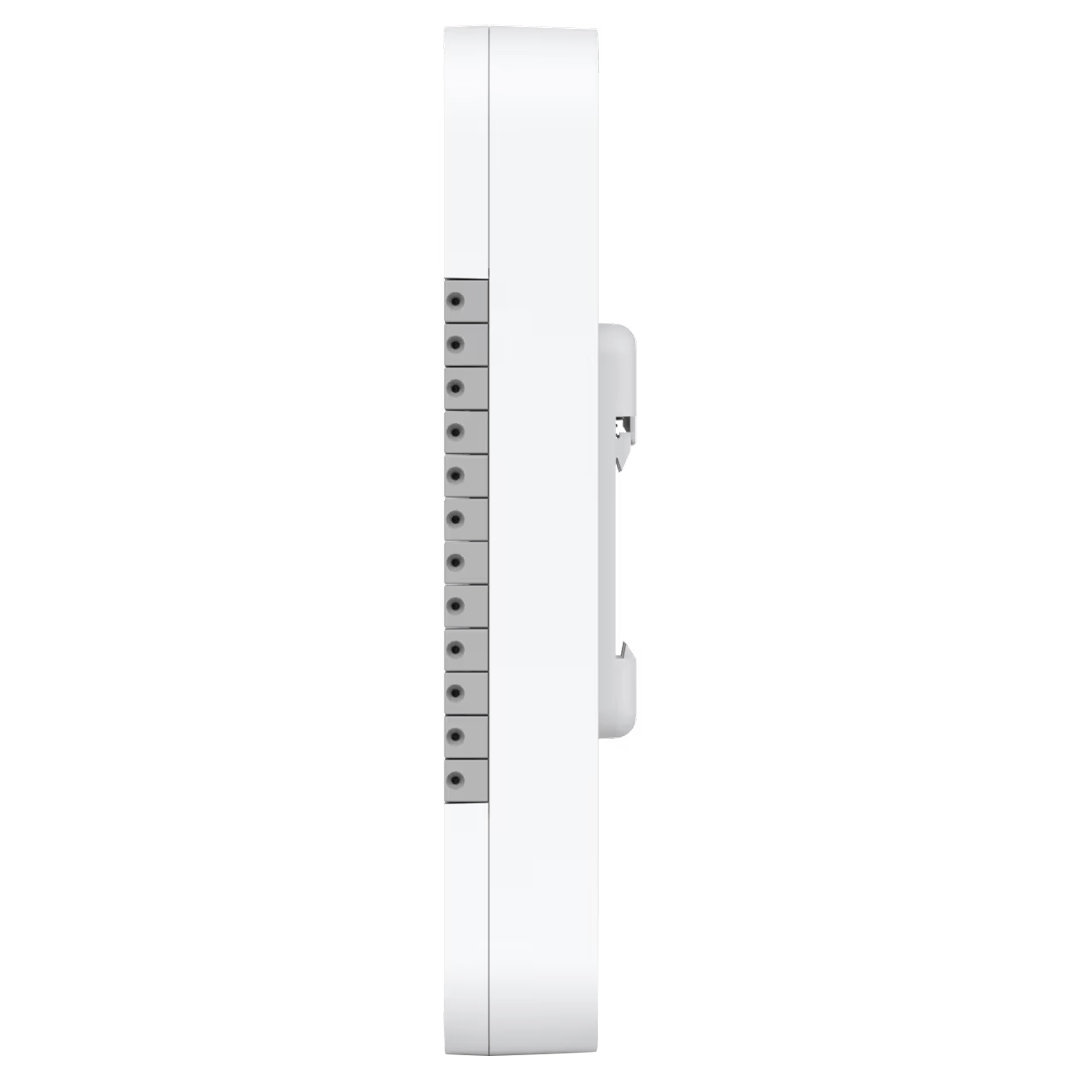

Side & Bottom View

G3 Reader Pro

Ubiquiti G3 Starter Kit Pro Feature 5

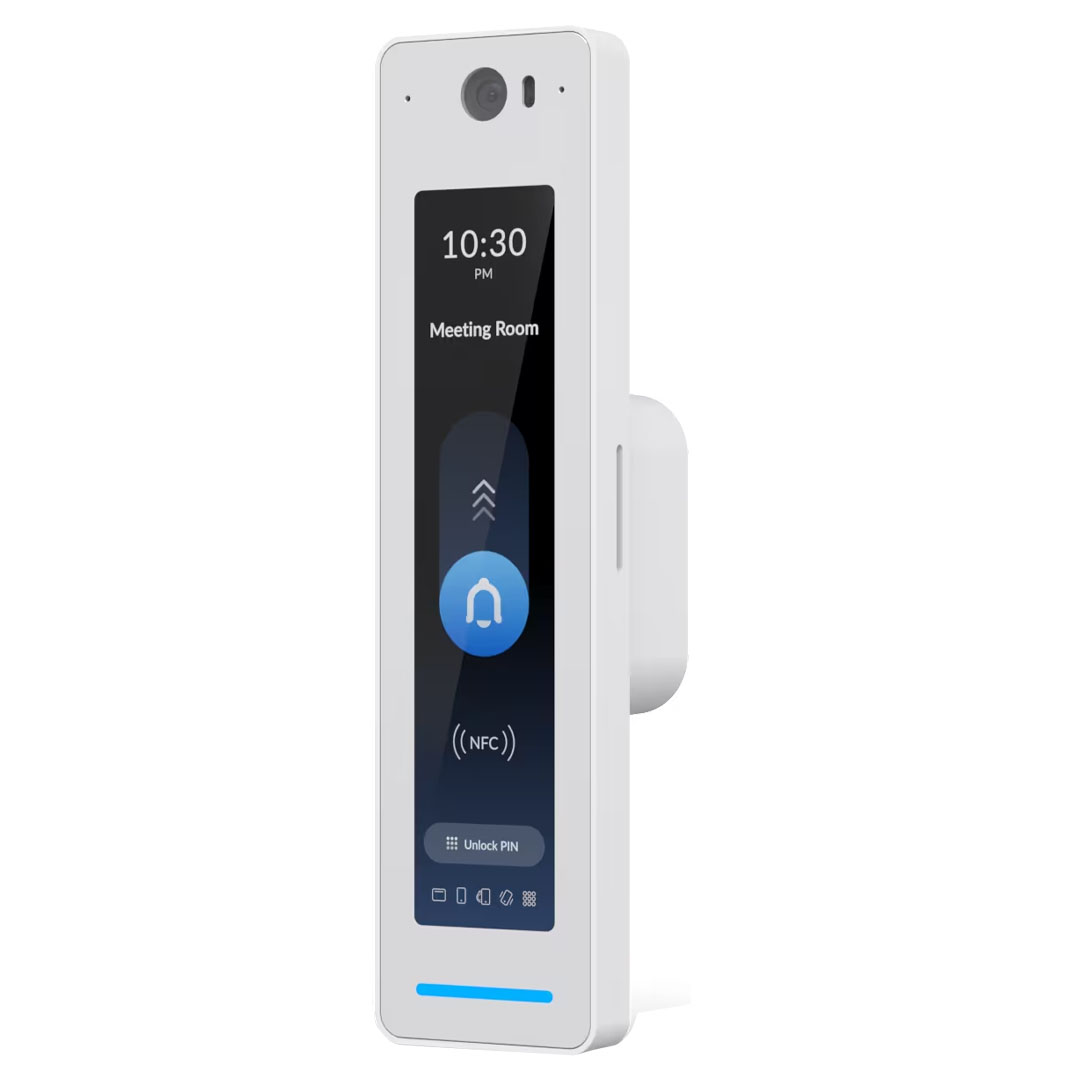

Front & Side View

Ubiquiti G3 Starter Kit Pro Feature 6

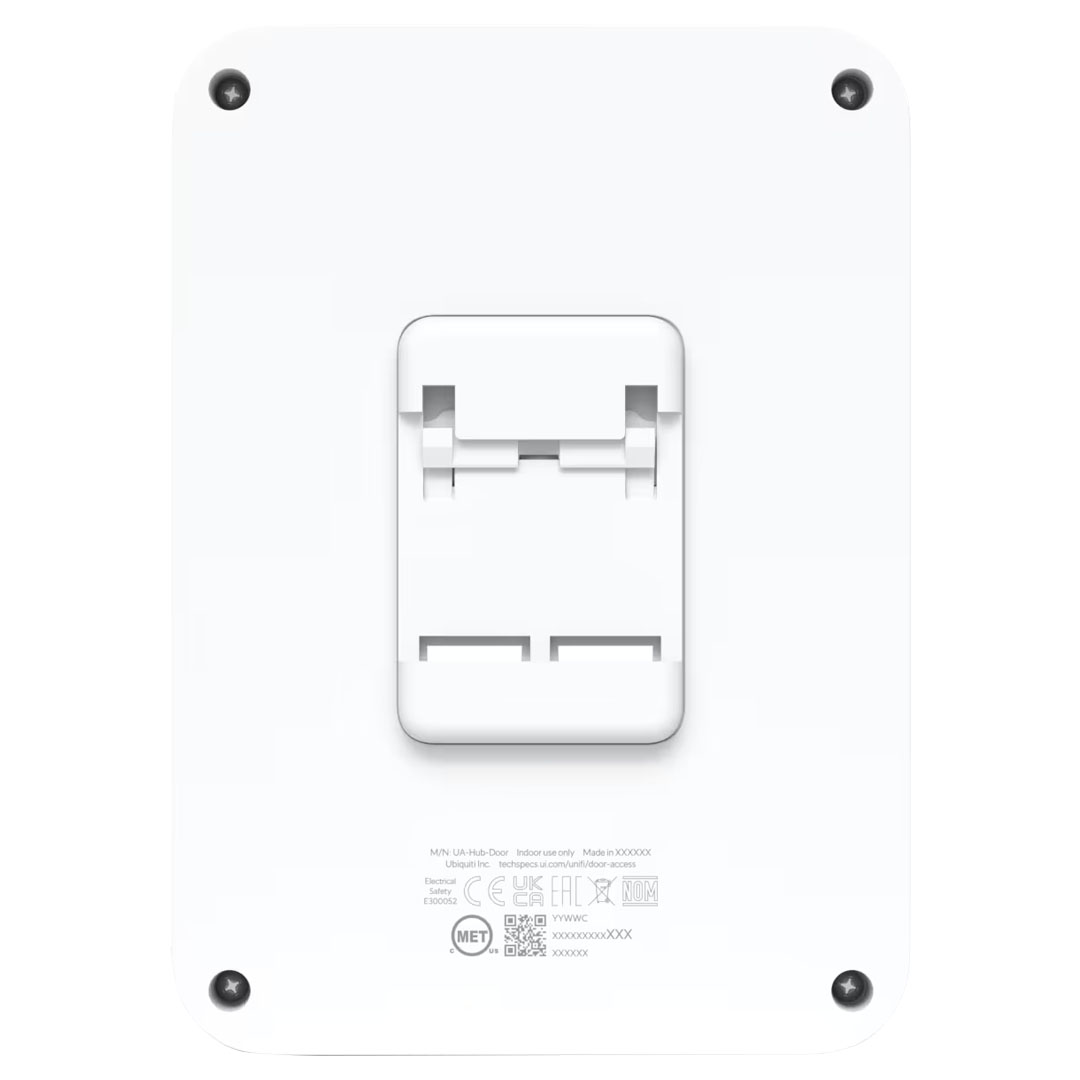

Back View

Ubiquiti G3 Starter Kit Pro Feature 7

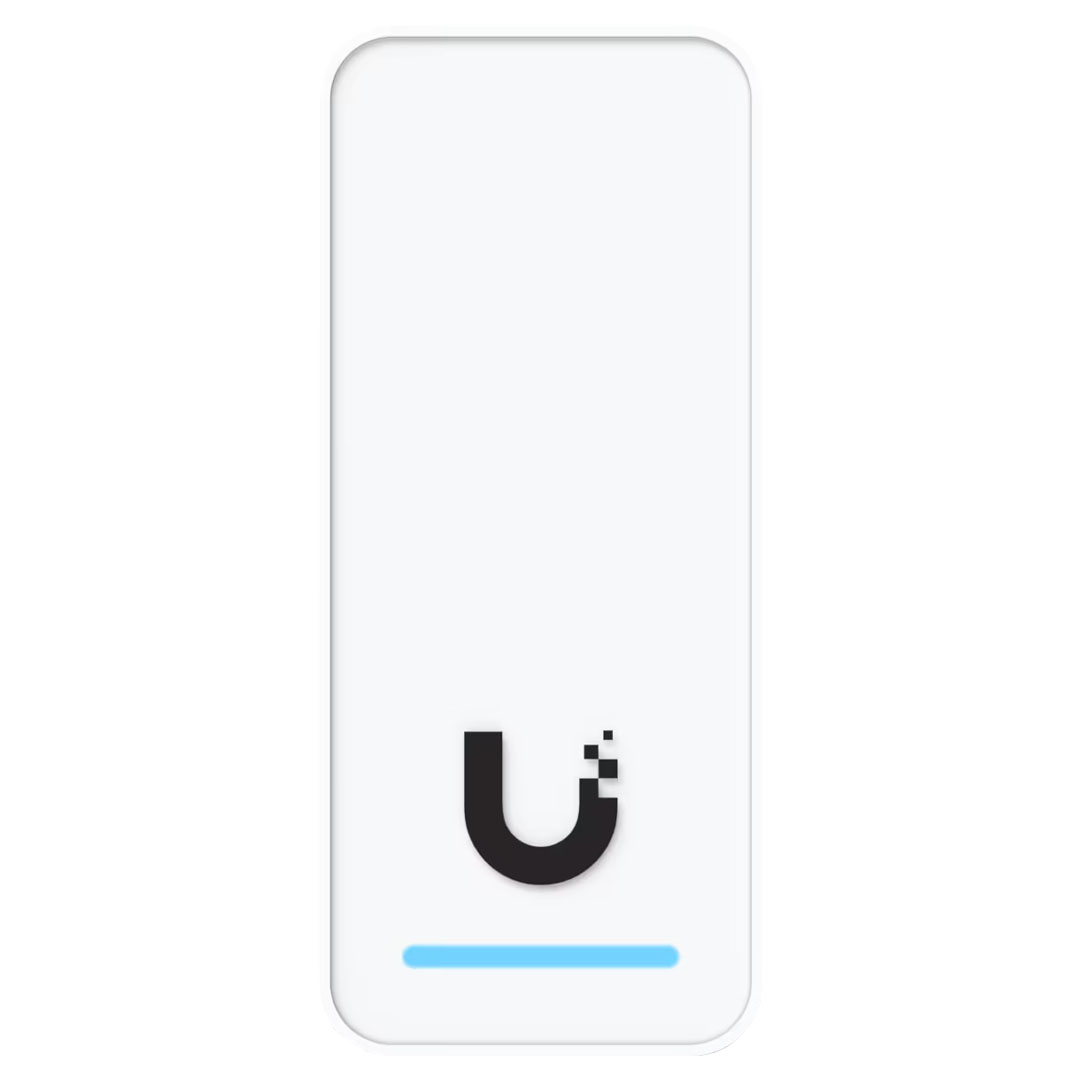

G3 Reader

Specifications

General Data

Model Number UA-G3-SK-PRO
In the Box Door Hub
G3 Reader Pro
G3 Reader
Pocket Keyfobs
Touch Pass 10 free 1-Year Touch Passes included

Door Hub

Dimensions 174.9 x 126 x 32.9 mm
(6.9 x 5 x 1.3")
Supported Doors 1
Input Terminals Door Exit Request
Door Position
Emergency
Power Method PoE++
UL 294 Power-Limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
UL 294 Level Destructive attack: Level I
Line Security: Level I
Endurance: Level I
Standby power: Level I
Weight 363 g (12.8 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Mounting DIN-rail (Included)
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% Noncondensing
Networking Interface 10/100/1000 Base-T
PoE Interface PoE++ Input, 50V DC, 1A
PoE Outputs, 50V DC, 15.4W Per Port (Max. 28 W Aggregated)
Max. Power Consumption 30 W (Without PoE Output)
50 W (With PoE Output)
Digital Input Request to Exit, Request to Enter, remote release, door Position sensor
Dry Output Relay Lock: 30 V DC, 1 A
Aux: 30 V DC, 1 A
Powered Output Relay Lock: 12 V DC, 1 A
Aux: 12 V DC, 0.33 A
12 V DC, 0.33 A
LEDs B/W
Button Factory-reset
Recommend Max. Cable Length UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1 A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-Hub-Door002, V01

G3 Reader Pro

Dimensions 160 x 40.4 x 40.55 mm
(6.3 x 1.59 x 1.6")
Integrated Camera Yes
NFC Card & Keyfob Access Yes
PIN Access Yes
Apple/Google Wallet Yes
Mobile Unlock Yes
Two-Way Intercom & Doorbell Access Yes
Weatherproofing IP55
NDAA Compliant Yes
UL 294 Level Destructive attack: Level I
Line Security: Level I
Endurance: Level I
Standby power: Level I
Weight 136 g (4.8 oz)
Enclosure Material Polycarbonate, glass
Mount Material Aluminum alloy
Mounting Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use Yes
Ambient Operating Temperature Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface GbE RJ45 port
Connectivity BLE 4.2
NFC
Power Method PoE
UL 294 Power-Limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption 6 W
Supported Voltage Range 48 V DC
ESD/EMP Protection Air: ±15 kV, contact: ±8 kV
Sensors Proximity sensor
Display 120 mm (4.7") diagonal
Touch Screen Technology Capacitive touch
Display Luminance 480 nits (Typical)
Screen Orientation Portrait
Resolution 1280 x 286 px
Microphone Yes
Speaker Yes, 1.5 W
LEDs R/G/B/W/Amber
Button Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-G3-Pro-W/UA-G3-Pro-B, V01

Pocket Keyfob

Dimensions 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight 16 g (0.56 oz)
Enclosure Material Polycarbonate, stainless steel, silicone rubber
Weather Proofing IP54
NDAA Compliant Yes
Ambient Operating Humidity 10 to 90% noncondensing
Ambient Operating Temperature -10 to 45° C (14 to 113° F)
NFC Frequency 13.56 MHz
NFC Technology ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol
Certification CE
Backed by a 1 year Ubiquiti warranty.
