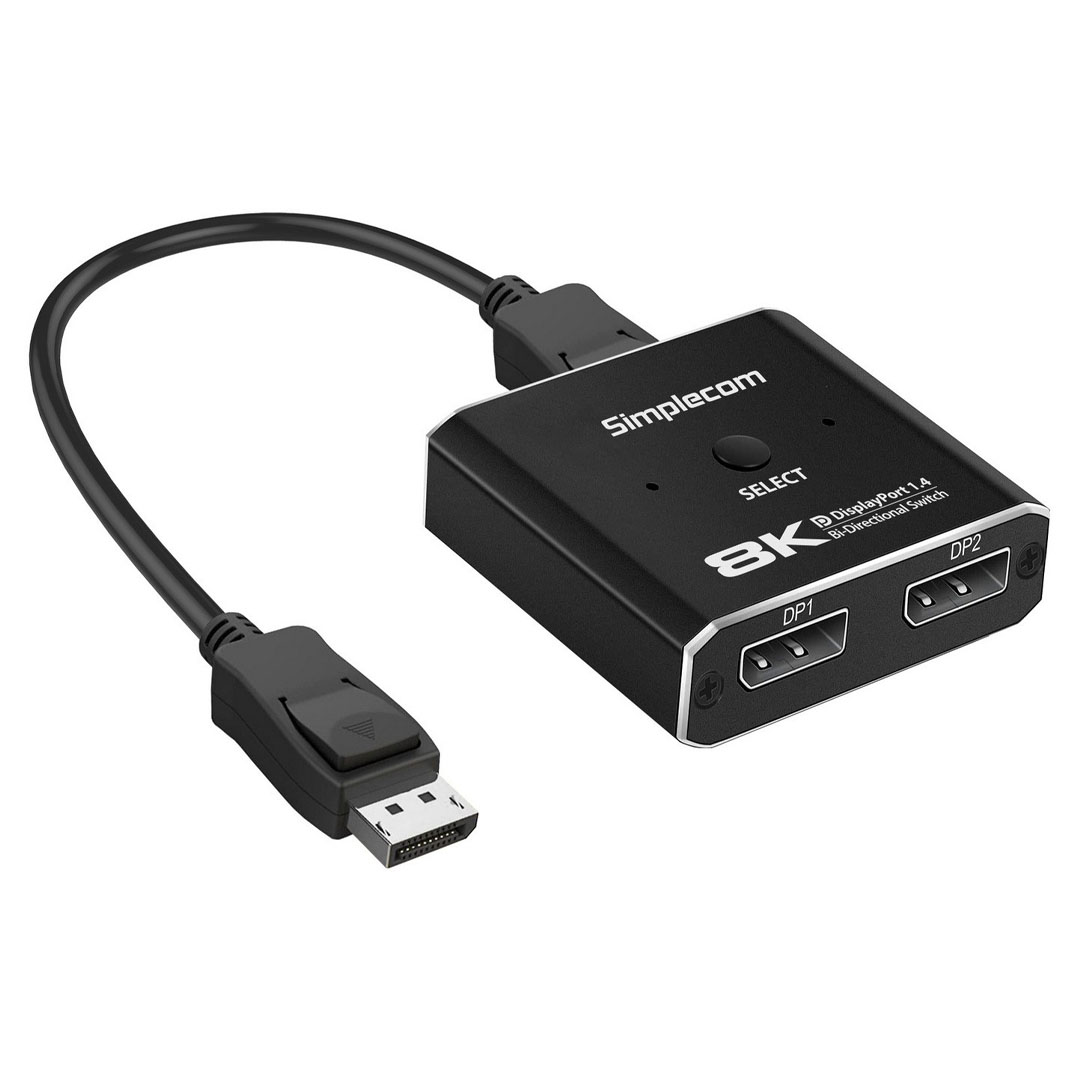

The Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch is a plug and play switch designed to seamlessly switch between two DisplayPort sources and one display. It supports resolutions up to up to 8K@30Hz, 4K@120Hz, 2K@144Hz and 1080P@240Hz. The switch features a durable aluminium alloy casing and compact form factor to allow portability.
Features
Simplecom CM202 Bi-Directional 2 Way DisplayPort Switch Selector DP 1.4 8K

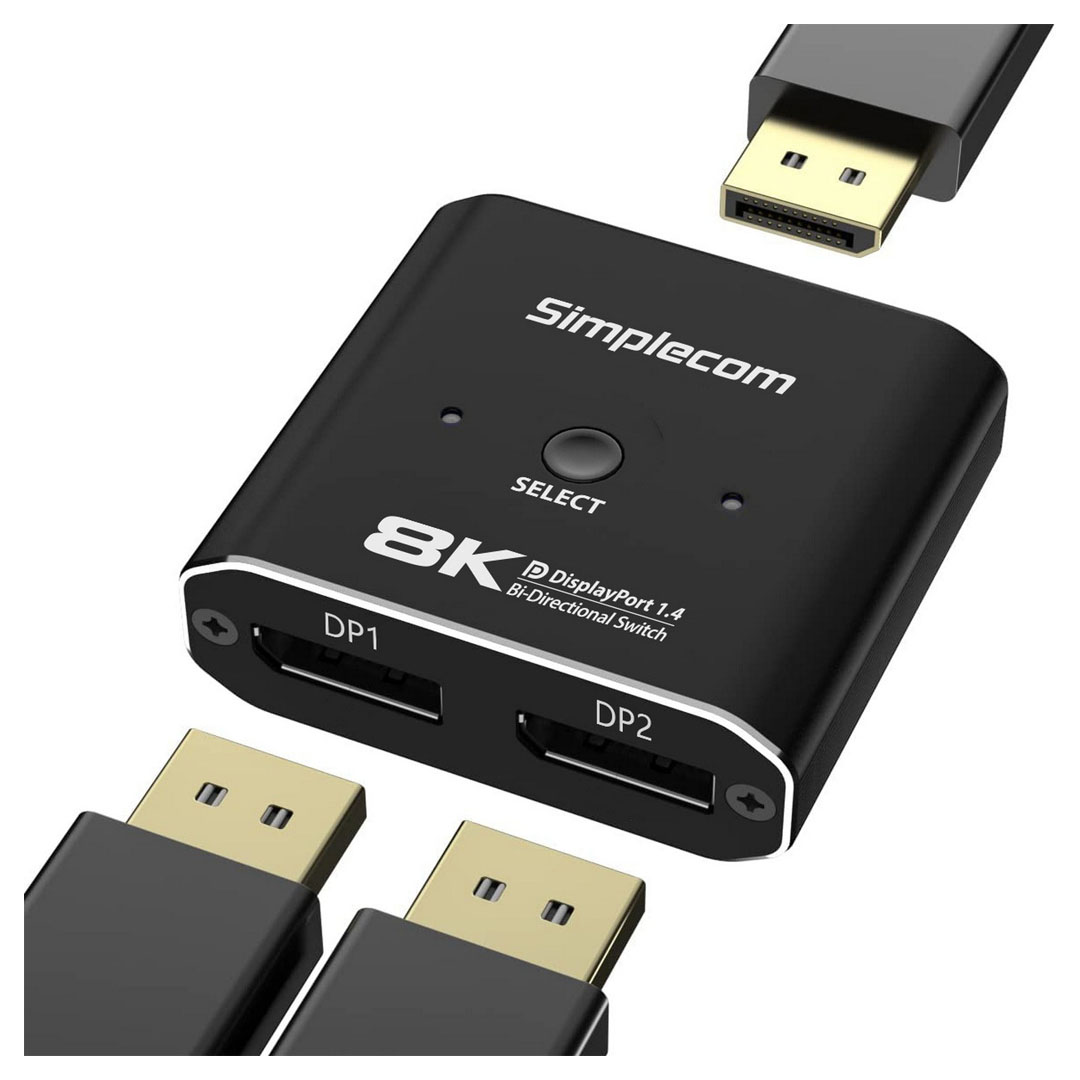

CM202 is bi-directional 2-way DisplayPort switch that can be used to switch two different DisplayPort sources or DisplayPort displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.
You can connect two DisplayPort sources, such as laptop and PC, to one DisplayPort on your monitor, and allow two DisplayPort sources to share one DisplayPort on monitor. It also functions in the opposite direction, allows you to connect a DisplayPort source for toggling between two monitors. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.
This switch is DisplayPort 1.4 compliant, and provides high bandwidth up to 32Gbps, which support video output up to 8K@30hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.
- Bi-Directional DisplayPort switch for toggling between 2 DP sources or displays
- Quickly switch video sources or displays without having to swap cables
- Durable aluminium alloy casing, also efficiently dissipate heat
- Portable and compact size, easy to install
- DisplayPort 1.4 compliant, support bandwidth up to 32Gbps
- Backwards compatible with previous DP version
- Support video resolution up to 8K@30hz
- Plug and Play, Powered by USB
Switching 2 DisplayPort Sources - DP Switch 2 IN 1 OUT
- Two DP Sources to One DP Display - 2 Inputs 1 Output
Switching 2 DisplayPort Displays - DP Splitter 1 IN 2 OUT
- One DP Source to Two DP Displays - 1 Input 2 Outputs
Important Notes
- For stable connection, the max total cable length of is 3M (Input + Output)
- This is a manual DisplayPort switch and does not support automatic switching
- Powered by USB, with USB-C power cable that can be plugged to USB port on computer or USB charger
- Two screens cannot display simultaneously under 1 Input 2 Outputs mode
Specifications
| Model Number |
CM202 |
| DisplayPort Version |
DP 1.4 |
| Video Resolution Support |
Up to 8K@30 Hz, 4K@120 Hz, 2K@144 Hz, 1080P@240 Hz |
| HDR Support |
Yes |
| Max Bandwidth |
32 Gbps |
| Max Cable Distance |
3M (Input + Output) |
| Max Operation Current |
0.5 A |
| Power Input |
USB-C, DC 5 V (power adaptor is not included) |
| Operating Temperature |
-15 to +55°C |
| Dimension (L x W x H) |
59 x 53 x 15 mm |
| Weight |
35 g |
| Package Contents |
1 x Bi-Directional DisplayPort Switch
1 x DisplayPort cable
1 x USB Power Cable |
Backed by a 1 year Simplecom warranty.
