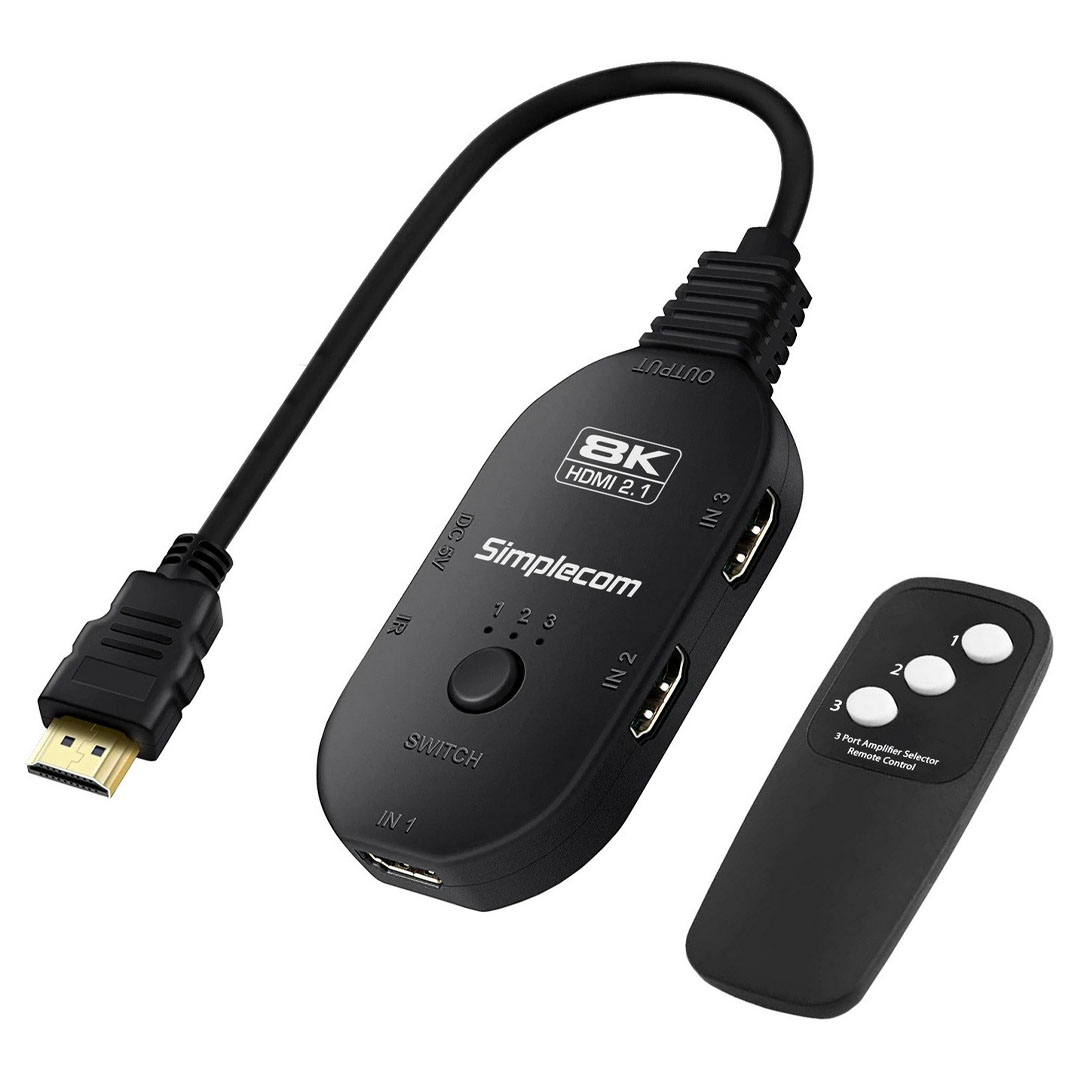

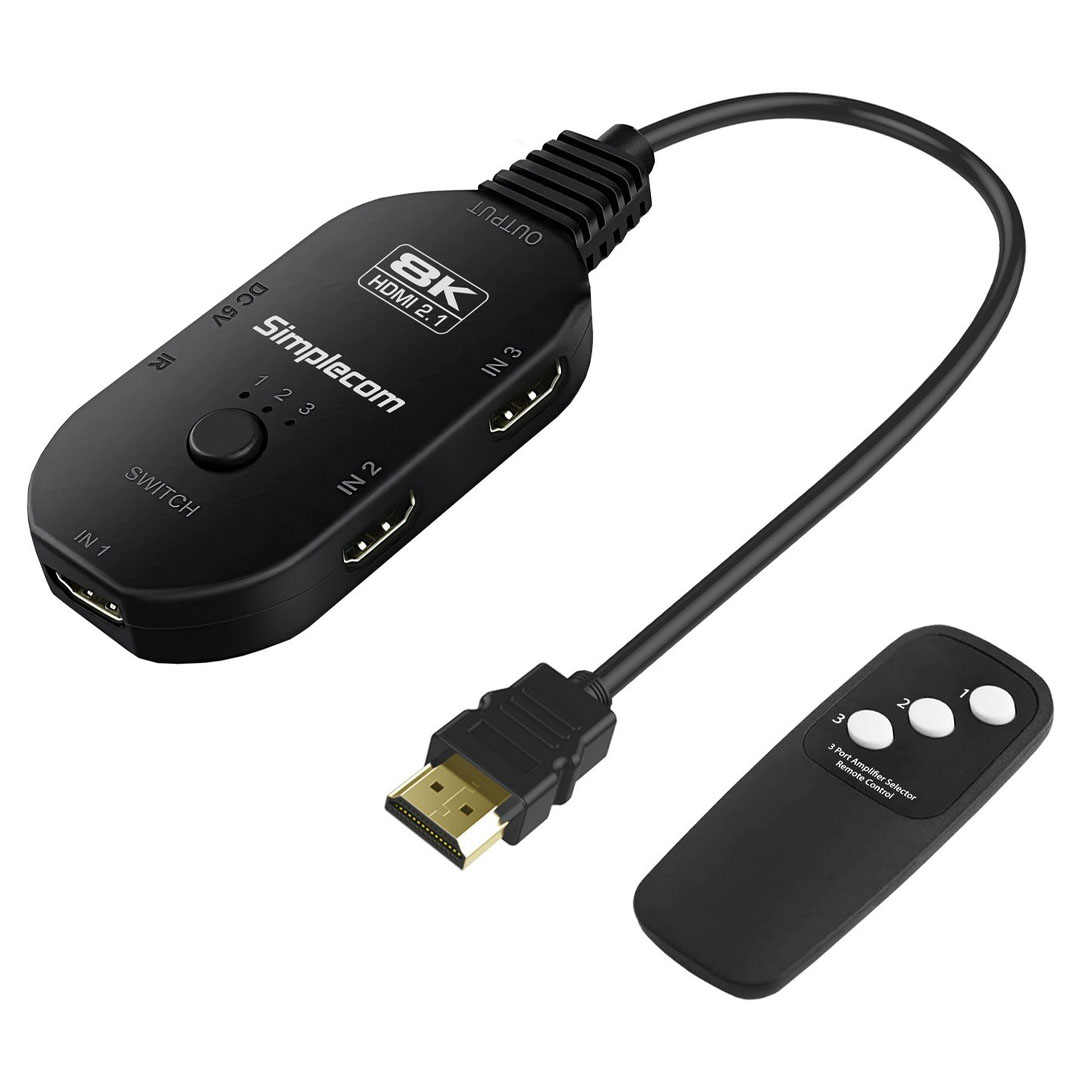

The Simplecom CM353 3-Port HDMI 2.1 Switch is a 3 in 1 splitter. It allows 3 HDMI sources to share 1 display with the push of a button. With its plug and play connectivity and integrated HDMI output cable ensures you can get up and running in minimal time. This switch Supports video resolutions up to 8K@60Hz or 4K@120Hz.
Features
Simplecom CM353 3-Port HDMI 2.1 Switch 3 IN 1 OUT Splitter HDCP 2.3 8K@60Hz
CM353 is a 3-way HDMI 2.1 switch that can expand the HDMI input of your TV or monitor. It allows 3 HDMI source devices to share one HDMI port on display, and supports video resolution up to 8K@60Hz. Easy plug & play operation, simply connect the HDMI input sources to the HDMI inputs on switch and the HDMI output port to HDTV.
- HDMI 2.1 compliant, backward compatible with previous HDMI versions
- Supports 3 HDMI source devices to share one HDMI port on display
- Easy to use by pressing the toggle button or remote control
- Integrated HDMI output cable for easy connection to TV or monitor
- HDCP 2.3 compliant, backward compatible with previous HDCP versions
- Supports video resolutions up to 8K@60Hz or 4K@120Hz
- Supports video bandwidth up to 48Gbps
- LED light indicating the active HDMI input port
- Plug and Play, no external power required for standard HDMI devices
Wide Compatibility with HDMI 2.1 and HDCP 2.3 Support
Compatible with all HDMI devices such as Blu-ray Player, PS5, PS4 Pro, PS3, Xbox Series X/S, Apple TV, Fire TV, Chromecast, Foxtel etc.
Infrared Receiver and Remote Control
The included infrared receiver and remote control allows the switch to be controlled from a distance. Easily switch between HD devices without having to get up from your seat.
Powered from Connected HDMI Devices
No external power is required to make this switch work, as long as the connected HDMI devices supply sufficient power to the switch.
Integrated HDMI Output Cable
The HDMI switch comes integrated HDMI output cable for more stable connection to your TV. No lag, no loss of picture quality and sound quality, and can bring the ultimate high-definition experience.
Important Note
- For 8K@60Hz or 4K@120Hz support, 48Gbps HDMI 2.1 cable is required, cable length is limited to 3M
- This device is 3 IN 1 OUT one way only, and can not be used in reverse way
Specifications
| Model Number |
CM353 |
| HDMI Version |
HDMI 2.1, backward compatible |
| HDCP Version |
HDCP 2.3, backward compatible |
| HDMI Input |
3 x HDMI Female |
| HDMI Output |
1 x HDMI Male |
| HDMI Max Bandwidth |
48 Gbps |
| Resolution Support |
8K, 4K, 1440p, 1080p, 1080i, 720p, 720i, 576p, 576i, 480p |
| Max Refresh Rate |
8K@60 Hz, 4K@120 Hz, 1080p@240 Hz |
| Support Video Colour |
12 bit / 14 bit / 16 bit / 36 bit deep colour, RGB 8:8:8 |
| HDR Support |
Yes |
| Support Audio Format |
DTS-HD, Dolby-TrueHD, PCM, LPCM |
| Power Input |
USB-C DC 5 V (No external power required for standard HDMI devices) |
| Operating Temperature |
0°C to 50°C |
| Dimension (L x W x H) |
121 x 50 x 1.5 cm |
| Cable Length |
40 cm approx. |
| Weight |
80 g |
| Package Contents |
1 x 3 Way HDMI Switch
1 x Remote Control
1 x IR Receiver
1 x USB Power cable |
Backed by a 1 year Simplecom warranty.
