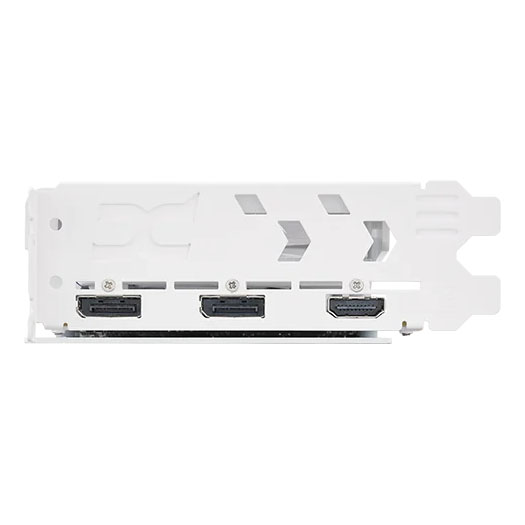

The PowerColor Radeon RX 9060 XT Hellhound Spectral OC GDDR6 16GB gaming graphics card features a 2620MHz silent gaming clock, 3310MHz OC boost clock, 128-bit memory interface, 16GB GDDR6 VRAM, 20Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1b, 2 x DisplayPort 2.1a, OpenGL 4.6 and DirectX 12 support.
Features
Hellhound Spectral White AMD Radeon™ RX 9060 XT 16GB GDDR6
- Triple-Ring Fan design
- Supports PCIe 5.0 x16
- Honeywell PTM7950 High-Thermal Conductivity
- Dual BIOS (OC / Silent)
- Intelligent Fan Control
- Highly Efficient Ring Blade Fans
- Reinforced Metal Backplate
- Premium-Quality PCB Design
- High-Efficiency DrMOS Power Module
- TBP Monitoring (12V Source Detection)
- LED Lighting - Glacier White
High-Efficiency DrMOS Power Module
Reduce Power Loss During Transmission, Ensure Longer-Lasting Performance and Reliability
Hellhound features a 5+1 phase power design, along with a dedicated 2+1 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Premium-Quality PCB
Enhanced Signal Stability for Uninterrupted Performance
Crafted with 10-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.
Exterior Design

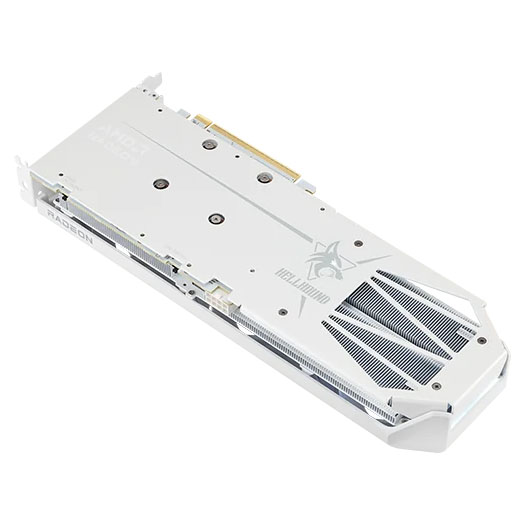

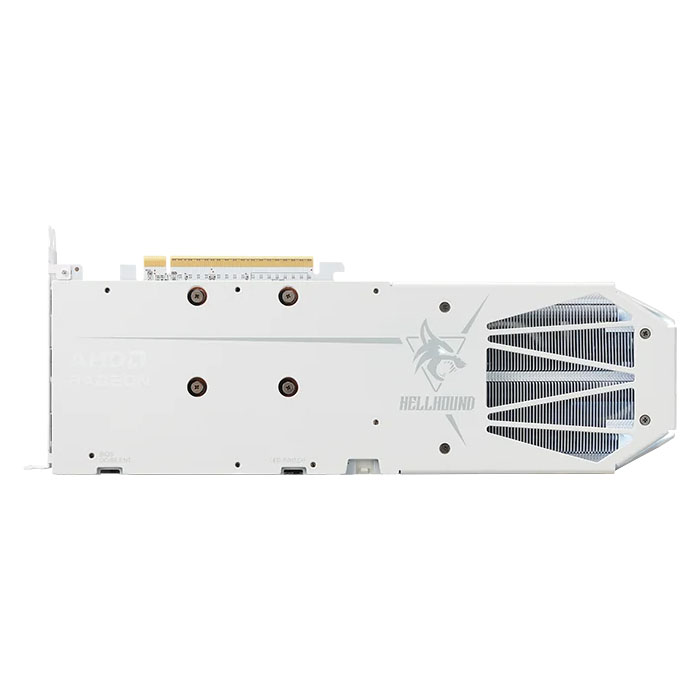

Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.
Glacier White Glow
Sleek and elegant with White LED lighting, easily controlled by a physical switch.
Experience Cutting-Edge Graphics Card for Gamers
Dual BIOS - Switch Between OC (Performance) and Silent Modes
Adjustable fan speed to suit your needs while maintaining peak performance.
Intelligent Fan Control - Precise Temperature Sensor
Fan cooling ensures GPU to operate within optimal temperature. The fans kick in at 60°C and stop below 50°C.
Exclusive Ring Blade Design - Fast and Silent
Designed with 9 blades, enhancing fan speed and airflow while keeping noise level to the minimum.
Dual Ball Bearings - Durable and Reliable
Premium Japanese dual ball bearings to reduce rotational friction, and extend fan lifespan.
Engineered for Rapid Cooling
Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.
Honeywell PTM7950 - Seamless Phase-Change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement - Rapid & Efficient Heat Transfer
Four 6φ nickel-plated copper heatpipes are aligned above the PCB, optimising heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
Make Every Play Count
Designed for Lightning-Fast Gaming, Powered by AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced ray tracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimisation with AMD HYPR-RX. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
AMD RDNA™ 4 Architecture
New AMD RDNA™ 4 architecture features 3rd Gen raytracing and 2nd Gen AI accelerators to deliver the performance you need to max out your gaming.
AMD FreeSync™ Technology
Pair with AMD certified AMD FreeSync™ technology-enabled monitors for an exceptional stutter and tear-free gaming experience.
AMD HYPR-RX
With a single click, automatically enable all the performance boosting, latency reducing features from AMD Software in thousands of games.
AMD Radeon™ Anti-Lag 2
Ultra-low-latency gaming, and when combined with AMD FSR advanced frame generation, it delivers ultra-smooth, ultra-responsive high FPS experiences.
Backed by a 3 year PowerColor warranty.
