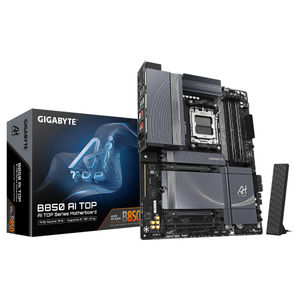

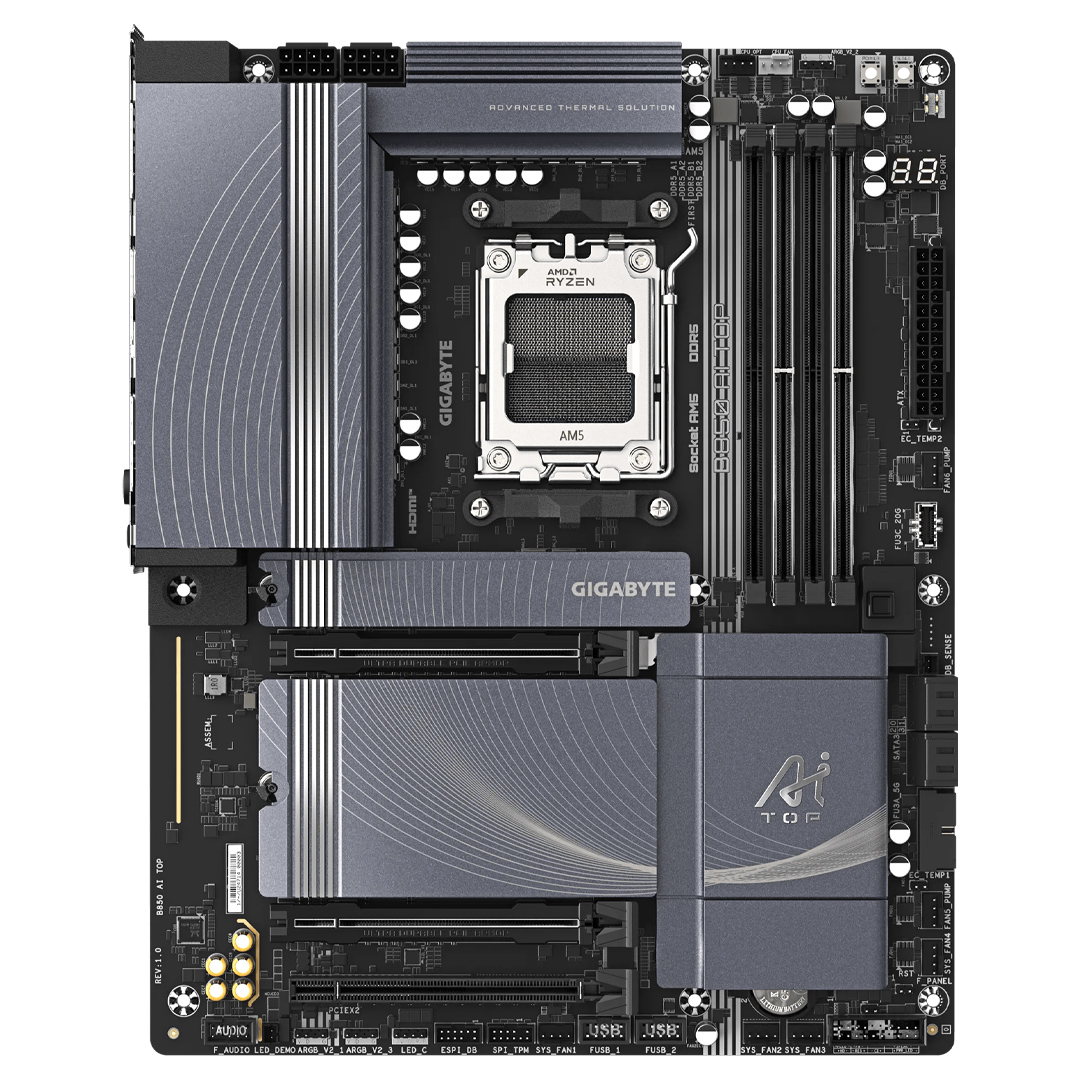

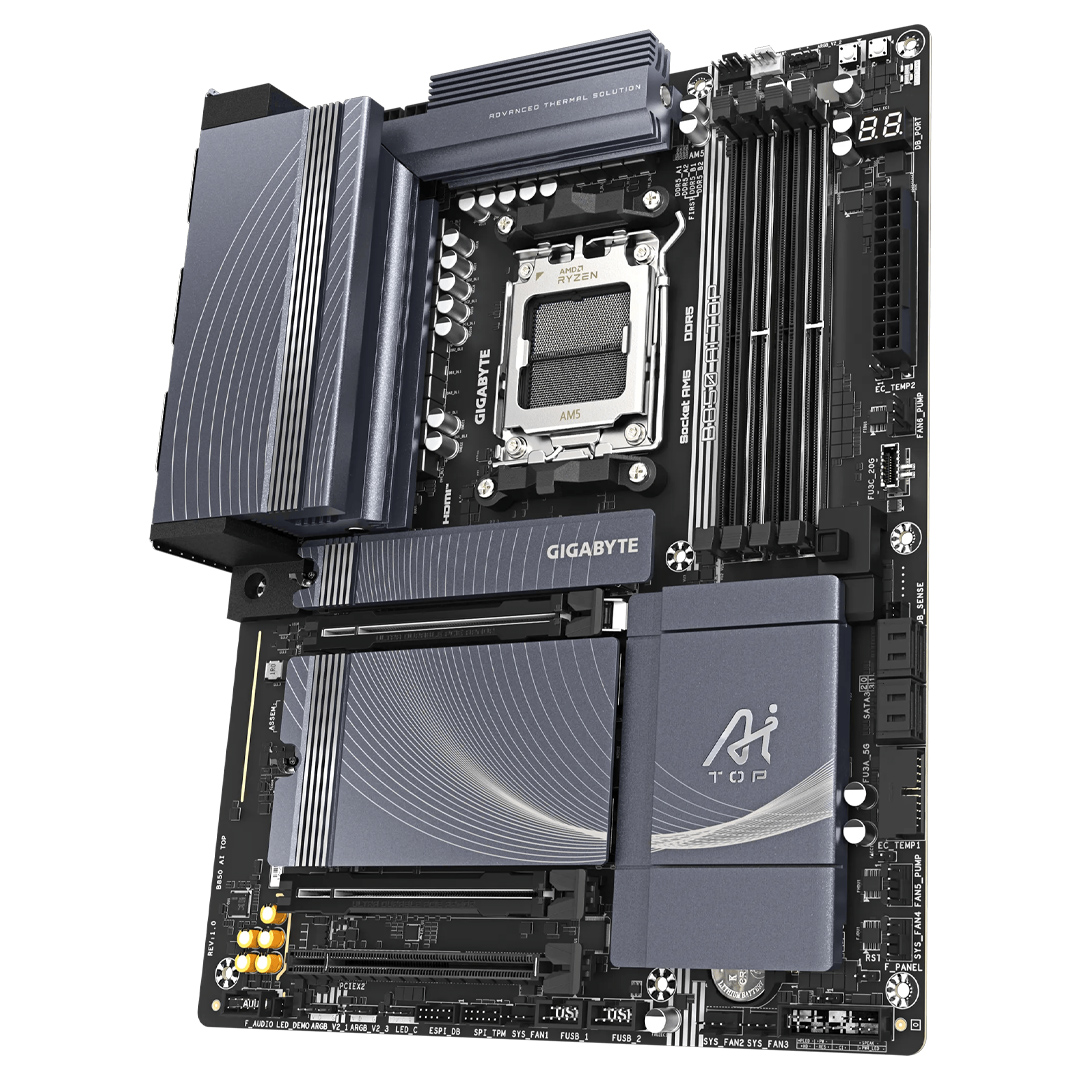

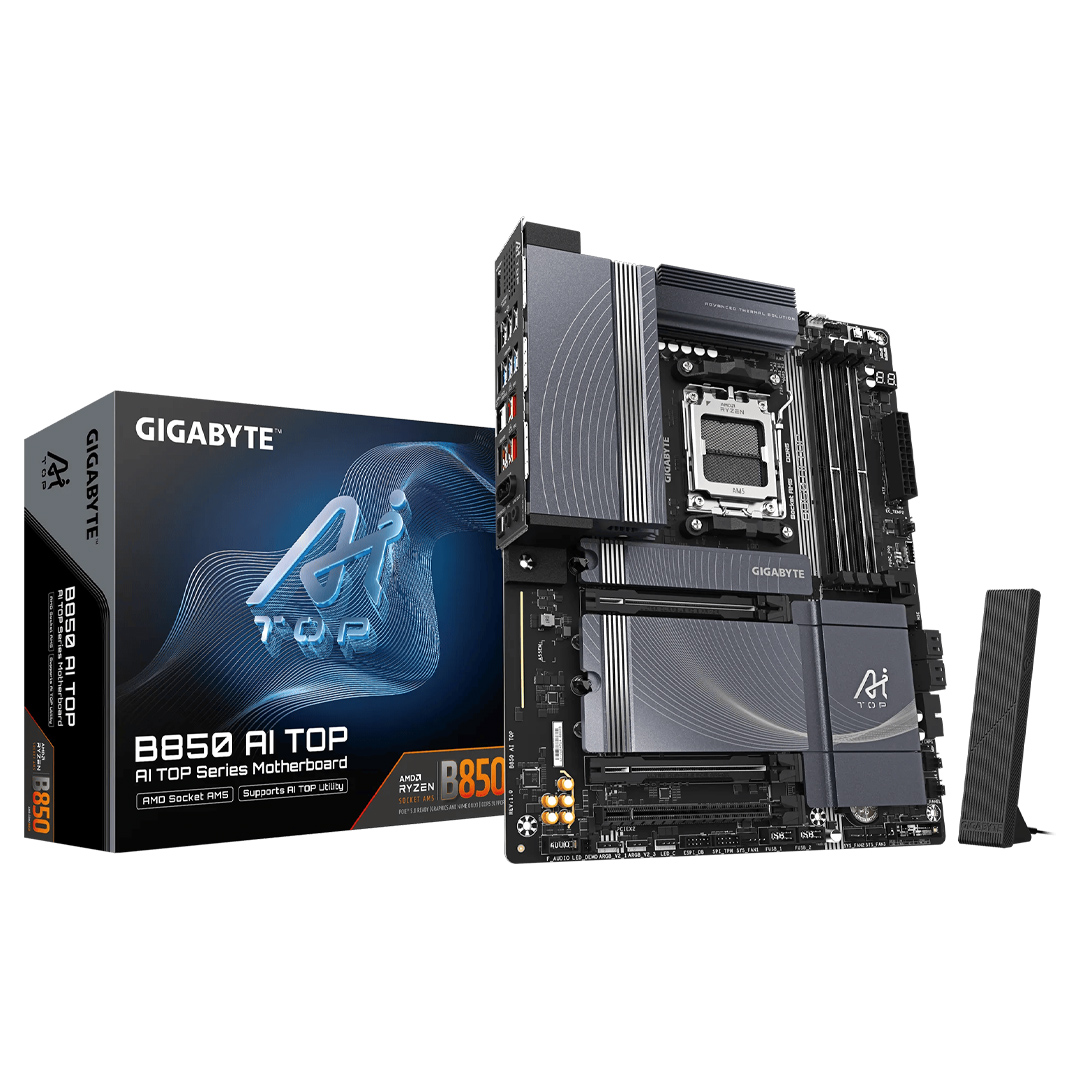

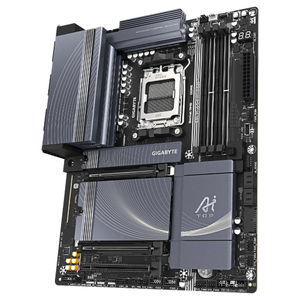

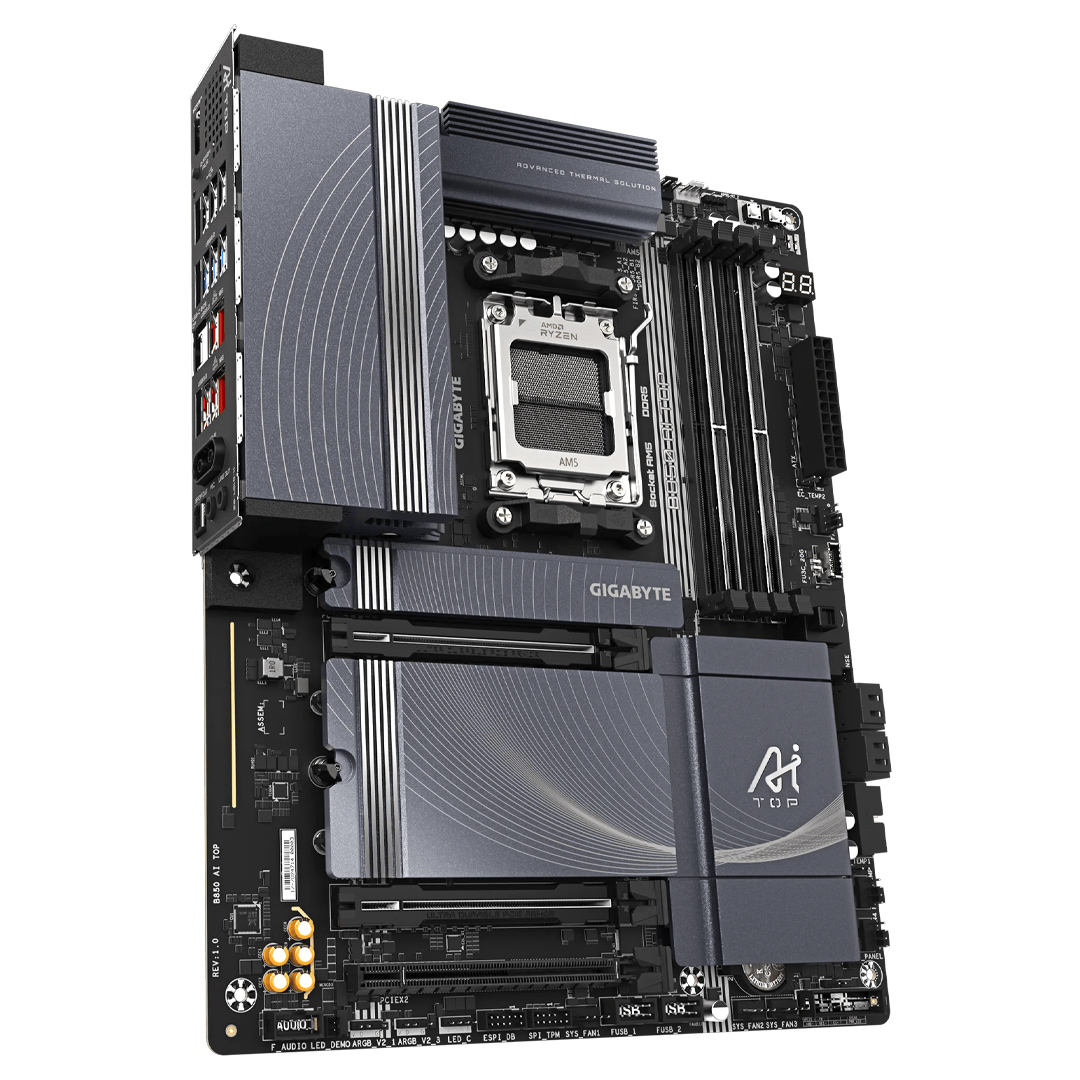

The GIGABYTE B850 AI TOP WiFi DDR5 motherboard is an ATX board designed for AMD's AM5 socket, supporting Ryzen 7000, 8000, and 9000 series CPUs. It boasts advanced features like DDR5 memory support up to 8600 MT/s, PCIe 5.0 x16 slots, Wi-Fi 7, 10G LAN, and user-friendly design elements such as EZ-Latch for easy installation of SSDs and storage. The motherboard is engineered with features tailored for AI development and training workloads. It includes Gigabyte's AI TOP hardware enhancements, focusing on power efficiency and durability to support AI training tasks.
Features
B850 AI TOP
- Training your own AI on your desk
- DDR5 OC up to 8600MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 3*M.2 slots, including 2*PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armour Advanced with M.2 Thermal Guard
- Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- Extended Connectivity : Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s, HDMI
- High-Res Audio : ALC1220 and High-End Audio Capacitor
- Ultra Durable PCIe Armour : The metal back plate of PCIe x16 slot for enhanced durability.
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
Performance
- Socket AM5 Supports AMD Ryzen™ Series Processors
- 16*+2+2 Twin Digital VRM Design
110A Smart Power Stage
8-Layer PCB
Low-Loss PCB
2X Copper PCB
Premium Choke and Capacitor
* 8+8 phases parallel power design
- Full-length PCIe slots
2 x PCIe 5.0 x16 (run x16 or x8, x8) with PCIe UD Slot X
1 x PCIe 4.0 x2 Slot
- 4 x DIMMs, Dual Channel DDR5 with Memory UD Slot
- UD Power Connector
24 pin ATX power connector
8+8 pin CPU with UD Solid Pin
- 3 x M.2 Slots
2 x PCIe 5.0 M.2 Slots
1 x PCIe 4.0 M.2 Slot
Thermal
- VRM Thermal Armour Advanced
Superior Heatpipe
5 W/mk Thermal Pad
Integrated IO Shield
- M.2 Thermal Guard
- M.2 Thermal Guard Ext.
- Smart Fan 6
Total 8 * PWM / DC Fan Headers
Dual Fan Curve Mode

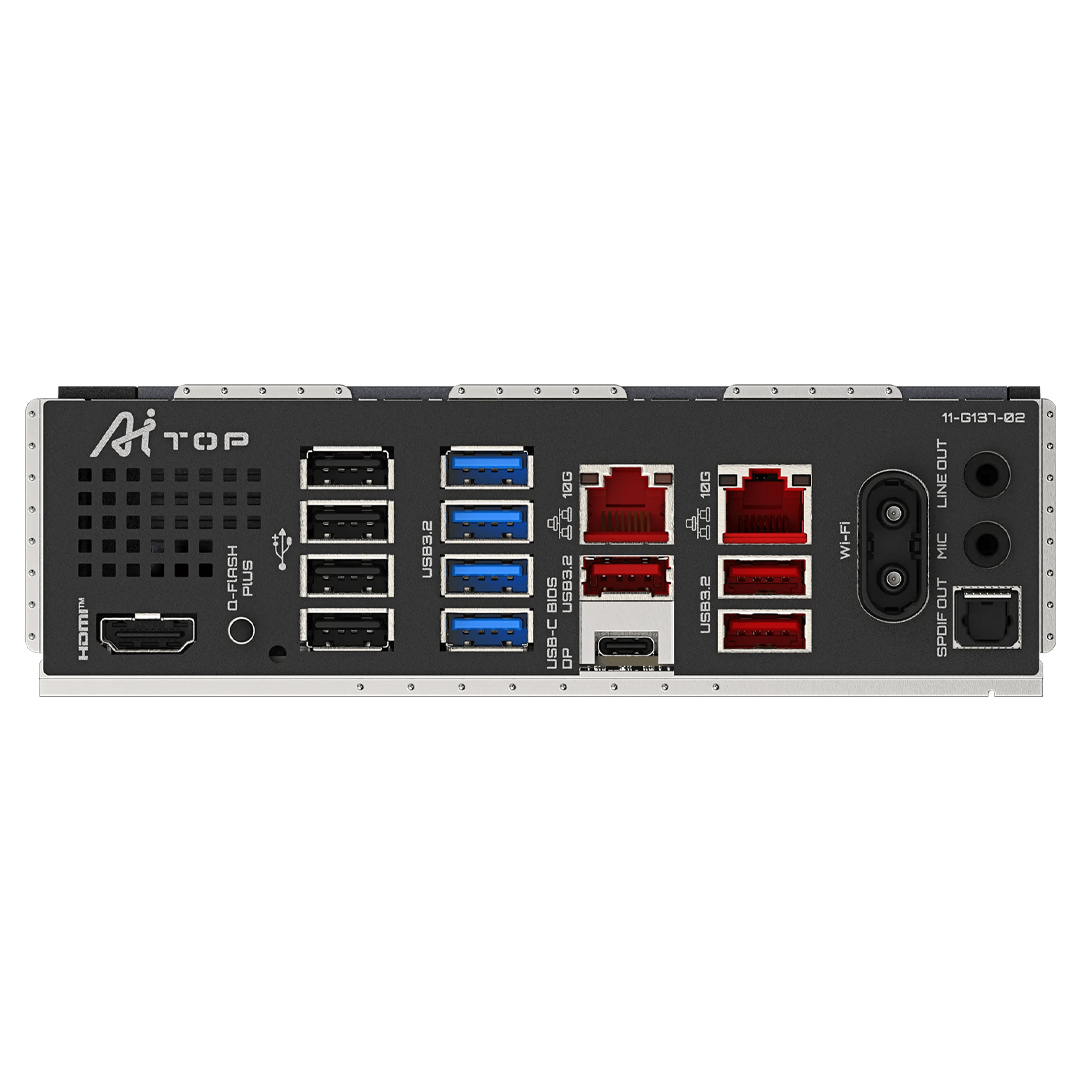

Connectivity
- 1 x HDMI
- Q-FLASH PLUS Button
- 4 x USB 3.2 Gen 1
- USB-C® 10Gb/s (Maximum speed up to 40Gb/s. Actual support may vary by CPU.)
- Dual 10 GbE LAN
- 3 x USB 3.2 Gen 2
- WIFI EZ-Plug
- Wi-Fi 7 & Directional Ultra-high gain Antenna
- Front USB-C 20Gb/s
- 4 x SATA 6Gb/s
- High-Res Audio
ALC1220
High-End Audio Capacitor
- RGB FUSION
1 x RGB LED Header
3 x ARGB LED Headers
DIY Friendly
- WIFI EZ-Plug
- EZ-Latch Un-Install Angle
- M.2 EZ-Latch Plus
- M.2 EZ-Latch Click
- EZ-Debug Zone
Multi-key
Debug LEDs
Power Button
80 port
- PCIe EZ-Latch Plus
GIGABYTE AI Top
Train Your Own AI on Your Desk
In the age of local AI, GIGABYTE AI TOP is the all-round solution to win advantages ahead of traditional AI training methods. It features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, for most common open-source LLMs, in anyplace even on your desk.
- Supports 236B LLM Local Training
- Intuitive Set-up
- Flexibility & Upgradability
- Privacy & Security
- Suitable for Home Use
AI Top Utility 2.0
Reinventing AI Training
The all-new AI TOP Utility 2.0 brings enhanced features and broader model support, empowering users from novices to experts to unlock AI's potential right at their desks.
AI Top Hardware
Enhanced Performance for AI Training
The AI TOP Hardware features a series of GIGABYTE AI TOP products that are Optimised in power efficiency and durability for AI training workloads. It includes upgradeable components and is easy to build at home.
Ultimate Scalability
Brings You the Future-Proofing Capability
- Dual PCIe x 16 slots for Multi-GPU
- 3X PCIe 5.0/4.0 M.2 slots
Dual PCIe x 16 Slots for Multi-GPU
Dual PCIe 5.0 x16 slots (run x16 or x8, x8) to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.
3X PCIe 5.0/4.0 M.2 Slots
The fast storage of 3 PCIe 5.0/4.0 M.2 support enables local computations to be completed in the shortest possible time.
Connectivity - Future Connectivity
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
- Dual 10GbE LAN
- Wi-Fi 7
- Directional Ultra-high Gain Antenna
Dual 10G LAN
The Dual 10G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Wi-Fi 7 Brings You the Ultimate VR Experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
160 MHz Channels
Wi-Fi 7 introduces support for expansive 160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.
Multi-Link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.
Deterministic Low Latency
With its deterministic low latency, Wi-Fi 7 Minimises delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.

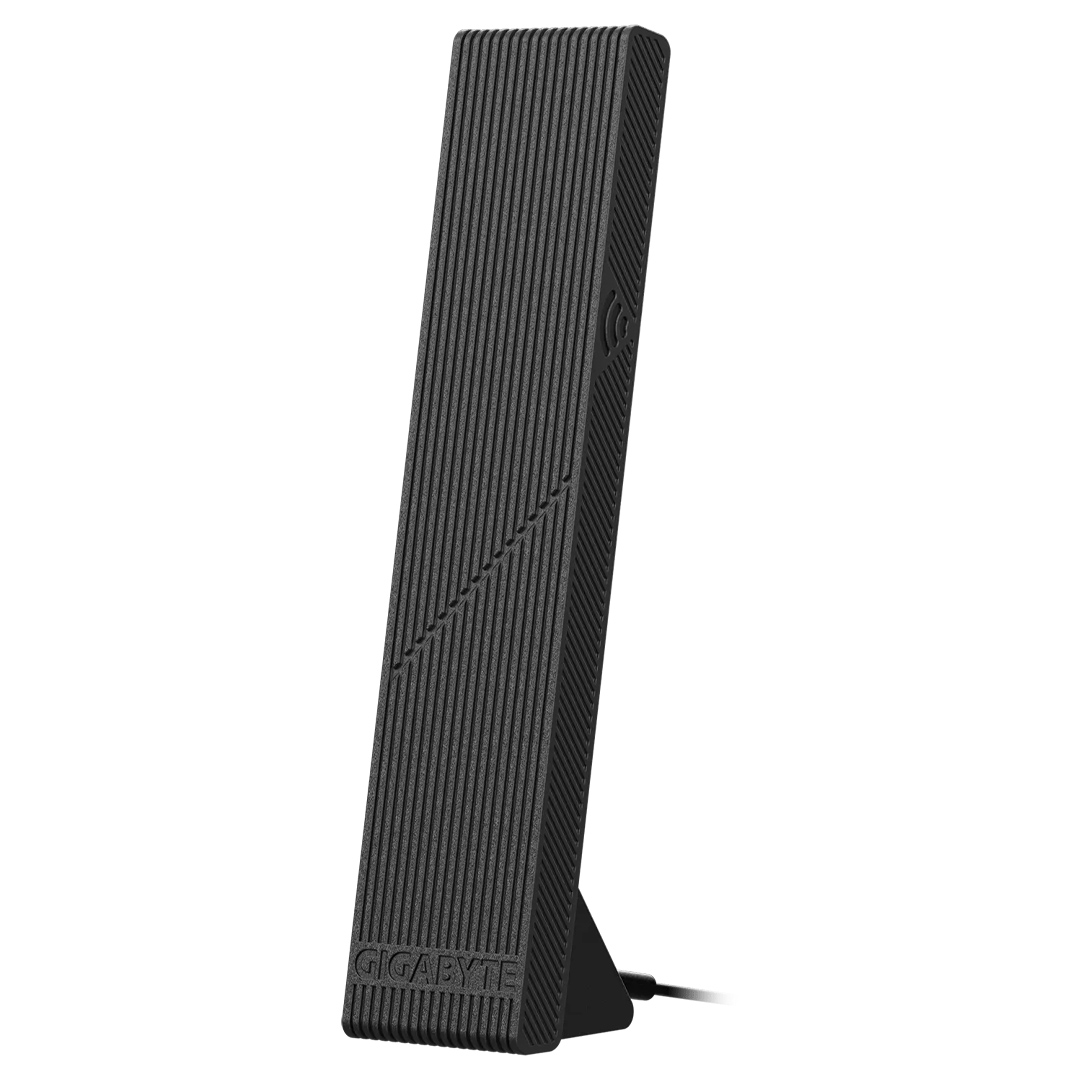

GIGABYTE Directional Ultra-High Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimised Wi-Fi signal transmission.
- Direction signal up to 5dBi
- Omnidirectional signal up to 4dBi
- Magnetic Base
Hi-Res Audio
True High-Fidelity Music
Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek ALC1220 Codec.
Brand New Gaming Experience
X3D Turbo Mode
Unleash New Era Gaming Performance with One-Click Activation.
X3D Turbo Mode's unique optimisation parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
One-Click Acceleration
Enhance Gaming FPS Performance with a single click.
*Differences in performance enhancement depending on the game.
Memory
Infinite Memory Performance
AI TOP motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
* Memory speeds vary. Features differ by model.
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimisation of industry-leading DDR5 memory performance.
AMD EXPO™ Settings
Optimise memory with AMD's user-friendly profiles.
Boost Performance
Get the most out of your system's memory.
BIOS Features
Supercharge DDR5 Performance with Custom Settings
AMD EXPO™ User Profile
Harness the power of AMD profiles to fine-tune your memory for outstanding system performance.
Custom SPD Profiles
Create and manage two unique SPD profiles, ready to transfer between machines.
Fast Performance Simulation
Automatically adjusts clock and timing parameters, quickly simulating optimal memory performance.
Profile Management
Save and load your preferred memory settings, and share them with ease.
Enhance Non-Overclockable DDR5 Speeds
Push the limits of your non-overclockable DDR5 memory with boosted frequencies.
Instant Reset
One-click to clear and restore memory settings for quick adjustments.
Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
- Shielded Memory Routing
- Daisy-Chained Routing
- 8-Layer Server-Grade PCB
Unleash Revolutionary DDR5 Technology
Maximise DDR5 performance with our groundbreaking technology for an unparalleled gaming experience.
Shielded Memory Routing
Advanced shielding inside the PCB keeps your memory signals clean and interference-free.
Daisy-Chained Routing
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
8-Layer Server-Grade PCB
Top-of-the-line server-grade PCB material minimises signal loss, providing ultra-fast DDR5 data transmission.
D5 Bionic Corsa
AI Overclocking for Peak Performance
AORUS AI SNATCH
Unleash Ultimate Performance with One-Click Activation.
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration
Enhance CPU & DDR5 speeds with a single click.
- Real time Analysis
- OC accuracy UP
- EZ to Pro
- Fast AI Performance
- Enhanced Computing Power
- EZ to Peak
- Safe OC
- Less Power Usage
Fast AI Performance
Accelerate AI processing for greater performance.
- Up to 8% AI Performance (GeekBench AI PRO test conducted with High Bandwidth option manually enabled.)
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
Boost CPU & Memory Performance
Raise system speed and performance.
- Up to 9% CPU & Memory Performance Boost
- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimised overall system performance
Maximise Performance in a Snap
Enable users to easily become overclocking experts through a simple interface.
Smart & Safe Overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.
- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection
Less Power Usage Optimal Power-Efficiency
- Enhance Up to 9% CP/Per Watt*
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
AIDA64 Extreme 7 test conducted with High Bandwidth option manually enabled.
AI Design for MB Signal Enhancement
AI-Driven PCB Design
Redefining PCB Design with AI.
AI-Driven PCB Technology - Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to Optimise vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
- AI-ViaFusion Technology - Optimised vias & pads for signal integrity
- AI-Trace Technology - Smart routing for peak performance
- AI-Layer Technology - Tailored stackups for enhanced functionality
- AI-Generated Design Recipes
- AI-Driven Simulation
- AI-Powered Signal Verification
- Single and cross-layer signal Optimisation
AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity
Reduction in Signal Reflection Up to 28.2% AI-ViaFusion, an AI-assisted via Optimisation technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
Best-In-Class Signal Quality
- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance
AI-ViaFusion Technology - AI-Engineered Via Design Formula
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.
- Optimised Via Design - Varied via sizes for Optimised signal and power paths
- Driven Pad Optimisation - Custom pad sizes for performance and production balance
- Precision Impedance Matching - Via & pad sizes selected for optimal signal impedance
Unlock AI-Powered Performance with AI-ViaFusion Technology
- Minimised Insertion Loss - Optimised vias reduce signal loss
- Enhanced Return Loss - Precision impedance matching reduces reflections
- Optimised Eye Diagram - Wider eye opening improves signal integrity
*Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.
AI-ViaFusion Technology - AI-Driven Revolution in PCB Design
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.
AI-ViaFusion Technology optimises PCB performance through
- Strategic Via Sizing - Optimised for varied signals across PCB
- Enhanced Impedance Matching - Precise control via machine learning
- Space Optimisation - Maximised layout efficiency with signal integrity
AI-Trace Technology - Revolutionising PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to Optimise trace routing, resulting in enhanced performance and signal integrity.
- Fibre Weave Effect Mitigation - Optimised signal synchronisation
- Shielded Memory Routing - Optimised signal shielding and precision
- Impedance-Optimised Topology - Refined traces with minimal resistance
- Isolated Memory Routing - Optimised trace layout and layer separation
- Daisy-Chained Routing - Innovative design eliminates signal bottlenecks
Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.
Mitigating Fibre Weave Effect with AI-Trace Technology
Fibre Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass Fibres, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.
Benefits of Mitigation
- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability
AI-Layer Technology -Next-Generation Multi-Layer PCB Design
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.
Core Innovation
AI-Optimised Layer Customised Design
- AI-optimised layer design
- Unique material for each layer
- AI-verified signal integrity
- Tailored PCB for peak performance
- AI-Optimised PCB layer and design material
- Server-Grade Low Loss PCB (Low Loss for 8-layer PCB model only)
- Enhanced 2X Copper Technology
HyperTune BIOS
AI-Driven Advanced BIOS Optimisation Technology.
- BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimise signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimisation
- AI-driven MRC parameter Optimisation
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE's AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.
Sturdy VRM Design
Steady Power
AI TOP Series with steady power keeps your AI operation smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
16 VCORE Phases SPS 110A
Unlock the full power of your multi-core CPU for unmatched performance.
*8+8 phases parallel power design
2 SOC Phases SPS 80A
Optimised for integrated GPU performance and memory management within the CPU.
2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Level Up Epic VRM Heatsinks for Non-Stop Gaming
- 4X Massive cooling surface Exceptional heat dissipation
- Superior Heatpipe
- 5 W/mK thermal pad
Premium VRM Thermal Armour for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated moulded heatsinks
4x Larger Surface Area for Enhanced Heat Dissipation
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Superior Heatpipe for optimal heat transfer
- Designed for optimal thermal conductivity
- Ensures efficient heat transfer and maintains system stability
True One-Piece Heatsink Design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
5 W/mK Thermal Pad for Efficient Thermal Conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
Multi-Cut Design with Channels for Improved Airflow
- More grooves, more airflow.
- Better airflow, cooler system.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
* Test results are for reference only and may vary in different circumstances.
M.2 Thermal Guard Ext.
Small Vents, Big Cooling Power
- Up to 7°C lower temperature
Smart Fan 6
Cool. Quiet. Customised.
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customisable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic Optimisation of fan curve
Fan Curve Profile
- Save personalised settings to BIOS ROM
- Maintain custom settings through BIOS updates
Easy & Friendly
Hassle-Free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adaptor, EZ to install.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
- M.2 EZ-Latch Click - screwless installation for M.2 heatsink
- M.2 EZ-Latch Plus - screwless installation for M.2 SSDs
- PCIe EZ-Latch Plus - Easy ejection with single click for graphics cards
Fast-Access Controls
Handy, Revert, Refresh
- EZ Debug Zone
- Q-FLASH Auto Scan
Quick Control Elements
EZ Debug Zone
Centralised debug LEDs and control buttons provide a handy and organised troubleshooting process when building a new computer.
Multi-Key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
- RGB Switch - Disable all light displays on the motherboard.
- Direct-To-BIOS - Access the BIOS settings directly without keyboard inputs.
- Safe Mode - Access BIOS safe mode to modify select settings while preserving other configurations.
Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.
Q-FLASH Auto Scan
The new Auto Scan function features when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Q-FLASH Plus
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
- STEP 1 - Connect the 24-pin and 8-pin power cables directly to the motherboard.
- STEP 2 - Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
- STEP 3 - Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AI TOP series motherboards are engineered to endure and excel.
PCIe UD slot X
The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.
- 10X load-bearing capacity - integrated, single-piece design anchored to a exclusive backplate
- Inner Lining Rubber Strip - Safeguards your graphics card's PCB against potential damage
- Zinc Alloy - Provides effective EMI shielding for high-frequency signals
Memory UD Slot D5
Employs a unibody, stainless-steel shield design, reinforcing memory slots and Optimising signal integrity and overclocking potential.
- 1.3X increase in anti-bending
- Withstands 5000+ insertion and removal cycles
- Employs SMD technology to Minimise signal degradation
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Ultra Durable PCIe Armour
Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.
Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratise next-level computing power.
UC BIOS
Restructured with user-Centred and intuitive performance adjustment mechanisms.
- AIO Fan Control - Adjust AIO fan speed in the BIOS
- GIGABYTE Active OC Tuner
Multi-Theme
The newly exclusive Greyscale mode provides a refreshing interface, ensuring a significantly more friendly and pleasant user experience.
AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.
* Supports for AORUS WATERFORCE X II series AIO only
AI PerfDrive
Featuring " Recommend me profile" function, AI Perfdrive uses the loading tool to make intelligent evaluation and predictions of the optimal usage scenarios for users. Based on the actual temperature performance of the user's system, it can provide users the most optimal and customised "preset profile" recommendations.
Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an Optimised experience through an easy-to-navigate layout and attractive design for optimal usability.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigate.
GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilise the high frequency for all the CPU cores.
- Active OC Tuner switches profile based on user scenario automatically
- 6.8% performance increase
* Only available on selected AMD Ryzen™ processors with P.B.O. function featured.
Active OC Tuner with Auto Switching
AMD P.B.O. Mode
AMD P.B.O. mode for fewer cores with the highest CPU boost clock, better for gaming.
Manual OC Mode
Manual OC mode for all cores with high CPU clock, better for content creation.
HWiNFO
Exclusive Partnership
- Power Monitor
- AORUS & HWiNFO Co-branded OSD
Power Monitor
The new feature provides real-time monitoring on CPU Vcore power phases.
- Output current/power in total
- Output of each power phase
- Efficiency
AORUS & HWiNFO Co-Branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.
Default AORUS Skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
Detailed BIOS Information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
GIGABYTE Control Centre
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalise the RGB illumination on your motherboard and connected peripherals.
Spotlight Your Flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Varnish Your Shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
* The information provided is for reference; please prioritise your specific setup and specification
- 1x RGB LED header
- 3x ARGB LED headers
Backed by a 3 year Gigabyte warranty.
