On sale! (normally $5599) The PNY GeForce RTX 5090 Triple Fan GDDR7 32GB graphics card features a 2017MHz base clock, 2407MHz boost clock, 32GB GDDR7 512-bit memory interface, 28Gbps memory speed, PCIe 5.0, 1 x HDMI 2.1b and 3 x DisplayPort 2.1b.
Features

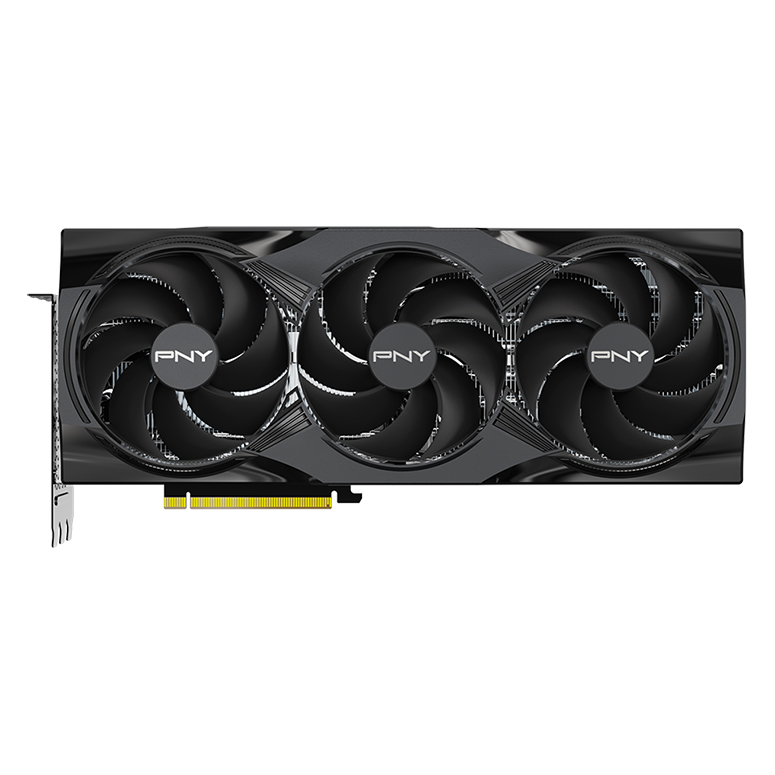

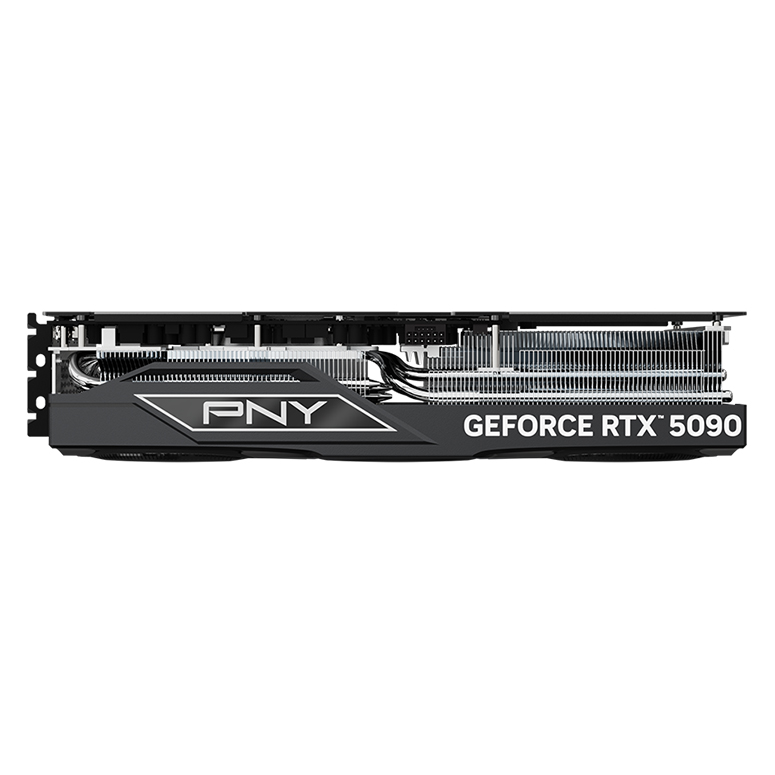

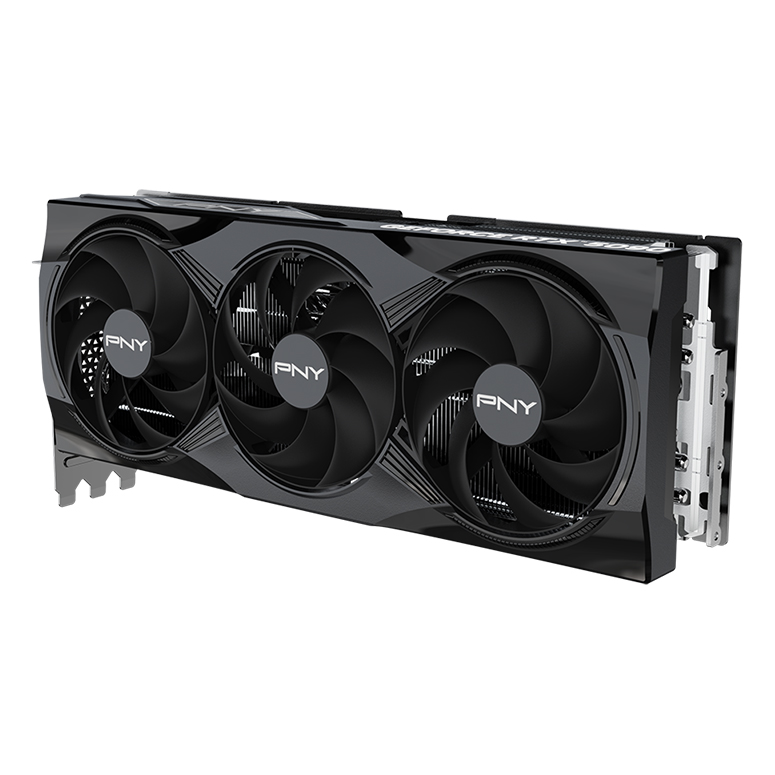

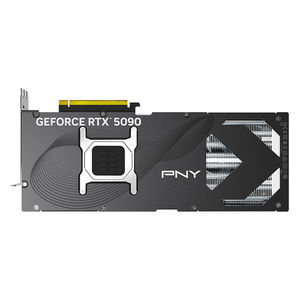

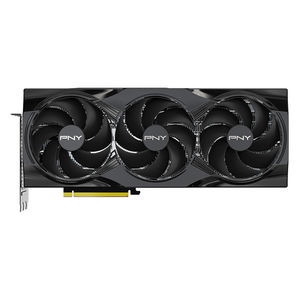

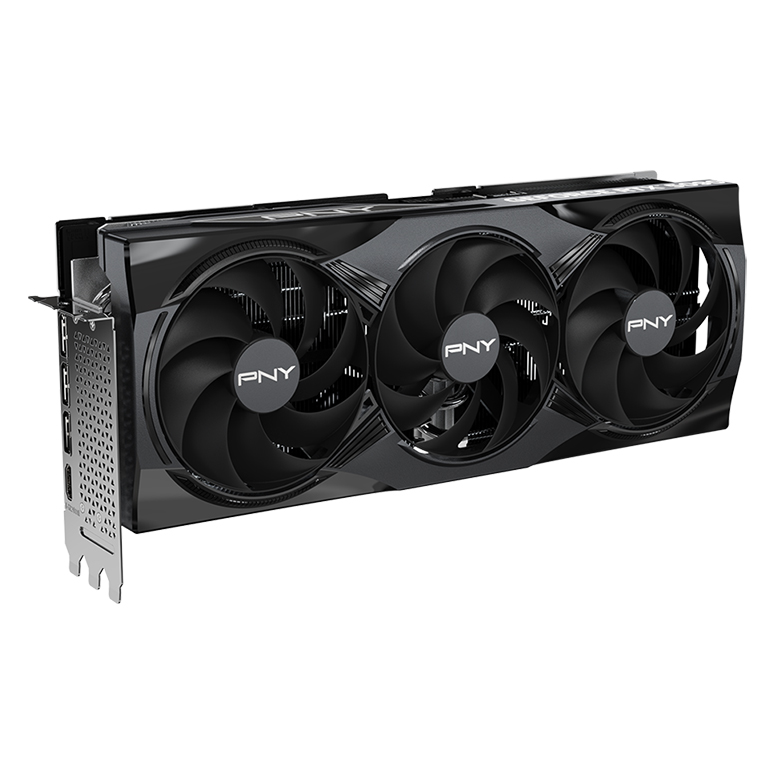

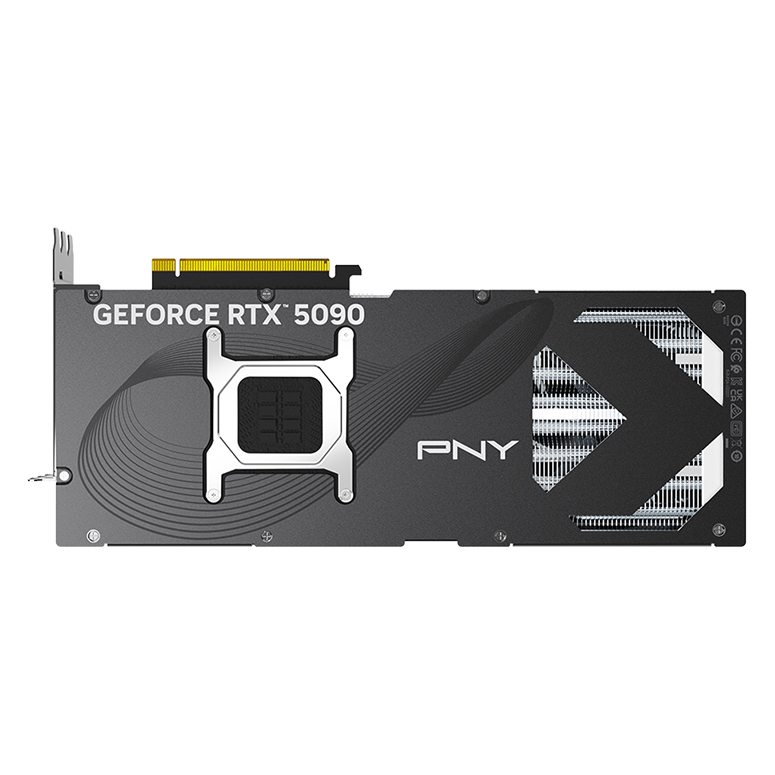

PNY GeForce RTX™ 5090 Triple Fan GPU
The NVIDIA® GeForce RTX™ 5090 is the most powerful GeForce GPU ever made, bringing game-changing capabilities to gamers and creators. Tackle the most advanced models and most challenging creative workloads with unprecedented AI horsepower. Game with full ray tracing and the lowest latency. The GeForce RTX 5090 is powered by the NVIDIA® Blackwell architecture and equipped with 32GB of super-fast GDDR7 memory, so you can do it all.
- NVIDIA Blackwell Architecture
- 32GB GDDR7 Memory
- 3x Display Port 1x HDMI®
- 21,760 CUDA® Cores
- 575 W Thermal Design Power
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimised for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and Technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
Game Changer
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game- changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
Specifications
| Model Number |
VCG509032TFXPB1 |
| Architecture |
Blackwell |
| CUDA® Cores |
21,760 |
| Clock Speed |
2.01 GHz |
| Boost Speed |
2.41 GHz |
| Memory Speed (Gbps) |
28 |
| Memory Size |
32 GB GDDR7 |
| Memory Interface |
512-bit |
| Memory Bandwidth (GB/sec) |
1792 |
| TDP |
575 W |
| NVLink |
Not Supported |

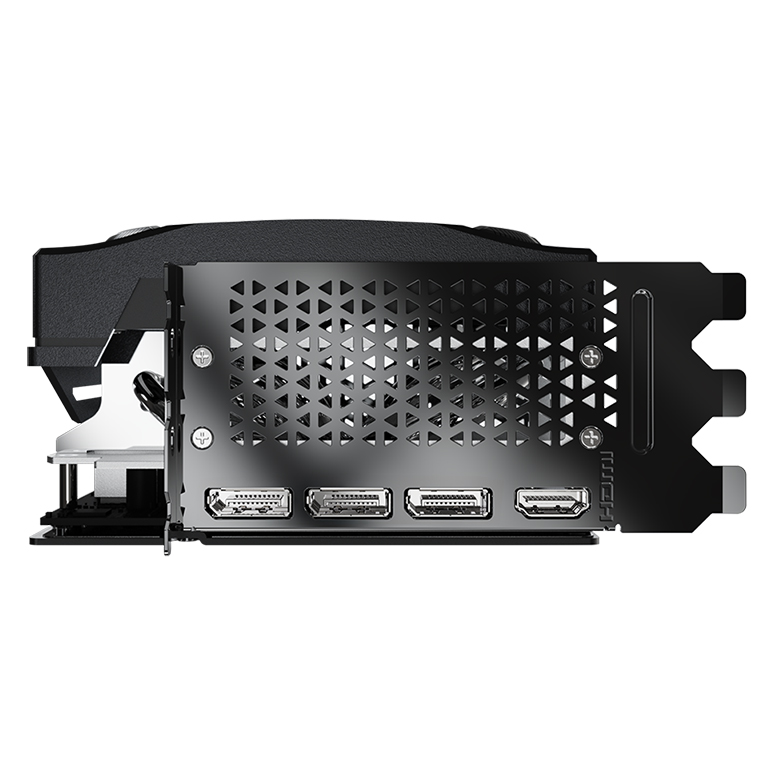

| Outputs |
DisplayPort 2.1b (x 3), HDMI® 2.1b |
| Multi-Screen |
4 |
| Resolution |
4K at 480 Hz or 8K at 165 Hz with DSC (Up to 4K 12-bit HDR at 480 Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165 Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120 Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100 Hz) |
| Power Input |
16-pin (One 16-pin to Four 8-pin) |
| Bus Type |
PCI-Express 5.0 x 16 |
| Card Dimensions |
12.94" x 5.42" x 2.8"; 3.5 Slot |
| System Requirements |
PCI Express-compliant motherboard with one 3.5-width x16 graphics slot
Four 8-pin supplementary power connectors
Total graphics power 575 W
Required system power 1000 W (Power requirements can be different depending on system configuration.)
Microsoft Windows® 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
Internet connection (Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.)
WARNING: This product contains chemicals including lead known in the state of California to cause cancer and/or reproductive harm, and birth defects or other reproductive harm. |

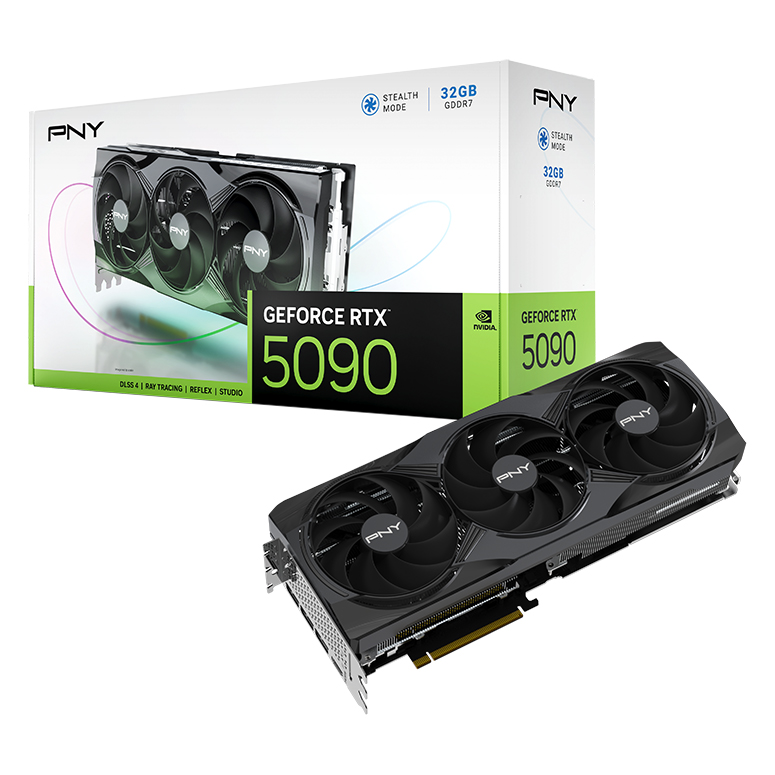

| What's Included |
PNY GeForce RTX™ 5090
1 x Auxiliary Power Cable |
| Warranty |
3-Year Limited Warranty |
Backed by a 3 year PNY warranty.
