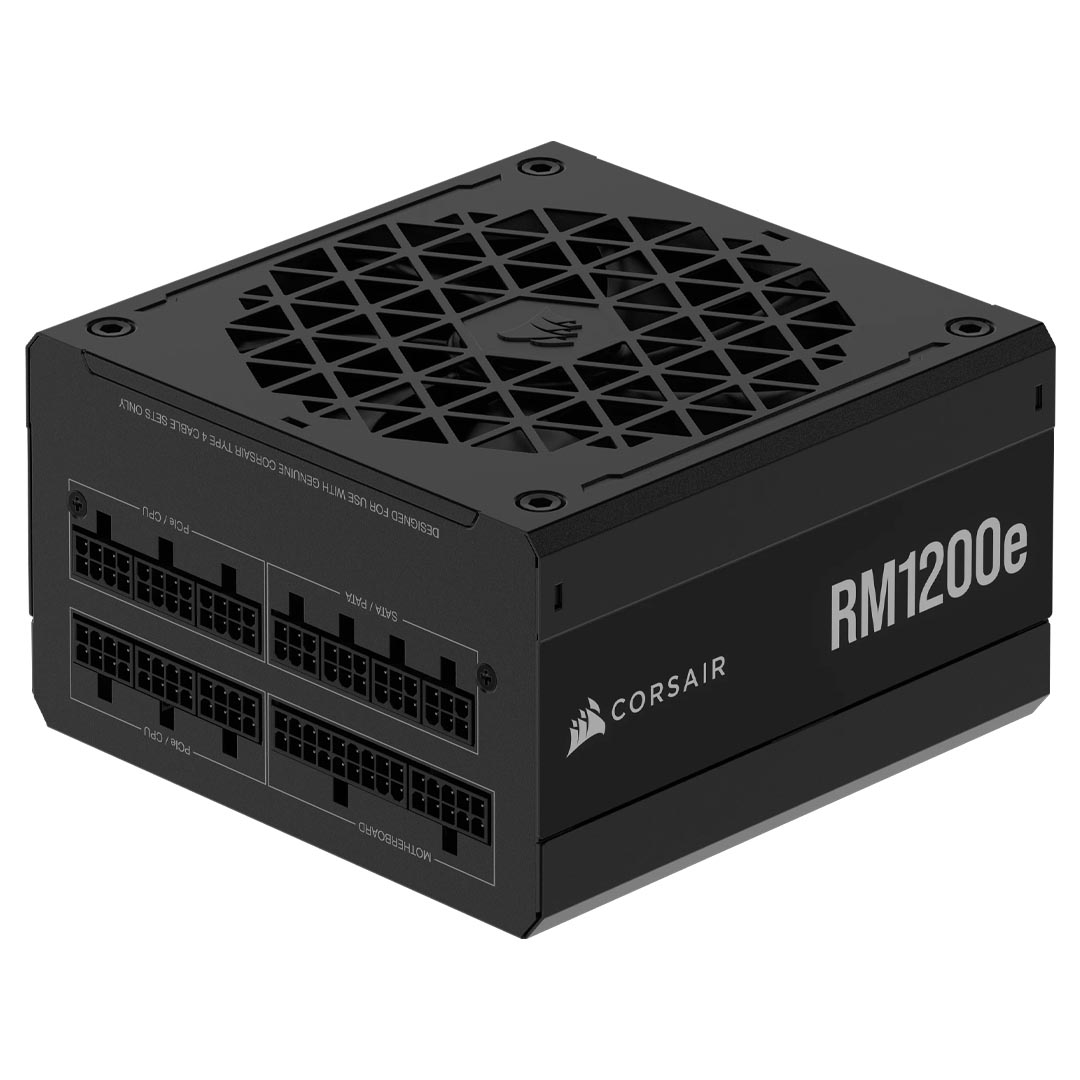

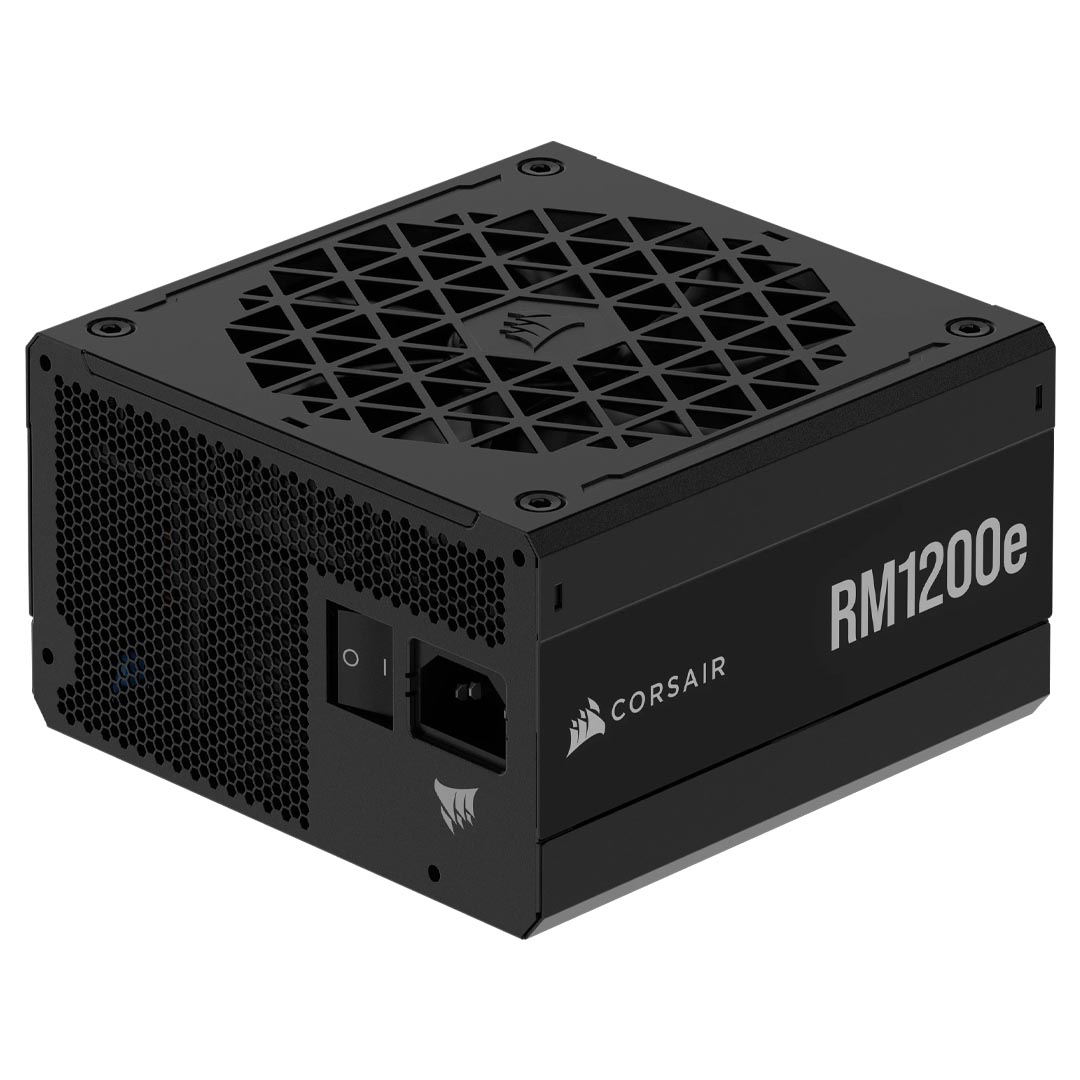

Corsair RM1200e Gold Modular ATX 3.1 PCIe 5.1 1200W Power Supply

CP-9020258-AU | Corsair
$329
In stock
Buy now, pay later!
The Corsair RM1200e Gold Modular ATX 3.1 PCIe 5.1 1200W Power Supply delivers powerful, efficient, and future-ready performance for high-end gaming and workstation builds. Certified 80 PLUS Gold and Cybenetics Platinum for excellent power efficiency, it supports the latest ATX 3.1 and PCIe 5.1 standards, including a dedicated 12v-2x6 cable for next-gen GPUs. This fully modular PSU allows for clean cable management and easy installation, while a 140mm rifle bearing fan with a zero RPM fan mode ensures near silent operation. Built with 100% industrial-grade 105degC rated Japanese capacitors and comprehensive protection features for reliable and durable power delivery.

Features


RMe Series™ RM1200e Fully Modular Low-Noise ATX Power Supply

Steady Power for Your System

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with ATX 3.1 and PCIe 5.1 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.

Corsair RM1200e Gold Modular ATX 3.0 PCIe 5.0 1200W Power Supply Feature 1

Fully Modular Cabling

Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.

Corsair RM1200e Gold Modular ATX 3.0 PCIe 5.0 1200W Power Supply Feature 2

ATX 3.1 Certified

On the Cutting Edge

The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12v-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 50 Series.

Corsair RM1200e Gold Modular ATX 3.0 PCIe 5.0 1200W Power Supply Feature 3

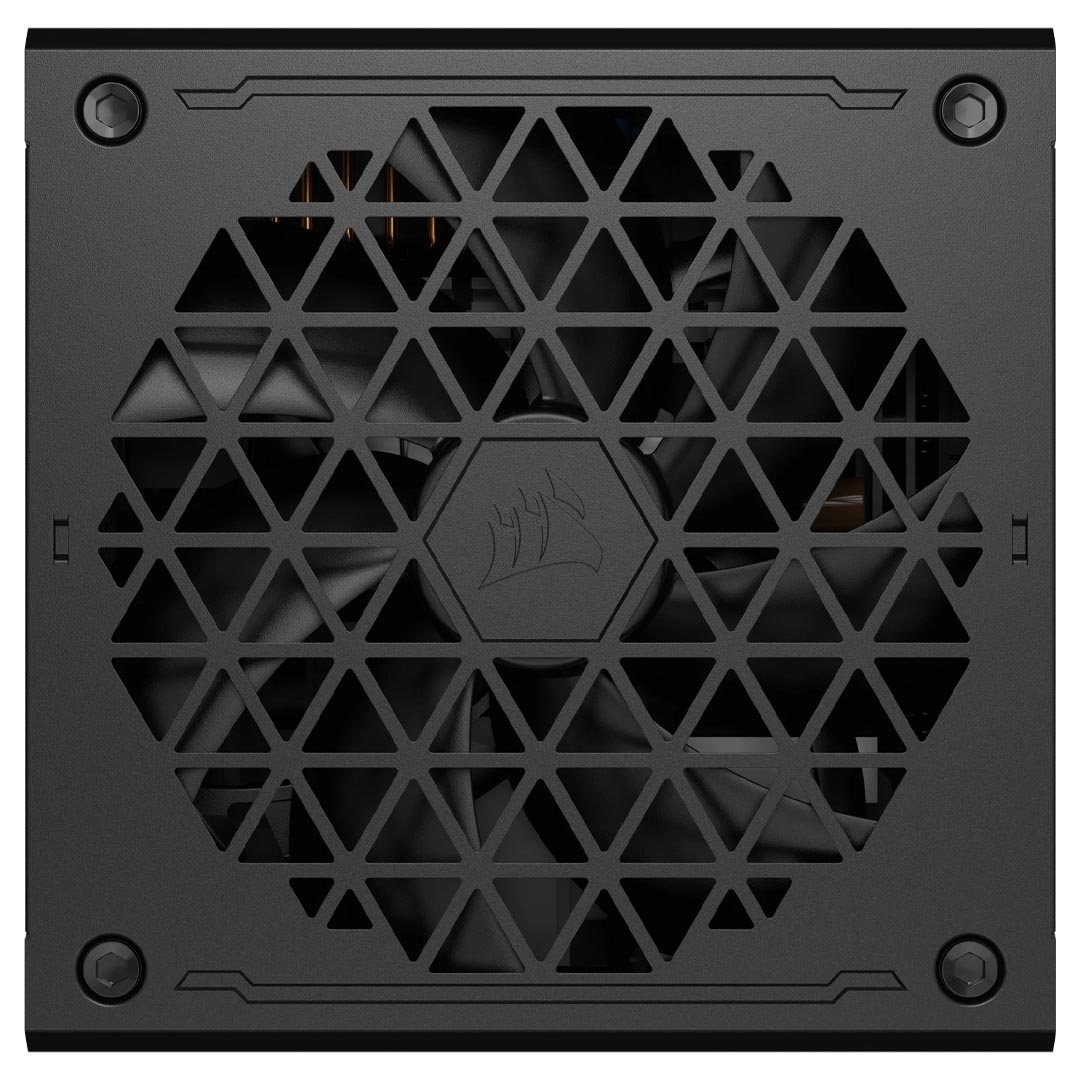

Low Noise Operation in a Compact Size

Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

Includes Zero RPM Fan Mode for near-silent operation at lower loads.

Corsair RM1200e Gold Modular ATX 3.0 PCIe 5.0 1200W Power Supply Feature 4

Technology and Reliability

For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

80 Plus Gold Certified

Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

Corsair RM1200e Gold Modular ATX 3.0 PCIe 5.0 1200W Power Supply Feature 5

105°C-Rated Capacitors

Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.




Specifications


General Data

Model Number CP-9020258-AU
Modern Standby Yes
Modular Fully
ATX Connector 1
ATX12V Version 3.1
Cable Type Type 4
Continuous Power W 1200 Watts
MTBF Hours 100,000 hours
Zero RPM Mode Yes
80 Plus Efficiency Gold
Weight 3.377
AC Input 100 V – 240 V
Input Current 15 A - 7.5 A
Frequency 47 ~ 63 Hz
Warranty 10 Years

Power Table

  Max Load; Max Output
+3.3V 20 A 150 W
+5V 20 A 150 W
+12V 100 A 1200 W
+5VSB 3 A 15 W
Total Power 1200 W 1200 W

Cable Listing

QTY Cable Connectors Per Cable Total Connectors Connector Spacing Total Length Cable Type
1 Modular ATX Cable (24-Pin) 1 1 - 610 mm (± 10 mm) Sleeved
2 EPS / ATX 12V 8-Pin (4+4) 1 2 - 650 mm (± 10 mm) Flat
1 12v-2x6 (12+4) Pin 1 1 - 650 mm (± 10 mm) Flat
2 PCIe 8-Pin (6+2) 1 2 - 600 mm (± 10 mm) Flat
2 PCIe 8-Pin (6+2) (6+2) 2 4 600 mm, 150 mm 750 mm (± 10 mm) Flat
1 SATA (3 SATA) Straight 3 3 500 mm, 100 mm, 100 mm 800 mm (± 10 mm) Flat
1 SATA (4 SATA) Right Angle 4 4 455 mm, 115 mm, 115 mm, 115 mm 700 mm (± 10 mm) Flat
1 PATA (4-Pin) 4 4 450 mm, 100 mm, 100 mm, 100 mm 750 mm (± 10 mm) Flat


Backed by a 10 year Corsair warranty.
