The Lian Li Uni Fan TL140 Wireless LCD ARGB Reverse PWM 140mm Fan combines cutting-edge performance with visual flair, perfect for high-end PC builds seeking style and substance. Equipped with a vibrant 1.6inch LCD display (400×400 resolution), it supports custom MP4, GIF, JPG, and PNG visuals, allowing full personalisation of your cooling setup. Controlled via Lian Li’s L-Wireless Sync 2.4GHz system, it eliminates the need for motherboard ARGB and PWM headers, streamlining cable management and installation. Built with durable PA66 PBT materials and a fluid dynamic bearing for long-lasting reliability, it operates between 350–1600 RPM, delivering up to 64 CFM airflow and 3.1 mmH₂O air pressure at a quiet 29.4 dBA. The integrated infinity mirror and diffused ARGB lighting elevate the fan's aesthetics, while the L-Connect 3 software provides intuitive control over lighting, speed, and display settings. Whether you’re building a showcase system or enhancing airflow, the TL140 Wireless LCD offers unmatched versatility and customisation.
Note: L-Wireless Sync Controller not included (sold separately).
Features
TL140 Uni Fan TL Wireless ARGB 140
The UNI FAN TL LED WIRELESS 140 and UNI FAN TL LCD WIRELESS 140 are the newest additions to the next-gen TL fans that incorporate LIAN LI’s innovative wireless technology, providing next-gen 2.4 GHz wireless control of the LCD display, RGB lighting zones, and fan speed. These fans offer enhanced cooling performance with the same cutting-edge wireless features. The wireless RGB solution significantly reduces cable clutter, making installation a breeze and cable management more accessible than ever. Users can now enjoy all the benefits of TL fans with even simpler cable management.
2.4 GHz Wireless Control
Ditch the traditional 5V ARGB header and PWM header from the motherboard, or rely on a controller for L-Connect or motherboard software. The UNI FAN TL LED WIRELESS 140 and UNI FAN TL LCD WIRELESS 140 operate with the cutting-edge L-Wireless Sync, a powerful 2.4 GHz wireless controller. This innovation seamlessly communicates with LIAN LI’s supported devices to effectively manage the LCD display, RGB zone lighting, and fan speed.
Visualise the Airflow

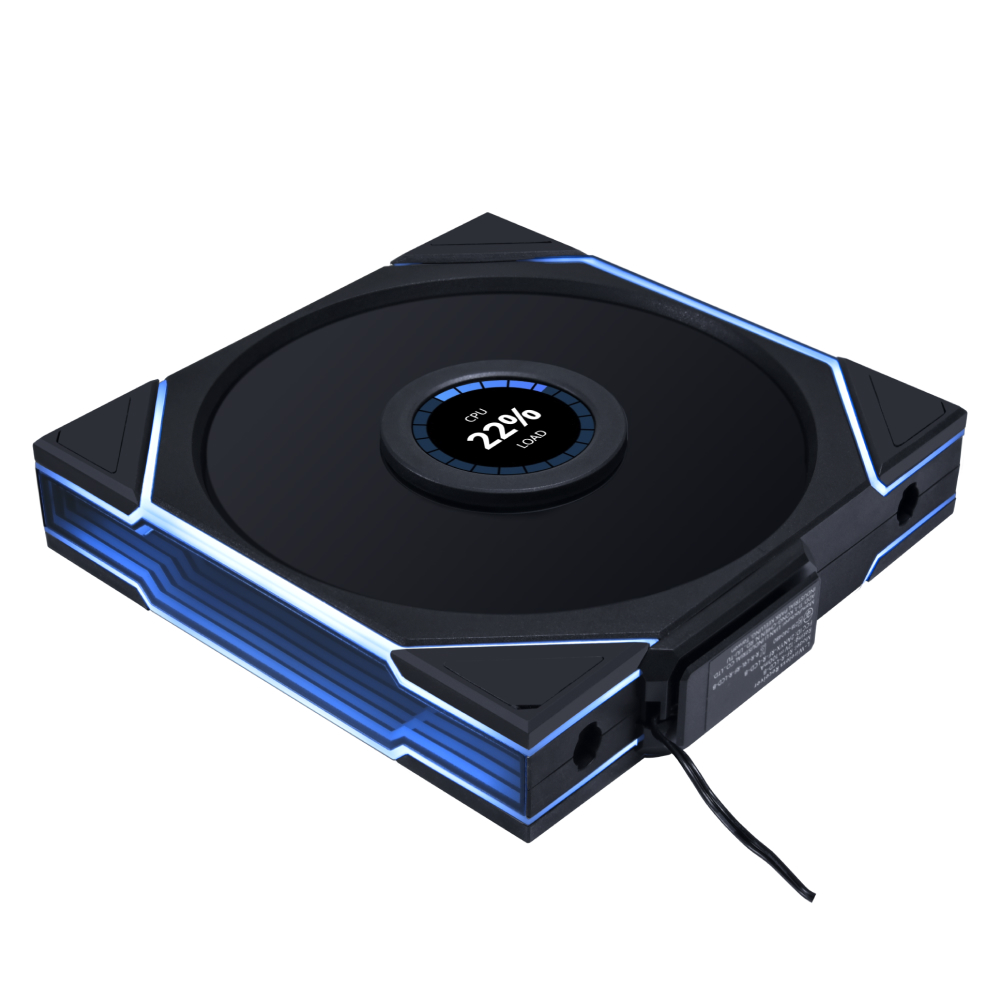

The UNI FAN TL LCD Wireless features a 1.6” LCD display with a resolution of 400×400, supporting MP4, GIF, JPG, and PNG formats for personalised visuals. Both visible edges of the TL LCD Wireless 140 are equipped with an infinity mirror and a thin diffused LED strip that wraps around the fan’s mounting screw area, creating an elegant look. Equipped with a fluid dynamic bearing (FDB) that provides stability, durability, and longevity, the TL LCD Wireless 140 can produce an airflow of 68.1 CFM and air pressure of 3.5 mmH2O at low operating noise for a quiet operation of 28.5 dBA. The fan speeds can reach up to 1600 RPM.
Specifications
General Data
| Product Name |
UNI FAN TL140 LCD Reverse Blade Wireless |
| Model |
14RTLLCD1W1B |
| Colour |
Black |
| Number of Fans |
1 |
| Number of Fans Controller |
No |
| Connector Type |
4-PIN PWM + 9-PIN USB x1 |
| Fan Dimension |
140x142x28mm |
| Fan Speed |
350~1600 RPM |
| Max. Air Pressure |
3.1 mmH2O (Maximum) |
| Max. Airflow |
68.1 CFM (Maximum) |
| Acoustic Noise |
29.4 dBA (Maximum) |
| Input Power |
6.72W |
| Material |
PA66 PBT |
| Bearing Type |
Fluid Dynamic Bearing (FDB) |
| Operate Voltage |
DC 5V - 12V |
| Warranty |
3 years |
Backed by a 3 year Lian Li warranty.
