The TP-Link Omada ES208G delivers high-performance networking with 8x RJ45 ports, with simple configuration and convenient plug and play support. Part of the Omada SDN platform, it supports centralised cloud management, VLANs, QoS, IGMP Snooping, and advanced security features. With fanless design for silent operation and easy deployment, the ES208G is a reliable, scalable solution for efficient network infrastructure.
Features
Omada 8-Port Gigabit Easy Managed Switch
- 8x 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
- VLAN, Port Isolation, Cable Test (Cable Test and Port Qos are supported under Standalone Mode.), QoS (Cable Test and Port Qos are supported under Standalone Mode.) for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation

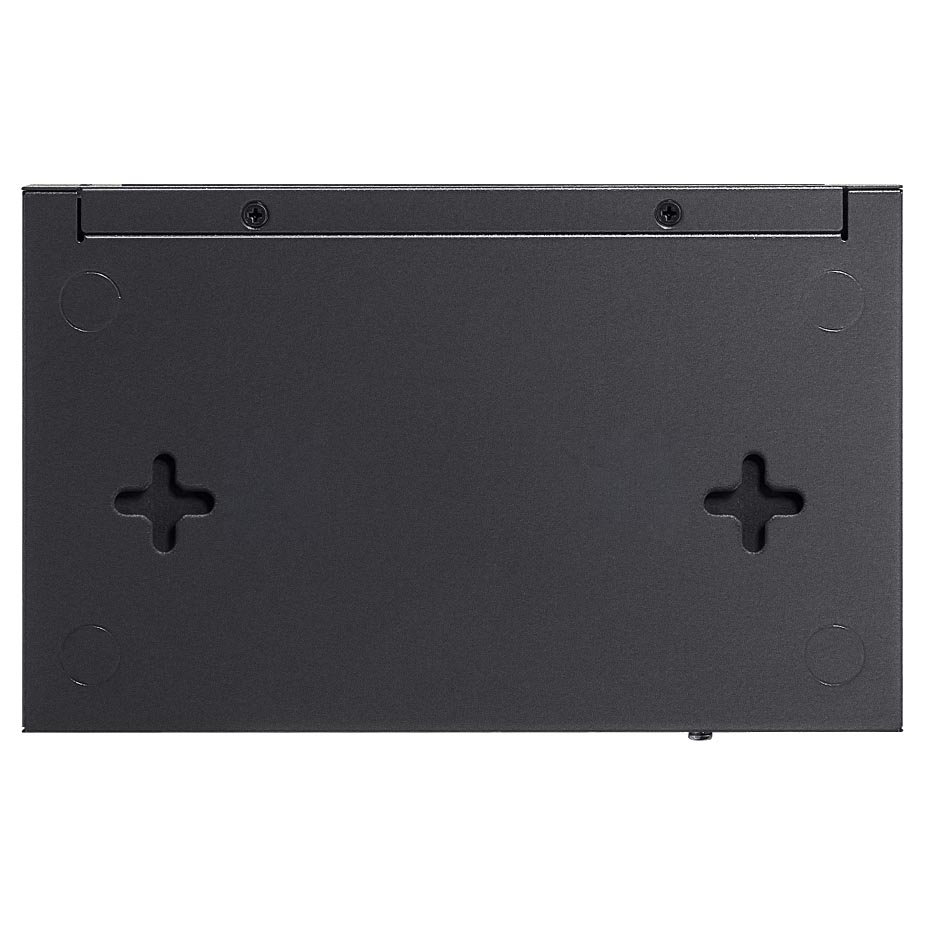

- Durable metal casing and desktop/wall mounting design
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
*Please go to https://omada.tplinkcloud.com to log in with your TP-Link ID.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralised Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing (The gateway requires one-step configuration)
- Upgrade to Standard with a Seamless Subscription (Available from Q2 2025.)
Abundant Functions for Reliable Surveillance Networking
- Secure Traffic Separation
- Priority Video Quality Guaranteed (Cable Test and Port Qos are supported under Standalone Mode.)
- Safer Camera Networking via Port Isolation
- Simplify Maintenance with Cable Test (Cable Test and Port Qos are supported under Standalone Mode.)
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Build Features

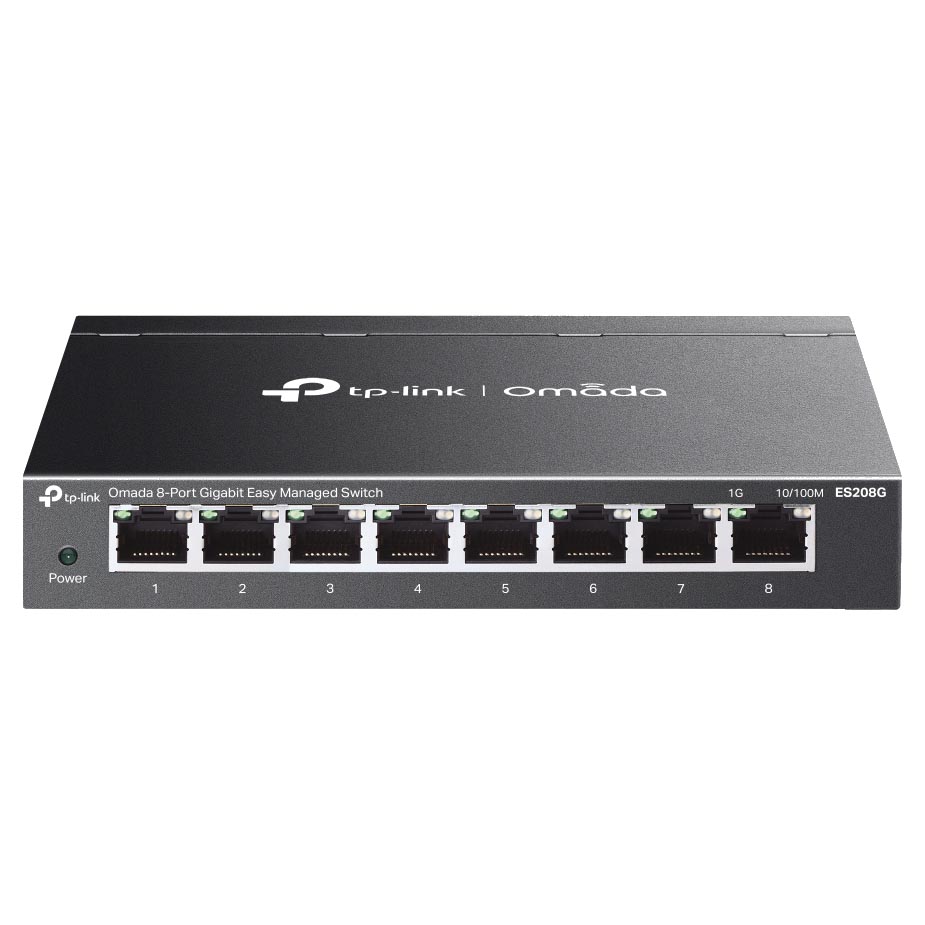

Front View

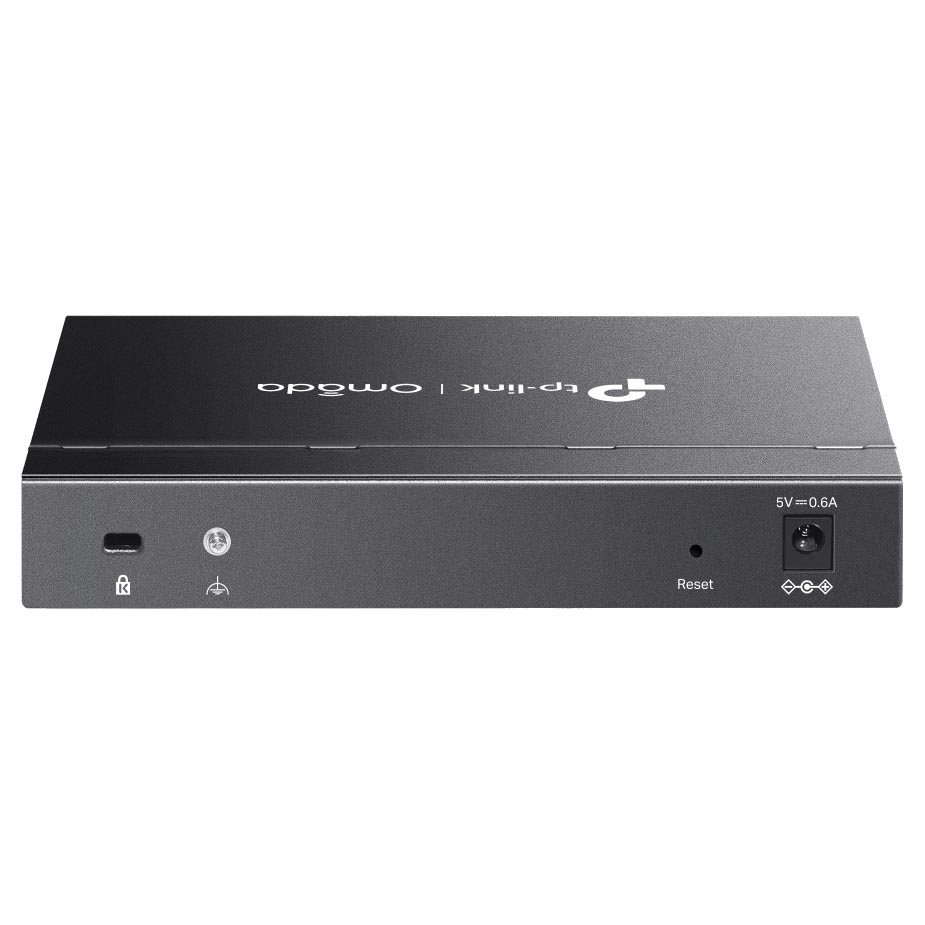

Back View
Dimensions
Specifications
General Data
| Model Number |
ES208G |
| Certification |
FCC, CE, RoHS |

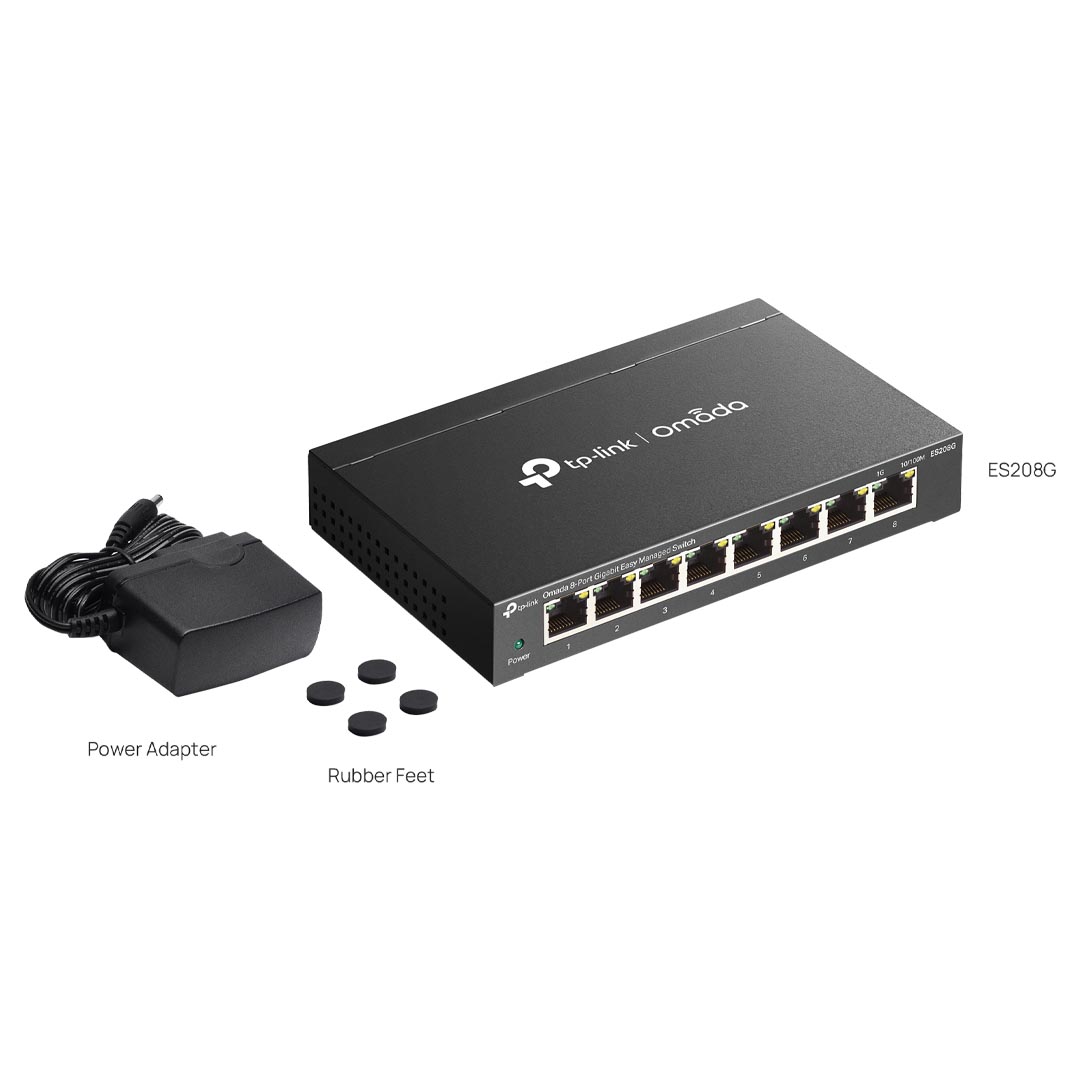

| What's Included |
ES208G
Power Adaptor
Rubber Feet
Installation Guide |
| Environment |
Operating Temperature: -5 ~ 45 (23 ~ 113)
Storage Temperature: -40 ~ 70 (-40 ~ 158)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing |
Hardware Features
| Interface |
8 x 10 / 100 / 1000 Mbps RJ45 Ports
Auto-Negotiation / Auto MDI / MDIX |
| Fan Quantity |
Fanless |
| Installation |
Desktop
Wall Mount |
| Physical Security Lock |
Yes |
| Power Supply |
DC Power Adaptor (Output: 5 VDC / 0.6 A) |
| Dimensions (W x D x H) |
6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Surge Protection |
±6 kV |
Performance
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
Software Features
| Quality of Service |
Port-based / 802.1p / DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps / pps)
- Broadcast / Multicast / Unknown-Unicast Control (QoS and Priority Mode are supported under Standalone Mode.) |
| L2 Features |
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP |
| L2 Multicast |
IGMP Snooping
- IGMP v1 / v2 / v3 Snooping
- Fast Leave |
| VLAN |
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-and-Forward |
Management Features
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requiring the use of the Omada Cloud-Based Controller. |
| Management Features |
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
Batch Configuration (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
Batch Firmware Upgrading (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
Unified Configuration (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.) |
Backed by a 3 year TP-Link warranty.
