TP-Link Omada 52 Port Gigabit Smart Switch with 32 Port PoE+

SG2452LP | TP-Link
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
$799
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The TP-Link Omada SG2452LP 52 Port Gigabit Smart Switch with 32 Port PoE+ is a high-performance networking solution designed for scalable business environments. Featuring 48 Gigabit RJ45 ports and 4 SFP uplink slots, including 32 PoE+ ports with a total power budget of 230W and up to 30W PoE per port, it's ideal for powering IP cameras, wireless access points, and VoIP devices. Integrated with the Omada SDN platform, it supports centralised cloud management, advanced Layer 2+ features, VLANs, QoS, IGMP Snooping, and static routing. The SG2452LP offers reliable performance, enhanced security, and flexible deployment for growing enterprise networks.

Features

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 1

SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

  • 32 x Gigabit 802.3af/at PoE+ ports
  • 16 x Gigabit non-PoE RJ45 ports and 4 x Gigabit SFP slots
  • 230 W total PoE budget with up to 30 W PoE output per port (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.)
  • Centralised cloud management via the web or the Omada app (These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.)
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for quiet operation
  • Durable metal casing and rack mountable design
  • Traffic Separation

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 2

Power Over Ethernet, Flexible Network Deployment

  • 32 x Gigabit PoE+ RJ45 Ports
  • Up to 30W PoE per Port
  • Total 230W PoE Power (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.)
  • Compatible with 802.3af/at PoE and non-PoE devices
  • Access Points
  • IP Cameras
  • 4K Video
  • Network Video Recorder
  • Thin Clients

Easily Build a Whole 10G Multi-Gigabit Network

  • 10G Router - Ensures the fast way
  • Full 10G Fibre Switch - Lightning-fast aggregation switching
  • Switch with - 10G Uplink
  • PoE Switch with 10G Uplink
  • Wi-Fi 7/6 APs - with 10G/2.5G Ports

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 3

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 4

Multiple Application Scenarios

  • Surveillance - Works with IP Cameras
  • Conference Call - Works with IP Phones
  • Wi-Fi Coverage - Works with Access Points
  • Wired Connections - Works with Non-PoE Devices such as PCs and Printers

Build Features

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 5

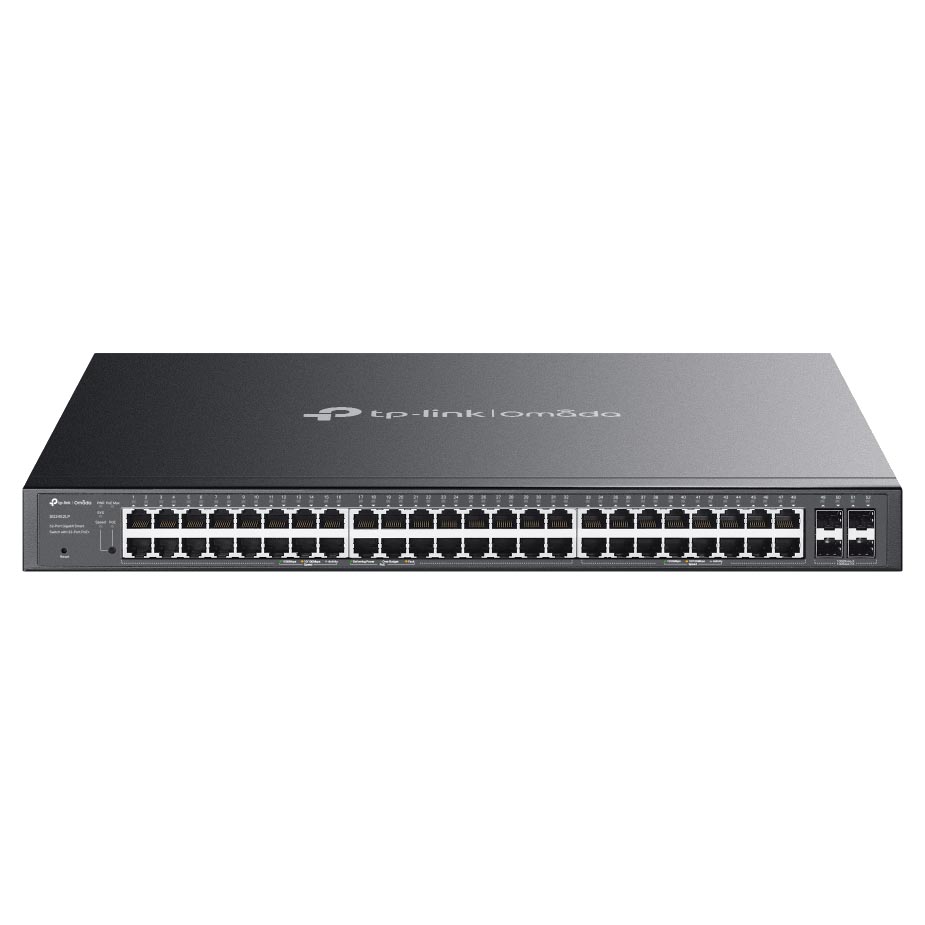

Front

* PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 6

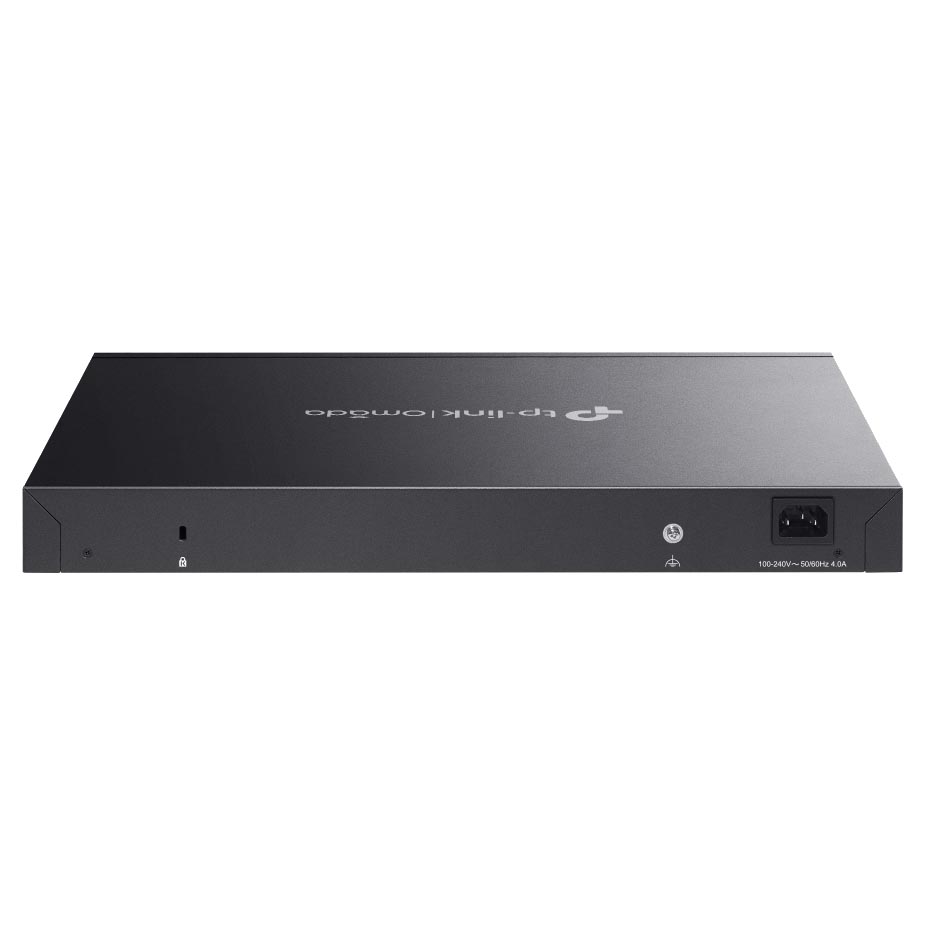

Back

TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ Feature 7

Dimensions

Specifications

General Data

Model Number SG2452LP
Certification CE, FCC, RoHS

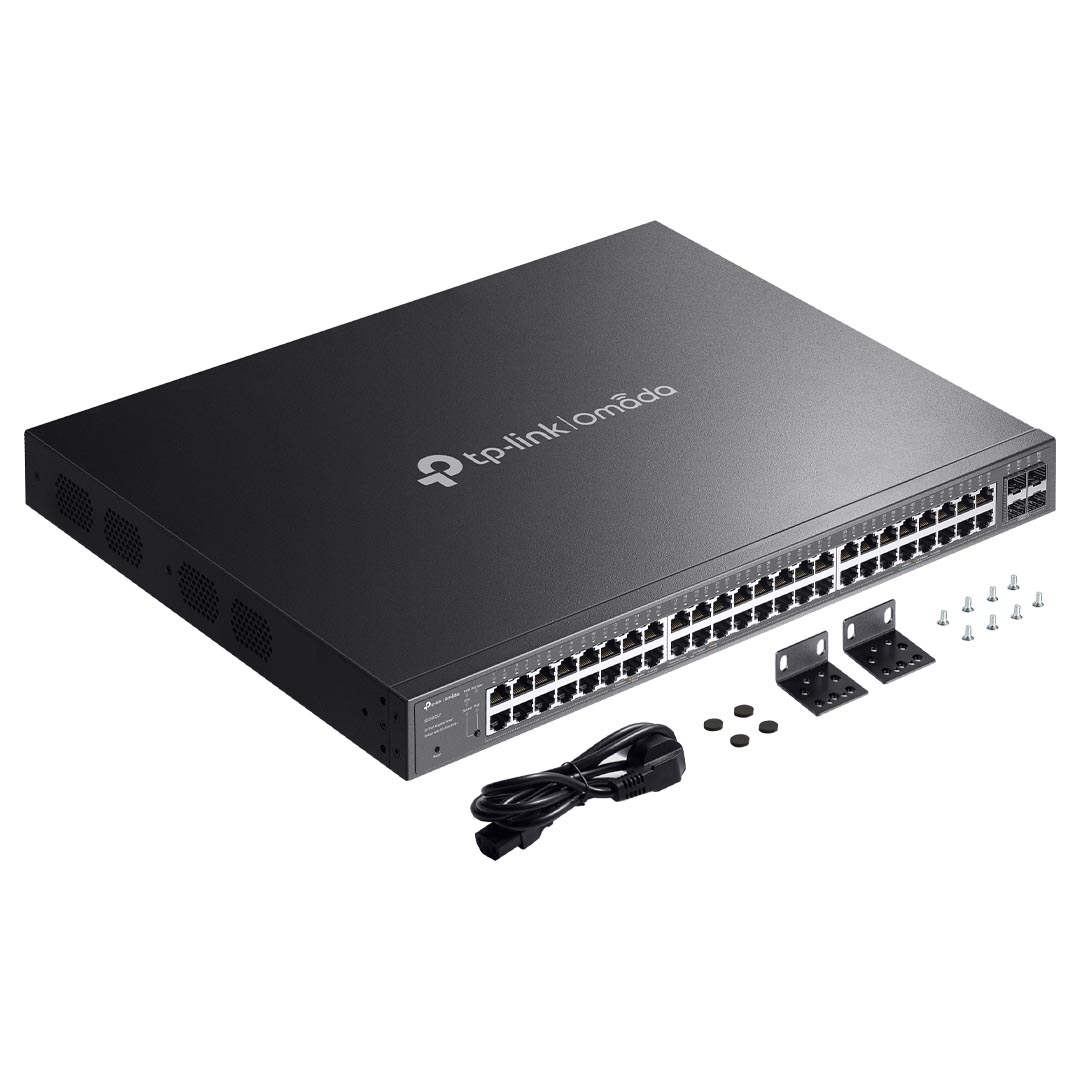

What's Included SG2452LP
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0–40 (32–104 );
Storage Temperature: -40–70 (-40–158 )
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Hardware

Interface 32 x 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
16 x 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply 100-240 V AC~50/60 Hz
PoE Ports (RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 230 W (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.)
Dimensions ( W x D x H ) 17.3 x 13.0 x 1.7 in (440 x 330 x 44 mm)
Mounting Rack Mountable
Max Power Consumption 304.5W (110 V/60 Hz) (with 230 W PD connected)
Max Heat Dissipation 1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected)

Performance

Switching Capacity 104 Gbps
Packet Forwarding Rate 77.37 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB

Software

Quality of Service 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features 16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
L2 Multicast 511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Intelligent Network Monitoring†
Abnormal Event Warnings†
Unified Configuration†
Reboot Schedule†
(† These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.)
VLAN VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN
Access Control List Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
ACL Rules Binding
- Port Binding
- VLAN Binding
Security IP-MAC-Port Binding
AAA
802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Radius authentication and accountability support
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
IPv6 IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbour discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)

Management

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
Backed by a 3 year TP-Link warranty.
