The TP-Link Omada 24-Port Gigabit L2+ Managed Switch is a high-performance, 24-port Gigabit L2+ managed switch designed to meet the demands of modern enterprise level networks. Featuring 4 additional 10 Gbps SFP+ slots, the TP-Link Omada 24-Port Gigabit L2+ Managed Switch ensures high-bandwidth uplink connections for seamless data transfer. Advanced Layer 2 and L3 features, such as static routing, VLAN support, ACL, QoS, and IGMP snooping, enhance network efficiency and security. The switch integrates seamlessly into the Omada SDN platform, enabling centralised cloud management via the web or the Omada app, and supports standalone management through web, CLI, SNMP, and RMON interfaces. Its durable metal casing and rack-mountable design ensure reliable performance in various business environments.
Features
Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
10G Uplink Managed Switch for a Complete Omada Network
- 4 x 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 24 x Gigabit RJ45 ports
- 128 Gbps switching capacity
- Centralised cloud management via the web or the Omada app (These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.)
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rack mountable design
Enterprise Switch with 10G Uplink
4 x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
- Hassle-Free Cloud or On-Premises Controllers
- Multi-Site Cloud Management
- Zero-Touch Provisioning (ZTP) ((ISP features can only be configured in standalone mode.))
- Intelligent Monitoring
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic. At the same time, IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorised multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritised based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided and developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer straightforward monitoring and troubleshooting of Ethernet links.
(ISP features can only be configured in standalone mode.)
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbour Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

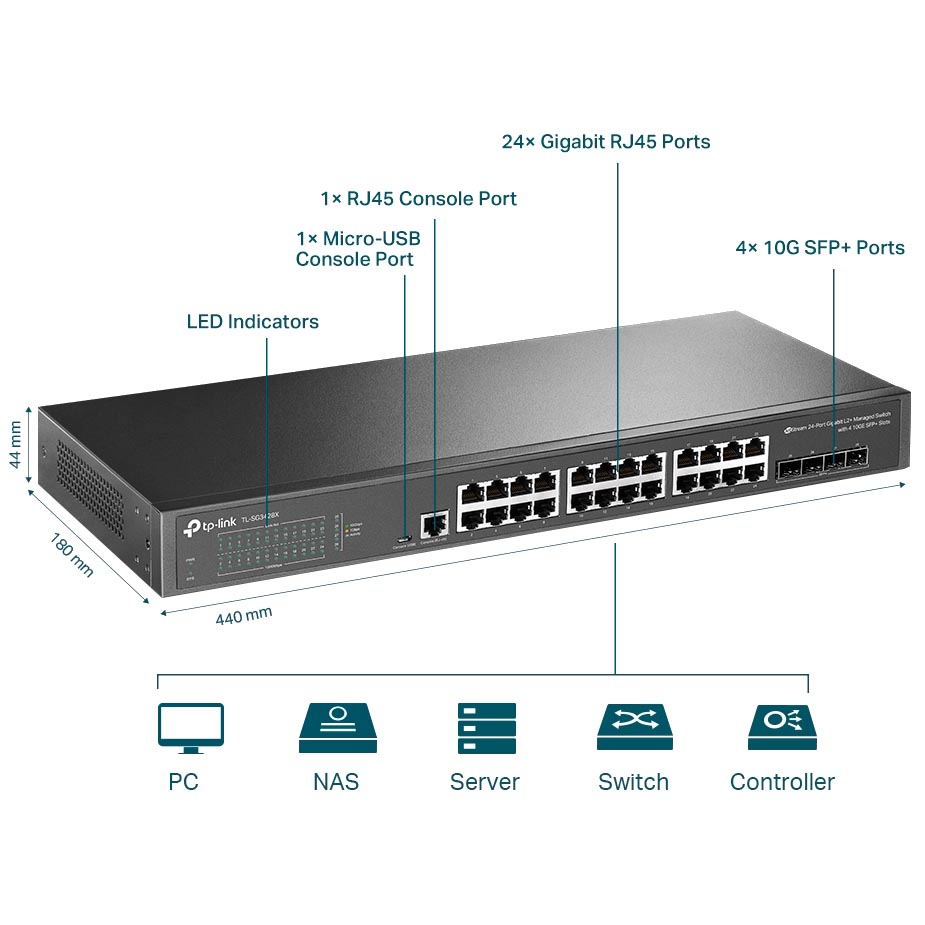

Build Features

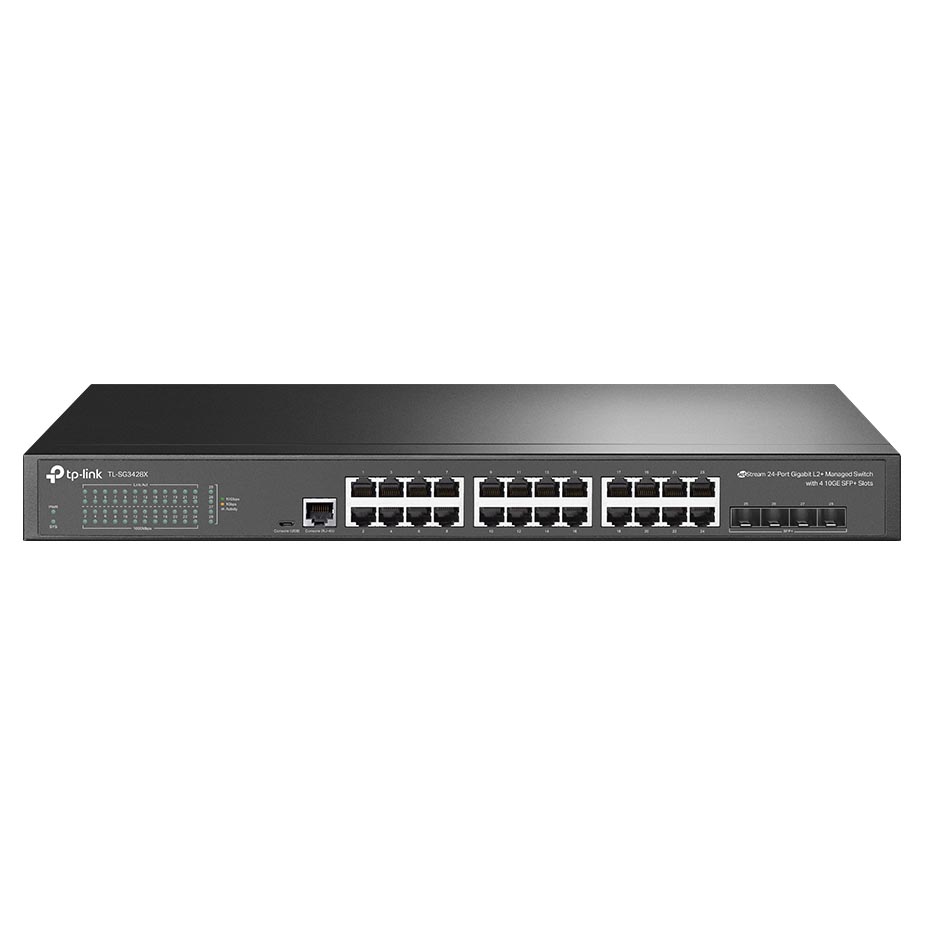

Front

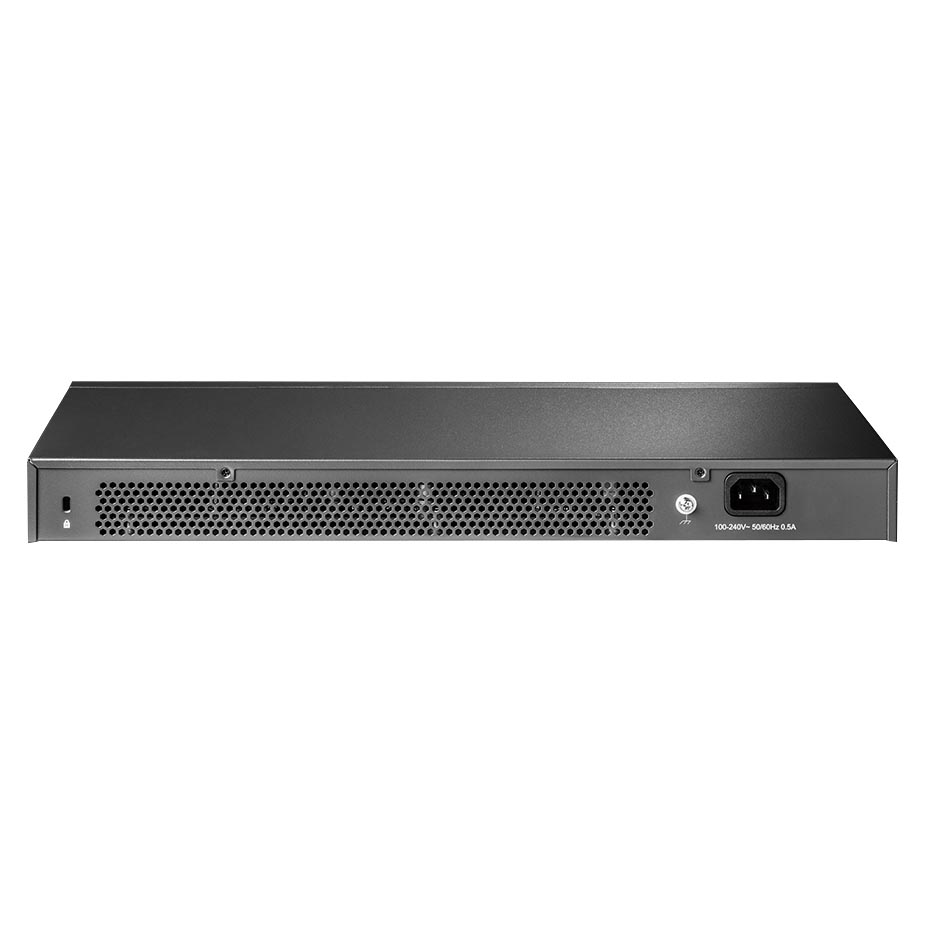

Back
Dimensions
Backed by a 5 year TP-Link warranty.
