TP-Link Omada 48 Port Gigabit and 4 Port 10GE SFP+ L2+ Switch

The TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Switch features 48x gigabit RJ45 ports including 8x PoE++ and 40x PoE+ with a 750W total PoE budget, and 4x 10 Gbps SFP+ ports providing high-speed connections, centralised management with cloud access and Omada app, IPv6 support, and static routing. Additional features include enhanced protection with various security strategies and advanced L2+ technologies such as static routing and mirroring, this switch is a great solution for an enterprise level network.

Features

---

SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++

• 4 x 10 Gbps SFP+ slots
• 8 x Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 40 x Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 750 W total PoE budget (Max 90 W for Each PoE++ Port) (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90 W. SG3452XMPP is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.)
• Centralised cloud management via the web or the Omada app (These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.)
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design
• 48 x Gigabit RJ45 Ports (8 x PoE++, 40 x PoE+)
• Zero-Touch Provisioning (These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.)
• Ethernet Ring Protection Switching

Empowering the High-Power Devices with Gigabit PoE++ Ports

• 8 x Gigabit PoE++ RJ45 Ports
• 40 x Gigabit PoE++ RJ45 Ports
• Budget Up to 90W per PoE++ Port
• Total 750W PoE Power (Max 90 W for Each PoE++ Port) (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90 W. SG3452XMPP is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.)
• Access Points
• PTZ HD IP Cameras with Heaters
• Smart Building Lighting
• Audio System
• Thin Clients

Easily Build a Whole 10G Multi-Gigabit Network

• 10G Router - Ensures the fast way
• Full 10G Fibre Switch - Lightning-fast aggregation switching
• Switch with 10G Uplink
• PoE Switch with 10G Uplink
• Wi-Fi 7/6 APs with 10G/2.5G Ports

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

• Surveillance - Works with IP Cameras
• Conference Call - Works with IP Phones
• Wi-Fi Coverage - Works with Access Points
• Wired Connections - Works with Non-PoE Devices such as PCs and Printers

Build Features

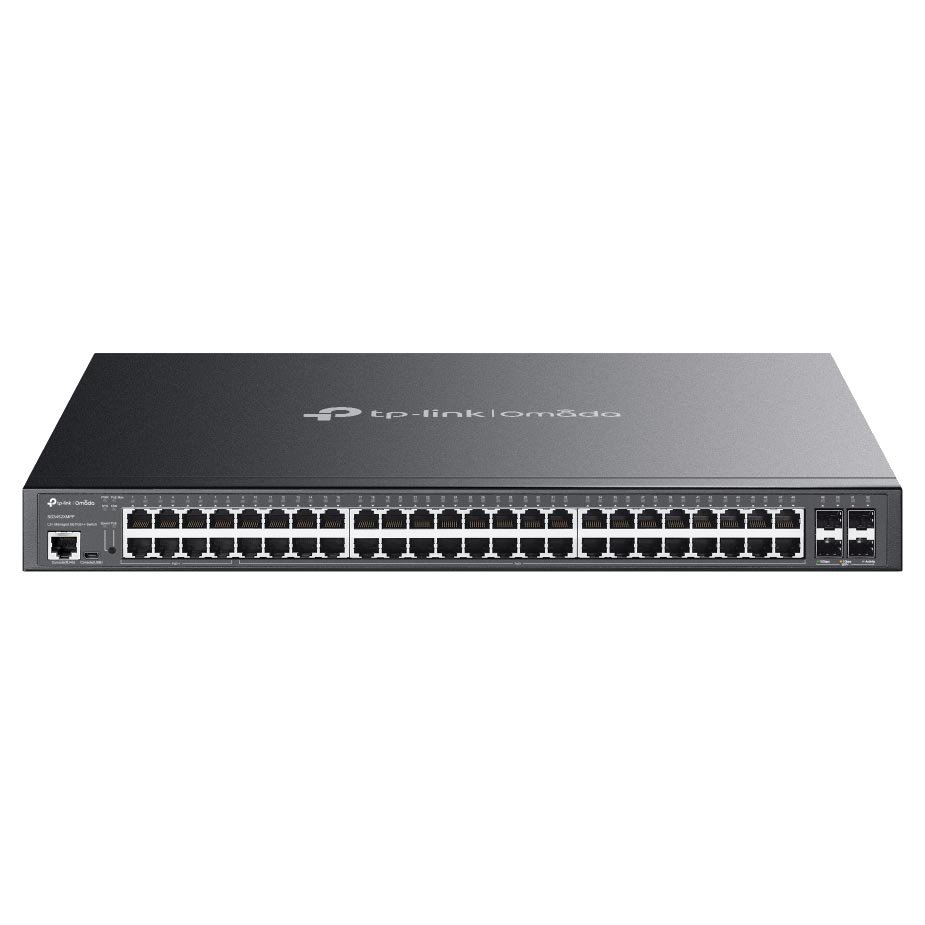

Front

* PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90 W. SG3452XMPP is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.

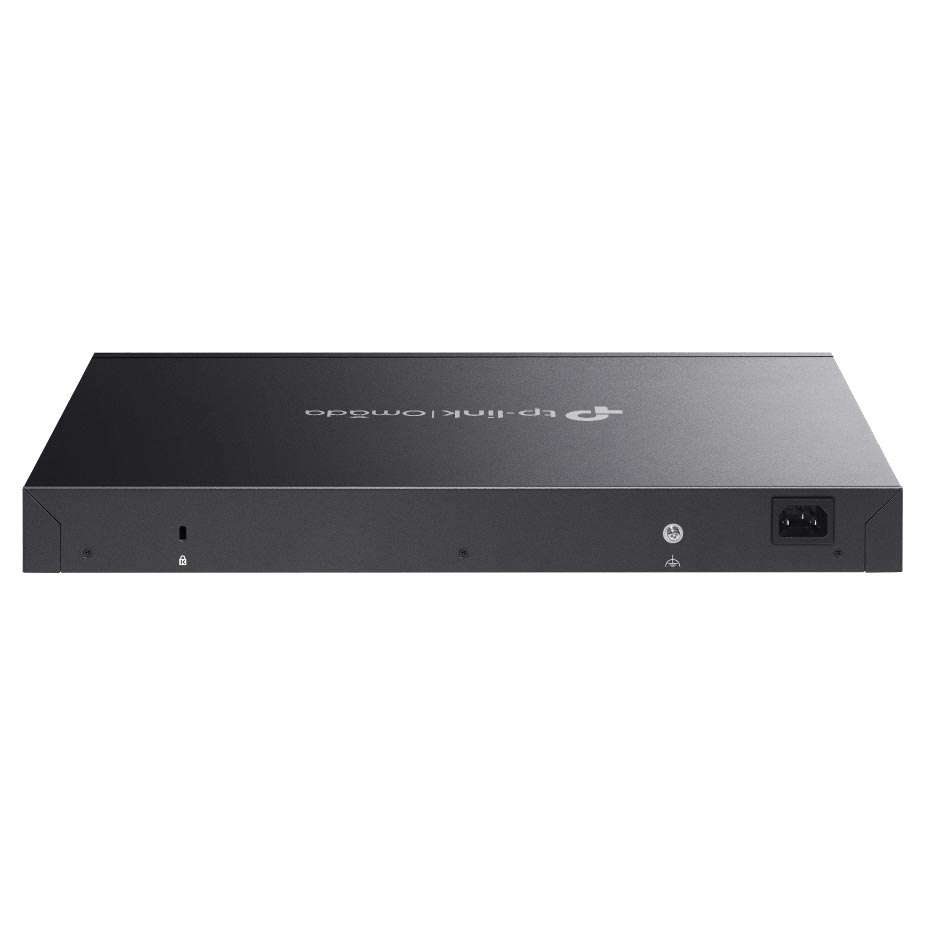

Back

Dimensions
