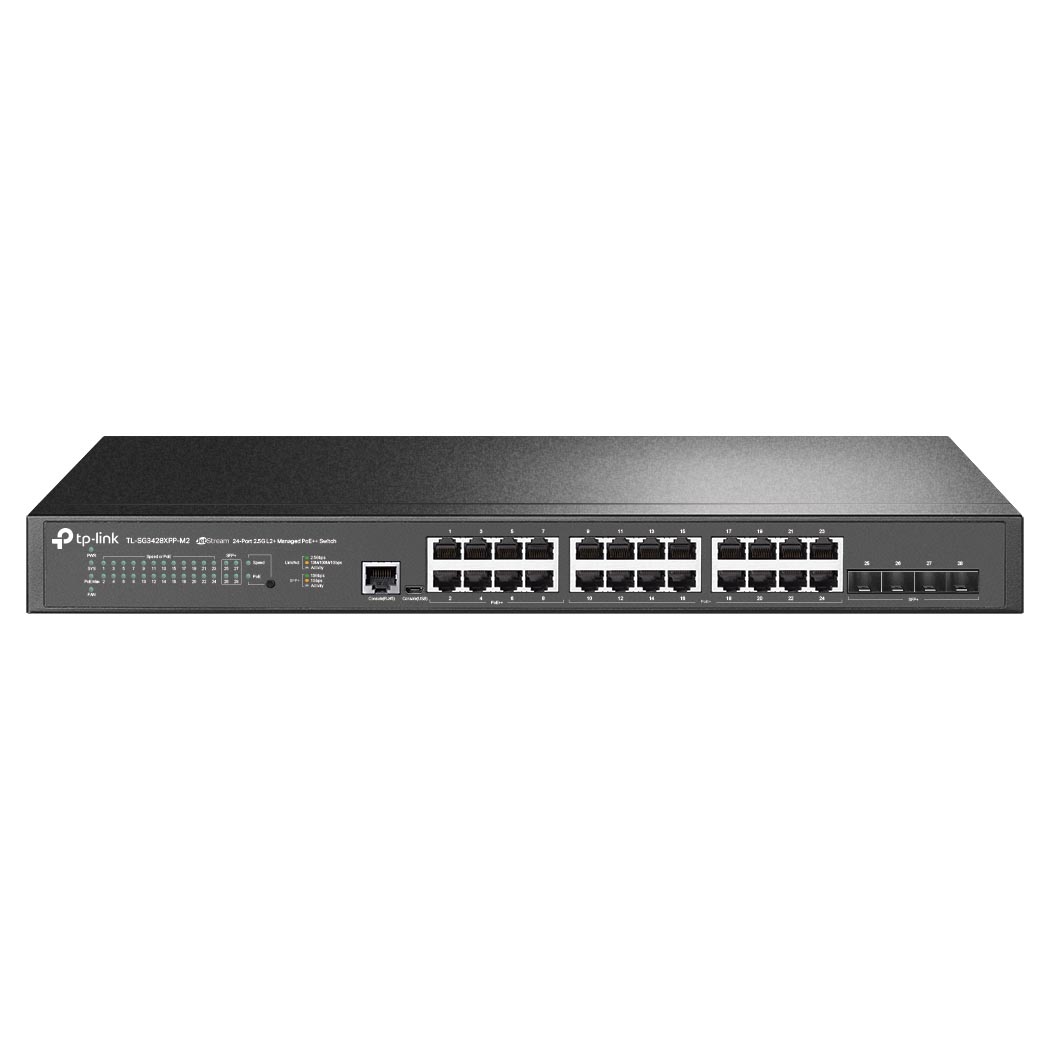

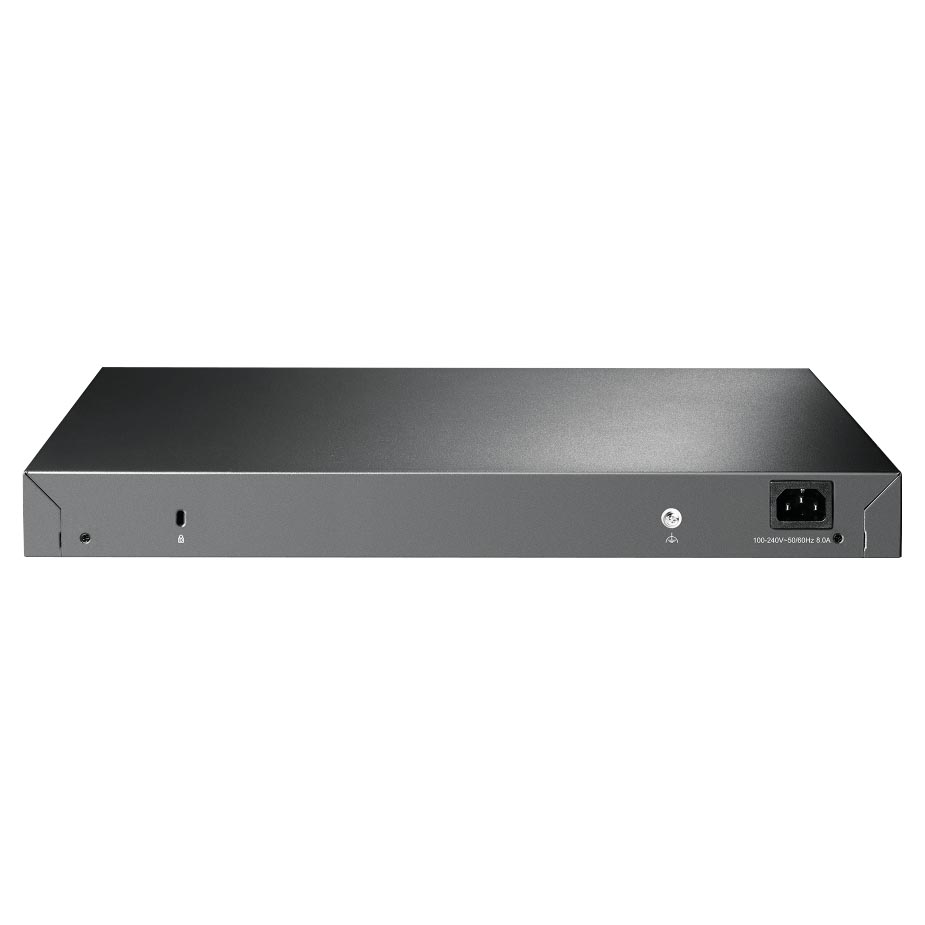

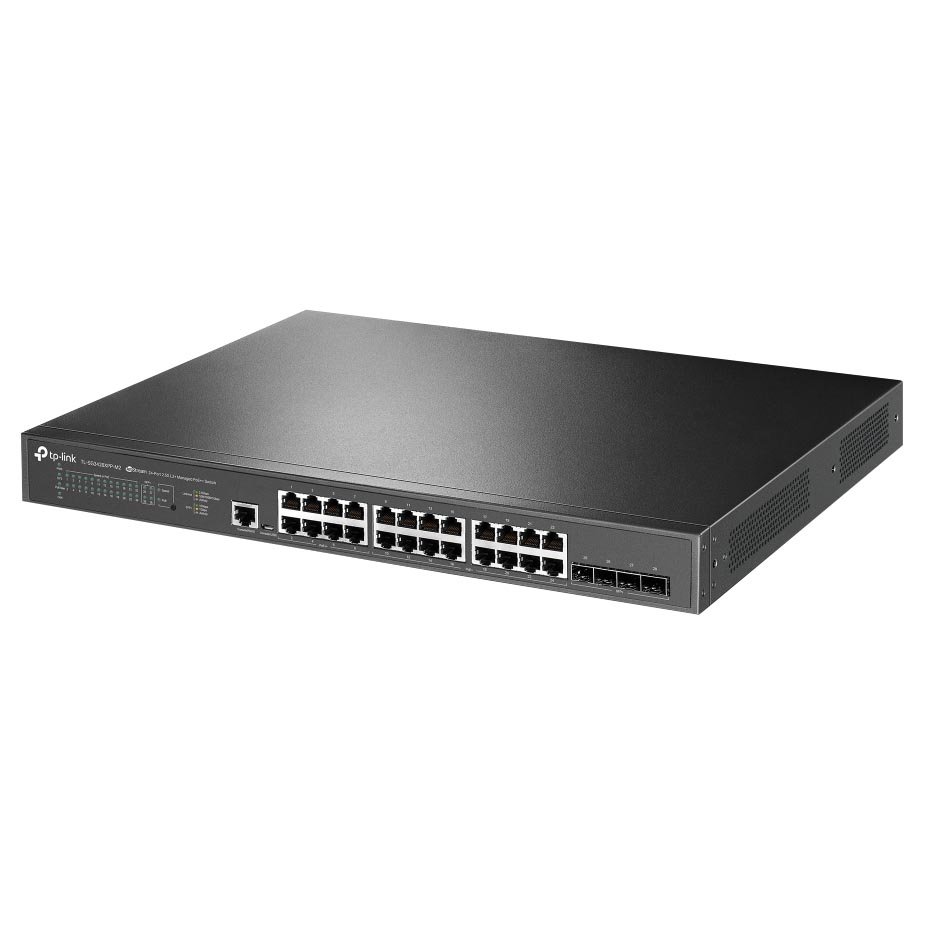

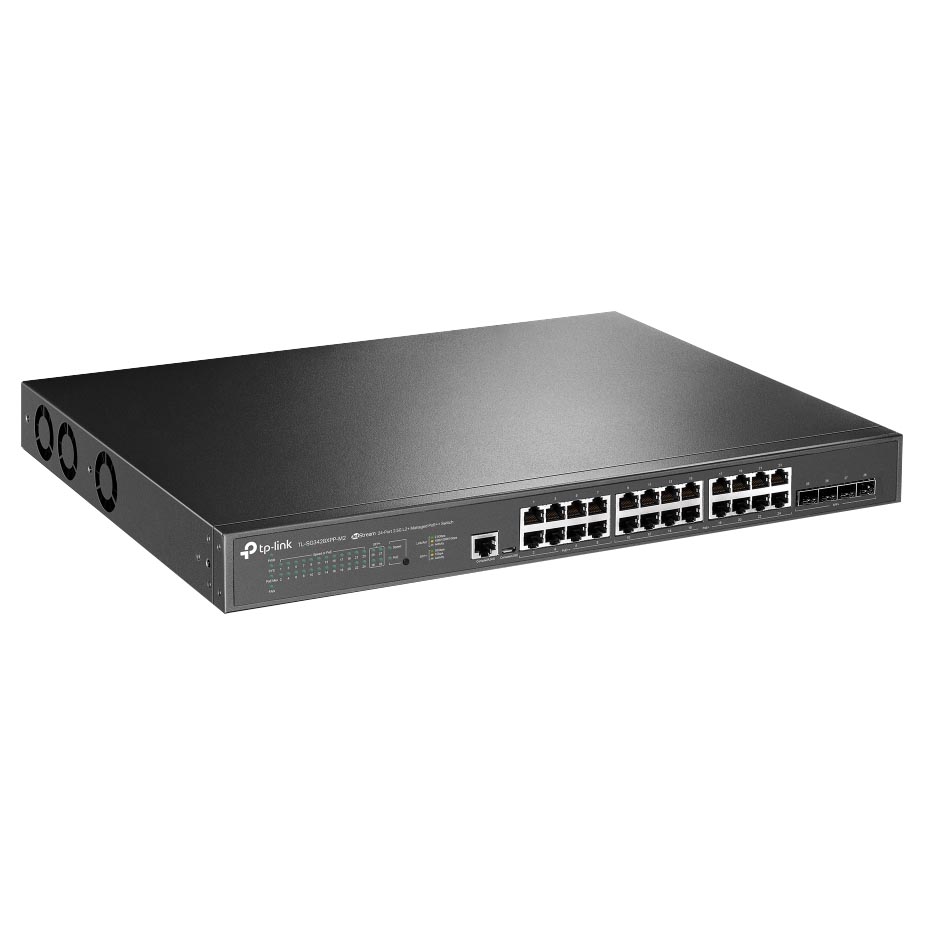

The TP-Link SG3428XPP-M2 JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ features 24x 2.5 Gbps RJ45 ports including 8x PoE ++ and 16 PoE+ ports with a 500W total power budget and 4 x 10Gbps SFP+ slots providing high bandwidth connections. Additional features include Omada SDN integration supporting centralised management, and enhanced protection with various security strategies and advanced L2+ and L3 technologies such as static routing and mirroring, this switch is a reliable solution for an enterprise level network.
Features
JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Ultrafast 2.5G PoE++/PoE+ Managed Switch with 10G Uplink for Futuristic Network
- 2.5G PoE++/PoE+ Ports for WiFi 7/6E/6: 24x 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
- 10G Lightning-Fast Uplink: 4x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 500 W PoE Budget: 8x 802.3bt/at/af/-compliant PoE++ and 16x 802.3at/af-compliant PoE+ ports with a total power supply of 500 W (PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. The maximum power output of every single PoE++ port is 60 W.).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) (Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.), Centralised Cloud Management, and Intelligent Monitoring.
- Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE++/PoE+ Ports
Featuring 8x PoE++ and 16x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 500 W total PoE power budget (PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors. The maximum power output of every single PoE++ port is 60 W.) and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
4x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to the server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralised cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
- Hassle-Free Cloud or On-Premises Controllers
- Multi-Site Cloud Management
- Zero-Touch Provisioning (ZTP) (Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.)
- Intelligent Monitoring
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. (Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.)
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorised multicast access. Static Routing is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritised based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided and developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. (ISP features can only be configured in standalone mode.)
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbour Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Attention: It is recommended to use only one TL-SM5310-T module for the TL-SG3428XPP-M2.
Backed by a 3 year TP-Link warranty.
