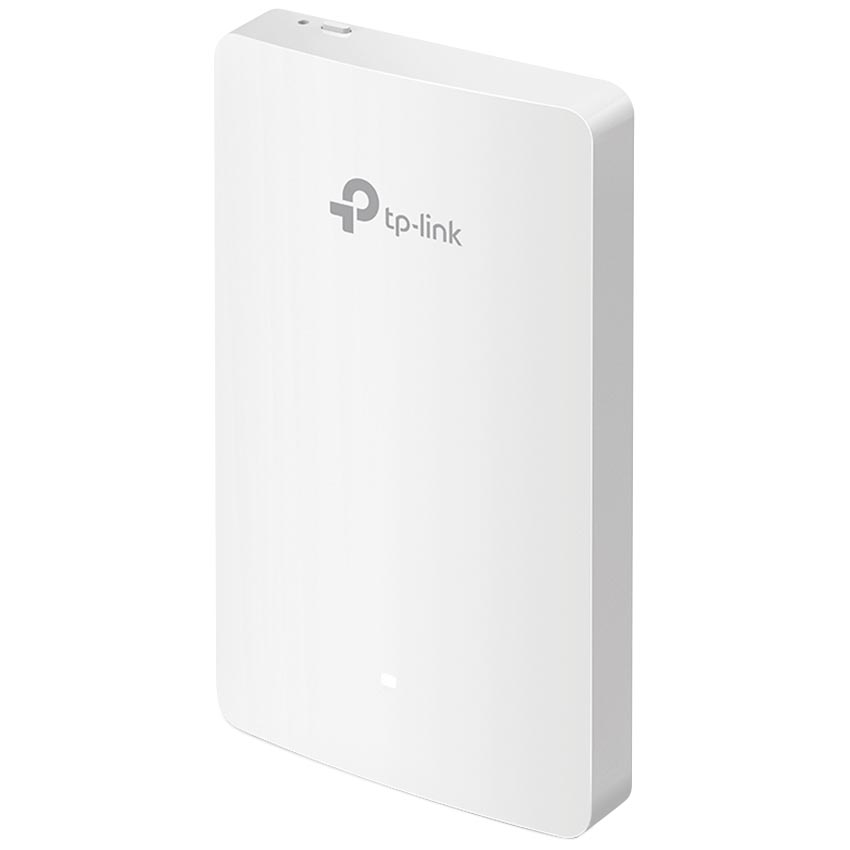

TP-Link AX1800 Wall Plate WiFi 6 Access Point

The TP-Link AX1800 Wall Plate WiFi 6 Access Point features fast wireless network speeds up to 1775 Mbps, high-performance connectivity with band steering and seamless roaming. With four gigabit ethernet ports, with one downlink port supporting PoE, this access point includes easy installation and flexibility of placement with included wall mounting plate.

Features

---

AX1800 Wall Plate WiFi 6 Access Point

New Experience of Room Coverage with Wi-Fi 6

• Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary due to factors including network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)
• High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
• Four Gigabit Ports: 4 Gigabit Ethernet ports (1x uplink + 3x downlink), with one downlink port supporting PoE pass-through to provide power for wired devices. (PoE pass-through is only available when 802.3at powers the device. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. Actual power delivered to the device may vary.)
• Centralised Management: Integrates into Omada SDN for cloud access and remote management.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Superior Wi-Fi 6 Speeds

Meet the demands for smoother online activities and more device connections. The latest 802.11ax technologies (Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices to support the corresponding features.) such as 1024 QAM and Long OFDM Symbol allows the EAP to boost overall speeds up to 1775 Mbps (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary due to factors including network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.).

• 1024 QAM - 25% more data encoded at one time
• Long OFDM Symbol - 11% faster speed

5 GHz

• 2 Stream Wi-Fi 5 - 867 Mbps
• 2 Stream Wi-Fi 6 - 1201 Mbps (40% Faster)

2.4 GHz

• 2 Stream Wi-Fi 5 - 300 Mbps
• 2 Stream Wi-Fi 6 - 574 Mbps (90% Faster)

High-Performance Connectivity for Better User Experience

The latest Wi-Fi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency (Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices to support the corresponding features.).

• MU-MIMO
• OFDMA
• BSS Colouring
• High-Efficiency Wi-Fi 6
• Seamless Roaming (Seamless roaming may require upgrading the firmware.)
• Band Steering

Seamless Integrated into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network—all controlled from a single interface.

• Hardware or Software Controllers
• Centralised Cloud Management
• Intelligent Monitoring

More than Speed, Security Matters

Safeguard your network and data against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.

Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Guest Network with Facebook Wi-Fi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorised guests to use the network. Boost your business with a customised marketing page.

WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides strengthened data security for previously unsecured and open Wi-Fi hotspots.

Effortless Deployment with PoE Powered

With 802.3af/802.3at Power over Ethernet supported, there’s no need to install additional wiring in the building. Plug the existing Ethernet cables in, and you’re ready to go.

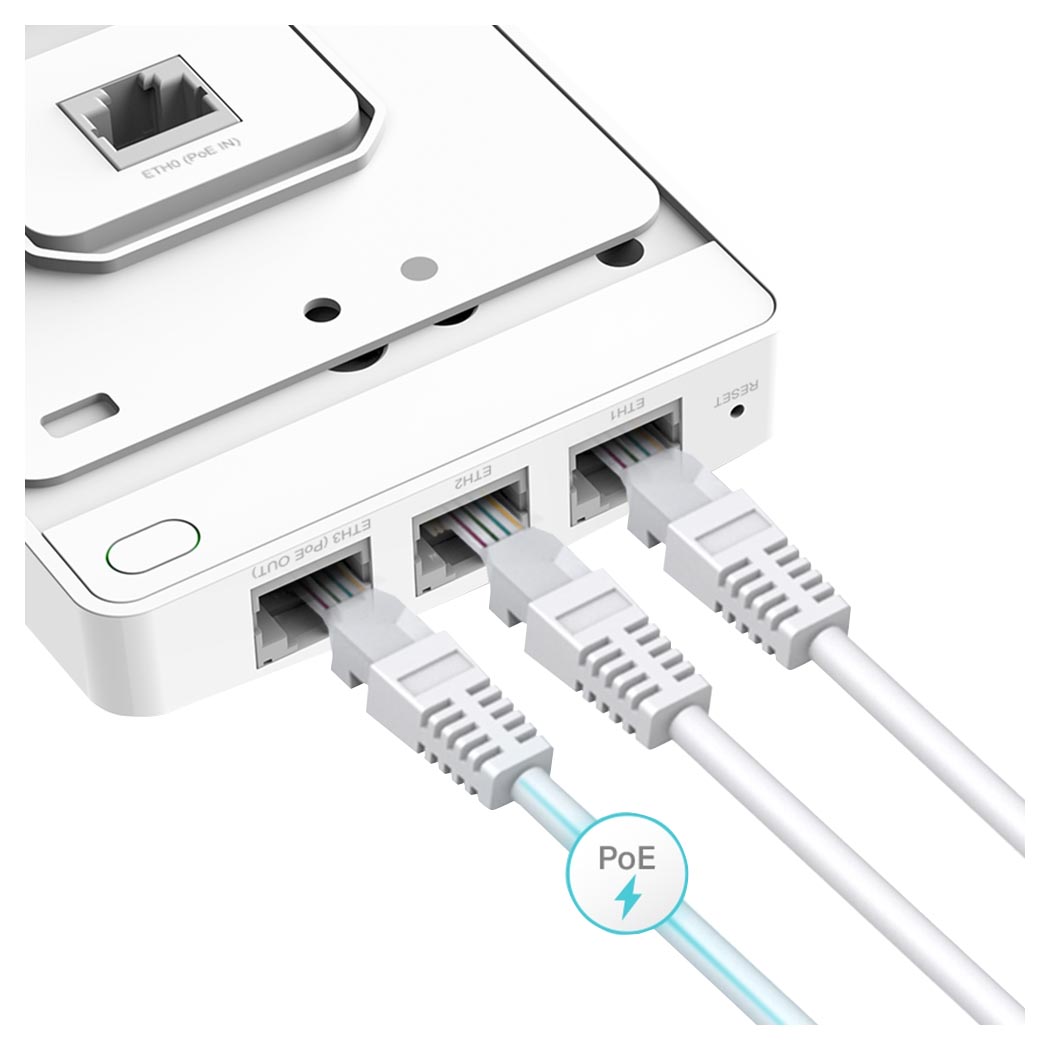

Full Gigabit Ports to Bridge Network

Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple Gigabits, allowing you to connect several devices to your gigabit network. One of the downlink ports offers PoE pass-through (PoE pass-through is only available when 802.3at powers the device. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. Actual power delivered to the device may vary.) to eliminate the need for that extra power port.

• VoIP Phone
• Printer
• PC
• Smart TV

Quick, Simplified Installation

With an easy-to-install design, there is no need to spend time and money bringing someone in to install our EAP.

*Fits three kinds of wall junctions

• 86 mm wall junction box
• Standard EU wall junction box
• Standard US wall junction box

Easy Management with the Omada App

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
