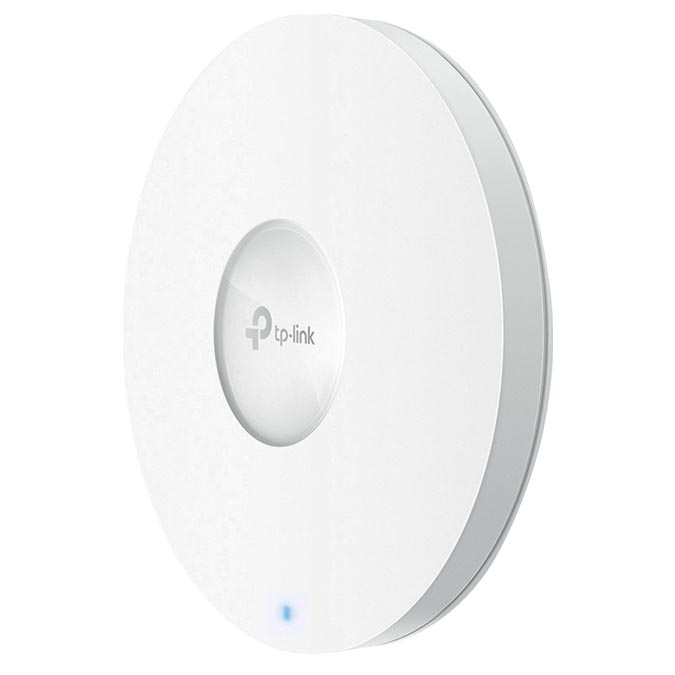

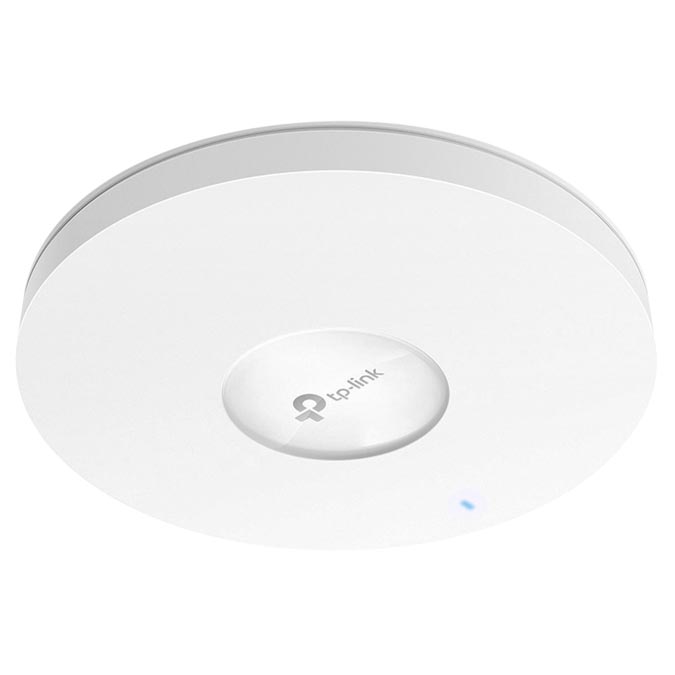

The TP-Link EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point features ultra-range wireless coverage, fast wireless network speeds up to 2402 Mbps on 5GHz, seamless roaming, Omada SDN cloud compatibility, optimised network efficiency. Supporting various WiFi technologies such as 1024-QAM and HE160.
Features
AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.)
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc (Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.)
- Advanced Features: Omada Mesh, Seamless Roaming, etc (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adaptor not included)

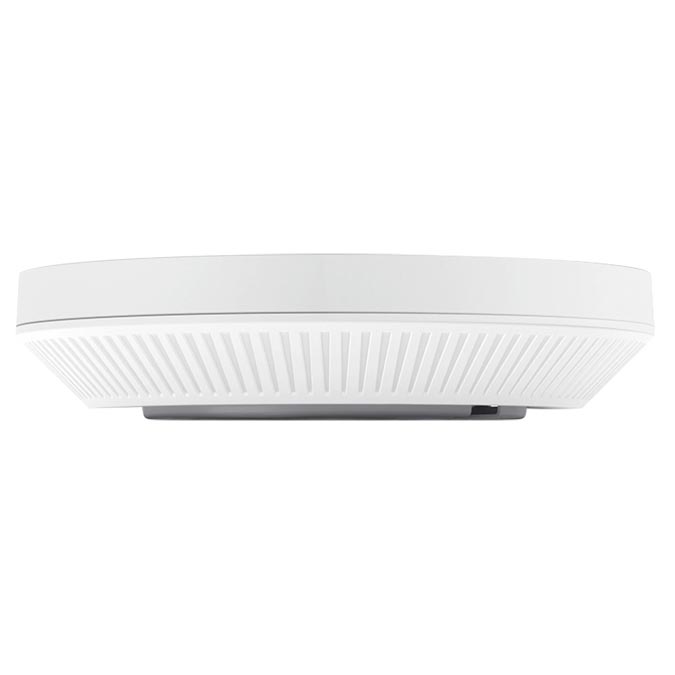

- Ultra-Slim Design: Φ6.3 in x 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralised management
- Auto Channel Selection and Power Adjustment (Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.)
Ultra-Range Wireless Coverage
More antennas with high transmission power offer robust and extensive wireless coverage. Always have full coverage for your office.
Ultra-Fast AX3000 WiFi 6 Speeds
Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
- 1024 QAM
- Long OFDM Symbol
- HE160
5 GHz
- 4-Stream WiFi 5 - 1734 Mbps
- EAP653 UR: 4 Stream WiFi 6 - 2402 Mbps (38% Faster)
2.4 GHz
- 2 Stream WiFi 5 - 300 Mbps
- EAP653 UR: 4 Stream WiFi 6 - 574 Mbps (91% Faster)
Seamless Integration into Omada SDN
Easy Deployment and Higher Performance with Omada Mesh
Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
Easy Pairing, Less Wiring
Optimised Network Performance
Specifications
General Data
| Model Number |
EAP653-UR |
| Certification |
CE, FCC, RoHS |
| What's Included |
EAP653 UR
Ceiling / Wall Mounting Kit
Installation Guide
Note: DC adaptor is not included in the package, and is sold separately. |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment |
Operating Temperature: 0 – 40 (32 – 104 )
Storage Temperature: -40 – 70 (-40 – 158 )
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing |
Hardware Features

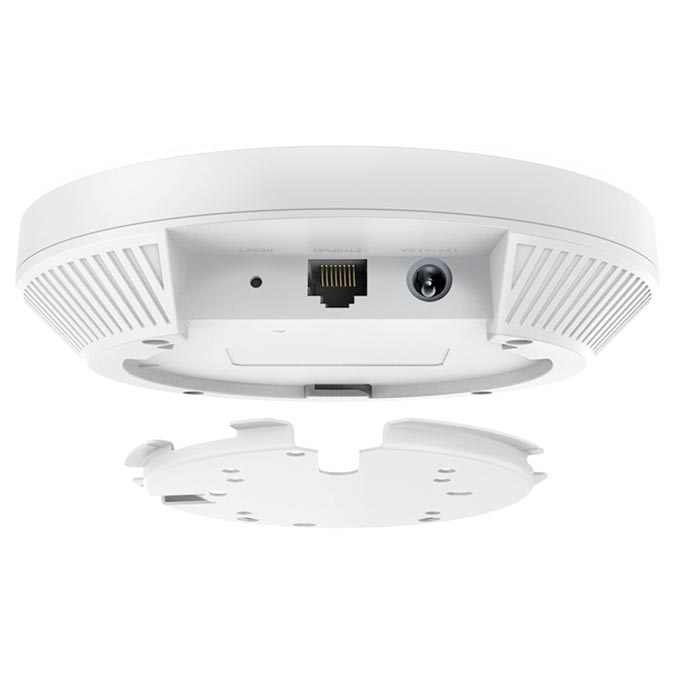

| Interface |
1 x Gigabit PoE+ Port |
| Button |
Reset |
| Power Supply |
802.3at PoE
12 V DC / 1.5 A (Power Adaptor is not included)
48 V Passive PoE |
| Max. Power Consumption |
EU: 14.2 W
US: 15.5 W |
| Dimensions ( W x D x H ) |
6.3 x 6.3 x 1.3 in (160 x 160 x 33.6 mm) |
| Antenna |
Internal Omni
2.4 GHz: 2 x 5 dBi
5 GHz: 3 x 5 dBi |
| Mounting |
Ceiling / Wall Mounting (Kits included)
Junction Box Mounting |
Wireless Features
| Coverage |
185 m^2 (2000 ft²) (Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.) |
| Concurrent Clients |
250+ (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) |
| Wireless Standards |
IEEE 802.11ax / ac / n / g / b / a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
5 GHz: Up to 2402 Mbps (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.)
2.4 GHz: Up to 574 Mbps (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.) |
| Wireless Functions |
1024-QAM
4 x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable / Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO (2G: 2 x 2 MU-MIMO DL/UL; 5G:2 x 2 MU-MIMO DL/UL)
HE160 (160 MHz Bandwidth) (Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.)
Seamless Roaming (802.11k / v / r) (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)
Omada Mesh (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID / AP / Client |
| Wireless Security |
Captive Portal Authentication (Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.)
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal / Enterprise, WPA2-Personal / Enterprise, WPA3-Personal / Enterprise |
| Transmission Power |
CE:
<20 dBm (2.4 GHz, EIRP)
<23 dBm (5 GHz, Band 1 & Band 2, EIRP)
<29 dBm (5 GHz, Band 3, EIRP)
FCC:
<26 dBm (2.4 GHz)
<27 dBm (5 GHz) |
Management Features
| Omada App |
Yes |
| Centralised Management |
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller |
| Cloud Access |
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts |
Yes |
| LED ON / OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local / Remote Syslog |
Local / Remote Syslog |
| SSH |
Yes |
| Web-Based Management |
HTTP / HTTPS |
| L3 Management |
Yes |
| Multi-Site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller. |
Backed by a 3 year TP-Link warranty.
