The TP-Link AX3600 Indoor/Outdoor WiFi 6 Access Point features the latest WiFi 6 technology, offering dual-band speeds up to 3 Gbps with improved efficiency, range, and reduced latency. Supporting seamless integration with Omada Mesh technology, including Omada SDN integration with cloud management, advanced security, and flexible deployment options. All in a IP67-rated enclosure, built to withstand harsh weather conditions. This access point provides fast, stable, and scalable wireless networking wherever you need it.
Features

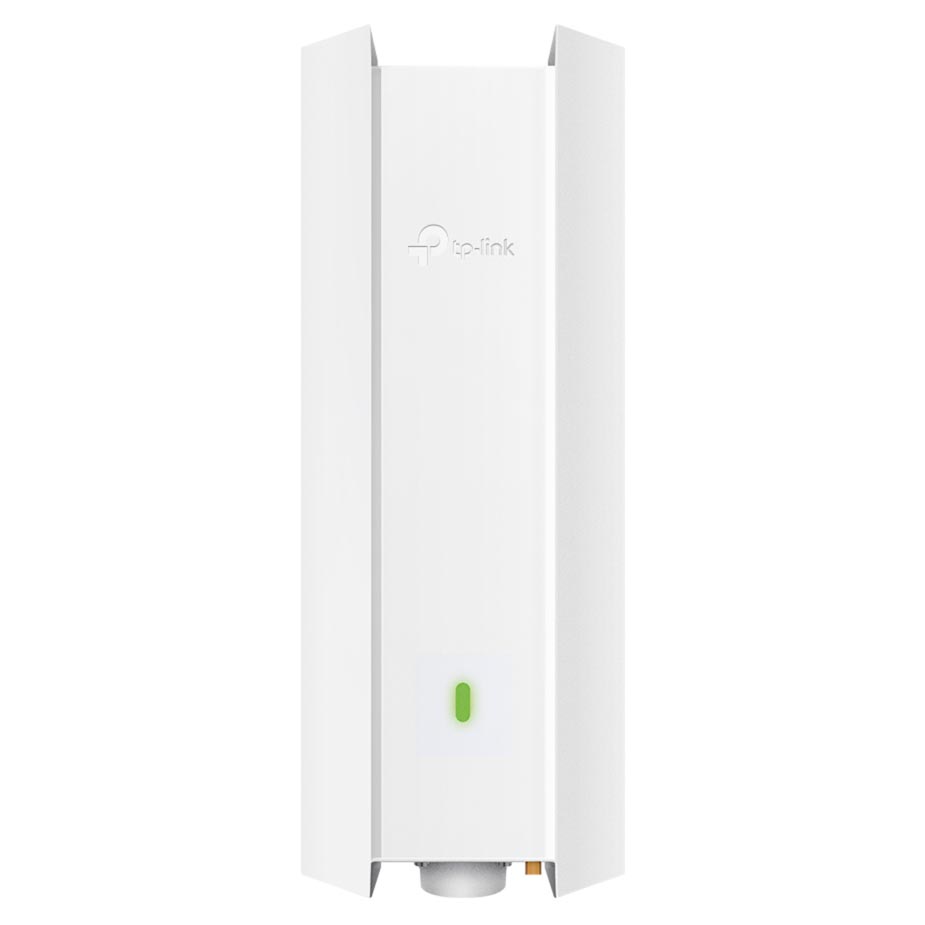

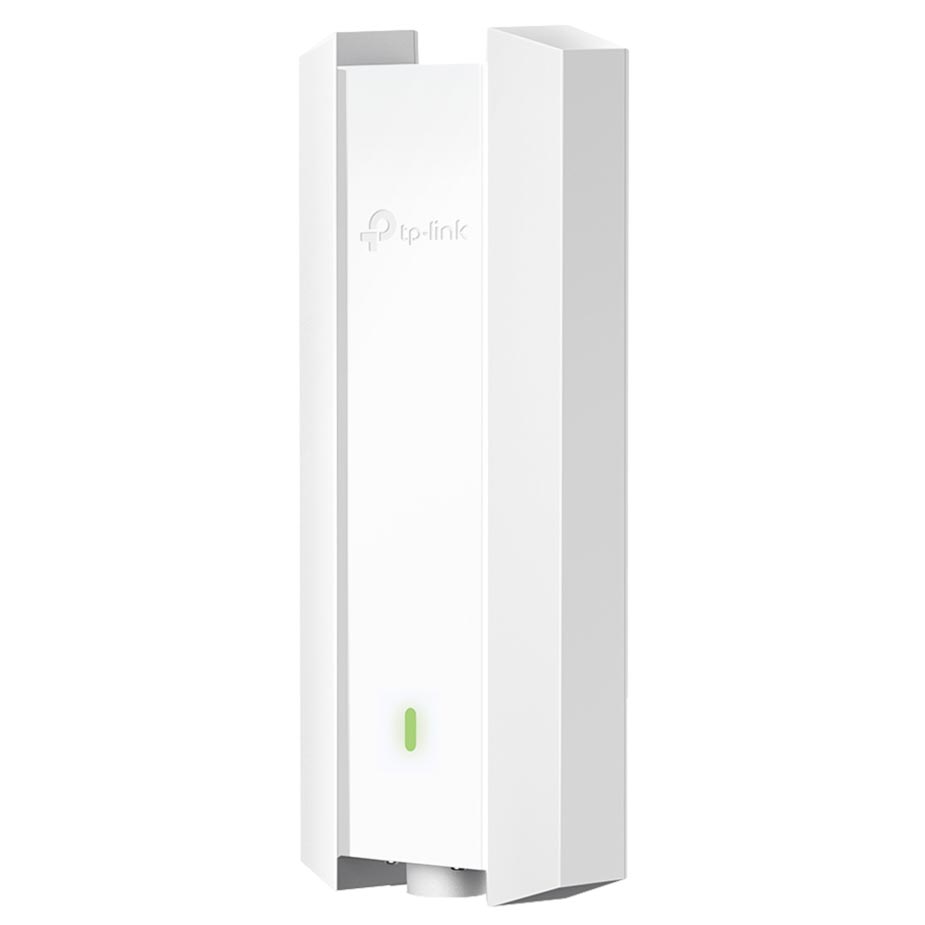

EAP650-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Access Point
- Superior Wi-Fi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest Wi-Fi 6 technology. (Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.)
- Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
- 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160. (Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general Wi-Fi 6 APs.)
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
- Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)
- Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)
- PoE Powered: Supports both 802.3at PoE+ and Passive PoE (Adaptor included) power supply for flexible installation.
- Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)
- High-Security Wi-Fi 6 WAP3 encryption, Captive Portal (SMS, Facebook Wi-Fi, Voucher), and 802.1x authentication (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)
- Easy and Flexible Installation Supports both 802.3at PoE+ and Passive PoE (Adaptor included) for flexible installation
- Seamless Roaming Uninterrupted streaming when moving between APs (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)
- IP67 Waterproof & Dustproof Resistant to lightning, dust ingress, shock, vibration, and moisture
Ideal for Small, Medium, and Large Businesses Outdoor Wi-Fi Coverage
Outdoor Wi-Fi for Business Scenarios
- Swimming Pool
- Outdoor Café
- Amphitheatre
- Park
- School Playground
Outdoor Wi-Fi for Home Scenarios
- Yard / Garden
- Outdoor Wi-Fi Camera
- Shed/Barns
Power Up Your Business with New-Era Business Wi-Fi 6
Wi-Fi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Lightning-Fast AX3000 Wi-Fi 6 Speeds
Superior Wi-Fi 6 Speeds
New-era business Wi-Fi 6 with speeds up to 2976 Mbps brings more than twice the speed of Wi-Fi 5.*1 Every application feels more fluid with drastically improved Wi-Fi speeds. (Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general Wi-Fi 6 APs.)
- 1024 QAM - 25% more data encoded at one time
- Long OFDM Symbol - 11% faster speed
- HE160 - Double the data at peak transmission times on a single stream (Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general Wi-Fi 6 APs.)
5GHz
- 2 Stream Wi-Fi 5 - 867 Mbps
- Ordinary 2-stream Wi-Fi 6 with HE80 - 1201 Mbps
- EAP650-Outdoor: 2-stream Wi-Fi 6 with HE160 - 2402 Mbps - 177% Faster
2.4GHz
- 2 Stream Wi-Fi 5 - 300 Mbps
- EAP650-Outdoor: 2-stream Wi-Fi 6 - 574 Mbps - 90% Faster
Higher Efficiency for More Devices
OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas.
- Wireless Camera
- Laptop
- Tablet
- Phone
- Wireless Speaker
Long-Range Coverage
Professional antennas equipped with high-power amplifiers utilise Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.
*4. Based on field tests. The number listed here is the maximum distance one EAP650-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Experience the Peak of Wi-Fi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarised antennas and vertically polarised antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak Wi-Fi experience ideal for outdoor applications.
Flexible Deployment with Omada Mesh and PoE Support
Less Wiring with Mesh
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your Wi-Fi signal further and more flexibly to hard-to-wire areas. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)

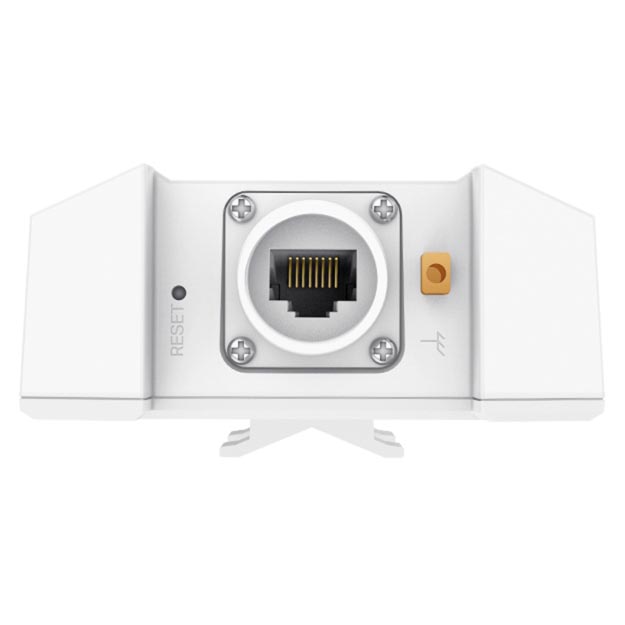

Powered with PoE+ Switch
Powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment.
Powered with Passive PoE
Powered and connected by the provided passive PoE Adaptor using one single cable, ideal for home Wi-Fi deployment.
Always Stay Smooth with Seamless Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.)
IP67 Weatherproof Enclosure for Outdoor Environments
EAP650-Outdoor is resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.
IP67
6: Completely dust-tight. No ingress of dust.
7: Protection against full immersion in water up to 1 metre deep for half an hour
- 6KV Lightning Protection and 15KV ESD Protection
- No Ingress of Dust
- Waterproof Enclosure

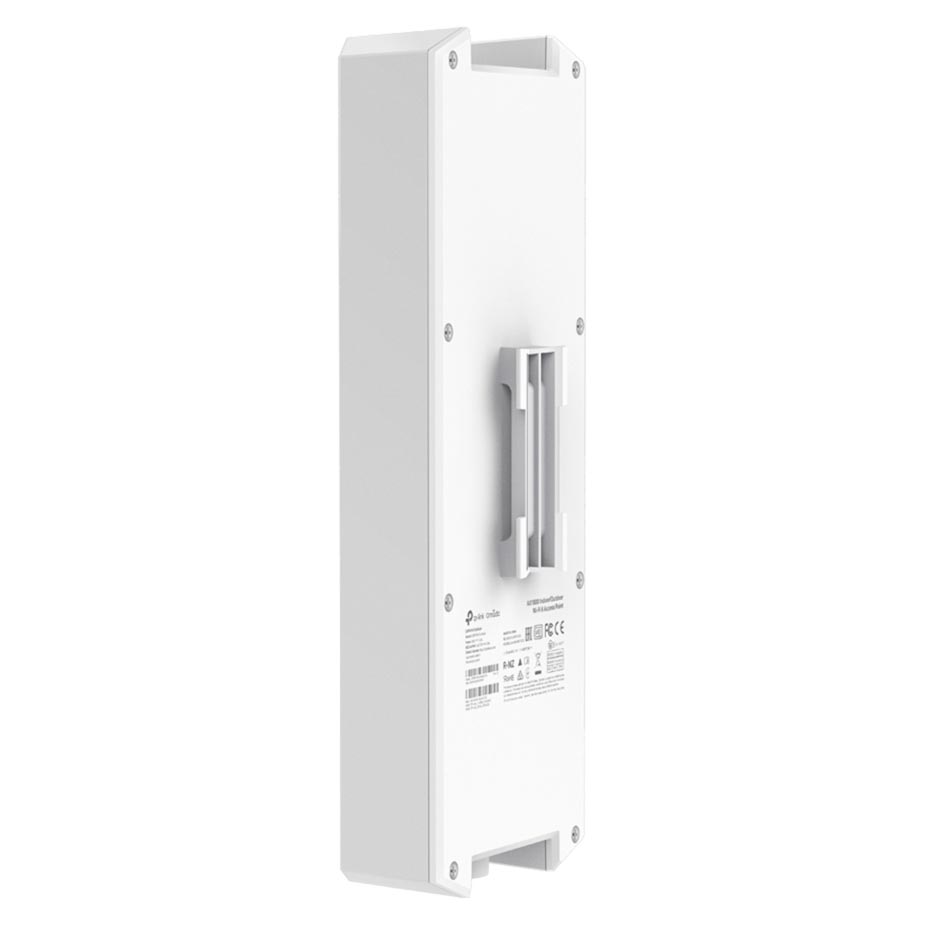

Versatile Mounting Solutions
Our mounting kits provide flexible installation, whether inside or outside.
Pole Mounting
Wall Mounting
Seamless Integration into the Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralised cloud management and create a highly scalable network—all controlled from a single interface.
- Hassle-Free Cloud or On-Premises Controllers
- Centralised Cloud Management
- Intelligent Monitoring
- Zero-Touch Provisioning (ZTP) (Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Note that EAP610-Outdoor v1.0 doesn't support the Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with the Omada Cloud-Based Controller.)
Easy Management with the Omada
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.
Backed by a 3 year TP-Link warranty.
