TP-Link Omada AX1800 WiFi 6 Wall Plate GPON Access Point

On sale! (normally $155) The TP-Link Omada AX1800 WiFi 6 Wall Plate GPON Access Point (EAP615GP-WALL) features fast dual band 1.8Gbps WiFi 6 speeds, seamless roaming, one click pairing, Omada mesh compatibility, boosted network reliability, easy installation, and the flexibility of placement in a wall mounted form factor.

!--- TP-Link Tax Time Special Offers PDP Banner -->

Features

---

EAP615GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

• Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.)
• 1 x GPON Port for High-Speed and Ultra-Range Access
• Ultra-Broadband Wi-Fi 6: MU-MIMO, Seamless Roaming (Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. )
• One Fibre for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VoIP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Smart O&M: PPSK (This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.) and Multiple Portals (Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. )
• Centralised Management: Integrates with the Unified Optical Solution

Complete Omada Optical Networking Solution

The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.

One Fibre, Multiple Services

Connect a Fibre optic cable to the EAP615GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.

Seamless Wi-Fi 6 Mesh Networking

Leverage GPON Wi-Fi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps. (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

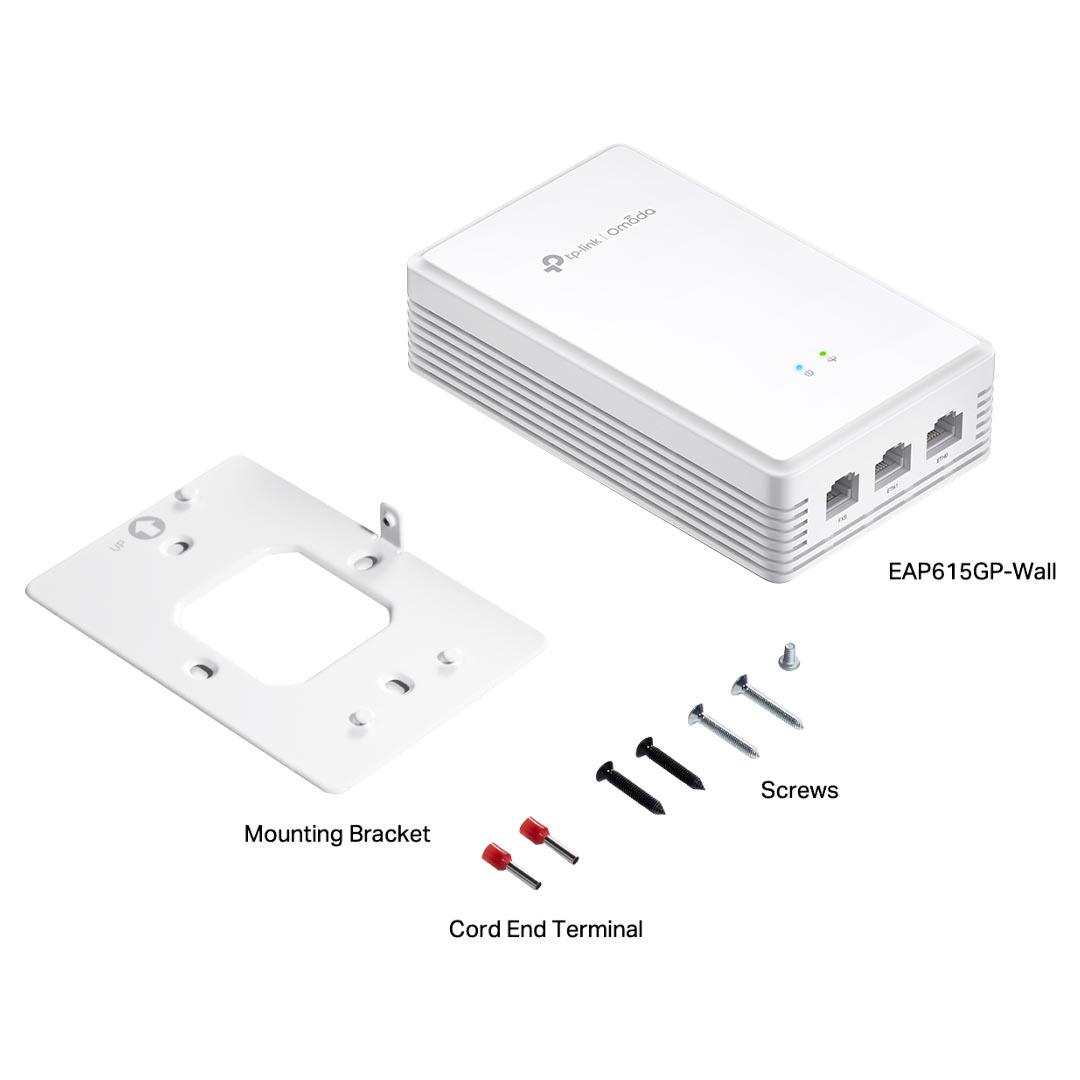

Five-Step Installation

1. Detach the faceplate of the junction box with a screwdriver

2. Secure the mounting bracket

3. Connect the AC power cable

4. Connect the optical Fibre

5. Attach the EAP to the mounting bracket

Build Features

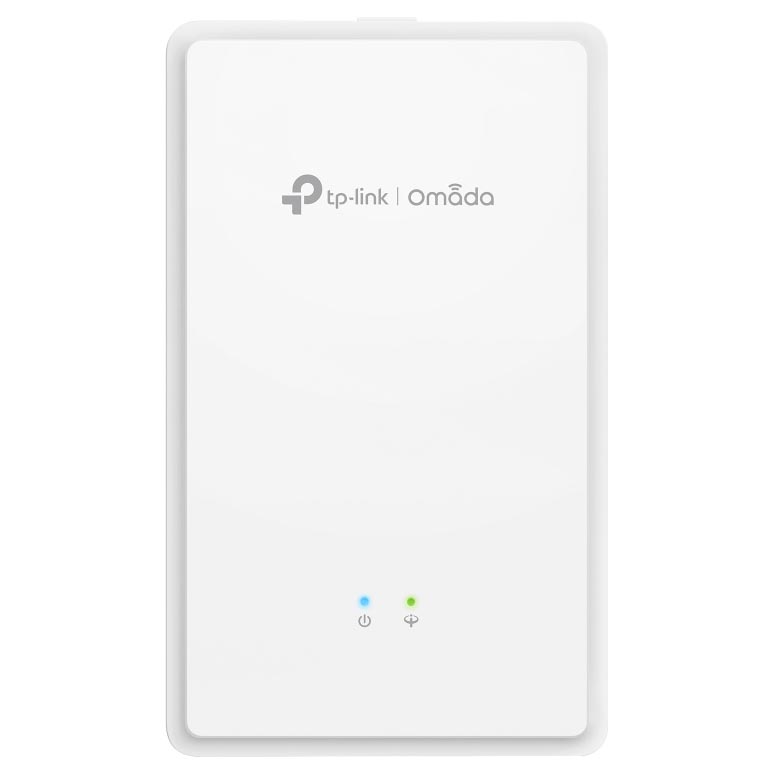

Front

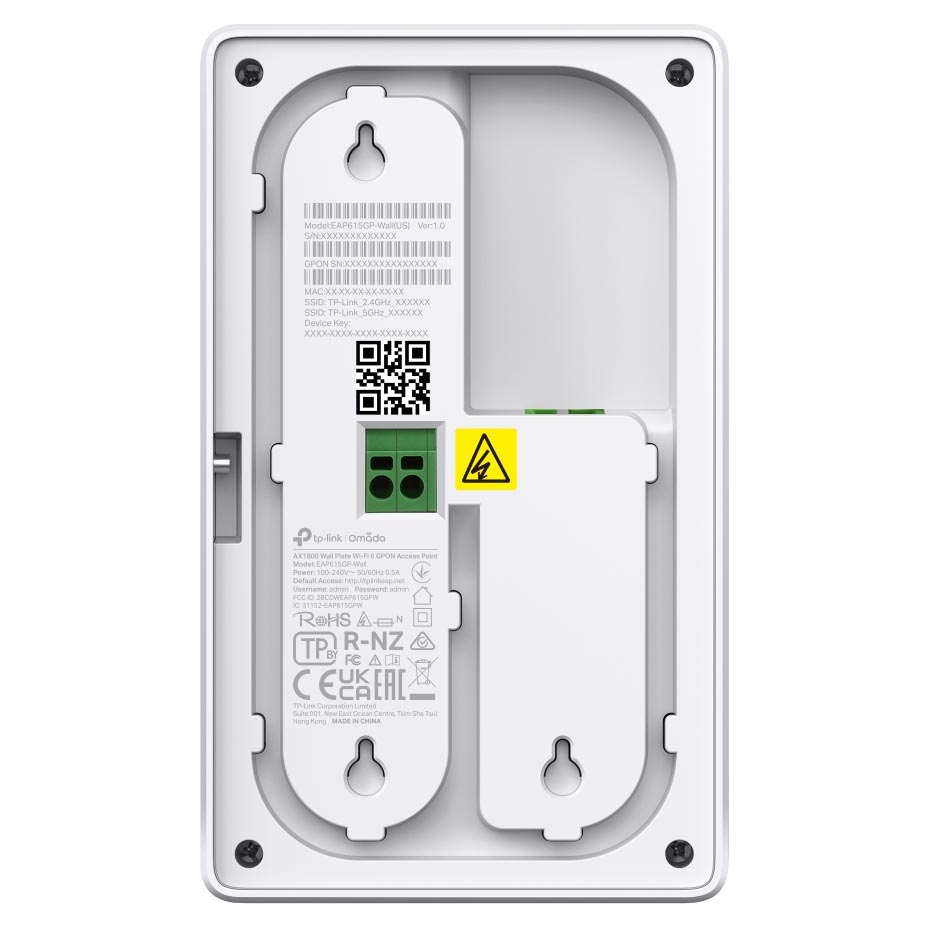

Back

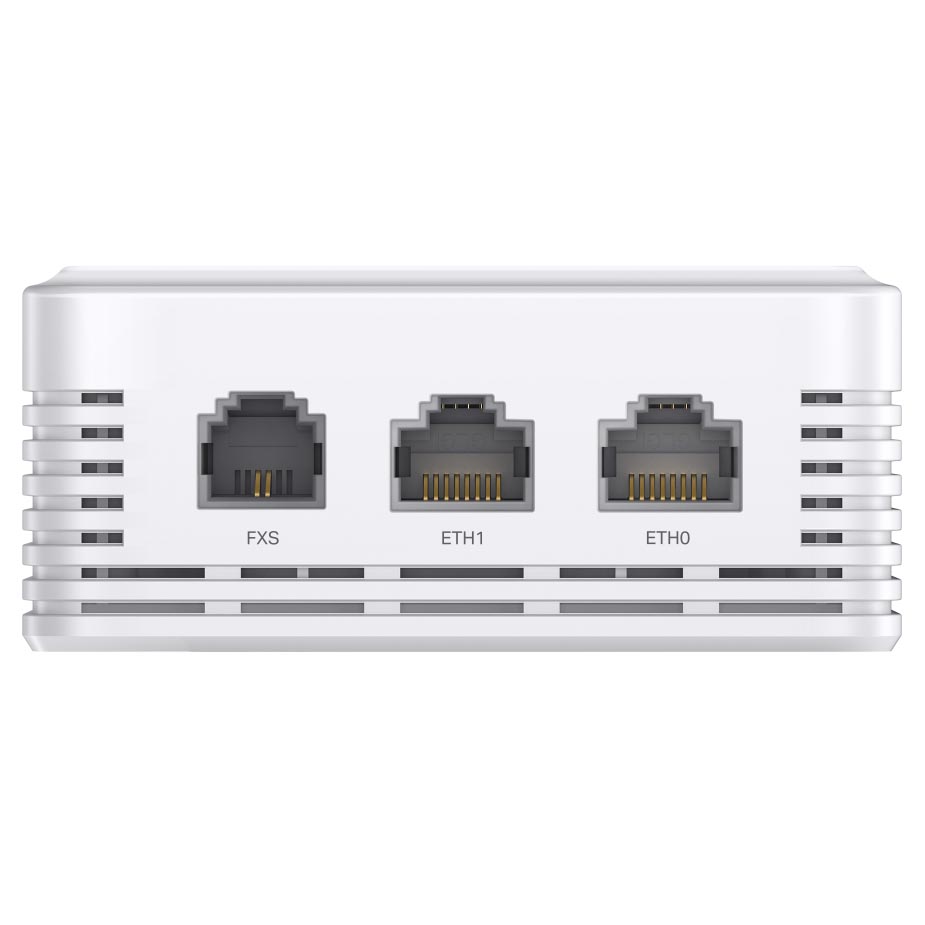

Bottom
