TP-Link Omada AX1800 WiFi 6 Wall Plate GPON Access Point with 802.3af PoE Out

(Special Price! Reduced to clear, was $155!) The TP-Link Omada AX1800 WiFi 6 Wall Plate GPON Access Point (EAP625GP-WALL) delivers ultra fast WiFi 6 with speeds of 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, totaling up to 1.8 Gbps. With one-click pairing, this access point also features support for multiple VoIP and call features with Omada Mesh compatibility for extended wireless connectivity and seamless roaming with a coverage of 50m^2.

Features

---

EAP625GP-Wall Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

• Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.)
• Multiple Ports: 1x GPON port for high-speed, ultra-range access and 2 x Gigabit RJ45 ports (one supporting 802.3af PoE out) for flexible deployment
• One Fibre for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
• VoIP Calls: Support multiple VoIP accounts and various call features, exceeding traditional landlines
• Easy Use: One-Click Pairing and Automatic Adoption
• Advanced Functions: Omada Mesh, Seamless Roaming, Centralised Cloud Management (Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. )
• Integrates into Omada Optical Networking
• Unified Management for OLT (This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.) and Omada Devices

Complete Omada Optical Networking Solution

The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for PtMP (point-to-multipoint) environments like hotels and MDUs.

One Fibre, Multiple Services

Connect a Fibre optic cable to the EAP625GP-Wall to connect cameras, PCs, and TVs to carry data, voice, wired and wireless internet, HD video, and VoIP services.

Seamless Wi-Fi 6 Mesh Networking

Leverage GPON Wi-Fi 6 technology for a robust and seamless network experience, delivering speeds up to 1.8 Gbps. (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) Omada Mesh and 802.11k/v roaming ensure a consistently smooth and reliable connection.

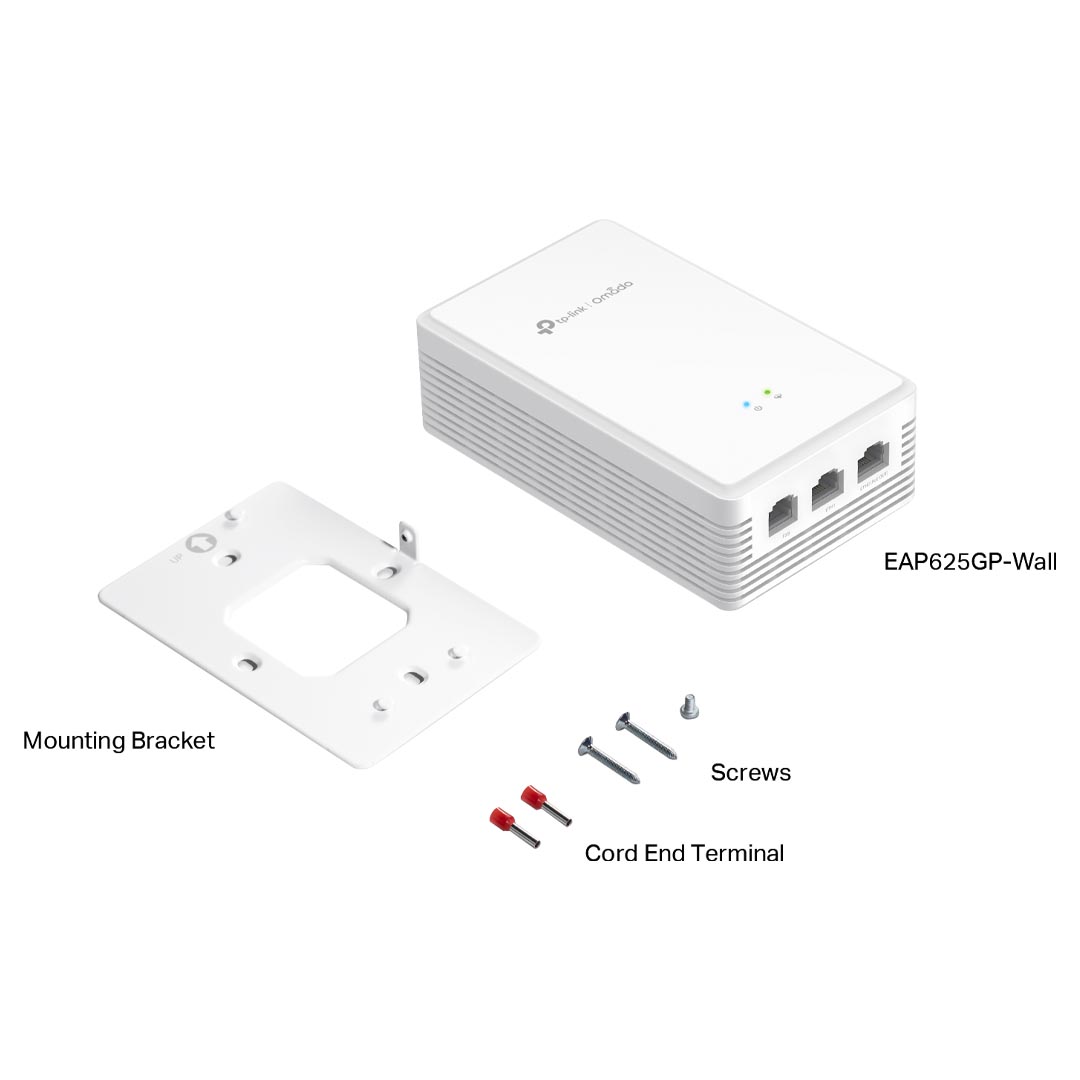

Five-Step Installation

1. Detach the faceplate of the junction box with a screwdriver

2. Secure the mounting bracket

3. Connect the AC power cable

4. Connect the optical fibre

5. Attach the EAP to the mounting bracket

Build Features

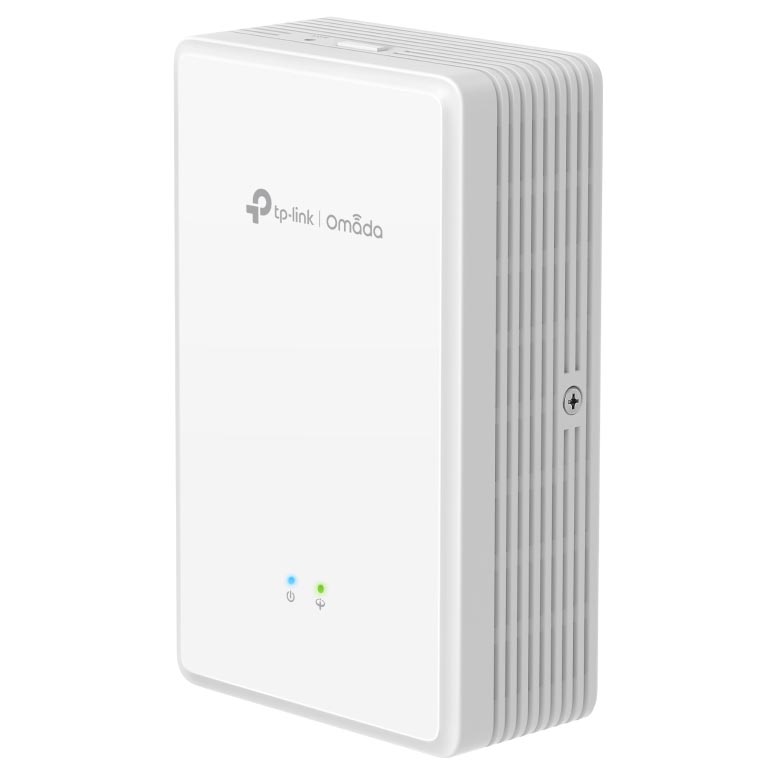

Front

* Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

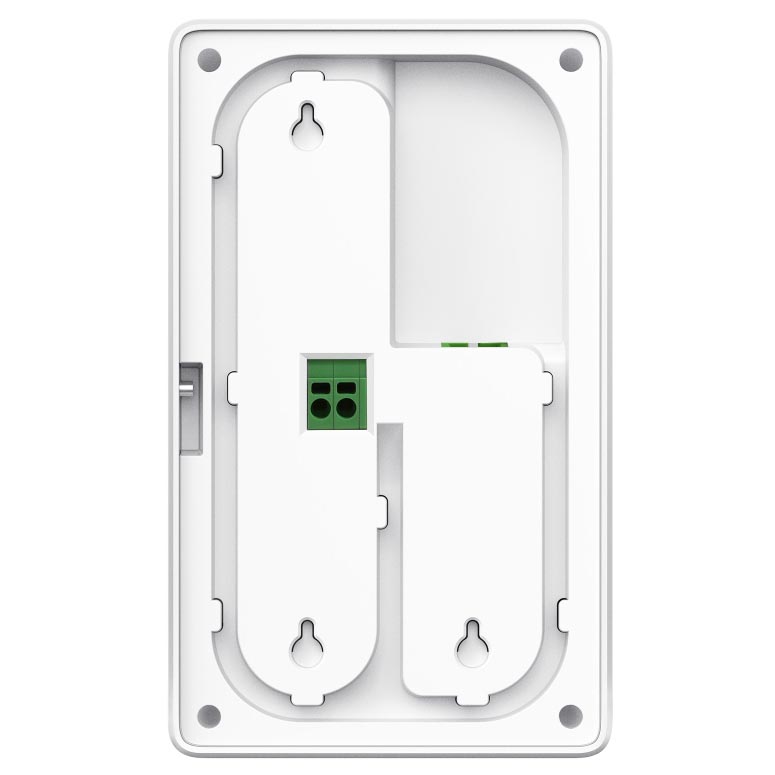

Back

** The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

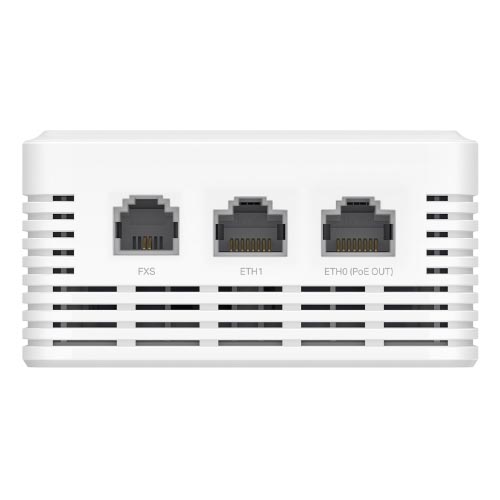

Bottom
