TP-Link ES216G Omada 16-Port Gigabit Easy Managed Switch features 16x RJ45 ports at 10/100/1000Mbps and supports plug and play for instant and seamless connectivity. With a fanless design allowing for silent operation, automatic loop prevention, IGMP Snooping and centralised cloud management via the Omada App.
Features
Omada 16-Port Gigabit Easy Managed Switch
- 16x 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
- VLAN, Port Isolation, Cable Test (Cable Test and Port Qos are supported under Standalone Mode.), QoS (Cable Test and Port Qos are supported under Standalone Mode.) for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
- Traffic Separation
- Traffic Prioritisation (Cable Test and Port Qos are supported under Standalone Mode.)
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
*Please go to https://omada.tplinkcloud.com to log in with your TP-Link ID.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralised Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing (The gateway requires one-step configuration)
- Seamlessly Upgrade to Omada Cloud Standard with a Subscription (Available from Q2 2025.)
Abundant Functions for Reliable Surveillance Networking
- Secure Traffic Separation
- Priority Video Quality Guaranteed (Cable Test and Port Qos are supported under Standalone Mode.)
- Safer Camera Networking via Port Isolation
- Simplify Maintenance with Cable Test (Cable Test and Port Qos are supported under Standalone Mode.)
Build Features

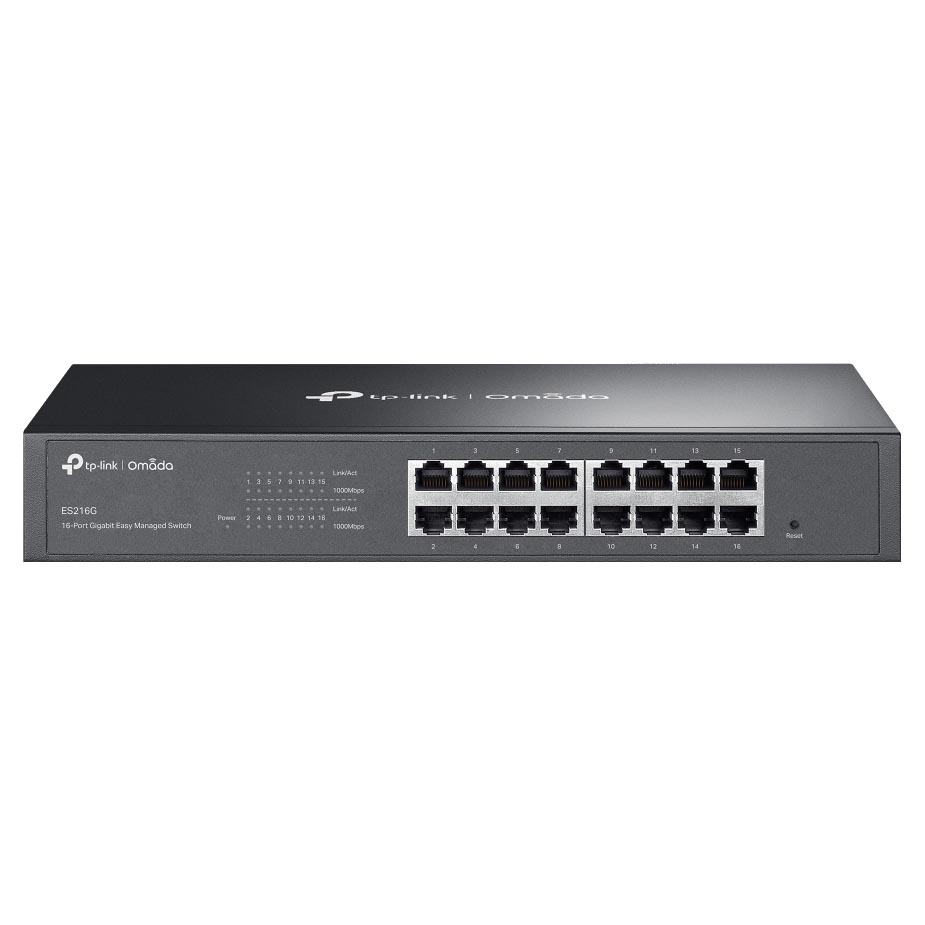

Front View

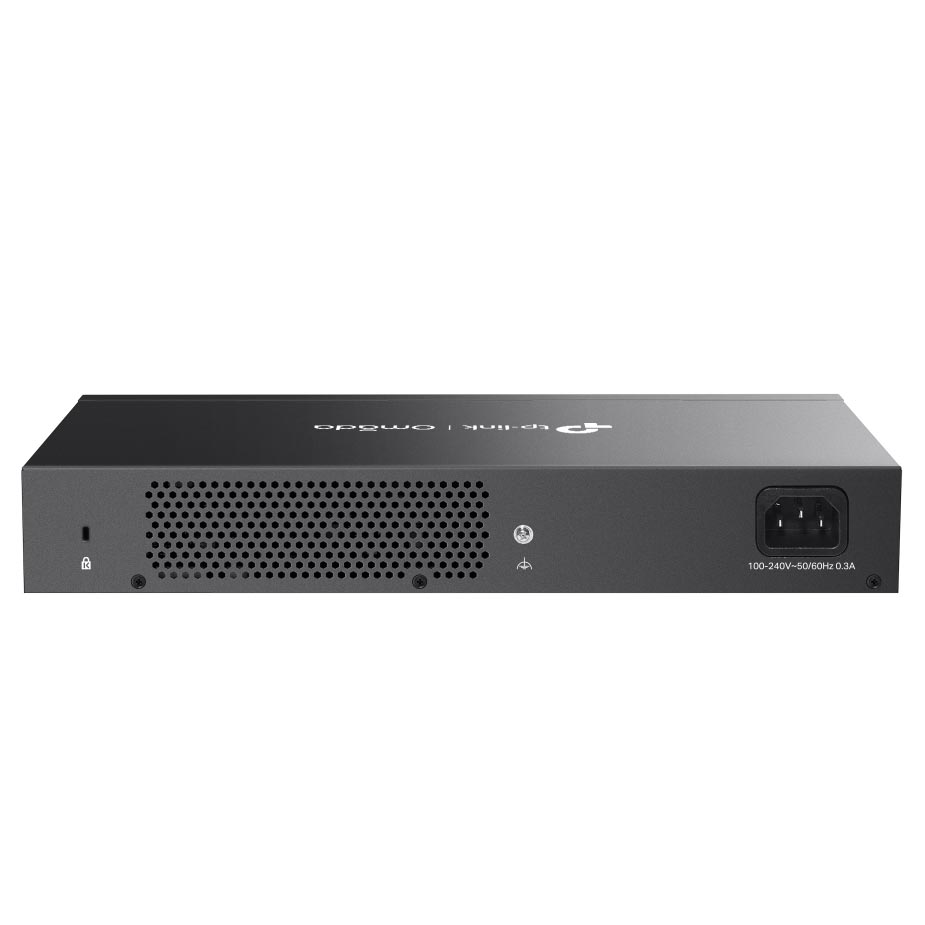

Back View
Dimensions
Specifications
General Data
| Model Number |
ES216G |
| Certification |
FCC, CE, RoHS |

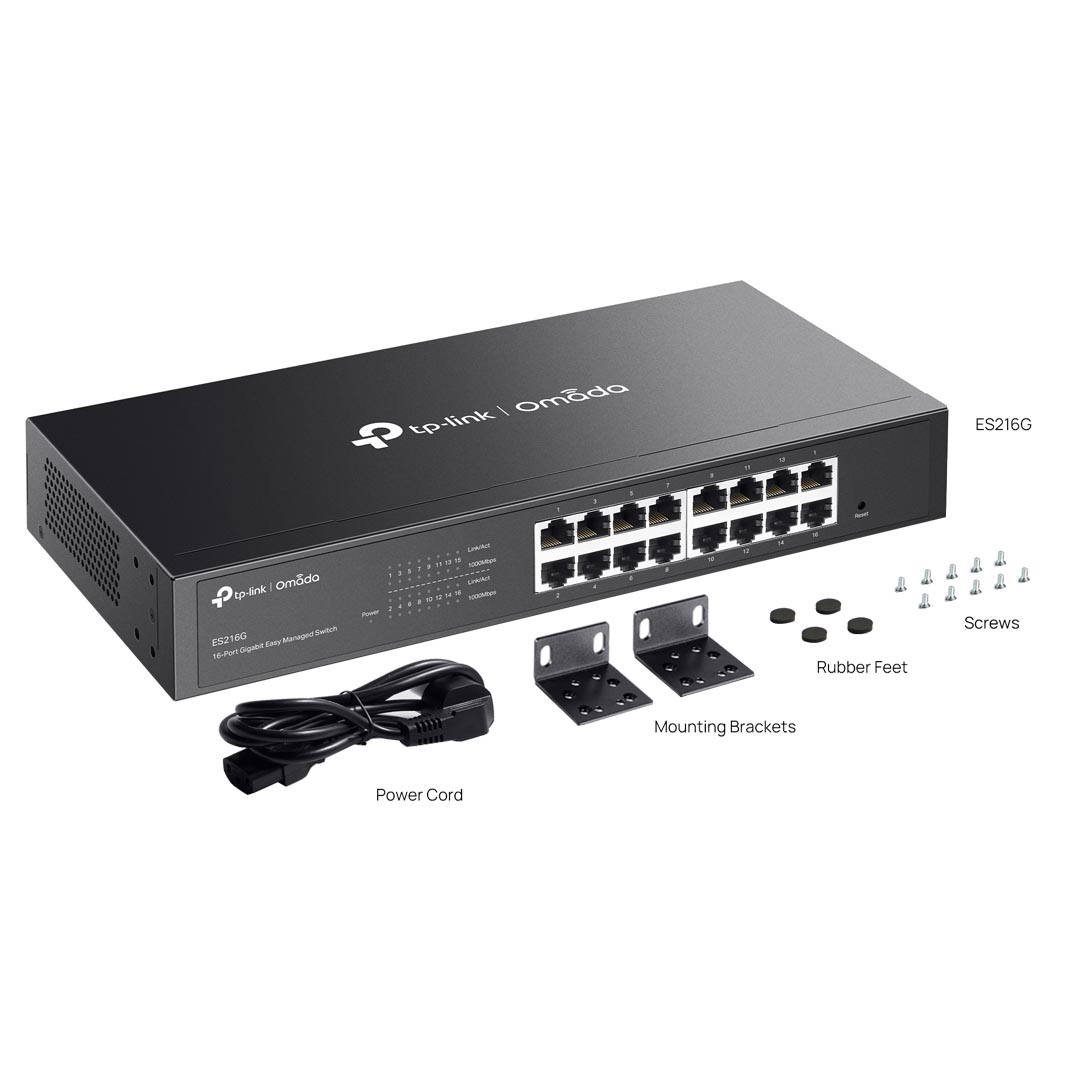

| What's Included |
ES216G
Power Cord
Rubber Feet
Mounting Brackets
Screws
Installation Guide |
| Environment |
Operating Temperature: -5℃ ~ 50℃ (23℉ ~ 122℉)
Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing |
Hardware Features
| Interface |
16x 10 / 100 / 1000 Mbps RJ45 Ports
Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
Desktop
Rackmountable |
| Physical Security Lock |
Yes |
| Power Supply |
100 – 240 V AC, 50 / 60 Hz |
| Dimensions (W x D x H) |
11.6 x 5.5 x 1.7 in (294x 140 x 44 mm) |
| Surge Protection |
± 6 kV |
Performance
| Switching Capacity |
32 Gbps |
| Packet Forwarding Rate |
23.8 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4 Mbit |
| Jumbo Frame |
15 KB |
Software Features
| Quality of Service |
Port-based / 802.1p / DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast / Multicast / Unknown-Unicast Control (Cable Test and Port Qos are supported under Standalone Mode.) |
| L2 Features |
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP |
| L2 Multicast |
IGMP Snooping
- IGMP v1 / v2 / v3 Snooping
- Fast Leave |
| VLAN |
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transfer Method |
Store-and-Forward |
Management
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
Batch Configuration (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
Batch Firmware Upgrading (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
Unified Configuration (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.) |
Backed by a 5 year TP-Link warranty.
