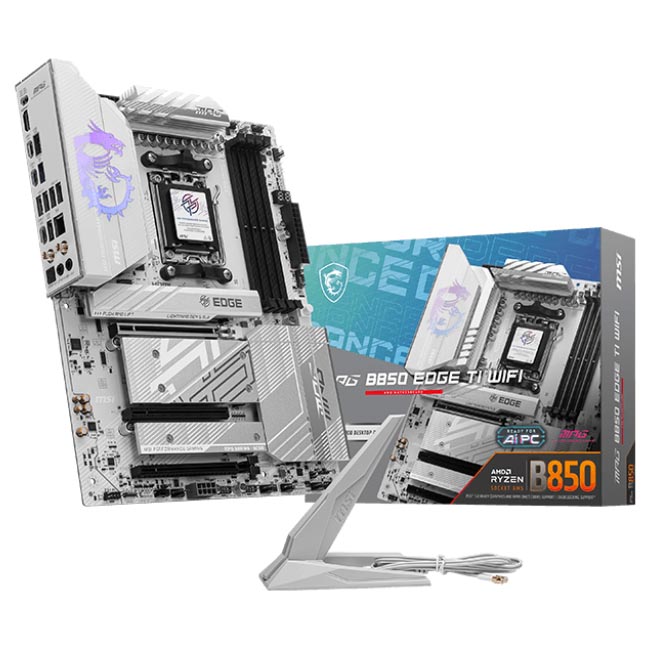

The MSI MPG B850 Edge Ti WiFi DDR5 motherboard combines cutting-edge technology with a sleek silver-white aesthetic, ideal for high-performance gaming and AI applications. Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket, it supports DDR5 memory up to 8400+ MT/s (OC) for exceptional speed and responsiveness. Featuring advanced connectivity options such as WiFi 7, 5G LAN, Bluetooth 5.4 and high-speed USB ports including USB-C 20 Gbps and multiple USB 10Gbps and 5Gbps ports, it ensures seamless networking and data transfers. The motherboard includes dual PCIe 5.0 x16 slots and 4x M.2 connectors, offering expansive storage and expansion capabilities. Enhanced with MSI's Frozr Guard thermal solution and a robust 14+2+1 Duet Rail Power System, it maintains optimal performance under heavy workloads. User-friendly features like EZ PCIe Release and EZ M.2 Shield Frozr II enable effortless upgrades and installations, making this motherboard a top choice for reliability and performance.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features

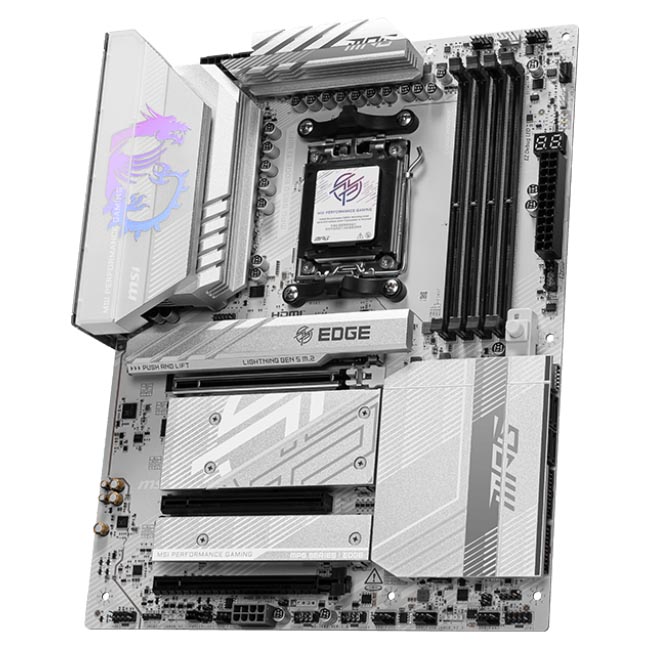

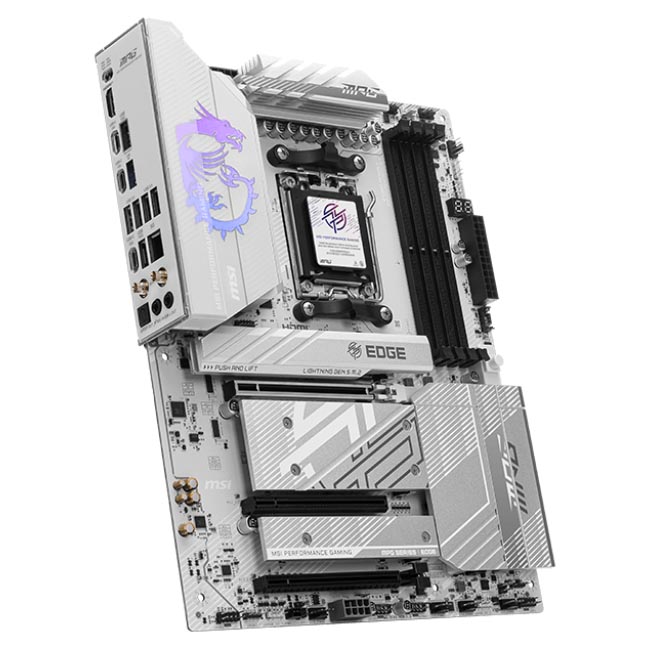

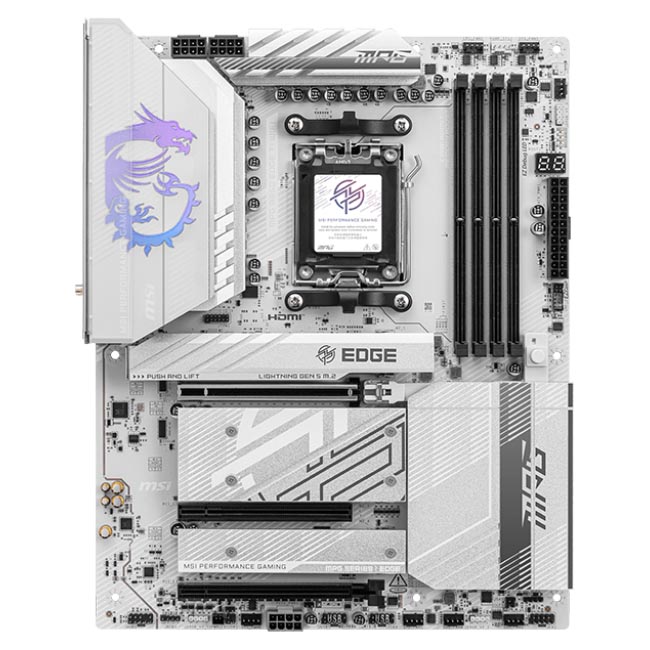

MPG B850 EDGE TI WiFi
MPG B850 EDGE TI WIFI is covered with a silver-white colour scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ATX motherboard for AMD Ryzen™ 9000 series processors.
MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colours, reflecting MPG's commitment to exceptional design. With optimised configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Al Engine
Al Engine provides several categories for you to sync the applications you want to perform and automatically Optimising them to create a comfortable environment.
AI LAN Manager
AI LAN Manager optimises networking performance and minimises latency, providing a seamless online experience.
Froz Al Cooling
Froz Al Cooling automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
Al Boost
Al Boost is an MS exclusive feature. It overclocks NPU to improve higher Al performance.
Performance & Thermal Solution
- Extended Heatsink Design
- M.2 Shield Frozr
- 8-Layer Server Grade PCB with 2oz Thickened Copper
- 7W/mK MOSFET Thermal Pads
- 14+2+1 Phases VRM Power
- Enlarged Chipset Heatsink
- PCIe Supplemental Power
Connectivity
High-Speed Transmission
- 5G LAN
- Latest Wi-Fi 7
- Lightning Gen 5 PCIe
- Lightning Gen 4 PCIe
- Latest DDR5 Memory
- 2x PCIe 5.0 M.2 Slots
- 2x PCIe 4.0 M.2 Slots
EZ DIY
- Pre-installed I/O Shield
- EZ M.2 Shield Frozr II
- EZ Conn Design
- EZ PCIe Release
- Steel armour Il
One-Finger
EZ GPU Installation
EZ PCIE Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
EZ Button
Flash BIOS Button
Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.
Clear CMOS Button
Restore the BIOS to the default settings - helpful in 99% of the cases to successfully boot again.
One Hand
Pre-Installed I/O Shield
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ Mounting
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
- Avoid Collision Notification
- Keep Out Zone
- Double ESD Protection
One Step
EZ Antenna
MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
EZ Conn-Design
EZ Conn Header (JAF_2)
MSI's EZ Conn header allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.
EZ Front Panel Cable
This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.
Driver Utility Installer
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.
*MSI Driver Utility Installer will be ready in Windows 11 build 22H2.
One Glance
EZ DEBUG
EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
EZ DIGI-DEBUG LED
Displays the error code for troubleshooting. Also functions as temperature monitor!
EZ Memory Detection LED
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.
EZ Identify
Header with Different Colour
To better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white, PCIe 8-pin header in grey, and designate the pin headers for JAF_2 in white (for users who need to use JAF_1), enabling users to manage cables more efficiently.
Identify M.2 Signal Source
The motherboard has a detailed M.2 signal source list printed on it, allowing you to easily identify them.
Identify USB Speed
Change the way USB speeds are described to numbers (rather than the confusing names like USB 3.2 Gen 2x2) for better understanding
One Click
EZ Overclocking
While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.
Game Boost
One-click CPU overclock automatically optimises your CPU performance, instantly tuning it to the best possible level.
AI Boost
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower.
* Enabled with compatible processors.
XMP
Choose from preset XMP profiles to automatically overclock compatible DDR memory for optimal performance.
EZ Optimisation
A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimisations. The MSI Center offers a clean, minimal interface to customise and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.
Ultra Performance
Power Solution
Power Design
14+2+1 Duet Rail Power System
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+2+1 Duet Rail Power System. Combining dual power connectors and 80A Smart Power Stage, MPG B850 EDGE TI WIFI is ready for the challenge of high-end processors.
- 14 Phase Vcore Power SPS 80A
- 2 Phase SOC Power
- 1 Phase MISC Power
- 2 x 8 Pin CPU Power
- Core Boost
- Digital Power
PCB Design
Optimised PCB Solution
The PCB design has been optimised for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 8 PCB layers
- NPG-170D Server-grade PCB material
- 2oz Thickened Copper
EZ OC Tuning
Performance Preset
MSI exclusive Performance Preset is a more intuitive way to boost performance by setting the power limitation as your preference. There are two level setting - PBO Auto & PBO Enable.
Performance Switch
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MS!'s own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.
PBO Thermal Point
MSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.
Config TDP
Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don't need to modify settings manually for each TDP.
More for Performance
1-Second Overclocking!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
Load-Line Calibration
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
Overvoltage Protection
Prevents potential short-circuit damage to the CPU and other critical components.
Memory
DDR5 Memory Support with High Performance
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG B850 EDGE TI WIFI is ready to deliver the world-class memory performance.
- EXPO / A-XMP SUPPORT
- MEMORY BOOST
- SMT PROCESS
High-Efficiency Mode
The High-Efficiency Mode is designed to optimise memory performance by increasing memory bandwidth and reducing latency. With the four sets of RAM timing settings, it allows users to find out the optimal configuration based on the quality of their memory modules.
Protection
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Solid Pin Design
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.
Advantages of Solid Pin Power Connector
1. Improved stability: Larger contact area enhances stability during power delivery.
2. Low impedance: Solid pins offer low impedance, enabling efficient power flow.
3. Strong durability: The solid pin design ensures strong durability, capable of withstanding demanding conditions.
4. Suitable for high-current applications.

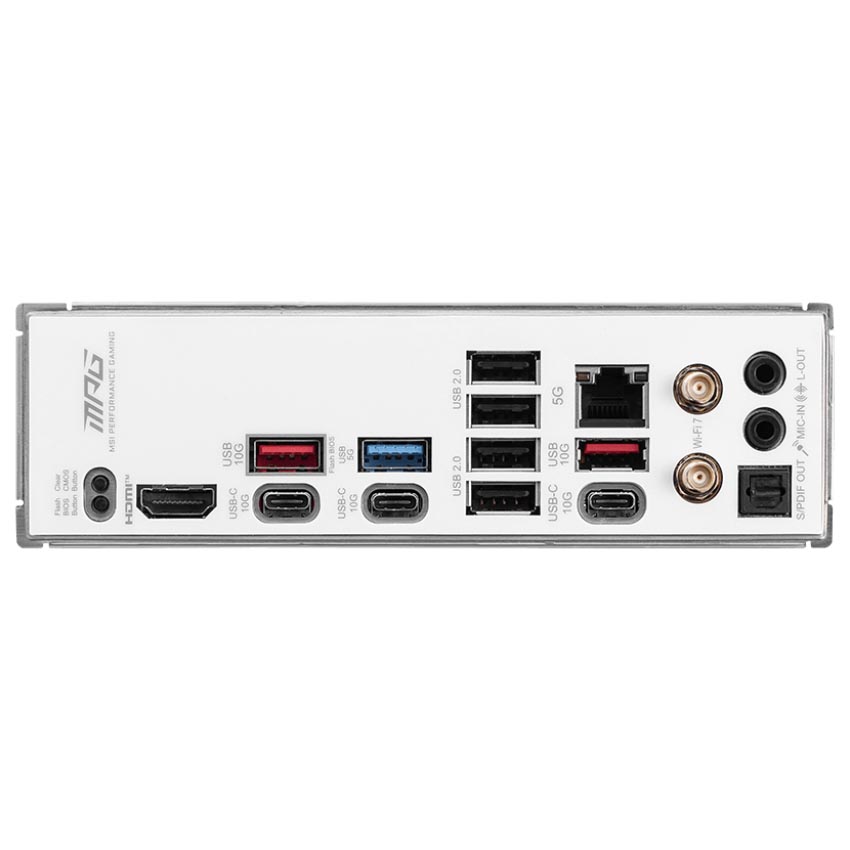

Stainless Steel IO
Anti-Corrosive Stainless Steel IO Shield
An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.
Over Current Protection
MSI motherboards prioritise safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defence mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritise durability and stability.
- CPU / PWM IC
- DDR memory Slots
- Rear & Front USB ports
Grounding Structure
The Grounding Structure of Power Phases
The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
Frozr Design
Frozr Guard
Cooling Overview
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
Frozr Sync
System Cooling
DIY 2.0 – Integrating with the System Environment
Connect and synchronise with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
- FOR CPU COOLER
- FOR LIQUID COOLER - 3A power deliver / Supports auto-detect
- FOR SYSTEM FAN - Supports auto-detect
- EXCLUSIVE EZ CONN. - JAF_2 - 3A power deliver(fan) / Supports dedicate MSI PC components.
Combo Fan
Combo Fan Header
The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive grey colour ensuring easy identification
Frozr Control
Cooling Wizard
Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customisable options, and intuitive temperature monitoring for optimal operation with one click.
Multiple Profiles
Save up to 5 profiles for multiple occasions
Smart Fan & Manual Fan
Smart Fan
Allow users to change the temperature curve with the 4 dots provided
Manual Fan
Allow users to manual change the temperature at a set percentage
User Scenario
Follow MSI Center Mode
Adjust fan settings according to the mode selected in User Scenario
BIOS Mode
Adjust Fan settings in BIOS
Customise by User
Customise fan settings by the users
Frozr AI Cooling
Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.
Auto Detect Fan
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
Trilink
Networking
Flawless Connection
High-Bandwidth and Low-Latency Network
MSI's premium network solution provides incredible data transfer speed for demanding users.
WiFi 7 Solution
The Next Gen Wi-Fi Solution – Wi-Fi 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices. * Windows 11 compatibility only
Upgrade to Wi-Fi 7
Wi-Fi 7 (802.11be) introduced higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax). It also improved battery life and provided better performance in crowded environments.
Data Transfer Rate
The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.
Channel Size
Previous Wi-Fi generations have had to make do with 160MHz channel widths. Wi-Fi 7 brings this width up to 320MHz (on 6GHz) – ensuring better reliability during simultaneous transmissions at max speeds.
Higher Order Modulation
The higher QAM(Quadrature Amplitude Modulation) value, the more data each packet can carry. Wi-Fi 7 improves the modulation scheme from 1024-QAM to 4096-QAM – boosting peak transmission rates and network capacity.
Multi-Link Operation
Wi-Fi 7 enables devices to simultaneously send and receive data across several frequency bands and channels to meet the traffic demand brought and the growing number of wireless devices.
AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritises the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
- Automatically prioritises games above other applications
- Allows to change applications' traffic priority
- Allows to customise bandwidth for each application
- Analyse Wi-Fi signals to select the best source.
Storage
Fast and Future-Ready Storage
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- 2x Lightning gen 5 m2 128 Gbps
- 1x Lightning gen 4 m2 64 Gbps
- 1x Lightning gen 4 m2 32 Gbps
Expansion
Lightning Gen 5 PCIe
Lightning Gen 5 PCIe with Steel Armour II
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 Slot
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
Steel Armour II
Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.
PCIe Supplemental Power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.
- 2.5x Power Excursion
- ATX 3.1 Ready
- PCIe 5.1 Ready
Experience
Audio
Audio Boost 5
- High Performance ALC4080 Audio Processor
- High Quality Audio Capacitors
- High Quality Audio Jacks With S/PDIF
- Dedicated Headphone Amplifier
- Isolated Audio Signal
- De-Pop Protection
Isolated Analogy Structure
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Mystic Light
Glow Your PC
Splash on some colour and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colours and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.
- Wave
- Steady
- Flame
- Breathing
- CPU Temperature
- Colour Ring
- Lightning
- Receration
- Meteor
- Default
Synchronised
Extend Your RGB Experience with Ease
Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
- A-RAINBOW V2 - Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices. *Gen2 device only supports 7 RGB themes
- RGB - Supports 12V RGB devices.
- AMBIENT LINK - Synchronise Lightning theme with compatible lighting devices.
BIOS
Click BIOS X
MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.
BIOS Key Features
- Game Boost - Easily boost your CPU performance with the press of a single button for instant overclocking.
- AI Boost - Easily enhance your NPU performance with a click, unlocking the full potential of Al processing.
- EXPO/A-XMP - Easily apply Optimised memory overclocking profiles through a simple one-click activation.
- Hardware Monitor - Instantly access real-time critical hardware information, including temperature, memory capacity, clock speed, and voltage.
- M-Flash - Easily flash or update the BIOS in just a few minutes directly from the CMOS Setup Utility.
- U-Key - Enables secure system access by requiring a specific USB drive for booting, adding an extra layer of security to your PC.
- Profile - Save and switch between multiple custom system configurations, allowing for quick adjustments tailored to different tasks or performance needs.
- Favourites - Bookmark frequently accessed settings, providing quick and easy access to essential configurations without the need to navigate through the entire menu.
- Search - Quickly locate specific settings or options by typing keywords, streamlining navigation and making system adjustments more efficient.
Software
MSI Center
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralised application. Take control of advanced motherboards features and unleash endless possibilities.
Al Engine
MSI Al Engine eliminates the need to tweak settings manually and saving you time and effort.
Mystic Light
Create your own colourful masterpiece with ease. Splash any colour you want with just a few clicks!
True Colour
Optimised monitor's brightness and colour in several modes for different situation, you can also customise by yourself.
User Scenario
One click for setting your computer, even customise own profile as your preference.
Hardware Monitoring
Get immediate access to your critical hardware information in real-time.
AI LAN Manager
MSI AI LAN Manager prioritises latency-sensitive apps, ensuring the best low-latency online gaming experience.
Cooling Wizard
Cooling Wizard is a comprehensive tool for managing fan settings across MSI products, offering one-click Optimisation
System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.
AIDA64
Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Norton 360
Opt-In to Cyber Safety with Norton 360 Deluxe
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
- Up to 50 GB PC cloud backup
- Real time Threat protection and Smart Firewall
- Password manager
- PC SafeCam
The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to Norton LifeLock License and Services Agreement. Norton LifeLock Product and Service Privacy Notices.
Backed by a 3 year MSI warranty.
