Ubiquiti UA-G3-Flex UniFi Access Reader Flex

NHU-UA-G3-FLEX-W | Ubiquiti
$375
Stock at Supplier We do not have this item in our warehouse, but stock is either already on its way or is generally available from the supplier.
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Access Reader Flex (UA-G3-Flex) is a compact and versatile door access reader designed for seamless integration with UniFi Access systems. Featuring NFC, Bluetooth, and QR code authentication, it supports secure and convenient entry methods. Its sleek, weather-resistant design allows for flexible indoor and outdoor installation, while PoE connectivity ensures easy setup with a single cable. The UA-G3-Flex delivers fast authentication speeds and integrates smoothly with UniFi Access controllers for centralized management, making it an ideal choice for modern security solutions.

Features

Ubiquiti UA-G3-Flex UniFi Access Reader Flex Feature 1

Reader Flex

Build Features

Ubiquiti UA-G3-Flex UniFi Access Reader Flex Feature 2

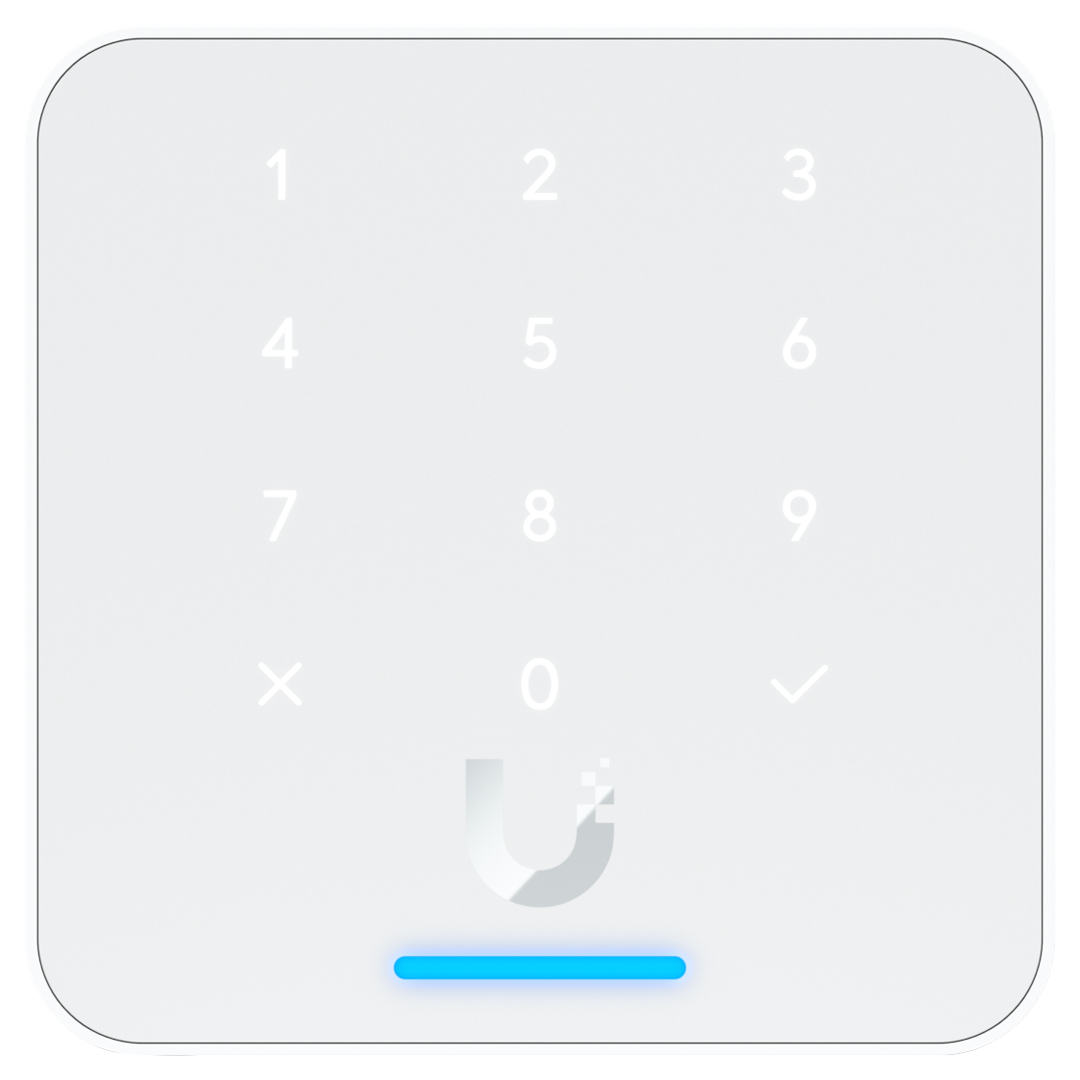

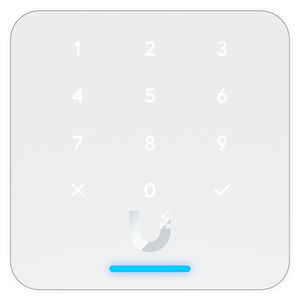

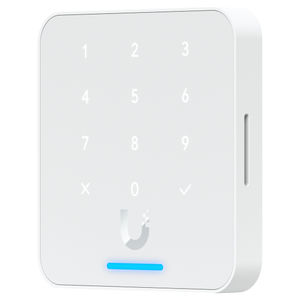

Front View

Ubiquiti UA-G3-Flex UniFi Access Reader Flex Feature 3

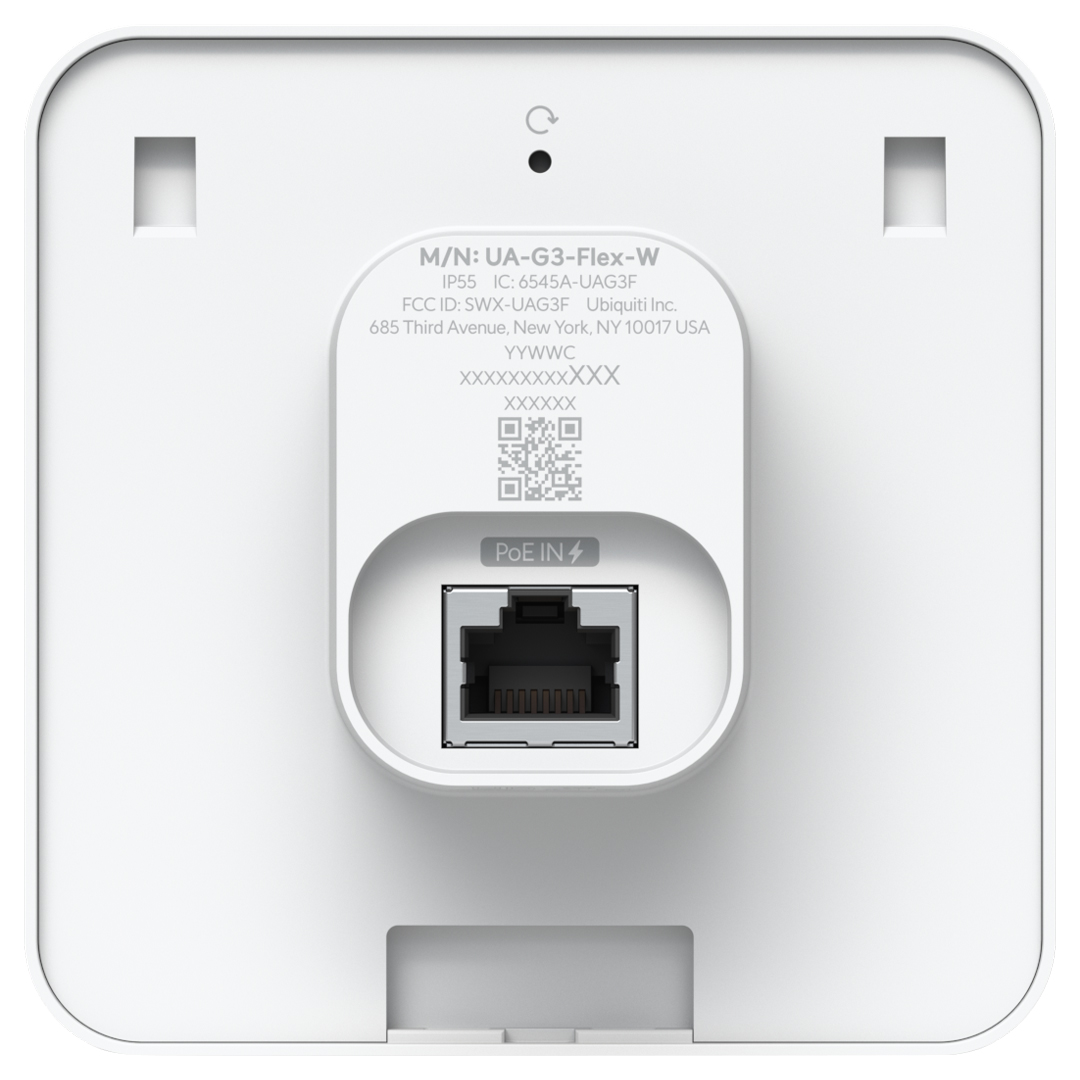

Back View

Ubiquiti UA-G3-Flex UniFi Access Reader Flex Feature 4

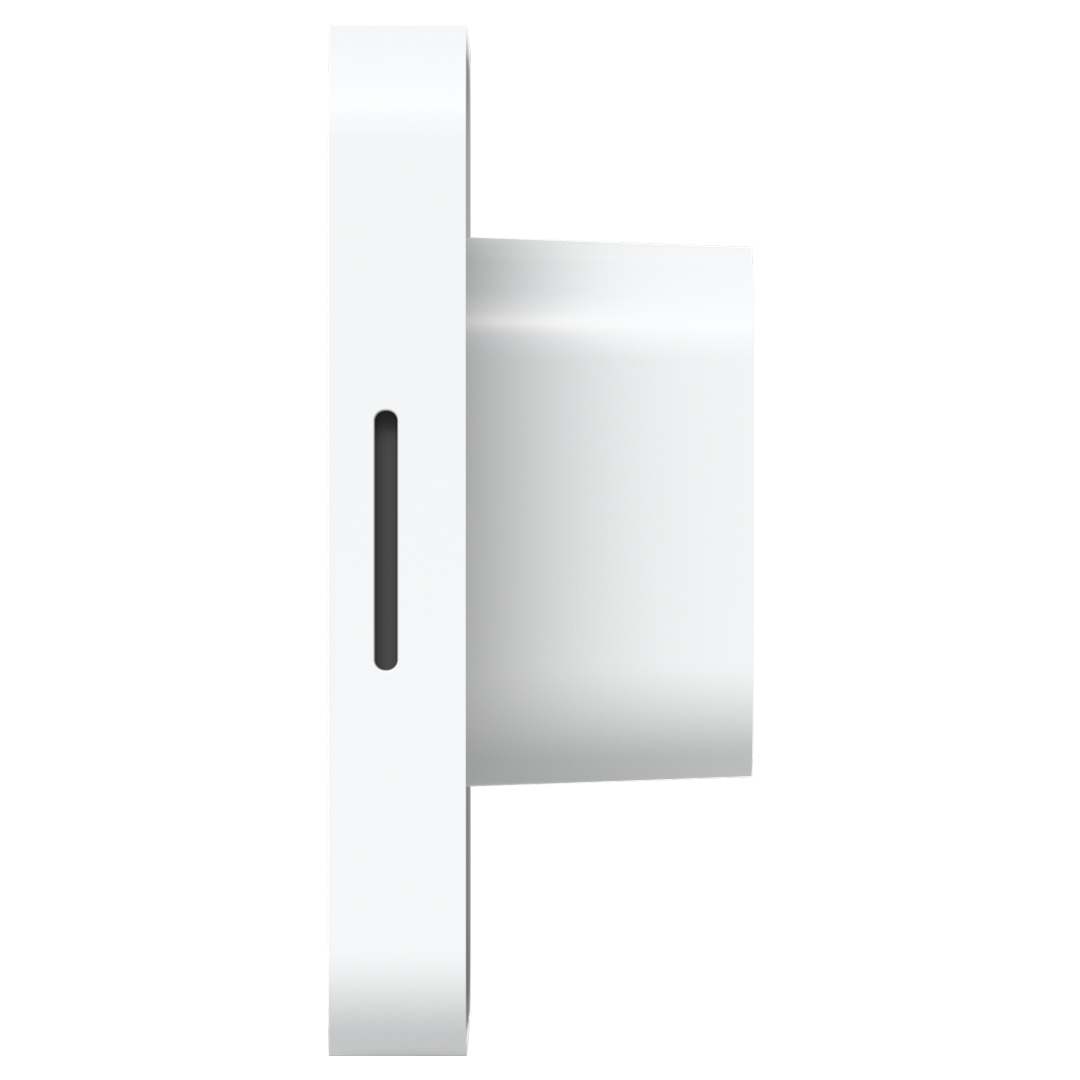

Side View

Ubiquiti UA-G3-Flex UniFi Access Reader Flex Feature 5

Deployment

Specifications

General Data

Model Number NHU-UA-G3-FLEX-W
Dimensions 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6")
NFC Card & Keyfob Access Yes
PIN Access Yes
Touch Pass Yes
Mobile Unlock Yes
Weatherproofing IP55

Mechanical

Weight 165 g (5.8 oz)
Enclosure Material Polycarbonate, glass, aluminium alloy
Mount Material Polycarbonate, aluminium alloy
Mounting Wall (Included)
Gang-box, junction box (Optional)

Hardware

Indoor and Outdoor Use Yes
Ambient Operating Temperature -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity 5 to 90% noncondensing
Networking Interface (1) 10 / 100 MbE RJ45 port
Connectivity BLE 4.1
NFC
Power Method PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1 / 62368-1 LPS / PS2 PSU
Max. Power Consumption 5 W
Supported Voltage Range 44 — 57 V DC
ESD/EMP Protection Air: ±15 kV, contact: ±8 kV
Sensors (12) Capacitive buttons
Speaker Yes
LEDs R / G / B / W
Button (1) Factory-reset
NFC Frequency 13.56 MHz
NFC Read Range < 30 mm (1.18'')
NFC Technology ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0
PoE Cabling Requirements Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 Statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: I
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document Number, and Issue Date and/or Revision Level UA-G3-Flex V01

Software

Management Application Access
Software Information The software version can be checked at https://unifi.ui.com
Backed by a 1-year Ubiquiti warranty.
