The Ubiquiti UniFi Express 7 is a powerful 10G cloud gateway with integrated WiFi 7, delivering ultra-fast speeds and seamless connectivity for modern networks. Featuring advanced security, centralized management, and high-performance wireless capabilities, it ensures low latency, high bandwidth, and reliable coverage for demanding applications. Ideal for home or business use, this all-in-one solution simplifies network deployment with an intuitive interface and robust cloud management.
Features
UniFi Express 7
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
Build Features

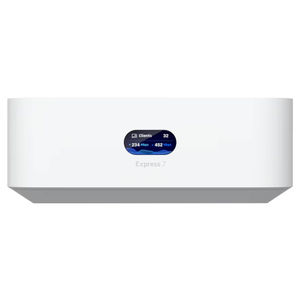

Front View

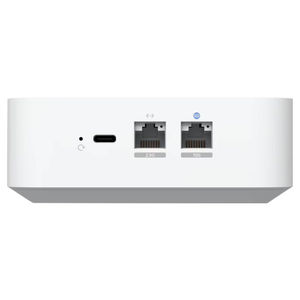

Back View
*1,500 ft² coverage for single unit, 3000-4500 ft² mesh with 2-3 units.
**5V DC, 5A USB-C adaptor included.
Dimensions
Deployment
Specifications
General Data
| Model Number |
NHU-UX7 |
| Dimensions |
117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
| UniFi Application Suite |
Network: Yes |
| Managed UniFi Devices |
30 |
| Simultaneous Users Connected |
300 |
| Default WAN Ports |
(1) 10 GbE RJ45 |
| LAN Ports |
(1) 2.5 GbE RJ45 |
| IDS/IPS Throughput |
2.3 Gbps |
| Form Factor |
Compact desktop |
Security
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation |
Yes |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site-to-Site VPN |
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes |
| VPN Server |
Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes |
| VPN Client |
OpenVPN: Yes
WireGuard: Yes |
Networking
| Dynamic Routing |
OSPF: Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| Policy-Based WAN and VPN Routing |
Yes |
| Customisable DHCP Server |
Yes |
| IPv6 ISP Support |
Yes |
| IGMP Proxy |
Yes |
Integrated WiFi
| WiFi Standard |
802.11a / b / g / n / ac / ax / be (WiFi 6 / 6E, WiFi 7) |
| Throughput |
6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps |
| MIMO |
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain |
6 GHz: 6 dBi
5 GHz: 7 dBi
2.4 GHz: 4 dBi |
| Wireless Security |
WPA-PSK, WPA-Enterprise (WPA / WPA2 / WPA3 / PPSK) |
| Max. BSSIDs |
4 per Radio (Gateway Mode)
4 per Radio (AP Mode) |
| Supported Data Rates |
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20 / 40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1 / 2, VHT 20 / 40 / 80 / 160)
802.11ax (WiFi 6 / 6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1 / 2, HE 20 / 40 / 80 / 160)
802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1 / 2, EHT 20 / 40 / 80 / 160 / 240 / 320) |
Hardware
| Max. Power Consumption |
22 W |
| Power Method |
USB type C (5 V DC / 5 A) |
| Power Supply |
USB type C (5 V DC / 5 A) (Adaptor included) |
| Max. TX Power |
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm |
| Supported Voltage Range |
100 - 240 V AC |
| Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory |
3 GB |
| Weight |
422 g (14.9 oz) |
| Enclosure Material |
Polycarbonate |
| LCM Display |
0.96" status display |
| Management |
Ethernet
Bluetooth |
| LEDs |
Ethernet: Yes |
| ESD/EMP Protection |
Air: ± 8 kV, contact: ± 4 kV |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
| Button |
(1) Factory-reset |
Software
| VLAN |
802.1Q |
| Guest Traffic Isolation |
Yes |
| Application Requirements |
UniFi Network: Version 9.0.108 and later |
Backed by a 1-year Ubiquiti warranty.
