The Ubiquiti Gateway Fibre is a high-performance networking solution featuring a built-in 4-port 2.5 GbE switch, delivering ultra-fast connectivity for demanding home and business environments. Designed for fiber-optic networks, it ensures low-latency performance, advanced traffic management, and seamless integration with UniFi systems. With robust security features and intuitive management through the UniFi Controller, this gateway offers reliable and scalable networking for high-bandwidth applications.
Features
Gateway Fibre
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 5 Gbps routing with IDS/IPS
- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
Build Features

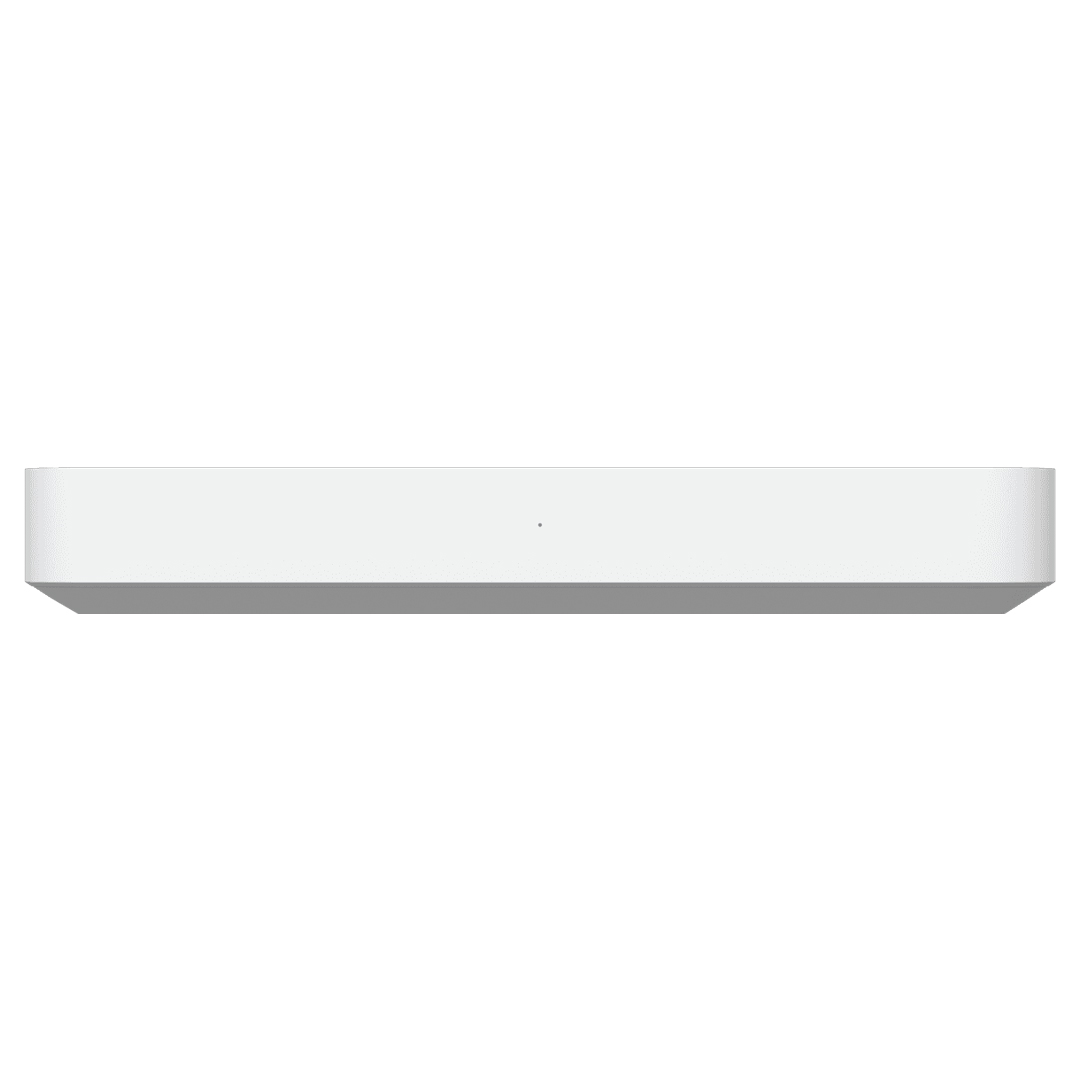

Front View

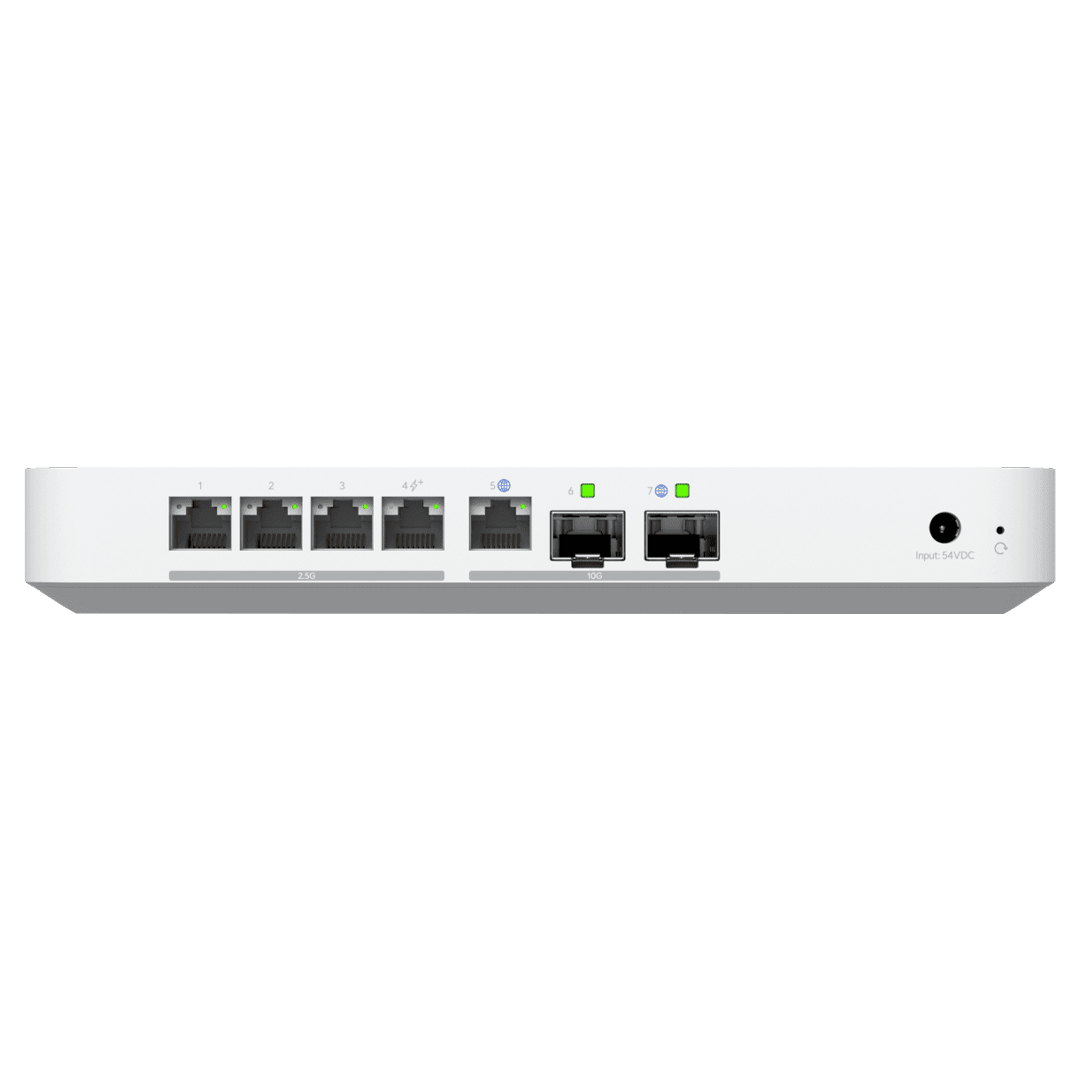

Back View

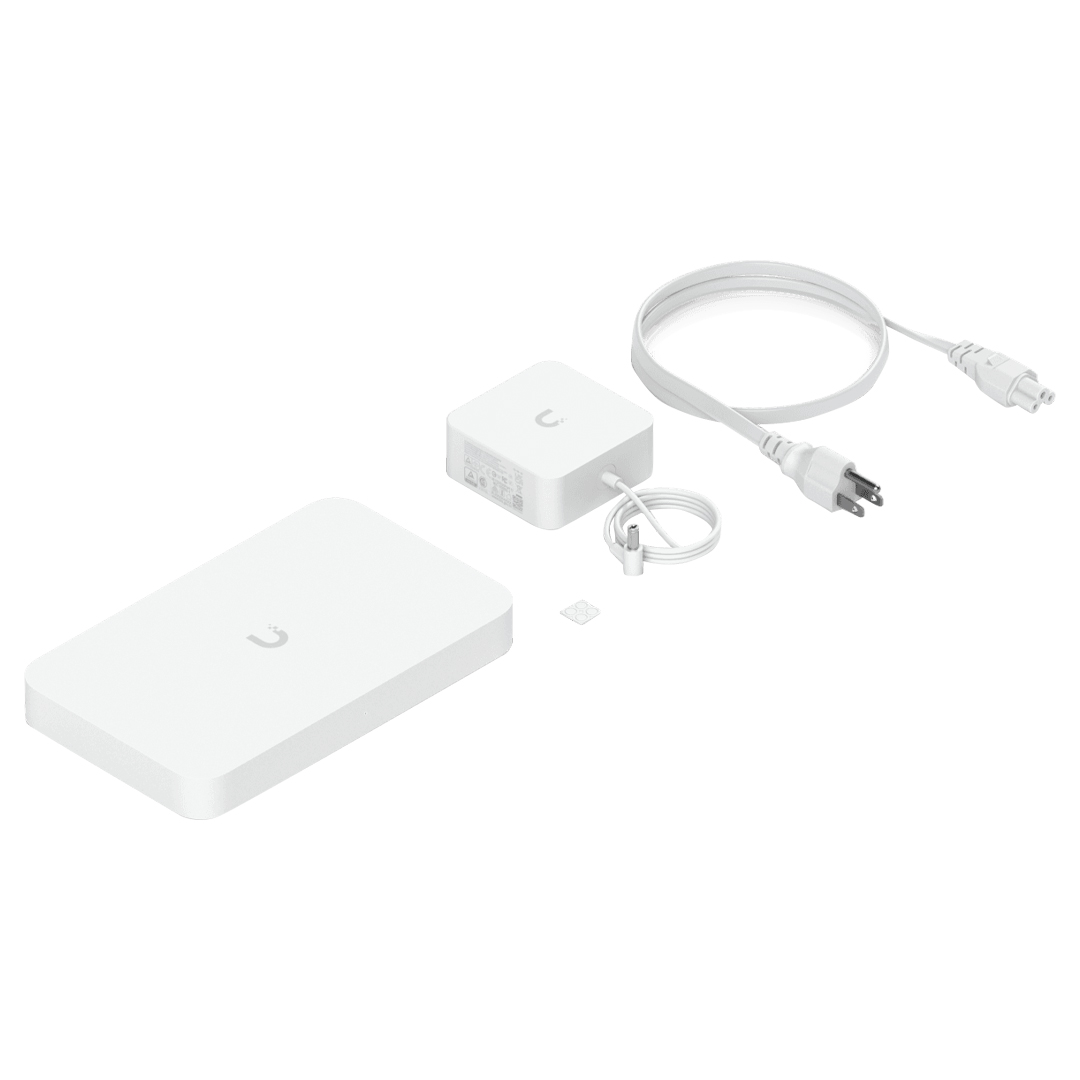

*54V DC, 1.1A AC power adaptor included
Dimensions
Deployment
Specifications
General Data
| Model Number |
UXG-FIBER |
| Dimensions |
212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2") |
| Default WAN Ports |
(1) 10G SFP+
(1) 10 GbE RJ45 |
| LAN Ports |
(1) 10G SFP+
(4) 2.5 GbE RJ45 |
| IDS/IPS Throughput |
5 Gbps |
| Form Factor |
Compact desktop |
Security
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
55,000+ with CyberSecure |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site-to-Site VPN |
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes |
| VPN Server |
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes |
| VPN Client |
OpenVPN: Yes
WireGuard: Yes |
Networking
| Multi-WAN Load Balancing |
Yes |
| Dynamic Routing |
OSPF: Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| MAC Address Table Size |
4,000 |
Hardware
| PoE Budget |
30 W |
| Max. PoE Wattage per Port by PSE |
PoE+: 30 W |
| Voltage Range PoE Mode |
50 — 57 V |
| Max. Power Consumption |
25 W (Excluding PoE output) |
| Power Method |
DC jack (54 V DC / 1.1 A) |
| Power Supply |
54 V DC / 1.1 A (Adaptor included) |
| Supported Voltage Range |
100 - 240 V AC |
| Processor |
Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory |
2 GB |
| Weight |
605 g (1.3 lb) |
| Enclosure Material |
Polycarbonate |
| Management |
Ethernet
Bluetooth |
| LEDs |
Ethernet: Yes
SFP+: Yes
System: Yes |
| ESD/EMP Protection |
Air: ± 8 kV, contact: ± 4 kV |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Certifications |
CE, FCC, IC |
| Button |
(1) Factory-reset |
Backed by a 1-year Ubiquiti warranty.
