Ubiquiti Unifi Dream Router 7

UDR7 | Ubiquiti
$559
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Dream Router 7 is a high-performance networking solution with advanced security, seamless Wi-Fi 7 connectivity, and powerful cloud management. Featuring a quad-core processor, dual-band 2.4GHz and 5GHz Wi-Fi with improved speed and efficiency, and multiple Ethernet ports, it ensures fast, reliable connections for homes and businesses. Integrated UniFi OS enables easy monitoring, network customization, and enhanced security features, while support for the latest WPA3 encryption enhances data protection. Designed for scalability, it offers a future-ready networking experience with intuitive controls and high-speed connectivity.



Features

Dream Router 7

Build Features

Ubiquiti Unifi Dream Router 7 Feature 1

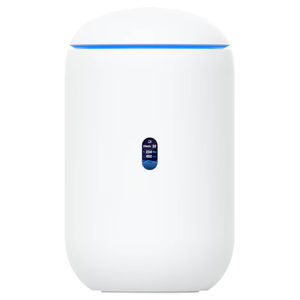

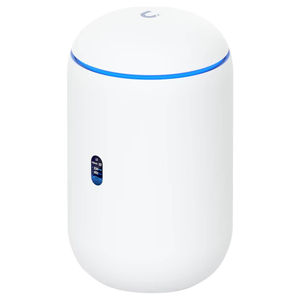

Front

Ubiquiti Unifi Dream Router 7 Feature 2

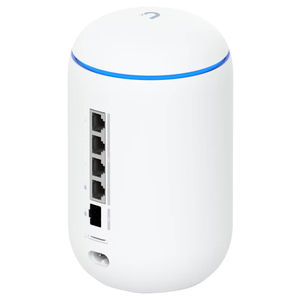

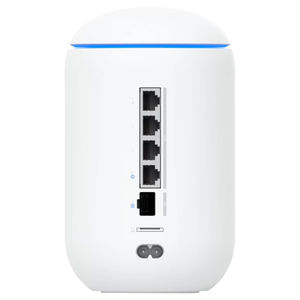

Back

64 GB pre-installed microSD.

Ubiquiti Unifi Dream Router 7 Feature 3

Deployment

Specifications

General Data

Model Number UDR7
Dimensions Ø110 x 184.1 mm
(Ø4.3 x 7.3")
UniFi Application Suite
Network		 Yes
Network Yes
Protect Yes
Access Yes
Talk Yes
Connect Yes
Managed UniFi Devices 30+
Managed Cameras (5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected 300+
Default WAN Ports (1) 10G SFP+
(1) 2.5 GbE RJ45
LAN Ports (3) 2.5 GbE RJ45 including (1) PoE
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop

Security

Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 20,000+ with Cybersecure
VLAN/Subnet-Based Traffic Segmentation Yes

VPN & SD-WAN

License-Free SD-WAN Yes
Site-to-Site VPN
Site Magic		 Yes
Ipsec Yes
OpenVPN Yes
VPN Server
Identity Endpoint One-Click VPN		 Yes
Teleport Zero-Configuration VPN Yes
WireGuard Yes
OpenVPN Yes
L2TP Yes
VPN Client
OpenVPN		 Yes
WireGuard Yes

Networking

Multi-WAN Load Balancing Yes
Dynamic Routing
OSPF		 Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes
Integrated RADIUS Server Yes
RADIUS over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
MAC Address Table Size 2,000
Policy-Based WAN and VPN Routing Yes
Customisable DHCP Server Yes
IPv6 ISP Support Yes
IGMP Proxy Yes

Integrated WiFi

WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput 6 GHz: 5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO 6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain 6 GHz: 6 dBi
5 GHz: 7 dBi
2.4 GHz: 5 dBi
Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs 4 per Radio
Supported Data Rates 802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

NVR Storage Pre-installed 64GB microSD for NVR
Expansion Slot MicroSD Card
PoE Budget 15.4W
Max. PoE Wattage per Port by PSE
PoE		 15.4W
Voltage Range PoE Mode 44-57V
Max. Power Consumption 26W (Excluding PoE output)
Power Method Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply AC/DC, Internal, 50W
Max. TX Power 6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Supported Voltage Range 100-240V AC
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight 1.1 kg (2.4 lb)
Enclosure Material Polycarbonate
LCM Display 0.96" status display
Management Ethernet
Bluetooth
LEDs
System		 Yes
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature -10 to 40° C (14 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Button (1) Factory-reset

Software

VLAN 802.1Q
Guest Traffic Isolation Yes
Application Requirements UniFi Network: Version 9.0.108 and later
Backed by a 1-year Ubiquiti warranty.
