Ubiquiti U7 Lite Compact Ceiling-mounted WiFi 7 Access Point

U7-LITE | Ubiquiti
$209
In stock
Order within 5h 42m 46s for same day dispatch!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
Upgrade to next-gen wireless performance with the Ubiquiti U7 Lite, a compact ceiling-mounted WiFi 7 access point delivering blazing-fast speeds up to 5.4Gbps across 2.4GHz, 5GHz bands. Designed for seamless connectivity, it features advanced OFDMA and MU-MIMO technology for efficient data transmission, ensuring low latency and high capacity in dense environments. The sleek, low-profile design blends effortlessly into any space, while PoE support simplifies installation. Ideal for homes and businesses looking to future-proof their network with cutting-edge wireless technology.



Features

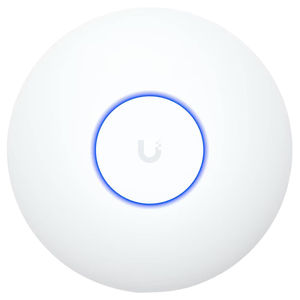

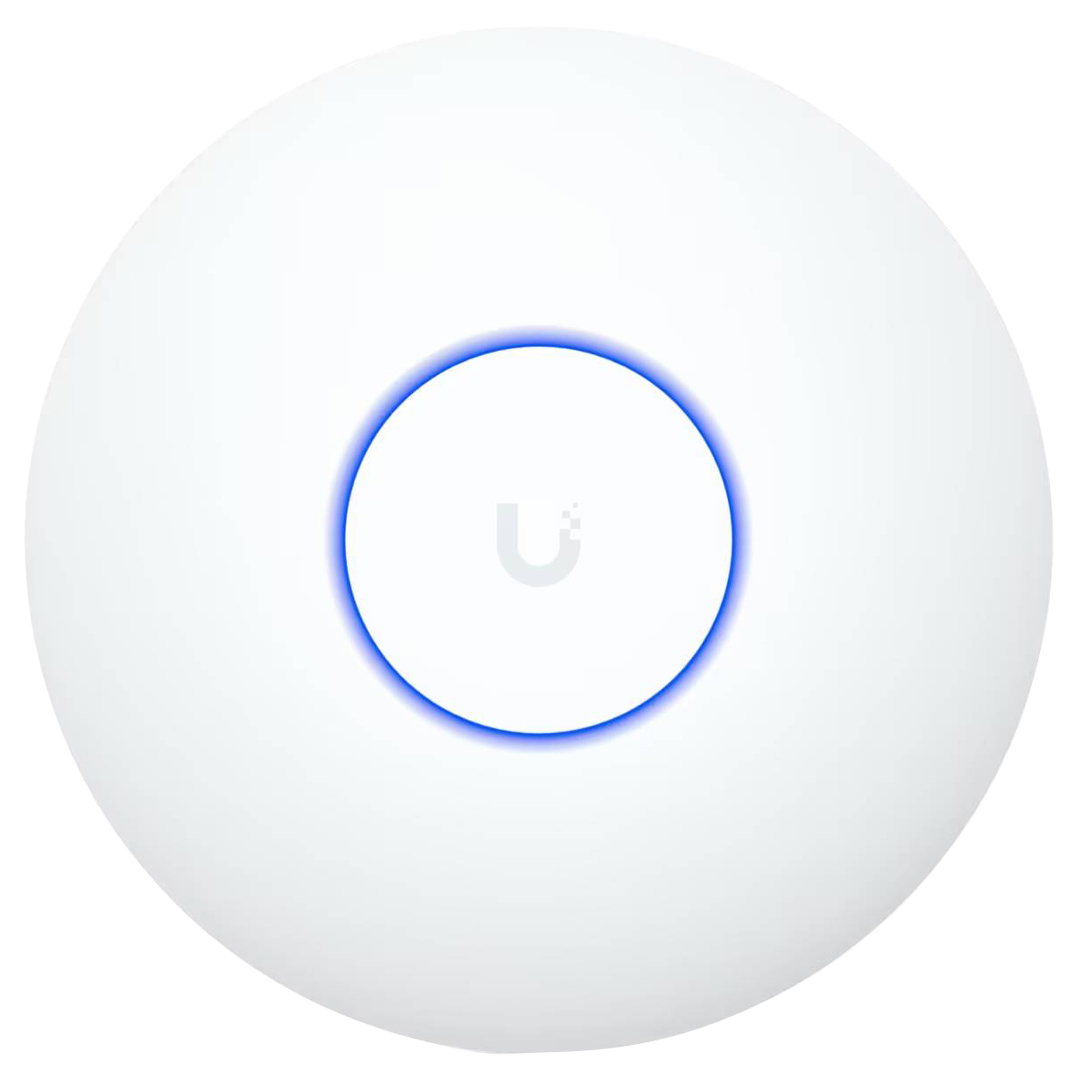

Ubiquiti U7 Lite Compact Ceiling-Mounted WiFi 7 Access Point Feature 1

U7 Lite

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Build Features

Ubiquiti U7 Lite Compact Ceiling-Mounted WiFi 7 Access Point Feature 2

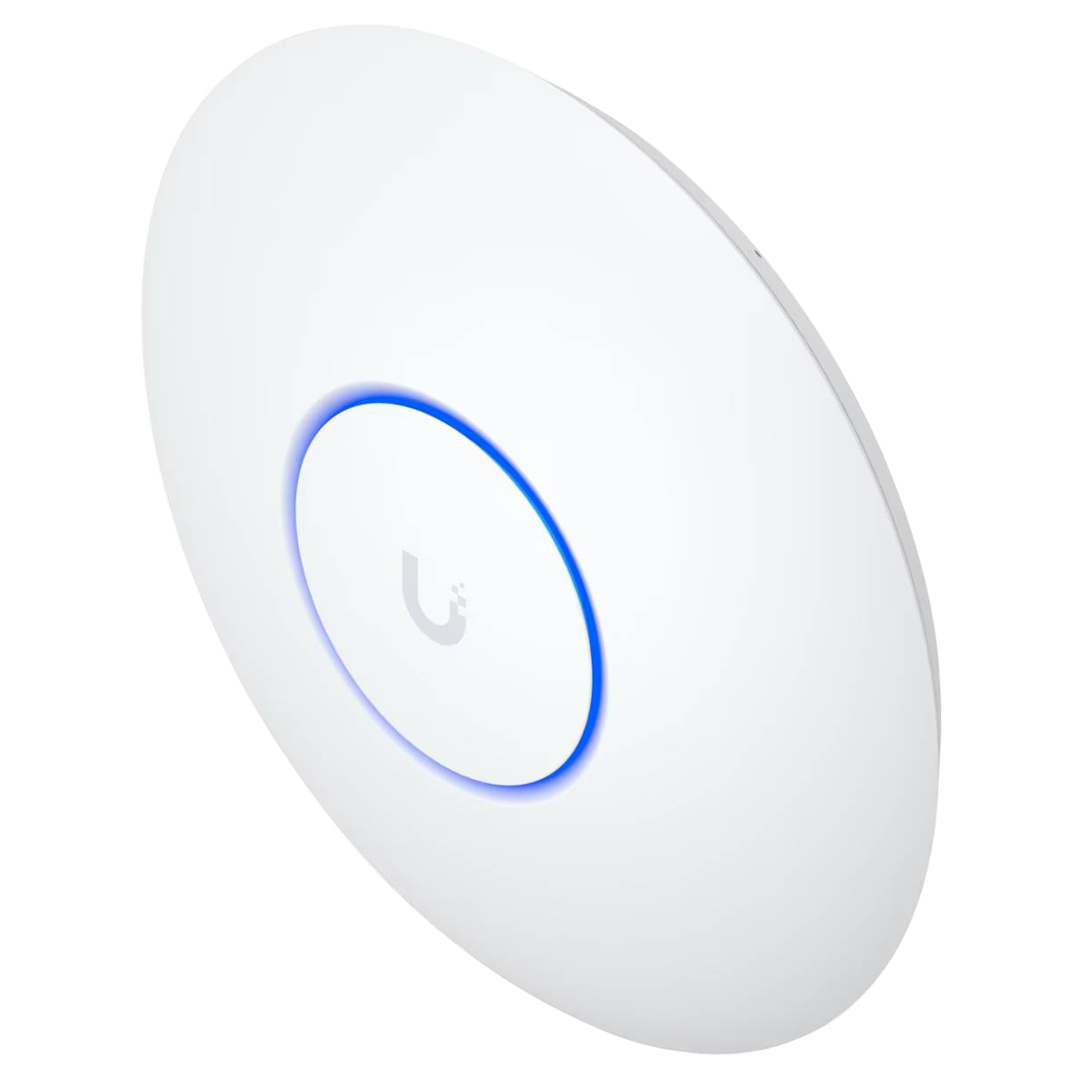

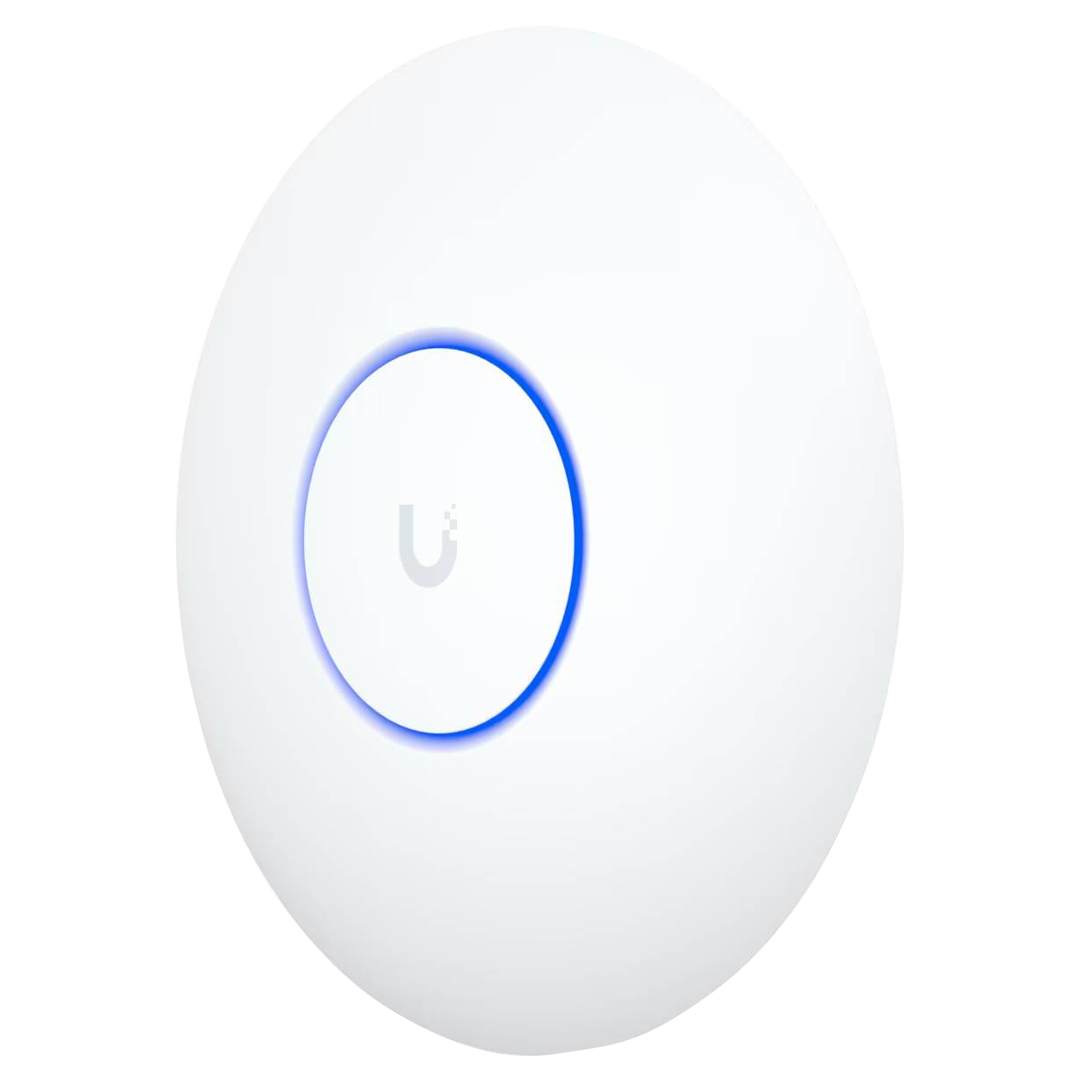

Front

Ubiquiti U7 Lite Compact Ceiling-Mounted WiFi 7 Access Point Feature 3

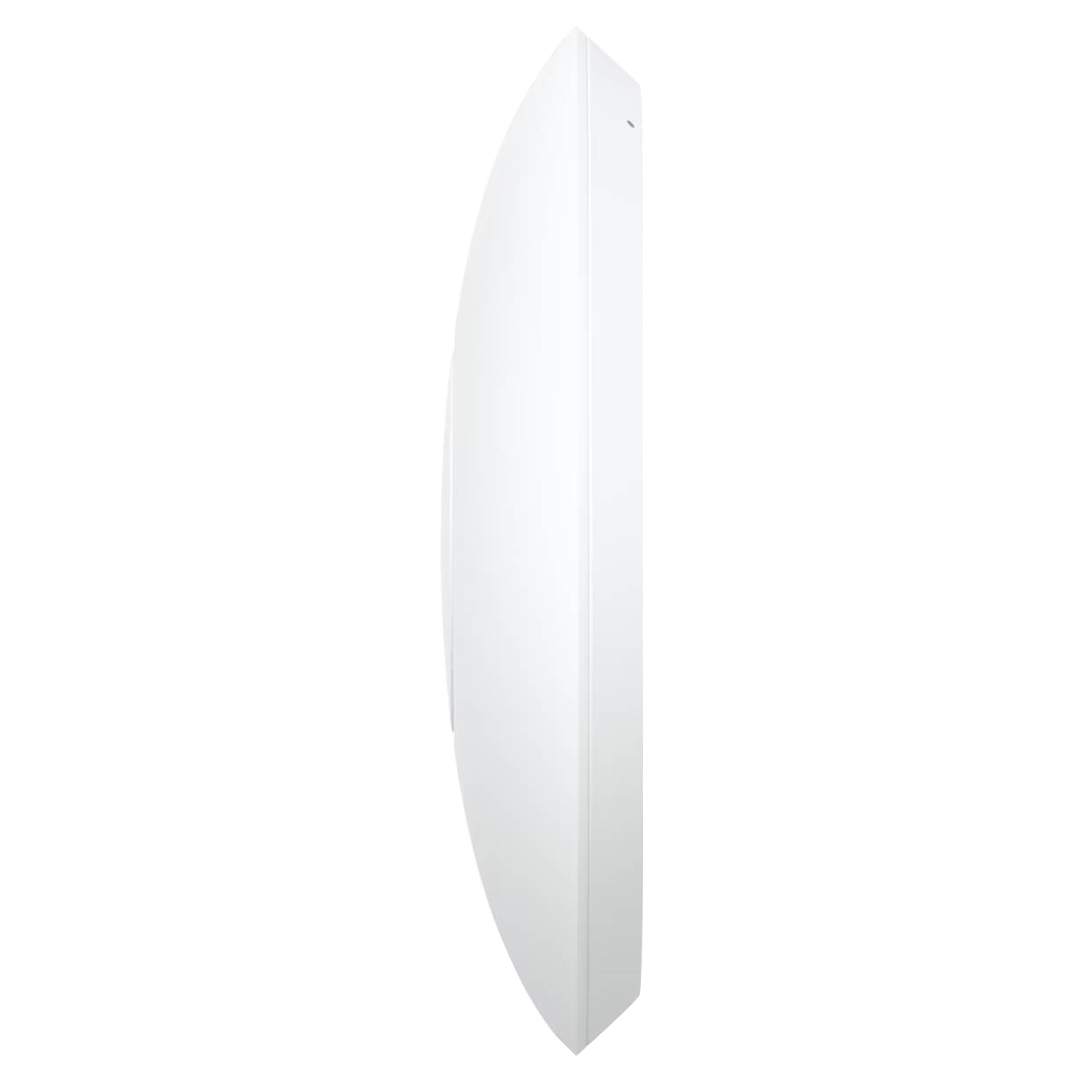

Side

Ubiquiti U7 Lite Compact Ceiling-Mounted WiFi 7 Access Point Feature 4

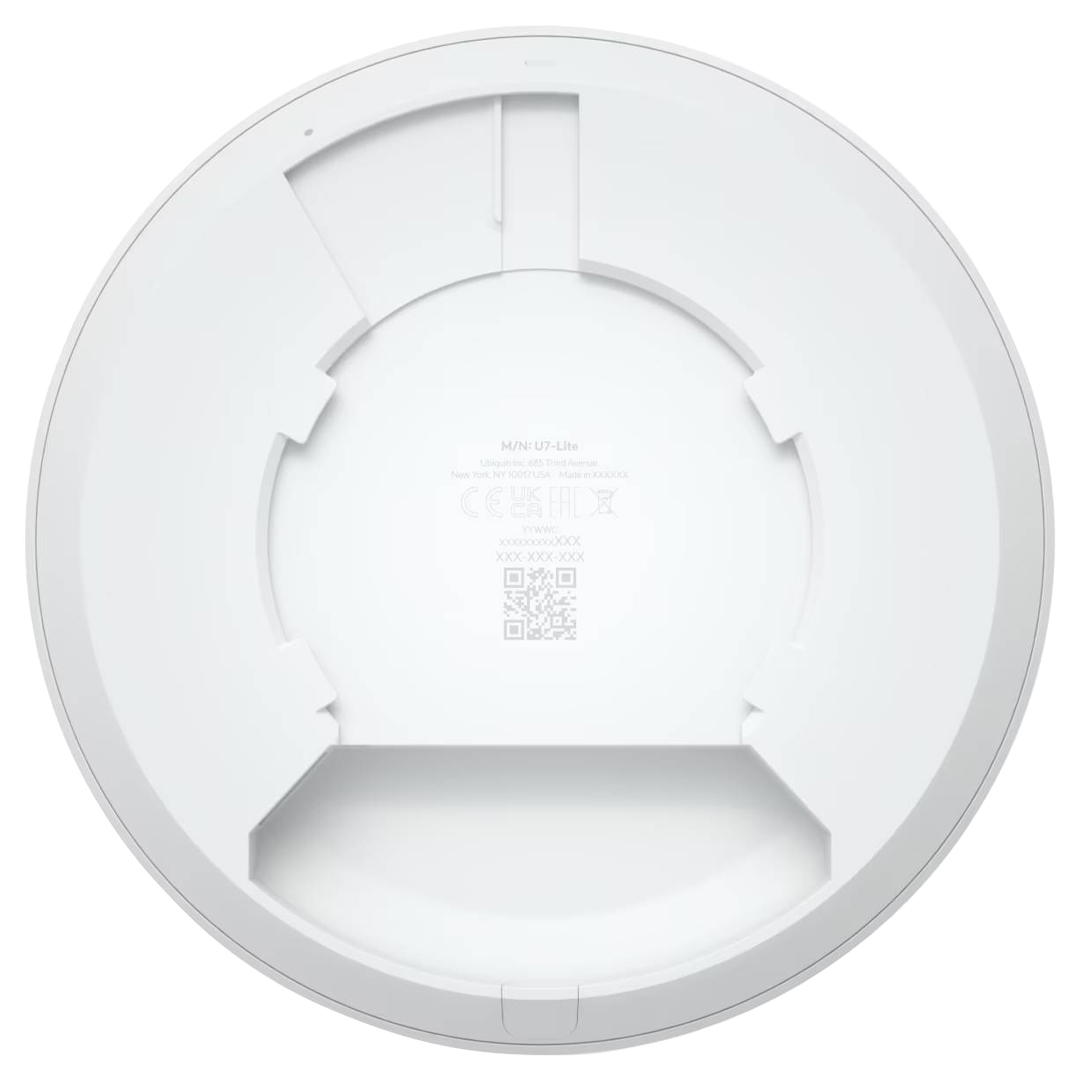

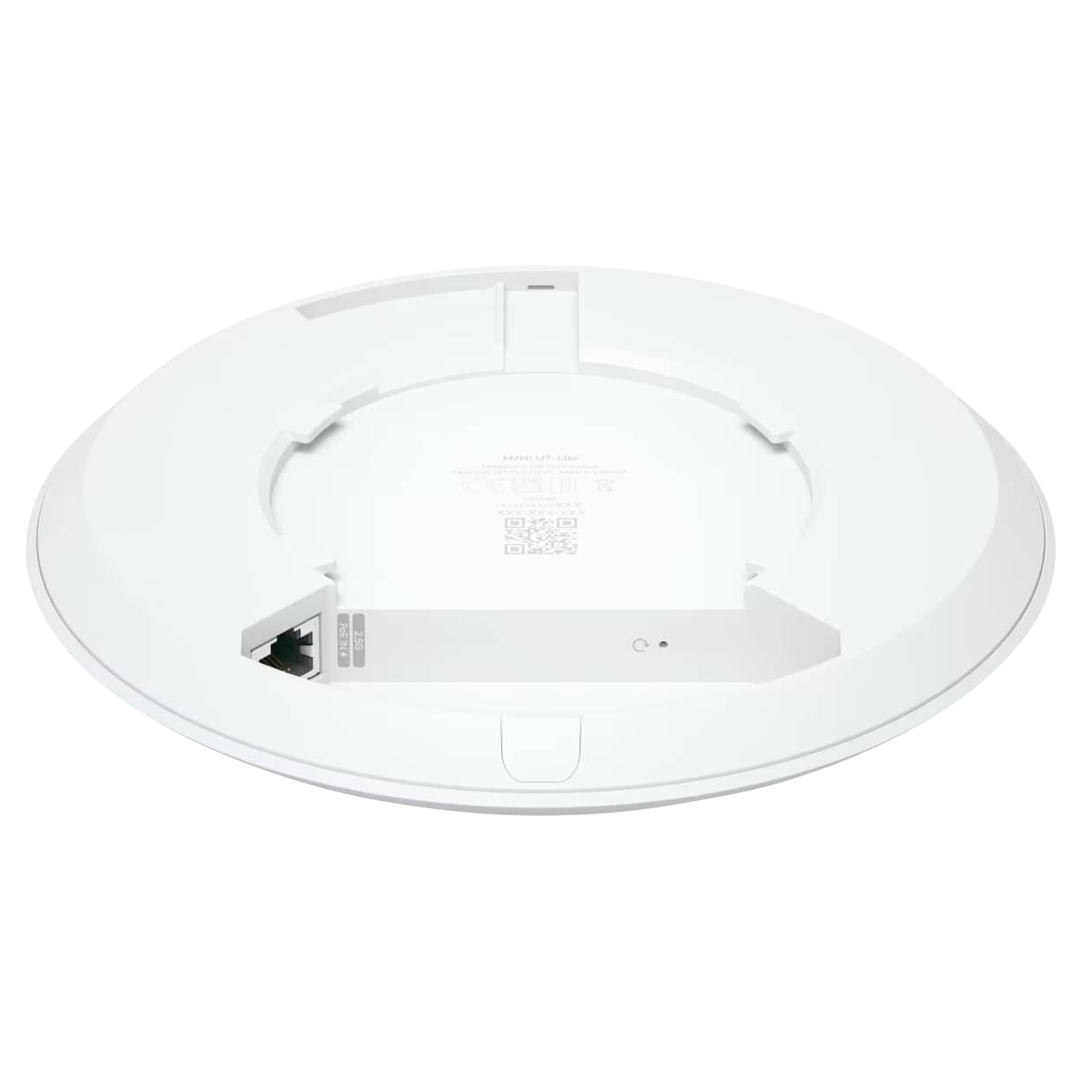

Back

Ubiquiti U7 Lite Compact Ceiling-Mounted WiFi 7 Access Point Feature 5

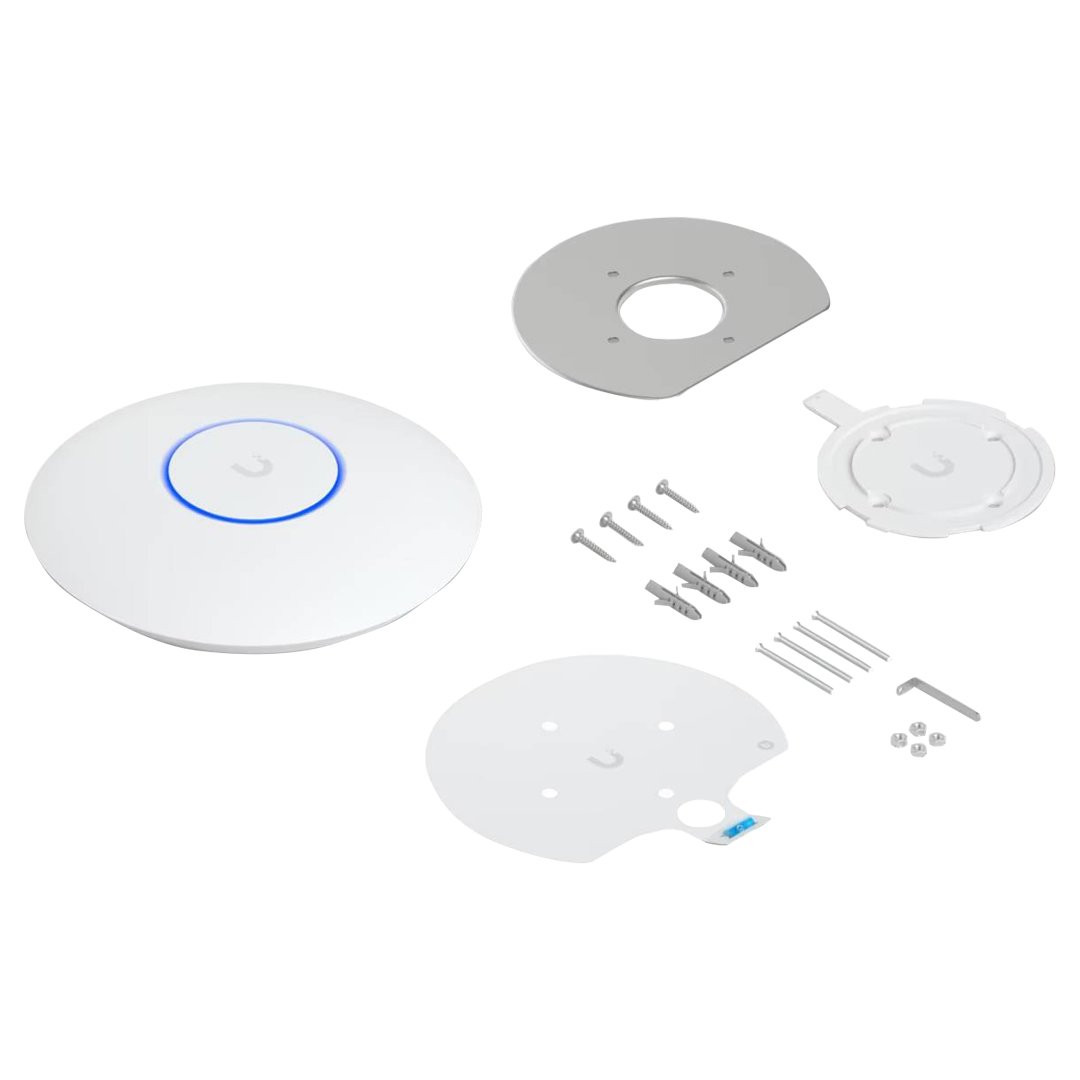

Deployment

Specifications

General Data

Model Number U7-LITE
Dimensions Ø171.5 x 33 mm
(Ø6.8 x 1.3")
WiFi Standard WiFi 7
Spatial Streams 4
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 200+
Uplink 2.5 GbE
Mounting Ceiling, Wall
(Lite Mount Included)
Power Method PoE

Performance

MIMO 5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain 5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power 5 GHz: 24 dBm
2.4 GHz: 23 dBm
Max. BSSIDs 8 per Radio
Supported Data Rates 802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing Yes
Band Steering Yes
802.11v BSS Transition Management Yes
802.11r Fast Roaming Yes
802.11k Radio Resource Management (RRM) Yes
Advanced Radio Management Yes
Passpoint (Hotspot 2.0) Yes
Captive Hotspot Portal Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation : Yes
Private Pre-Shared Key (PPSK) Yes
WiFi Speed Limiting Yes
Client Device Isolation Yes
WiFi Schedules Yes
RADIUS Over TLS (RadSec) Yes
Dynamic RADIUS-assigned VLAN Yes

Hardware

Max. Power Consumption 13W
Supported Voltage Range 42.5—57V DC
Networking Interface (1) 2.5 GbE RJ45 port
Weight 313 g (11 oz)
Management Ethernet
Enclosure Material UV-Stabilised polycarbonate
Mount Material UV-Stabilised polycarbonate, galvanised steel (SGCC)
LEDs
System		 White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing

Software

Application Requirements
UniFi Network		 Version 9.0.114 and later
UniFi OS iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
Backed by a 1-year Ubiquiti warranty.
