Ubiquiti U7 In-Wall WiFi‎ 7 Access Point

U7-IW | Ubiquiti
$309
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications
The Ubiquiti U7 In-Wall WiFi 7 Access Point delivers high-speed wireless connectivity with the latest WiFi 7 technology, offering ultra-low latency and enhanced capacity for seamless performance in homes and businesses. Featuring a sleek in-wall design, it integrates effortlessly into any space while providing tri-band connectivity with 2.4GHz, 5GHz, and 6GHz bands for optimal coverage and efficiency. With support for 320MHz channel width and Multi-Link Operation (MLO), it ensures faster speeds and reduced interference, while advanced security features keep your network protected. Ideal for expanding wireless coverage without compromising aesthetics, this access point is perfect for modern networking needs.



Features

Ubiquiti U7 In-Wall WiFi‎ 7 Access Point Feature 1

U7 In-Wall

Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Build Features

Ubiquiti U7 In-Wall WiFi‎ 7 Access Point Feature 2

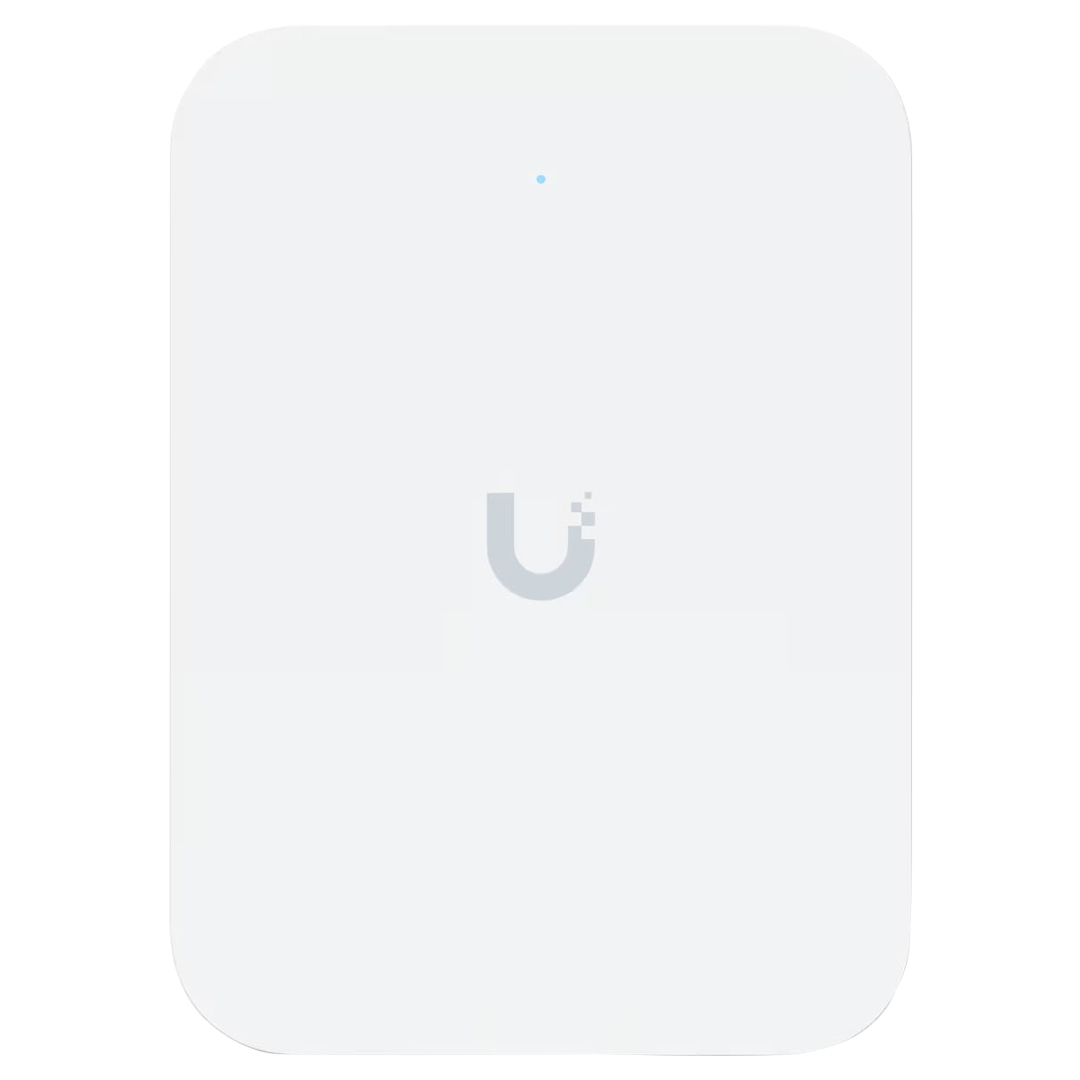

Front

Ubiquiti U7 In-Wall WiFi‎ 7 Access Point Feature 3

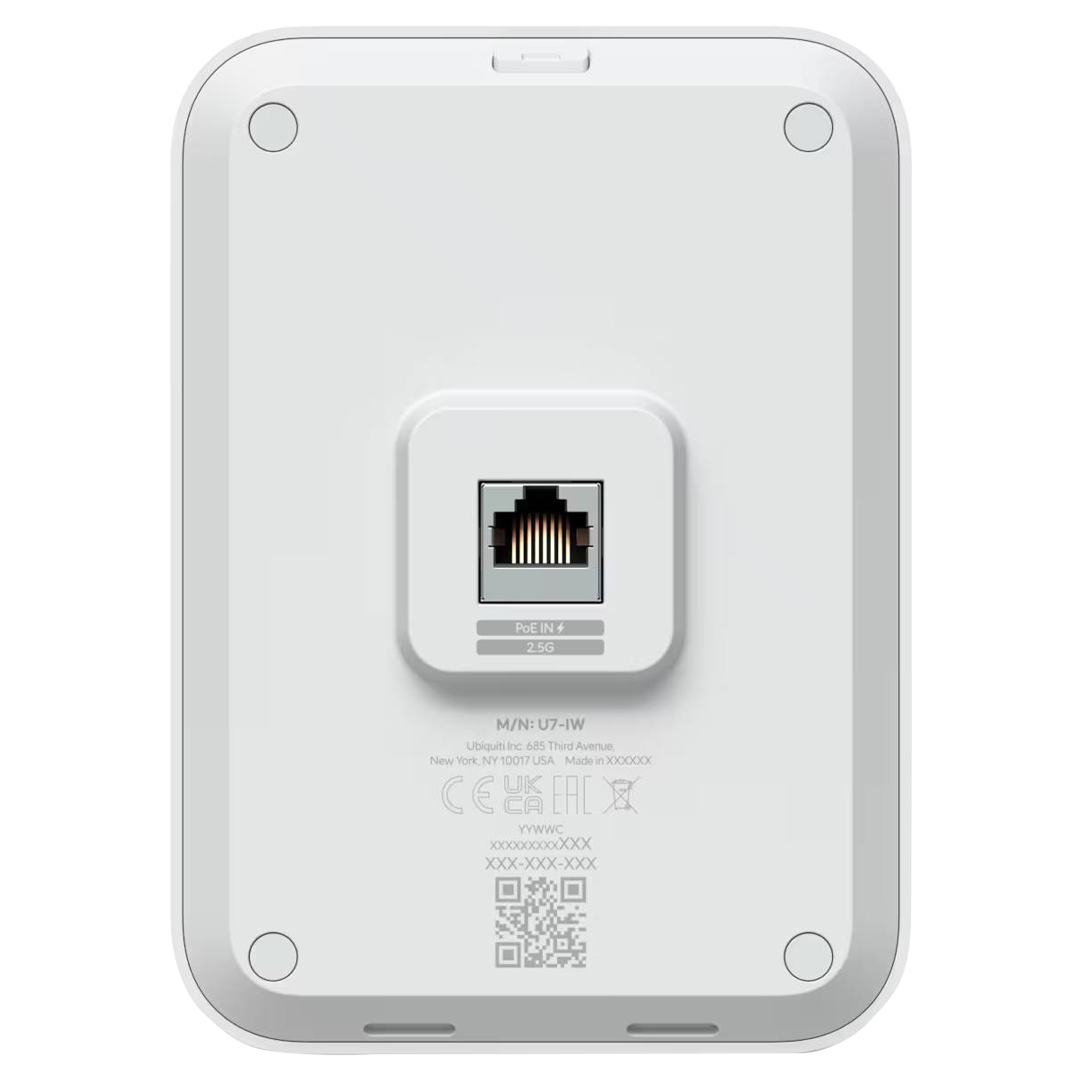

Back

* PoE + input required for the single-port PoE output

Ubiquiti U7 In-Wall WiFi‎ 7 Access Point Feature 4

Dimensions

Ubiquiti U7 In-Wall WiFi‎ 7 Access Point Feature 5

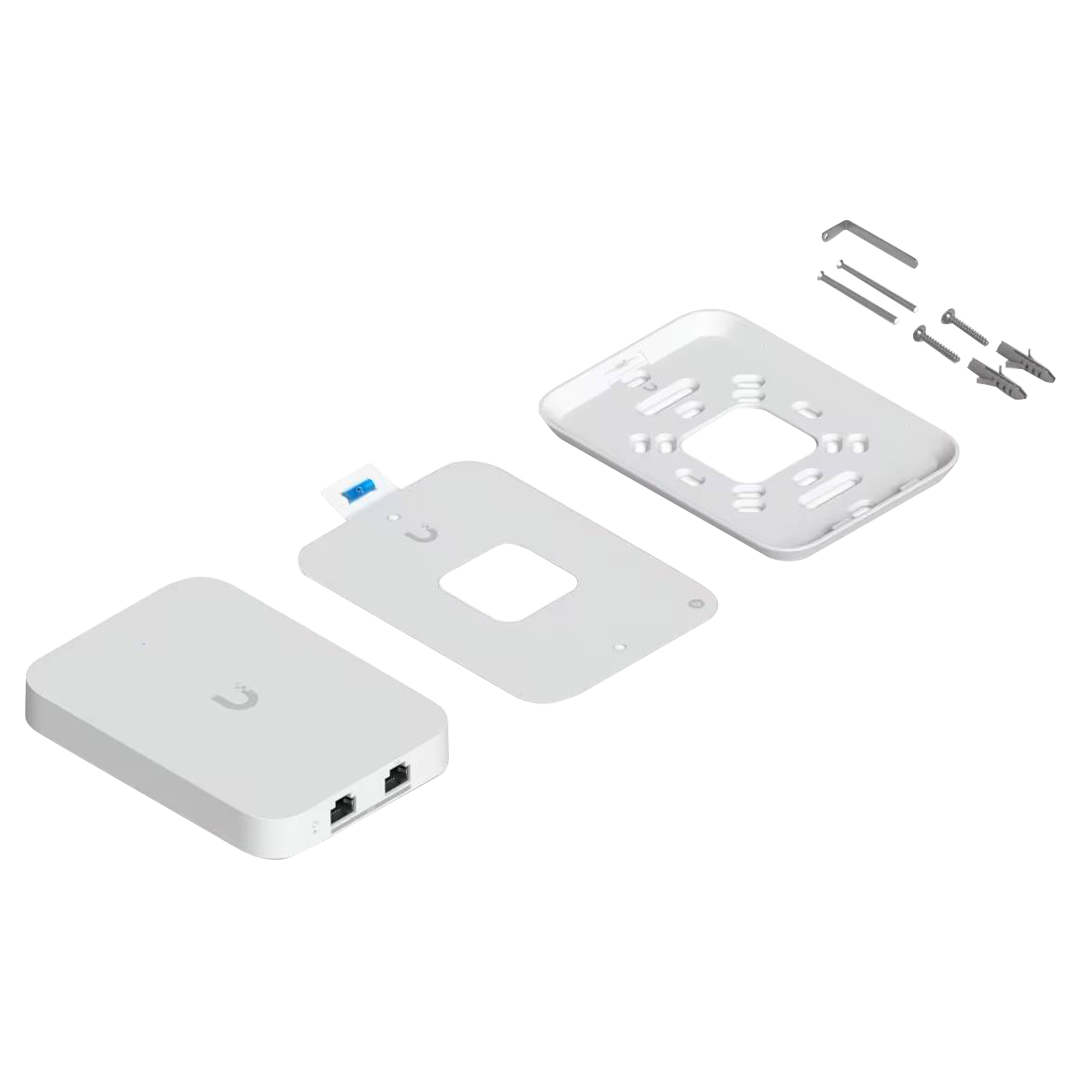

Deployment

Specifications

General Data

Model Number U7-IW
Dimensions 137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2")
WiFi Standard WiFi 7
Spatial Streams 4
Coverage Area 115 m² (1,250 ft²)
Max. Client Count 200+
Uplink 2.5 GbE
Mounting Wall
(Metal Wall Mount Included)
Power Method PoE
PoE+ (Required for PoE output)

Performance

MIMO 5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate 5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain 5 GHz: 8 dBi
2.4 GHz: 4 dBi
Max. BSSIDs 8 per Radio
Max. TX Power 5 GHz: 24 dBm
2.4 GHz: 23 dBm
Supported Data Rates 802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing Yes
Band Steering Yes
802.11v BSS Transition Management Yes
802.11r Fast Roaming Yes
802.11k Radio Resource Management (RRM) Yes
Advanced Radio Management Yes
Passpoint (Hotspot 2.0) Yes
Captive Hotspot Portal Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes
Private Pre-Shared Key (PPSK) Yes
WiFi Speed Limiting Yes
Client Device Isolation Yes
WiFi Schedules Yes
RADIUS Over TLS (RadSec) Yes
Dynamic RADIUS-assigned VLAN Yes

Hardware

Max. Power Consumption 13W (Excluding PoE output)
Supported Voltage Range 42.5—57V DC
Networking Interface (3) 2.5 GbE RJ45 ports
Weight 400 g (14.1 oz)
Management Ethernet
Built-In Switch (1) PoE+ input and
(1) PoE output
Enclosure Material Polycarbonate, aluminium alloy
Mount Material Aluminium Alloy
LEDs
System		 White/Blue
Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications CE, FCC, IC
Ambient Operating Temperature -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing

Software

Application Requirements
UniFi Network		 Version 9.0.114 and later
UniFi OS iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
