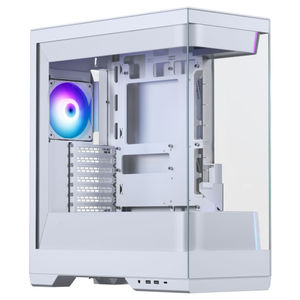

The Phanteks Evolv Series S2 D-RGB Tempered Glass Case is a premium mid-tower chassis designed for builders looking for striking aesthetics and superior cooling performance. Featuring a unique see-through tempered glass design on three sides, it delivers a clean, showcase-ready appearance, ideal for modern high-end builds. The chassis supports ATX rear-connect motherboards, enabling a near zero-cable setup with cables hidden behind a silk-printed silver side panels for a flawless look. The Evolv S2 includes four high-airflow M25-120mm D-RGB fans (bottom and rear) and integrated D-RGB strips running from top to bottom, providing vibrant and synchronised lighting throughout the build. With space for seven 120mm fans in total (top, bottom and rear), including triple intake fans at the bottom for direct GPU cooling and a dedicated top 360mm radiator space for CPU cooling, the Evolv S2 ensures excellent thermal performance in any configuration. It can accommodate graphics cards up to 395mm in length, CPU coolers up to 175mm high, and power supplies up to 210mm. The case supports ATX, Micro-ATX, and Mini-ITX motherboards, with options for vertical GPU mounting using an additional bracket. The premium materials and thoughtful design elements make the Phanteks Evolv S2 an exceptional choice for builders aiming to create a high-performance, visually stunning system.
Features

Evolv S2
See-Through Tempered Glass Chassis
A unique see-through ATX chassis design makes the Evolv S2 stand out from the crowd. It feels spacious and highlights the main system components with a compact footprint making it look perfect on any desk.
The interior of the Evolv S2 blends with the hardware components for a fully integrated look with all cooling components sitting flush into the top and base. Having a vertical cooling system with triple intake fans in the bottom that directly cool the GPU and a dedicated top 360 radiator area makes the Evolv S2 perform in any condition.
- Unique see-through tempered glass chassis design
- Integrated D-RGB Lighting throughout the chassis
- Support for ATX rear-connect mainboards
- Four high airflow M25-120 mm D-RGB fans included and built-in
- All fans and radiators fully integrate into the chassis for a clean look
- Triple 120mm fan positions in the bottom for air intake and direct GPU cooling
- Triple 120mm fan positions in the top with dedicated 360 radiator clearance for exhaust
- Rear 120mm fan position for a total of 7x 120mm fan positions

Ultra Clean Look
One of the main features that sets the Evolv S2 apart from other cases is the extremely clean look. All screws are covered by panels, all cables are hidden behind silkprint on the left glass panel and the support for rear-side connectors enables a zero cable setup.
Good Cooling Performance

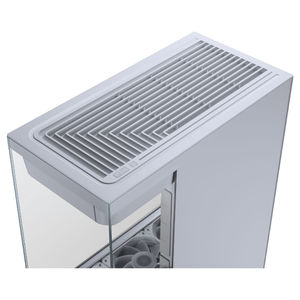

The Evolv S2 has good cooling performance with its bottom air intake and top exhaust. The top features dedicated space for a 360 radiator.
Premium Aesthetics
The Evolv S2 has a unique design with its see through chassis and integrated D-RGB running from the top to the bottom.
Specifications
General Data
| Model Number |
PH-ES524S2_DWT01 |
| Colour |
White |
| Product Dimension (D x W x H) |
455 x 230 x 525 mm |
| Form Factor |
Mid Tower |
| Mainboard Support |
ATX, Micro-ATX, Mini-ITX |
| Rear-Sided Mainboard Support |
Yes, ATX |
| Integrated Fans Look |
Yes |
| Cable Management Cover |
Silkscreen on tempered glass |
| Integrated D-RGB Lightstrip |
Yes |
| Materials |
Steel Chassis, Tempered Glass, ABS plastic covers |
| Front IO |
1x USB-C 3.2 Gen2x2 + 2x USB 3.0
Microphone/Headphone combo
Reset Button
Power Button |
| Connectors |
Power Switch
Reset Switch
HD-audio
USB 3.0
USB-C Type-E |
| Warranty |
5 Years Limited |
| Weight |
9.90 kg |
| What's Included |
1x Evolv S2 chassis
1x M25-120 mm Regular D-RGB fan
3x M25-120 mm Reverse D-RGB fan

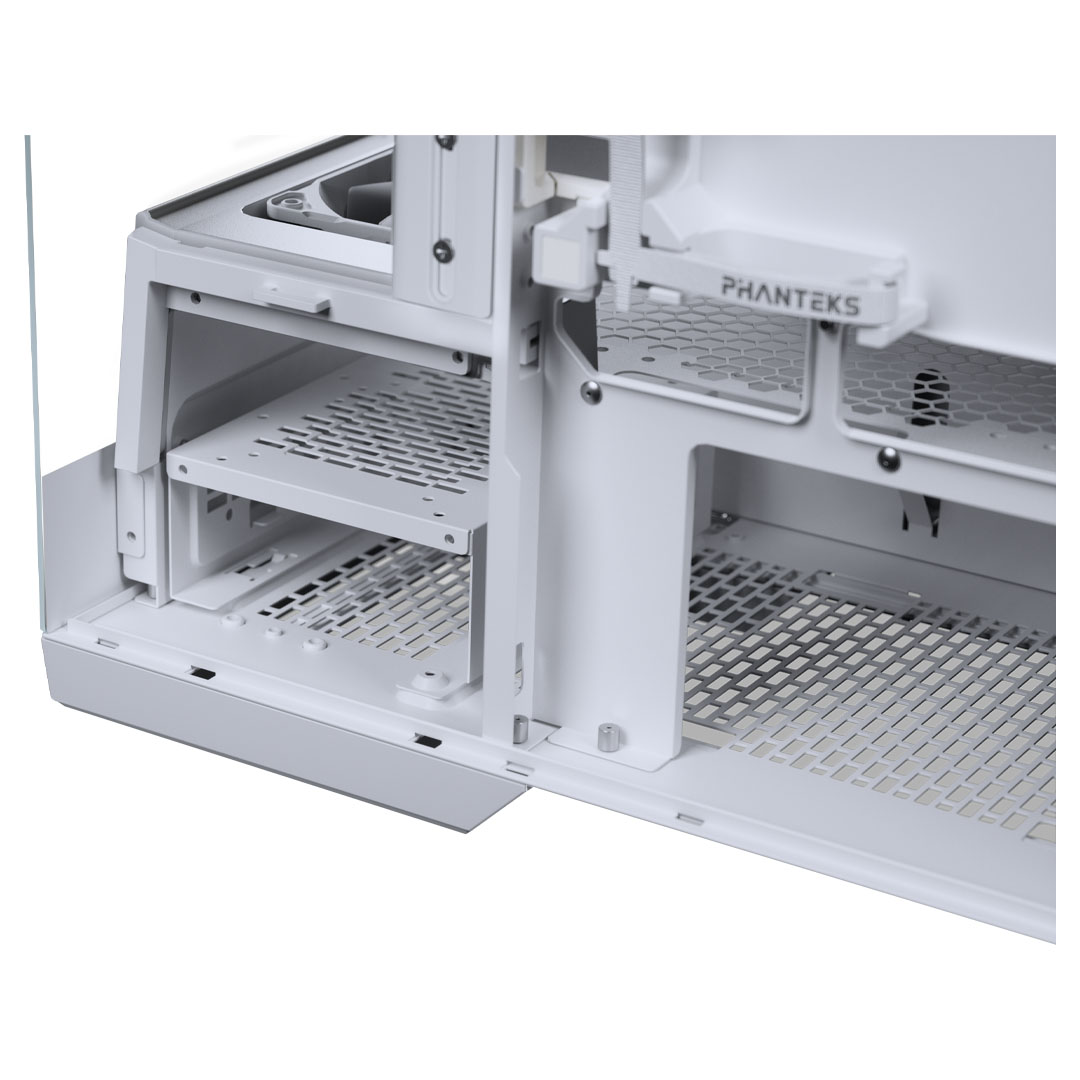

1x Storage Bracket (2x HDD / 2x SSD)
1x Accessory box with necessary screws |
Expansion
| PCI Slots |
7 |
| Internal 3.5" Bay |
2 (1x if 2x SSD installed) |
| Internal 2.5" Bay |
2 (0x if 2x HDD installed) |
| Vertical GPU Support |
Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01 |
Fans & Radiators
| Top Fan |
3 x 120 mm |
| Bottom Fan |
3 x 120 mm (3x included) |
| Rear Fan |
1 x 120 mm (1x included) |
| Top Radiator |
Up to 360 |
Clearances
| GPU Length |
395 mm |
| GPU Width |
175 mm |
| CPU Cooler Height |
175 mm |
| Power Supply |
210 mm |
| Top 360 Radiator |
410 x 125 x 55 mm |
Backed by a 5 year Phanteks warranty.
