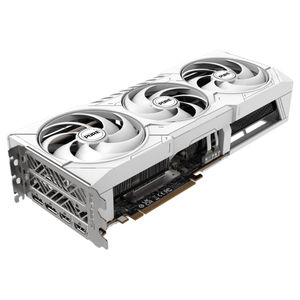

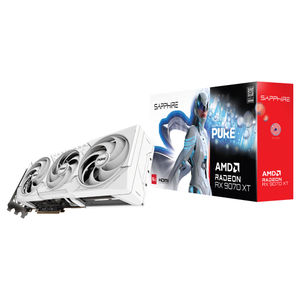

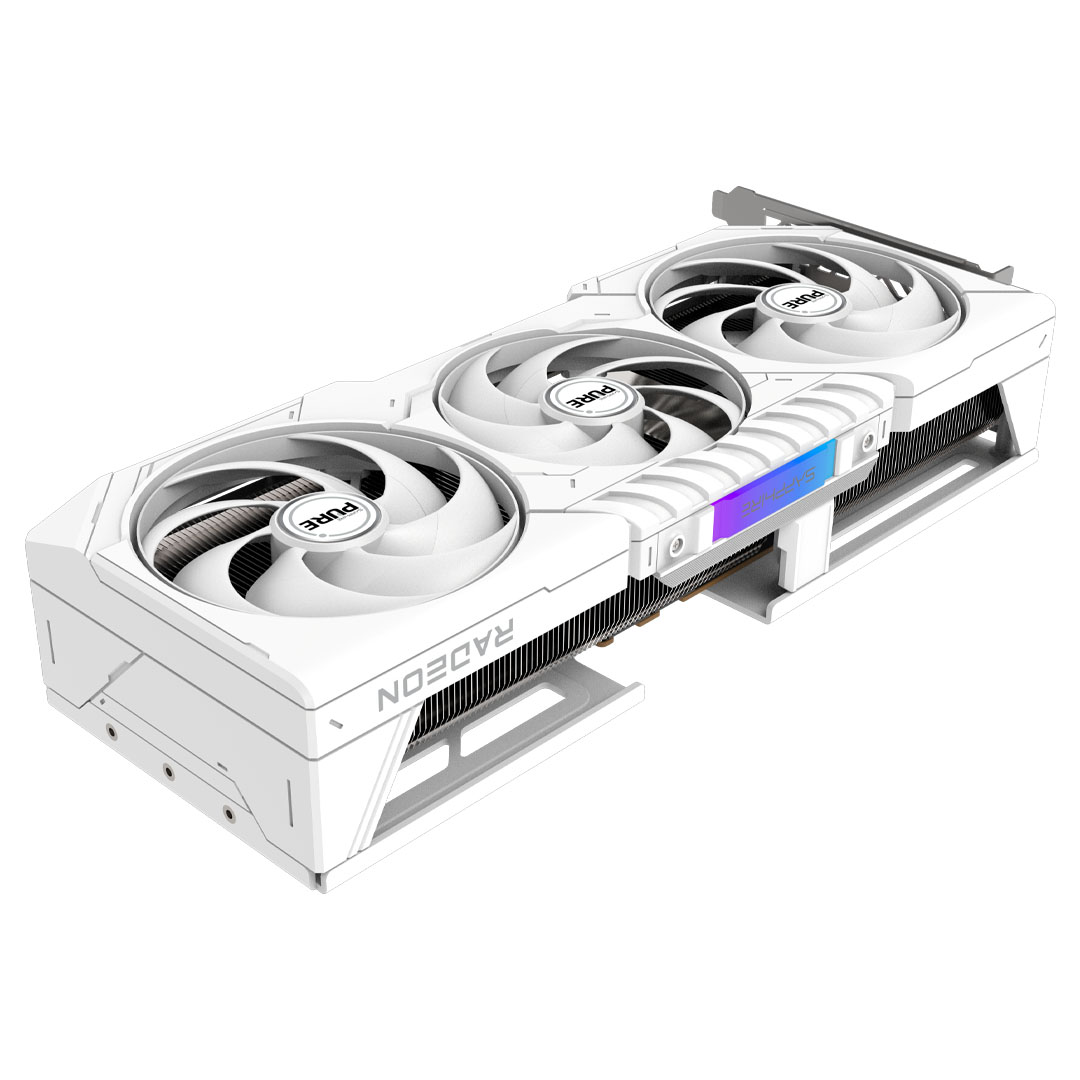

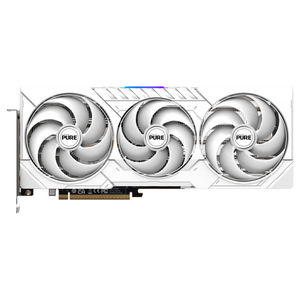

The Sapphire Radeon RX 9070 XT Pure Gaming OC 16GB graphics card features a 2460MHz game clock, 3010MHz boost clock, 16GB GDDR6 256-bit memory interface, 20 Gbps memory speed, PCIe 5.0, 2 x HDMI 2.1, 2 x DisplayPort 2.1a, AMD RDNA 4 Architecture, DirectX 12 Ultimate support and ARGB lighting.
Features
Pure AMD Radeon™ RX 9070 XT GPU
- Honeywell PTM7950 Thermal Interface Material (TIM)
- AeroCurve Fan Blade
- Free Flow
- Frame Defence
- Integrated Cooling Module
- Tri-X Cooling Technology
- High TG Copper PCB
- Optimised Composite Heatpipes
- Metal Backplate
- ARGB SAPPHIRE Logo
- Two-Ball Bearing Fans
- 14-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
- TriXX Supported
- Performance vs. Efficiency Quicksets
- Glow!
- TriXX Boost
- External RGB LED MB Synchronisation
AMD
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- DisplayPort™ 2.1a
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 technology
- AMD Radeon™ Anti-Lag 2 technology
- AV1 Encode/Decode
- AMD FidelityFX™ technologies
- Microsoft® DirectX® 12 Ultimate
- AMD Noise Suppression
- AMD Freesync™ technology
- 16 GB of GDDR6 on 256-bit Memory Bus
- AMD smart technologies
- AMD Software: Adrenalin Edition™ application
Honeywell PTM7950 TIM
The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.
Free Flow
The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimises airflow paths. By reducing turbulence and channelling air efficiently, it maximises heat dissipation, ensuring consistent performance even under heavy thermal loads.
AeroCurve Fan Blade
The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimised static pressure, and enhanced cooling efficiency for demanding applications.

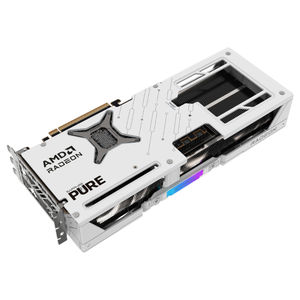

Tough Metal Backplate
The all-aluminium backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Integrated Cooling Module
Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.
L-Shape Graphics Card Supporter
The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance.
ARGB LED Sapphire Logo
The newly integrated ARGB LED SAPPHIRE Logo grants customisation opportunities for a more personalised aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution.
Optimised Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Frame Defence
The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
High TG Copper PCB
The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
External ARGB Control Sync
Enable the external synchronisation of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Digital Power Design
SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency.
Make Every Play Count
All You Need for Ultra-Fast Gaming
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon™ RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX (AMD HYPR-RX works on the AMD Radeon RX 7000 Series GPUs and newer or the Ryzen 7040 Series APUs with integrated RDNA 3 graphics and newer. AMD HYPR-RX allows various features within AMD Software interoperate, working at the same time, including Radeon Super Resolution, FidelityFX Super Resolution, Radeon Anti-Lag, Radeon Boost, and AMD Fluid Motion Frames where applicable to select titles. GD-225A.) to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favourite games. Enjoy high-quality, Al-powered upscaling with AMD FidelityFX™ Super Resolution 4 (AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors graphics cards. See https://www.amd.com/en/technologies/fidelityfx-super-resolution for additional information. GD-187b.), delivering an immersive gaming experience now and for years to come.
SuperPowered Visuals Enhanced with AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, Al-powered AMD FidelityFX™ Super Resolution 4 (AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors graphics cards. See https://www.amd.com/en/technologies/fidelityfx-super-resolution for additional information. GD-187b.) image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
Instant Performance for Every Move
Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX (AMD HYPR-RX works on the AMD Radeon RX 7000 Series GPUs and newer or the Ryzen 7040 Series APUs with integrated RDNA 3 graphics and newer. AMD HYPR-RX allows various features within AMD Software interoperate, working at the same time, including Radeon Super Resolution, FidelityFX Super Resolution, Radeon Anti-Lag, Radeon Boost, and AMD Fluid Motion Frames where applicable to select titles. GD-225A.) in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution (AMD FidelityFX Super Resolution (FSR) versions 1, 2, 3, and 4 are available on select games which require game developer integration and are supported on select AMD products. AMD does not provide technical or warranty support for AMD FidelityFX Super Resolution enablement on other vendors graphics cards. See https://www.amd.com/en/technologies/fidelityfx-super-resolution for additional information. GD-187b.), AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimisations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
Future Ready Tech with AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology (AMD smart technologies, including AMD Smart Access Graphics, Smart Access Storage, Smart Access Video, Smart Shift Eco, and Smart Shift Max may require OEM or developer enablement and 3 are available with select configurations only. Select additional AMD hardware is required. For additional information see https://www.amd.com/en/graphics/amd-radeon-rx-laptops, GD-216.) to realise the full performance of your AM5 platform. Harness both Radeon and Ryzen Al-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support, and up to 16GB of video memory to experience AAA games in all their visual glory, now and for years to come.
Backed by a 3 year Sapphire warranty.
