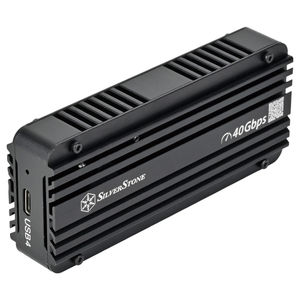

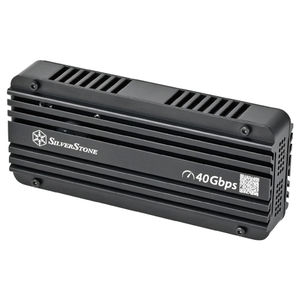

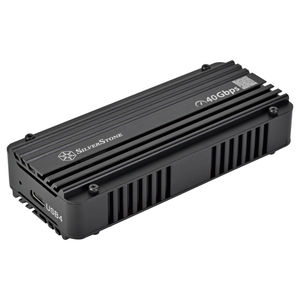

The SilverStone MS12B-40G USB-C NVMe M.2 SSD Enclosure delivers blazing-fast 40Gbps+ transfer speeds, making it the perfect solution for high-performance external storage. Designed for M.2 NVMe SSDs, this sleek aluminum enclosure ensures efficient heat dissipation while maintaining ultra-fast data access. Featuring a USB 3.2 Gen2x2 interface and UASP support, it maximizes performance for demanding workloads, gaming, and media editing. Its compact, tool-free design allows for effortless installation, while broad compatibility ensures seamless connectivity with a wide range of devices. Upgrade your portable storage with the SilverStone MS12B-40G for unmatched speed and reliability.
Features
MS12-40G
USB4 NVMe M.2 SSD Enclosure with Active Cooling
- USB4 Type-C interface, capable of ultra-fast data transfer speeds up to 40Gbps.
- Tool-free setup for NVMe M.2 SSDs.
- All-aluminium alloy enclosure with ultra-thin fan and bottom vent design for efficient heat dissipation
- NVMe M.2 SSD support (M KEY)
- Support TRIM command set
- Supports 22x42mm, 22x80mm lengths M.2 SSD
Ultra-Fast USB4
Achieve lightning speeds up to 40Gbps.
Efficient Cooling Design
All-aluminium enclosure with ultra-thin fan and bottom vent. Even during prolonged burning sessions of 4+ hours, the MS12-40G can keep installed SSD running at maximum speed and stability.
Tool-Free Installation
Effortless setup for M.2 NVMe (M-Key) SSDs.
Versatile M.2 Compatibility
Supports 22x42mm and 22x80mm M.2 NVMe (M-Key) SSD lengths.
Dimensions
Specifications
| Model Number |
SST-MS12B-40G |
| Colour |
Black |
| Controller IC |
ASMedia ASM2464PD |

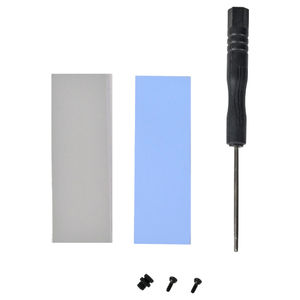

| Thermal Pad |
Conductivity: 2 W/m.k
Dimension: Blue - 20 mm (W) x 1.2 mm (H) x 60 mm (D) 0.79" (W) x 0.05" (H) x 2.36" (D); Grey White - 20 mm (W) x 3.5 mm (H) x 60 mm (D) 0.79" (W) x 0.14" (H) x 2.36" (D); Grey - 20 mm (W) x 2 mm (H) x 60 mm (D) 0.79" (W) x 0.08" (H) x 2.36" (D) |
| Fan |
Dimension: 30 mm x 30 mm
Bearing: Sleeve bearing |
| HDD Interface Support |
M.2 (NGFF) M Key |
| Drive Support |
1 |
| Host Interface |
40 Gbps USB4 Type-C |
| Support Type of M.2 SSD |
2242 / 2280 |

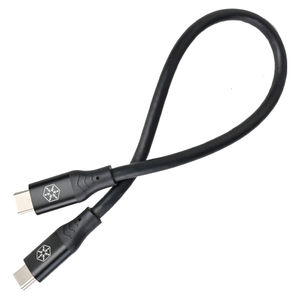

| USB Cable |
Type-C Cable length 280 ± 10 mm |
| LED Indicator |
Powered: Solid Blue
Data access: Blinking Blue |
| Dimension |
46 mm (W) x 21.8 mm (H) x 106 mm (D)
1.81" (W) x 0.86" (H) x 4.17" (D) |
| Net Weight |
124.5 g |
Backed by a 1 year SilverStone warranty.
