SilverStone RM45-360 4U Rackmount Case

SST-RM45-360 | SilverStone
$419
In stock
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The SilverStone RM45-360 4U Rackmount Case is a high-performance chassis designed for enterprise and industrial applications. Featuring a durable steel construction, this case supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, offering excellent versatility for various server builds. With support for up to seven expansion slots, multiple cooling configurations, and a lockable front panel for enhanced security, the RM45-360 delivers exceptional functionality and reliability. Its optimized airflow design ensures efficient thermal performance, making it ideal for professional server environments and workstation deployments.

Features

RM45-360

4U Rackmount Redefining Flexibility and Versatility

  • Supports ATX (PS2), 2U Redundant, and Mini Redundant power supplies
  • 360mm radiator support
  • Accommodates up to 8 x 3.5" HDDs and 4 x 2.5" SSDs
  • 8 standard-height PCI expansion slots
  • Compatible with motherboards up to SSI-EEB [1]

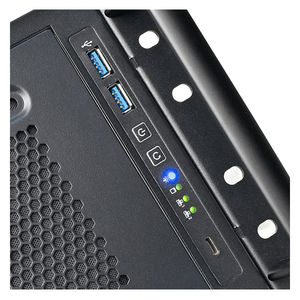

  • Front I/O ports include 1 x USB Type-C and 2 x USB 3.0 [2]
  • Various upgrade kits available for chassis expansion to meet different system requirements

SilverStone RM45-360 4U Rackmount Case Feature 1

System Layout

SilverStone RM45-360 4U Rackmount Case Feature 2

Panel Layout

SilverStone RM45-360 4U Rackmount Case Feature 3

Thermal Solution

SilverStone RM45-360 4U Rackmount Case Feature 4

Capacity

SilverStone RM45-360 4U Rackmount Case Feature 5

Dimensions

Specifications

Model Number SST-RM45-360
Chassis Form Factor 4U
Motherboard SSI-EEB (The combined length of 5.25” devices and the motherboard equals 481 mm. Please refer to the manual for a detailed illustration of various motherboard form factor tolerances when 5.25” devices are to be installed within this constraint.), SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Material Steel
Main Metal Thickness 1.0 mm ~ 1.2 mm
Drive Support Internal: 3.5" x 8, 2.5" x 4
Power Supply PS2 (ATX) / Mini Redundant / 2U Redundant
Cooling System Front: 120 mm x 3

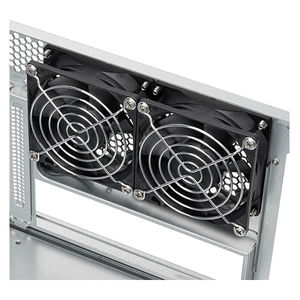

Rear: 80 mm x 2 (2 x 80 mm fans included)
Radiator Support Front: 120 mm / 240 mm / 360 mm
Limitation of CPU Cooler 130 mm (with GPU holder)
148 mm (without GPU holder)
Expansion Card Length: 340mm
Width w/ GPU holder: 116 mm
Width w/o GPU holder: 154 mm
Expansion Slot 8
Front I/O Port USB Type-C x 1 (A USB3 Type-C internal cable with a total length of 800 mm is provided. When connecting external storage devices, it is advisable to avoid using overly lengthy cables, as excessive cable length can potentially lead to a decrease in transfer speed.)
USB 3.0 x 2
Front Buttons Power On / Off
System Reset
LED Indicators Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green
Dimension 438 mm (W) x 176 mm (H) x 500 mm (D), 38.54 Litres
17.24" (W) x 6.93" (H) x 19.69" (D), 38.54 Litres
Net Weight 10.44 kg
Backed by a 1 year SilverStone warranty.
