The Ubiquiti UniFi Etherlighting Switch Pro HD 24-Port PoE is a powerful managed switch designed for high-performance networking. Featuring 24 Gigabit Ethernet ports with 24 PoE+ ports, it delivers seamless power and data connectivity for your network devices, including IP cameras, access points, and phones. With two 10G SFP+ uplink ports, it ensures fast and reliable connectivity for high-bandwidth applications. This fanless switch offers silent operation while providing advanced network management capabilities through the UniFi Controller. Ideal for businesses and larger networks, the UniFi Switch Pro HD is built to handle demanding workloads while simplifying network management and scaling.
Features
Pro HD 24 PoE
Build Features

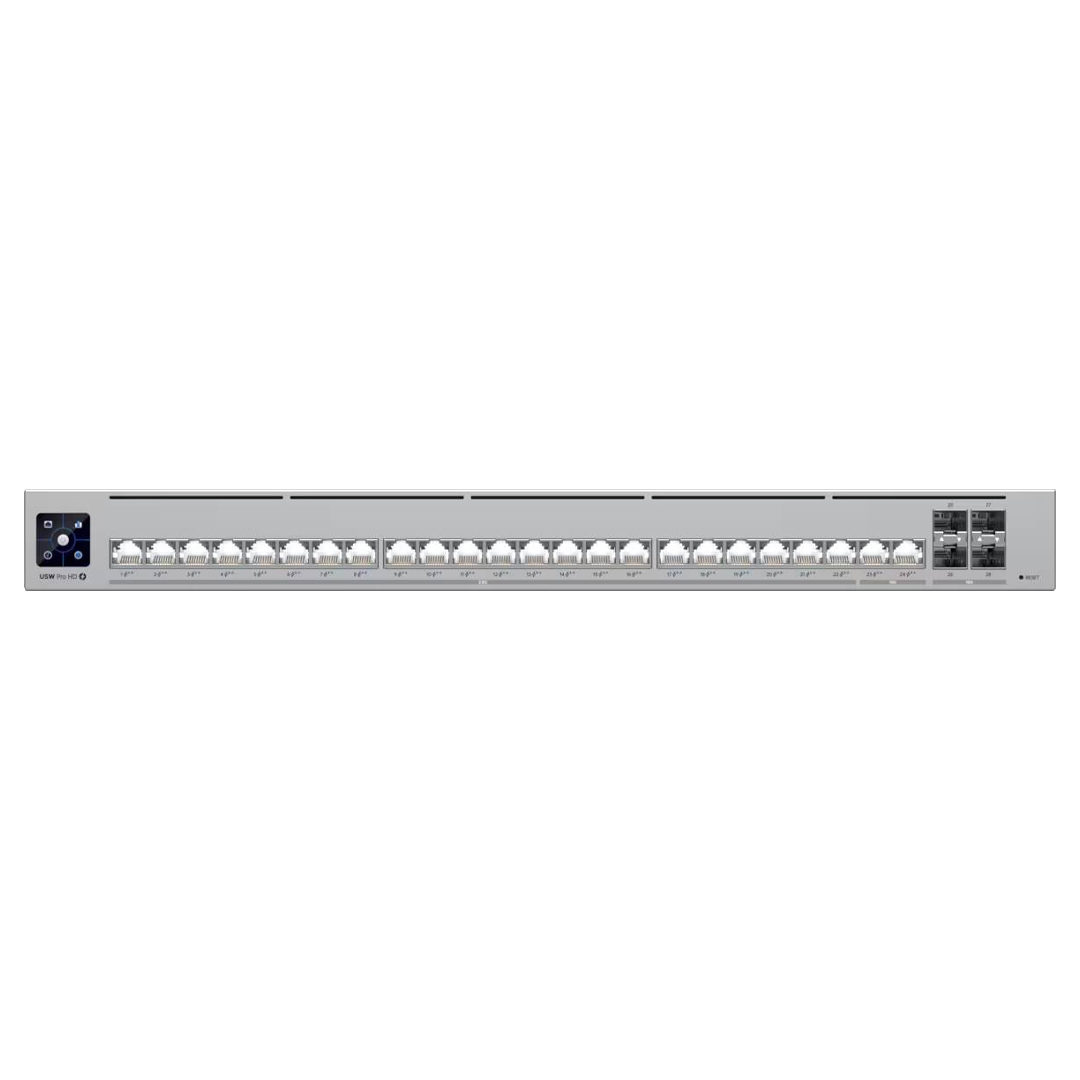

Front

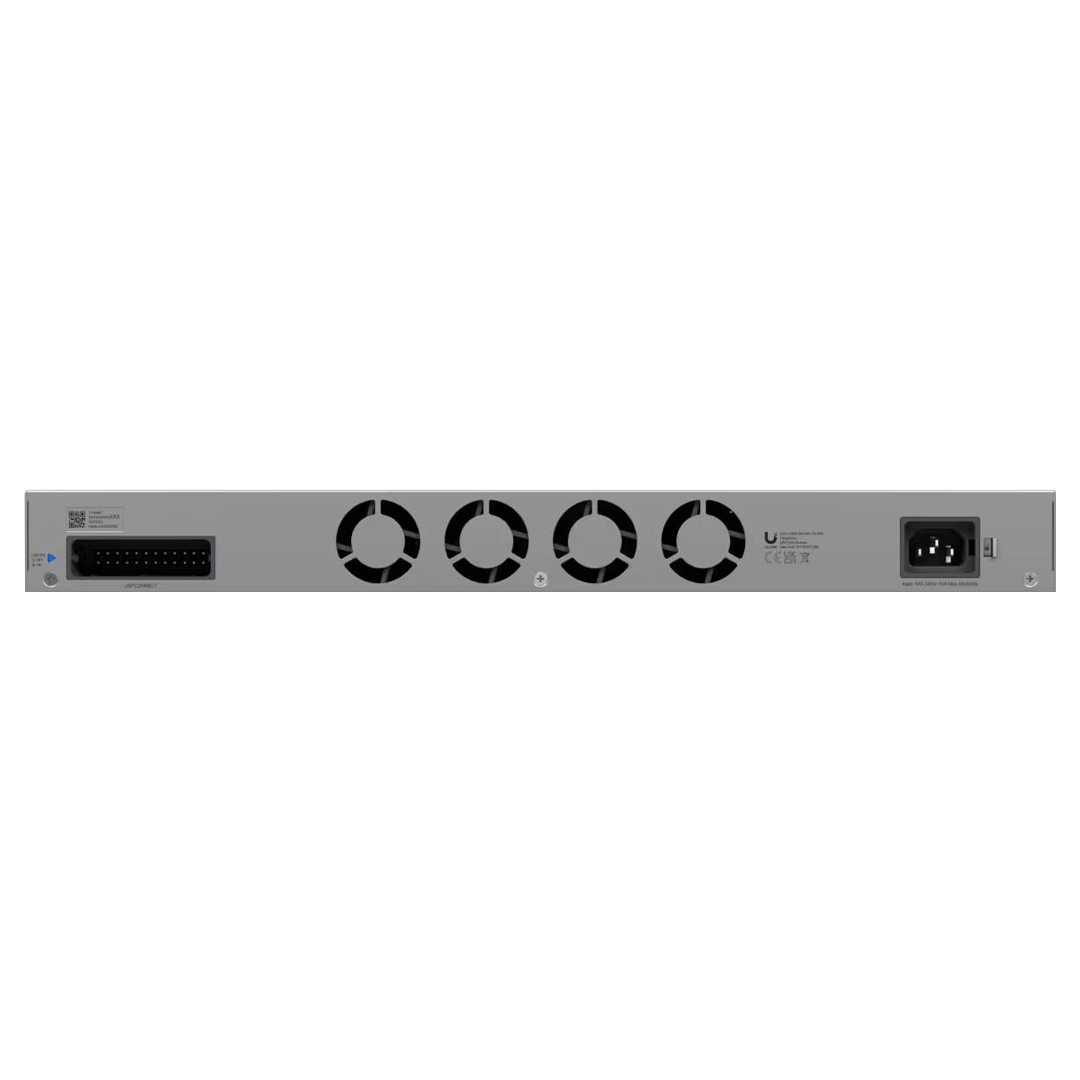

Back
* Require UniFi Power Backup.
Dimensions
** Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Deployment
Specifications
General Data
| Model Number |
NHU-USW-PRO-HD-24-POE |
| Dimensions |
442 x 400 x 44 mm
(17.4 x 15.7 x 1.7") |
| Port Layout |
2.5 GbE RJ45 - 22 (All PoE++)
10 GbE RJ45 - 2 (All PoE++)
10G SFP+ - 4 |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
600W |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
Yes |
Performance
| Switching Capacity |
230 Gbps |
| Total Non-Blocking Throughput |
115 Gbps |
| Forwarding Rate |
171 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| L3 Table Size |
ARP Entries - 12,000
IPv4 Routes - 12,000 |
| Packet Buffer Size |
2 MB |
Layer 3 Features
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| PoE Ports |
PoE++
24 |
| Max. PoE Wattage per Port by PSE |
PoE - 15.4W
PoE+ - 32W
PoE++ - 64W |
| Max. Power Consumption |
60W (Excluding PoE Output)
660W (Including PoE Output) |
| Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 660W |
| Supported Voltage Range |
100—240V AC |
| Management |
Ethernet
AR |
| Weight |
Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material |
SGCC steel |
| LCM Display |
1.3" touchscreen |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Etherlighting™ |
Ethernet
SFP+ |
Backed by a 1 year Ubiquiti warranty.
