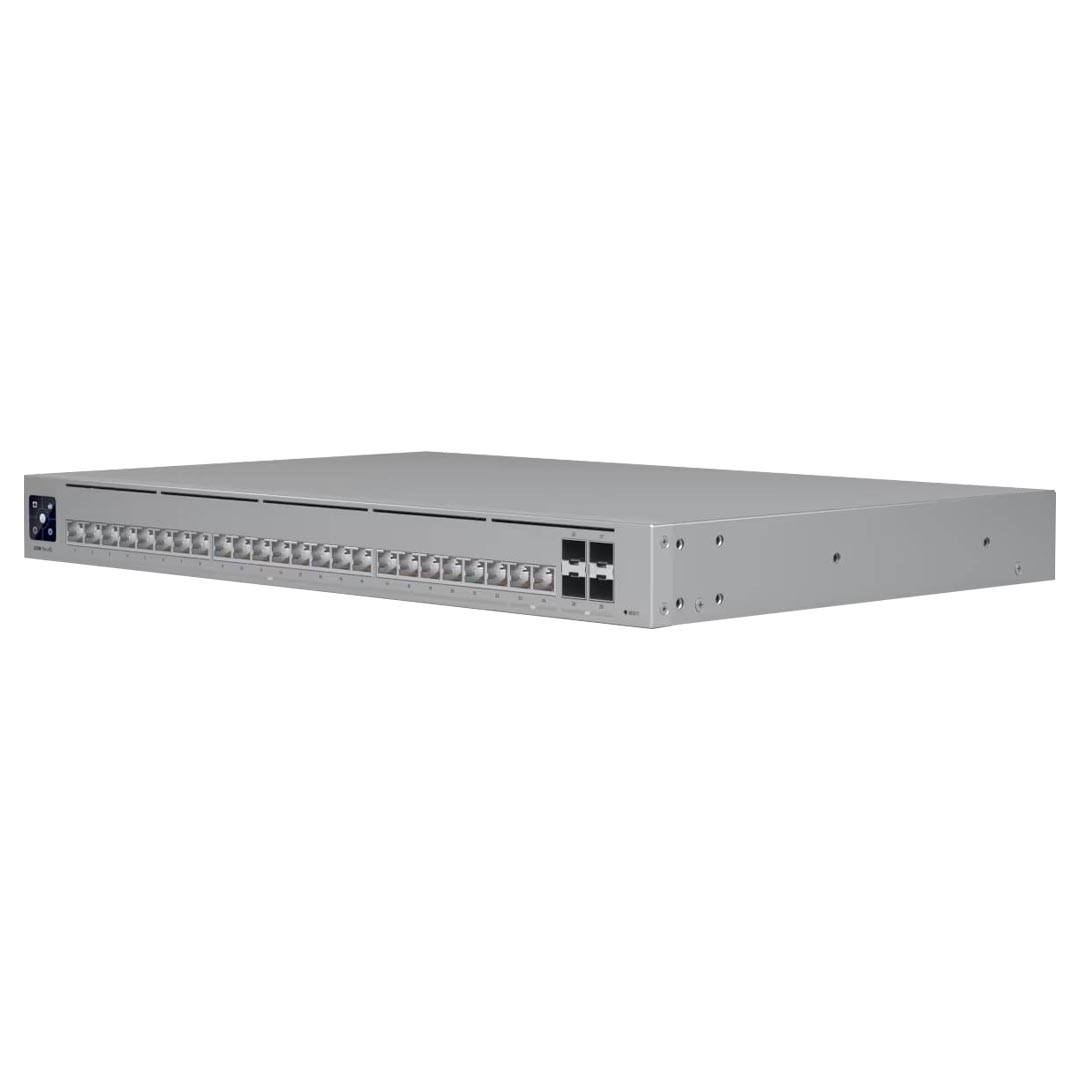

The Ubiquiti UniFi Switch Pro HD 24-Port Etherlighting Switch is a high-performance Layer 3 managed switch, perfect for enterprise-level networking. Featuring 24 Gigabit Ethernet ports and 2 SFP+ ports for 10G fiber uplinks, this switch offers seamless connectivity and advanced network management. The fanless design ensures quiet operation, while the intuitive UniFi Controller provides easy management and monitoring, making it an ideal solution for high-demand, scalable network environments.
Features
Pro HD 24
Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
Build Features

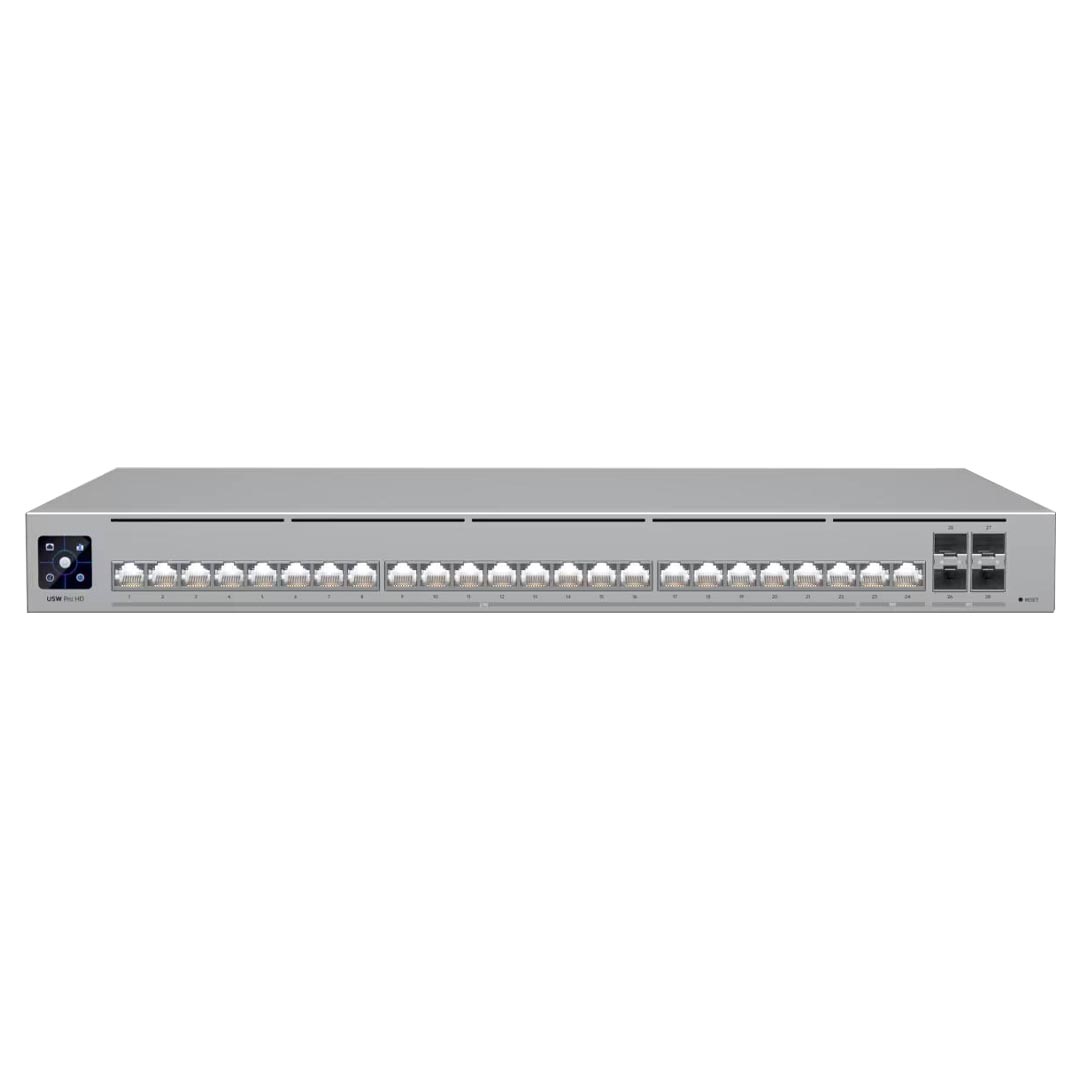

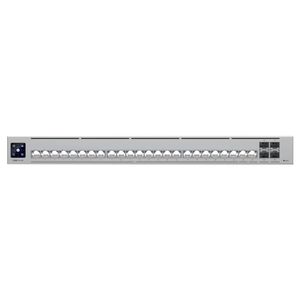

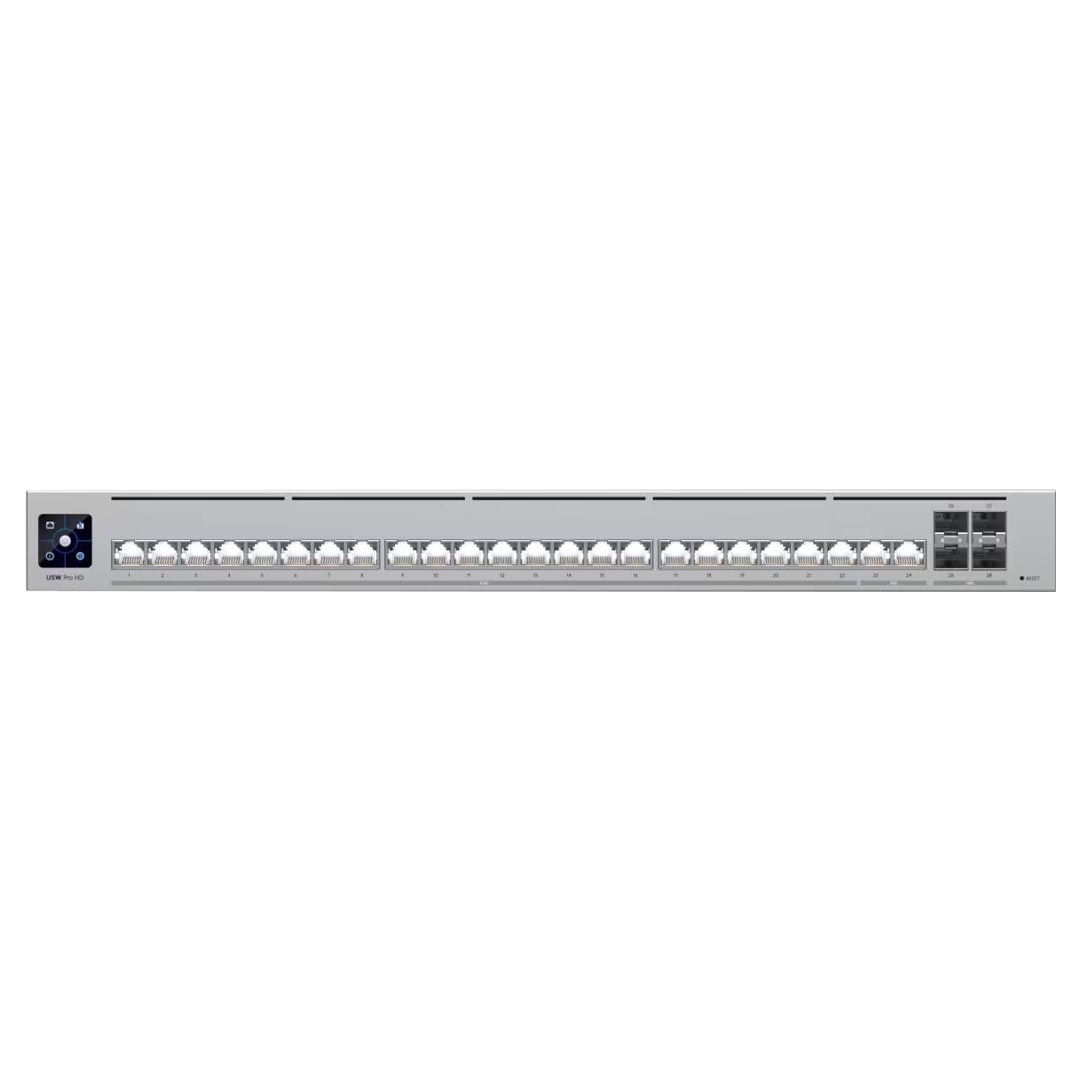

Front

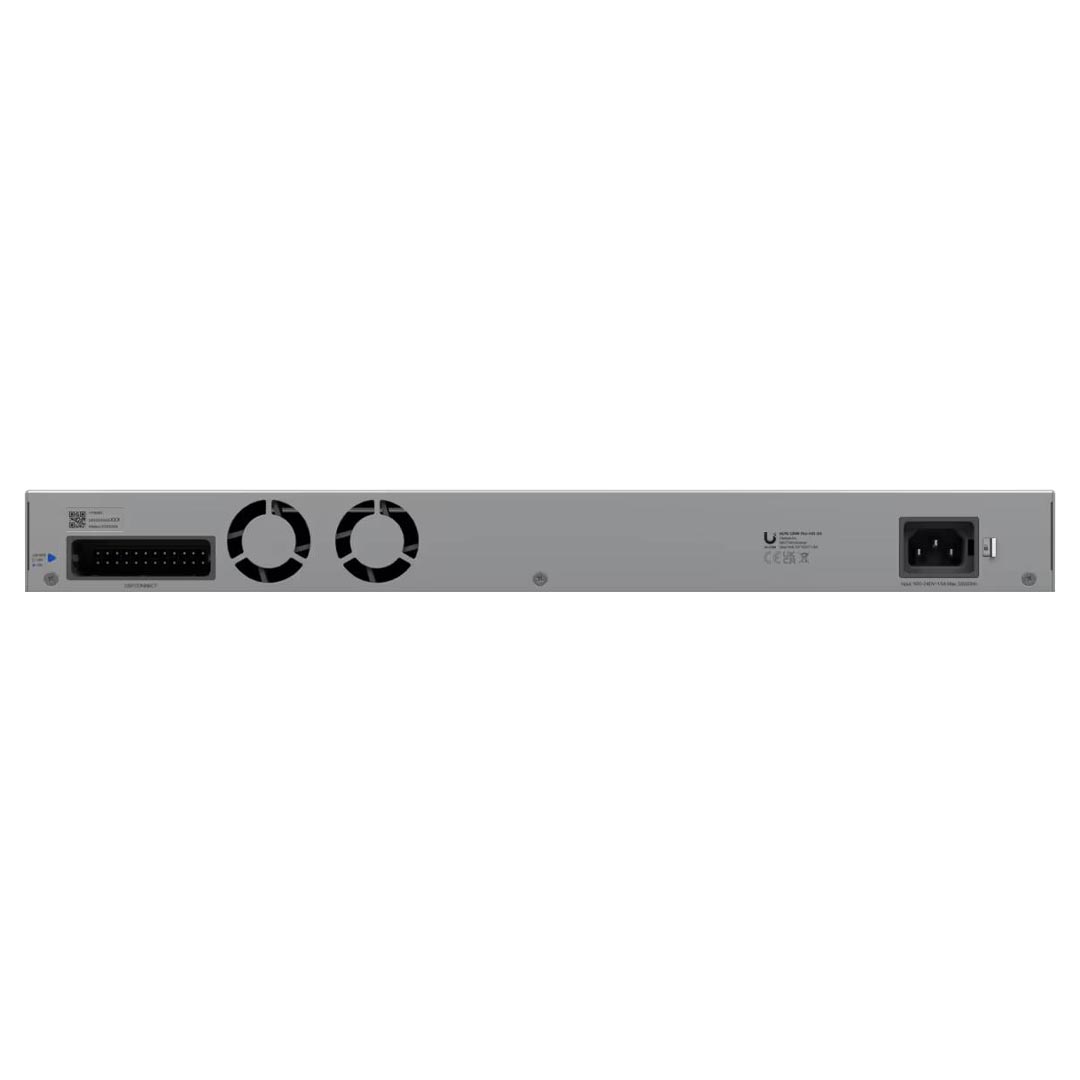

Back
* Require UniFi Power Backup.
Dimensions
** Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Deployment
Specifications
General Data
| Model Number |
USW-PRO-HD-24 |
| Dimensions |
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7") |
| Port Layout |
2.5 GbE RJ45 - 22
10 GbE RJ45 - 2
10G SFP+ - 4 |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
Yes |
Performance
| Switching Capacity |
230 Gbps |
| Total Non-Blocking Throughput |
115 Gbps |
| Forwarding Rate |
171.12 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| L3 Table Size |
ARP Entries - 12,000
IPv4 Routes - 12,000 |
| Packet Buffer Size |
2 MB |
Layer 3 Features
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
Layer 2 Features
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
Hardware
| Max. Power Consumption |
60W |
| Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 60W |
| Supported Voltage Range |
100—240V AC |
| Management |
Ethernet
AR |
| Heat Dissipation (Excluding PoE Output) |
102.36 BTU/hr |
| Weight |
Without mounting brackets: 4.2 kg (9.2 lb)
With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm
(15.7-47.2") |
| LCM Display |
1.3" touchscreen |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC |
| Etherlighting™ |
Ethernet - Yes
SFP+ - Yes |
Backed by a 1 year Ubiquiti warranty.
