Engineered for high-performance outdoor connectivity, the Ubiquiti U7 Pro Outdoor WiFi 7 Access Point delivers ultra-fast wireless speeds with advanced 6 GHz support, MU-MIMO, and OFDMA technology for seamless multi-device performance. Designed to withstand harsh weather conditions, its rugged enclosure ensures reliable operation in any environment, while the high-gain antennas provide extended coverage and superior signal strength. Featuring a 2.5GbE port for high-speed wired connections, this access point is ideal for expanding outdoor networks with minimal interference and maximum efficiency.
Features
Extend WiFi Over Campuses
UniFi 7 for All Environments
Link at range with U7 Outdoor's directional super antenna, or pair with the included omni antennas for balanced coverage.
- 6-Spatial Stream WiFi 7 with 6 (U7 Pro Outdoor model, US & CA version only.) GHz Support
- Long-range 6 GHz Performance with AFC (U7 Pro Outdoor model, US & CA version only.)
- Up to 465 m² (5,000 ft²) Directional Coverage
- Integrated Directional Super Antenna
- Included External Omni Antennas
- Up to 300+ Connected Devices
- 2.5 GbE PoE+ Uplink
Next Generation Outdoor AP
- High Throughput and Client Capacity
- Integrated Directional Antenna
- External Antenna Versatility
- Enhanced IP67 Weatherproof
- Articulating Mounting System
- Interference Free
Mesh-Ready with Long-Range Antenna Integration
Deliver reliable WiFi over extended distances.
Build Features

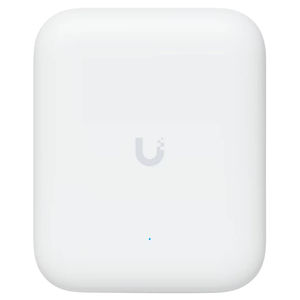

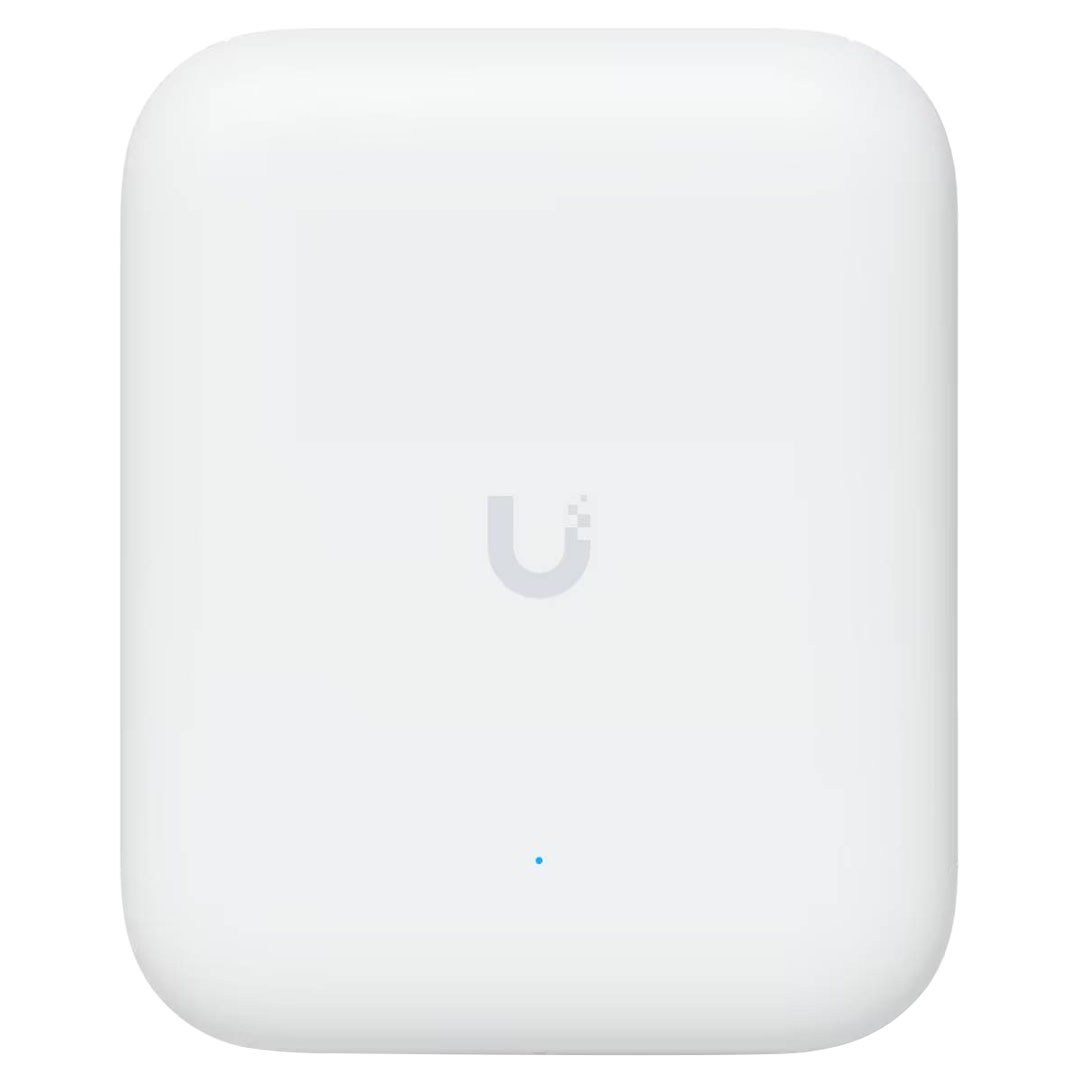

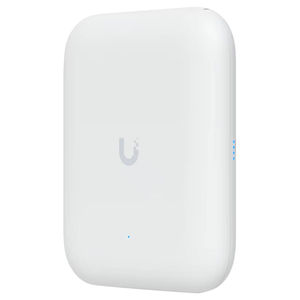

Front

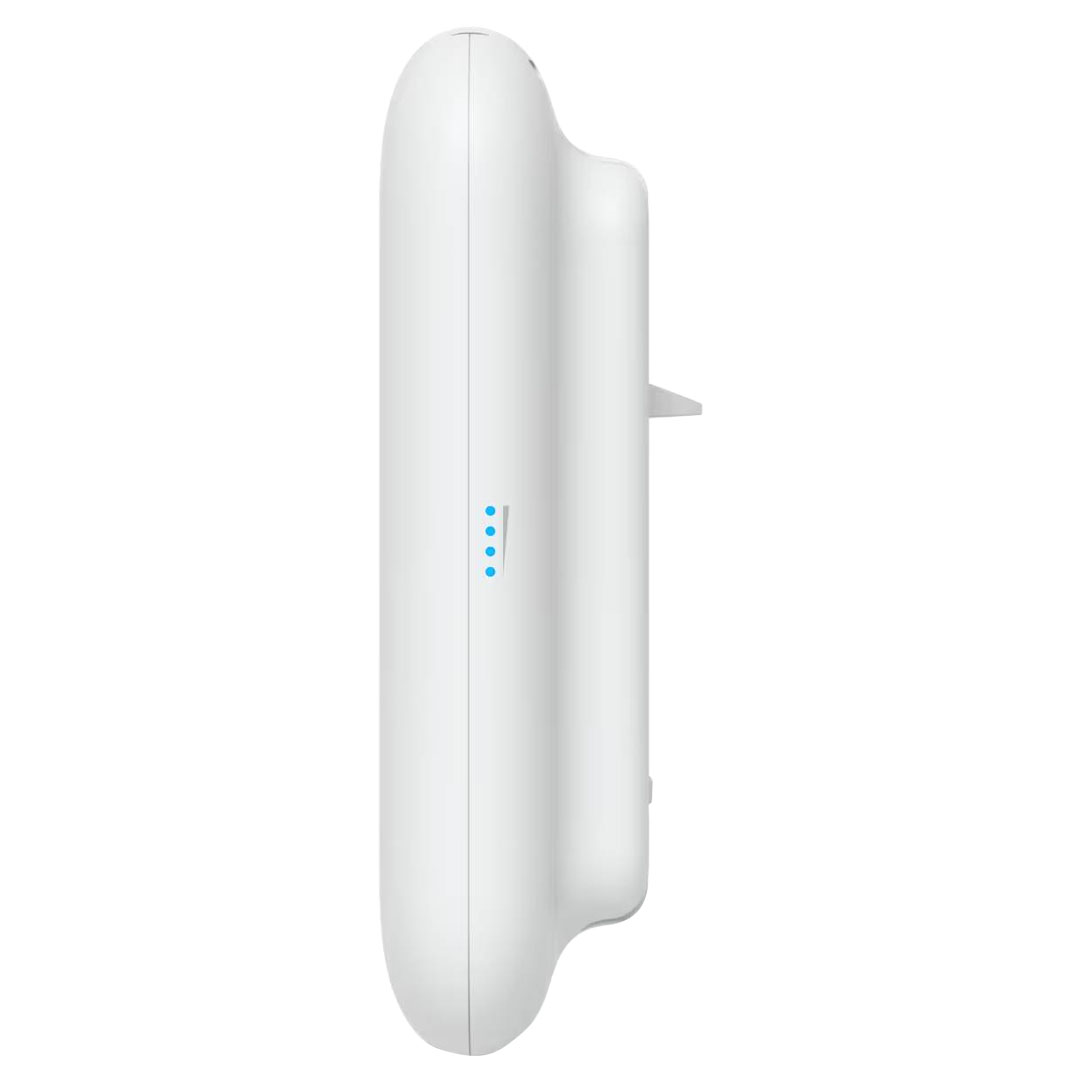

Side

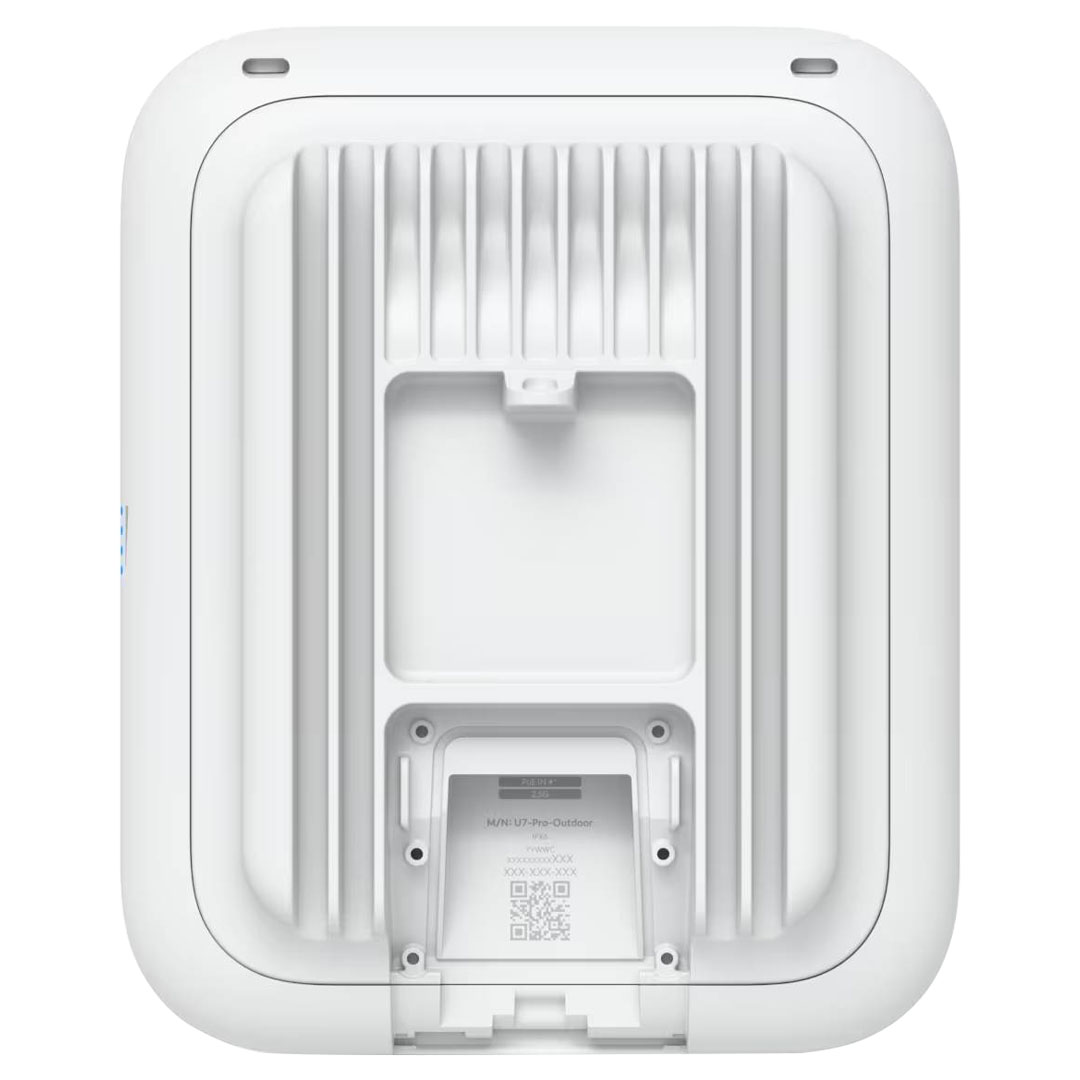

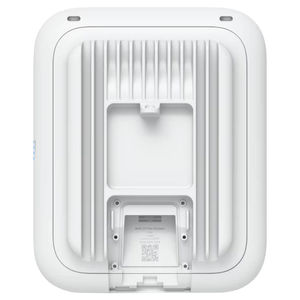

Back

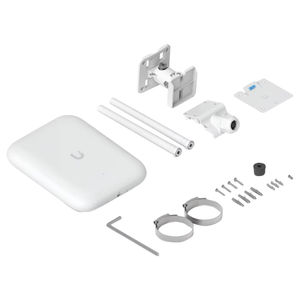

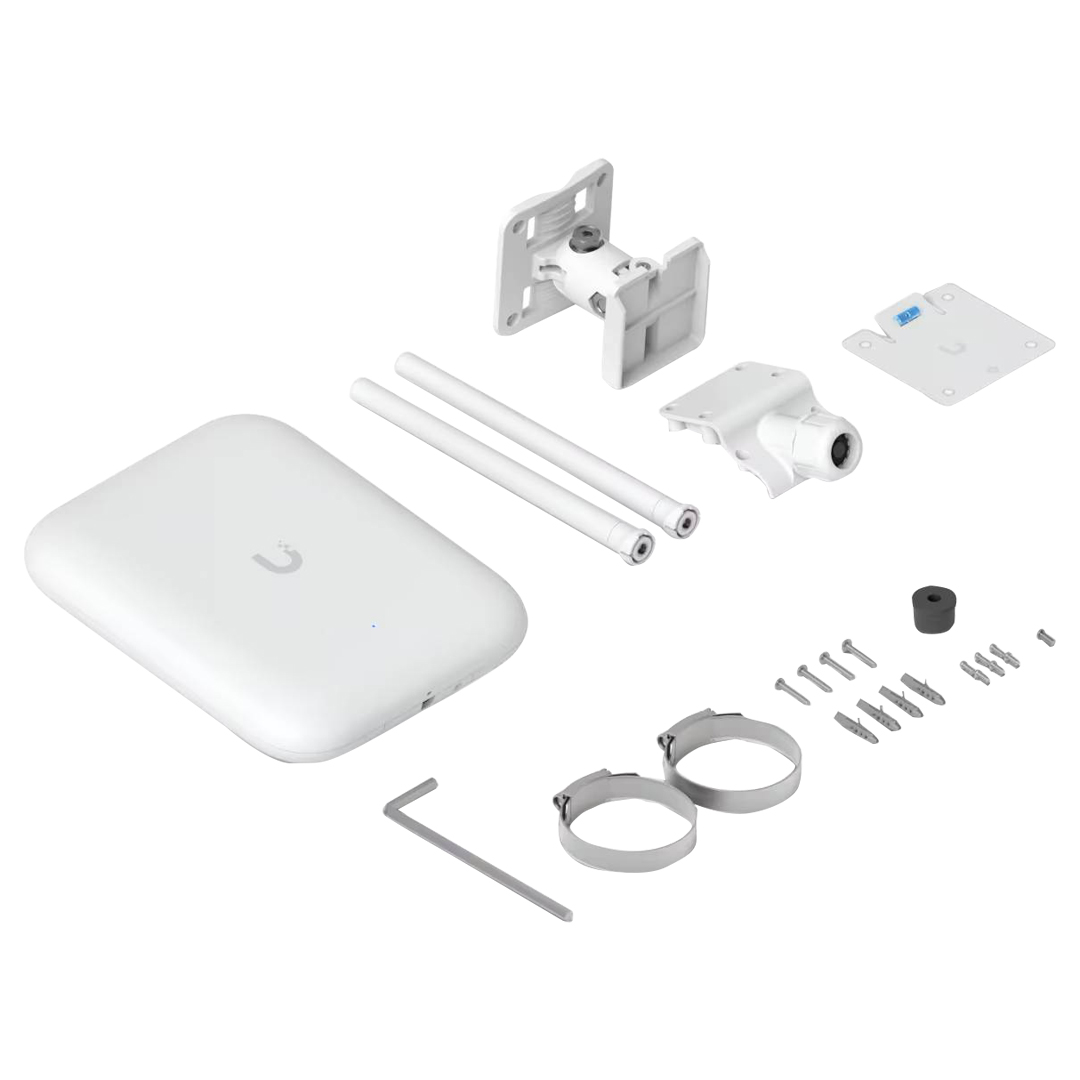

Includes external omni antennas.
Deployment
Specifications
General Data
| Model Number |
NHU-U7-PRO-OUTDOOR |
| Dimensions |
Without Mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
With Mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
6 |
| Coverage Area |
465 m² (5,000 ft²) |
| Max. Client Count |
300+ |
| Uplink |
2.5 GbE |
| Mounting Locations |
Wall, pole |
| Mounting Plate |
Included mount |
| Weatherproofing |
IPX6
IP67 (With cable-gland door kit) |
| Power Method |
PoE+ |
Performance
| MIMO |
6 GHz - 2 x 2 (DL/UL MU-MIMO)
5 GHz - 2 x 2 (DL/UL MU-MIMO)
2.4 GHz - 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz - 5.7 Gbps (BW320)
5 GHz - 4.3 Gbps (BW240)
2.4 GHz - 688 Mbps (BW40) |
| Antenna Gain |
6 GHz
Directional internal: 10 dBi
5 GHz
Directional internal: 11 dBi
External omni: 8 dBi
2.4 GHz
Directional internal: 8 dBi
External omni: 6 dBi |
| Max. TX Power |
6 GHz - 26 dBm
5 GHz - 26 dBm
2.4 GHz - 23 dBm |
| Max. BSSIDs |
8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7)
7.3 Mbps to 8.6 Gbps (MCS0-MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0-MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
Captive Hotspot Portal
Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
Hardware
| Max. Power Consumption |
21W |
| Supported Voltage Range |
42.5—57V DC |
| Networking Interface |
(1) 1/2.5 GbE RJ45 port |
| Weight |
Device: 1.2 kg (2.6 lb)
With mount: 1.33 kg (2.9 lb) |
| Wind Loading |
74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Pole Mount Diameter |
1–2.5" (25–63.5 mm) |
| Management |
Ethernet |
| Enclosure Material |
UV-Stabilised polycarbonate, aluminium alloy |
| Mount Material |
UV-Stabilised polycarbonate |
| LEDs System |
(1) Power: White/Blue
(4) Mesh signal: Blue |
| Certifications |
FCC, IC |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
Software
Application Requirements
UniFi Network |
Version 9.0.114 and later |
| UniFi OS |
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later |
Backed by a 1 year Ubiquiti Warranty.
