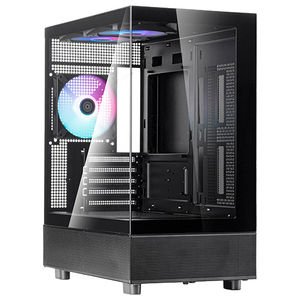

(Epic Price!) The SilverStone Lucid LD04 is a premium Micro-ATX case featuring stunning tempered glass panels and a sleek aluminum design, offering a perfect balance of aesthetics and performance. Designed for optimal airflow, it supports up to four 120mm fans and includes two pre-installed 120mm intake fans with a rear exhaust for efficient cooling. With support for graphics cards up to 322mm in length and CPU coolers up to 190mm in height, it accommodates high-performance components with ease. The inverted motherboard layout enhances cooling efficiency, while the tool-less side panel design allows for quick access and hassle-free installation. Front I/O includes USB 3.1 Gen1 Type-C for fast connectivity, making it an excellent choice for those who value both style and functionality.
Features
Panoramic Micro-ATX Chassis with a Striking 270° Field of View
- 270° Panoramic Tempered Glass View
- Supports high-end graphics cards up to 350mm with 5 PCI slots
- 280mm radiator compatibility
- Top I/O includes 1 x USB Type-C, 2 x USB 3.0, 1 x Audio, 1 x Mic
- Tremendous Storage Expansion Flexibility
Showcase Your Vision

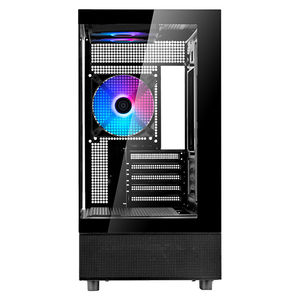

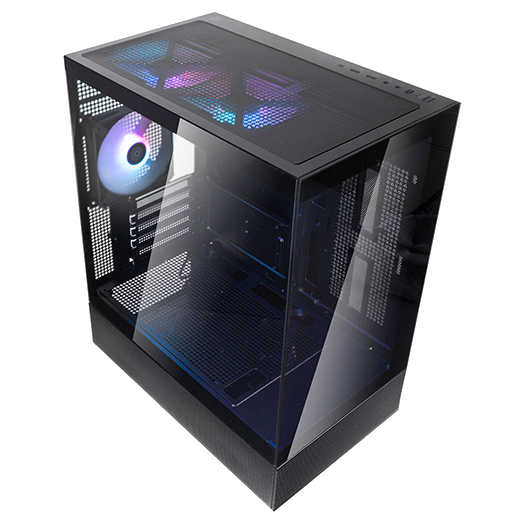

The Lucid 04 offers a 270° panoramic view with tempered glass panels on the front and side, showcasing your components in stunning clarity.
Outstanding Cooling Capability
The Lucid 04 is equipped with multiple fan mounting points, providing versatile cooling options for both CPU and GPU. The top compartment also supports a 280mm liquid cooling radiator for efficient heat dissipation.
Spacious GPU Accommodation
Designed with 350mm graphics card clearance, the Lucid 04 ensures broad compatibility with high-end graphics cards, providing ample space for powerful GPU setups within a Micro-ATX enclosure.
Highly Versatile Layout Fuelling Creativity and Inventiveness
Excellent Cooling Capabilities
Fan
Radiator
Dimensions
Specifications
| Model Number |
SST-LD04-B-ARGB |
| Colour |
Black |
| Material |
Steel, plastic, tempered glass |
| Motherboard |
Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") |
| Drive Bay |
Internal
3.5"/2.5" x 1
3.5" x 1 |
| Cooling System |
Rear
120mm x 1 / 140mm x 1 (120mm x 1 ARGB fans included)
Top
120mm x 2 / 140mm x 2 (120mm x 2 ARGB fans included)
Internal
Motherboard Tray: 120mm x 2 (Motherboard dimensions must not exceed 9.6" x 8.9" for installation compatibility.)
PSU Shroud: 120mm x 2 |
| Radiator Support |
Rear
120mm / 140mm
Top
120mm / 140mm / 240mm / 280mm |
| Limitation of CPU cooler |
177mm |
| Expansion Slot |
5 |
| Limitation of Expansion Card |
Length: 350mm
Width: 185mm |
| Power Supply |
Standard PS2 (ATX) |
| Limitation of PSU |
150mm |
| Front I/O Port |
USB Type-C x 1
USB 3.0 x 2
Audio x 1
Mic x 1 |
| Dimension |
230mm (W), x 456mm (H), x 364.7mm (D), 38.25 litres
9.06" (W), x 17.95" (H), x 14.36" (D), 38.25 litres |
| Net Weight |
5.6 kg |
Backed by a 1-year Silverstone warranty.
