SilverStone FHS140X 140mm PWM High performance Industrial Fan

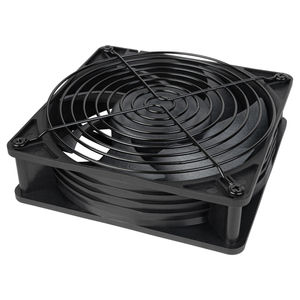

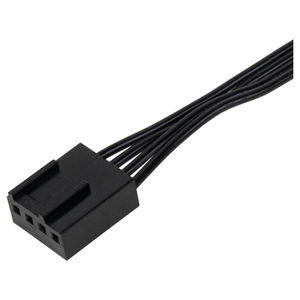

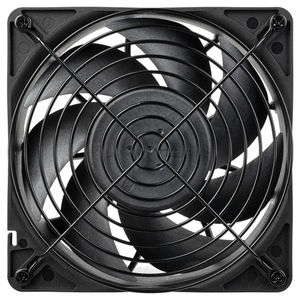

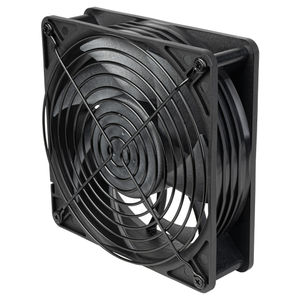

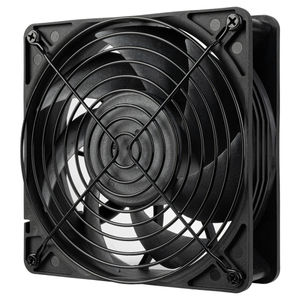

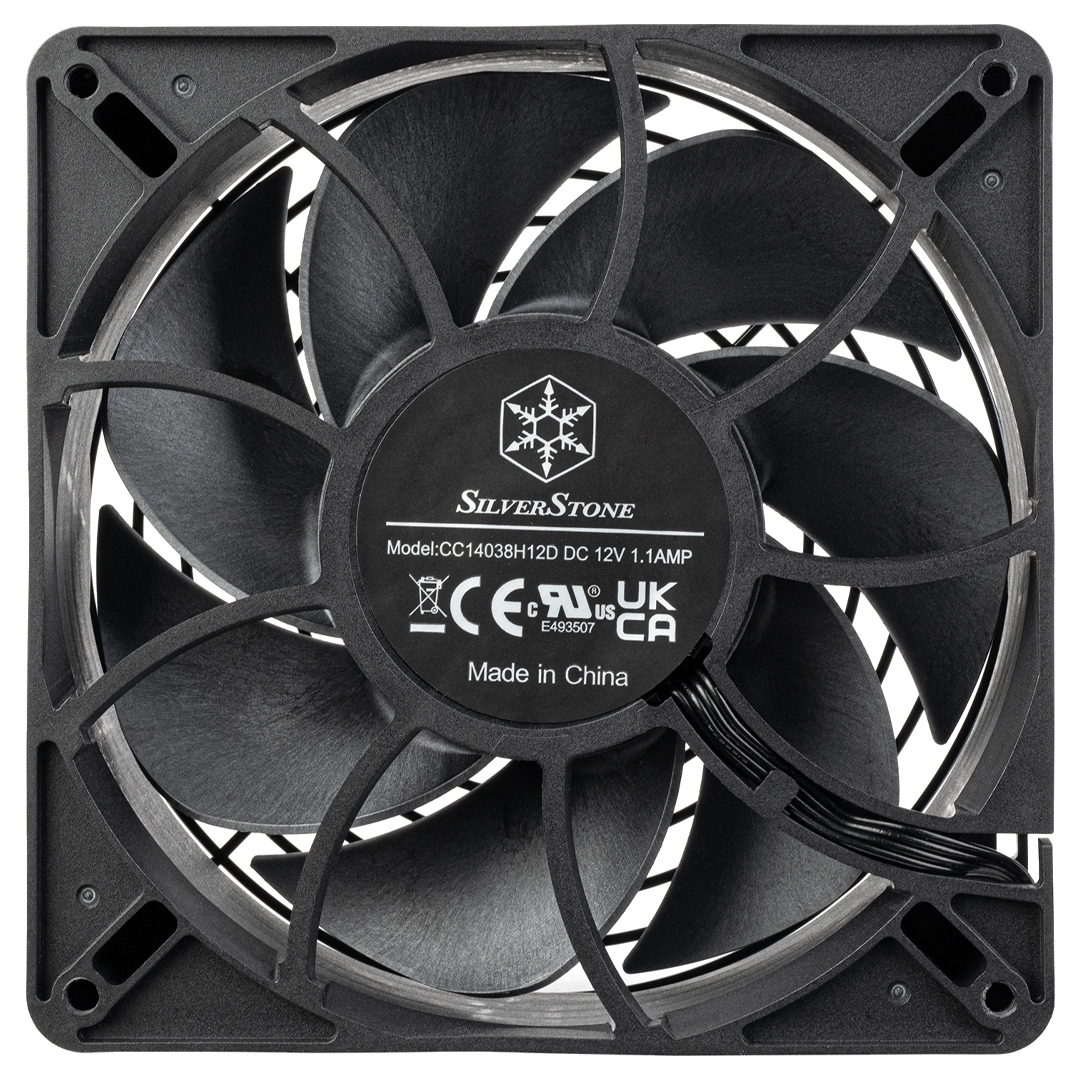

The SilverStone FHS 140X is a high-performance 140mm x 38mm industrial PWM fan engineered for demanding cooling applications. Featuring a robust giant-bladed design and dual ball bearings, it ensures extended durability and exceptional thermal management. With a wide PWM-controlled speed range of 800 to 3,400 RPM, it delivers a remarkable maximum airflow of 222.95 CFM and a high static pressure of 10 mmH₂O, making it ideal for cooling radiators, heatsinks, or as high-pressure ventilation in server and workstation builds. Operating at a noise level of 50 dBA, the FHS 140X balances performance with acoustic considerations. Its dimensions are 140mm (W) x 38mm (H) x 140mm (D), and it weighs 385g. Constructed with LCP fan blades and a PBT fan frame, this fan is built for reliability and efficiency. The 4-pin PWM connector and included accessories, such as a 140mm fan grill, enhance its versatility for various industrial cooling needs.

Features

---

FHS 140X

High Performance 140mm x 38mm PWM Industrial Fan

• High air pressure with giant-bladed design
• Dual ball bearing for extended service duration
• 800 ~ 3,400 RPM speed range via PWM control

High Efficiency Industrial System Thermal Solution

Extreme Performance

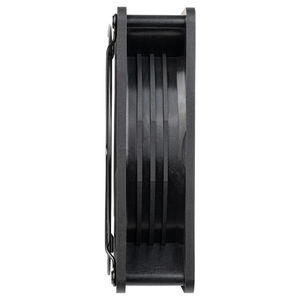

The equipped giant-bladed design with 38mm total thickness increases the overall performance compared to a standard fan.

Tailored Performance on Demand

Wide 800 ~ 3,400 speed range via PWM control function.

Dimensions
