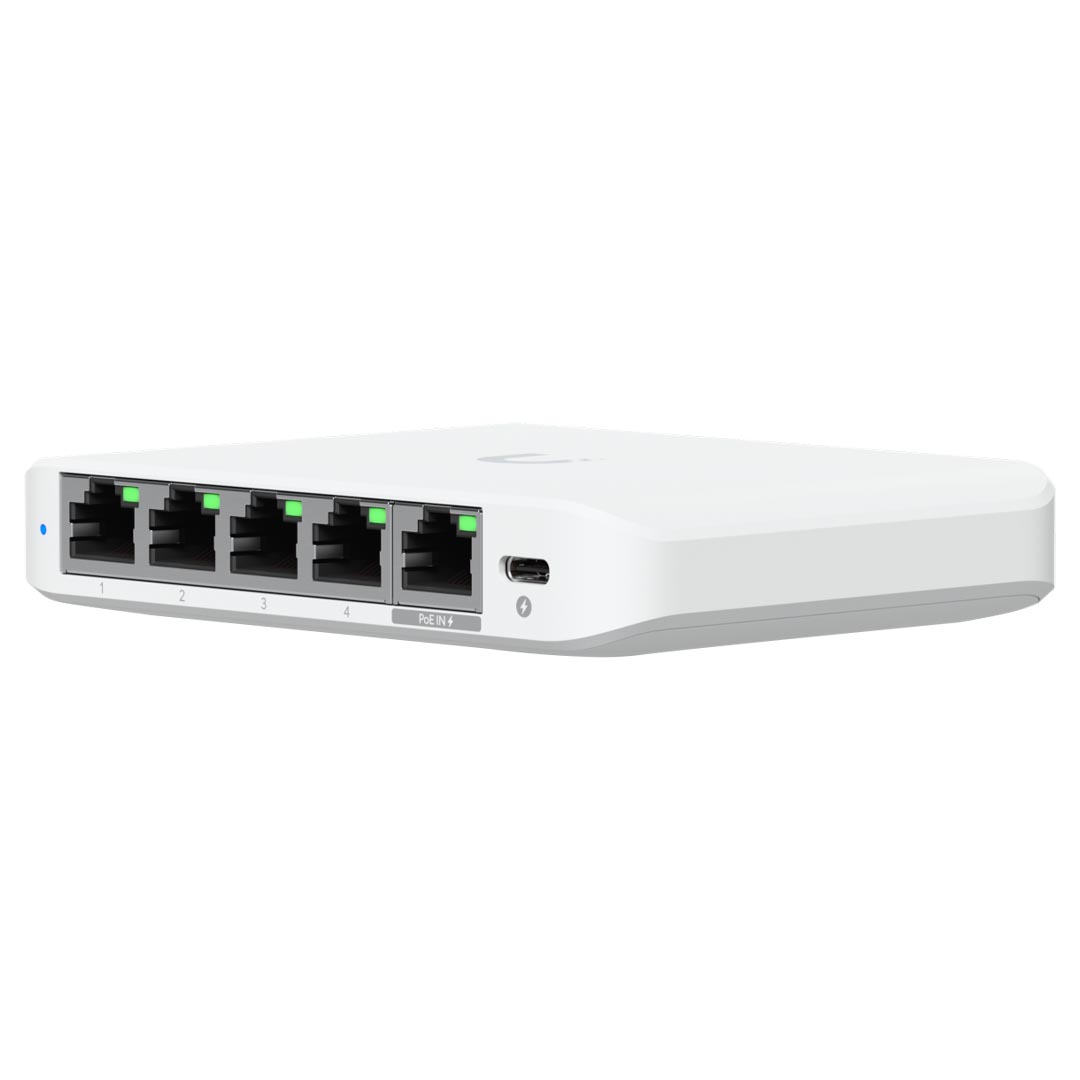

Ubiquiti UniFi Flex Mini 5 Port 2.5G Switch

NHU-USW-FLEX-2.5G-5 | Ubiquiti
$125
In stock
Order within 5h 5m 39s for same day dispatch!
Add to wishlist
Buy now, pay later!
Overview Specifications Warranty & Returns
The Ubiquiti UniFi Flex Mini 2.5G Switch is a compact and silent Layer 2 switch designed to deliver ultra-fast connectivity for modern networks. Featuring five 2.5GbE RJ45 ports and a non-blocking throughput of 12.5Gbps, it’s ideal for boosting performance in home or small business environments. It supports PoE input or USB-C power and integrates seamlessly with the UniFi Network Controller for simple, centralized management. Perfect for users looking to upgrade to multi-gig speeds without the bulk or noise of traditional switches.

Features

Flex Mini 2.5G

Build Features

Ubiquiti UniFi Flex Mini 5 Port 2.5G Switch Feature 1

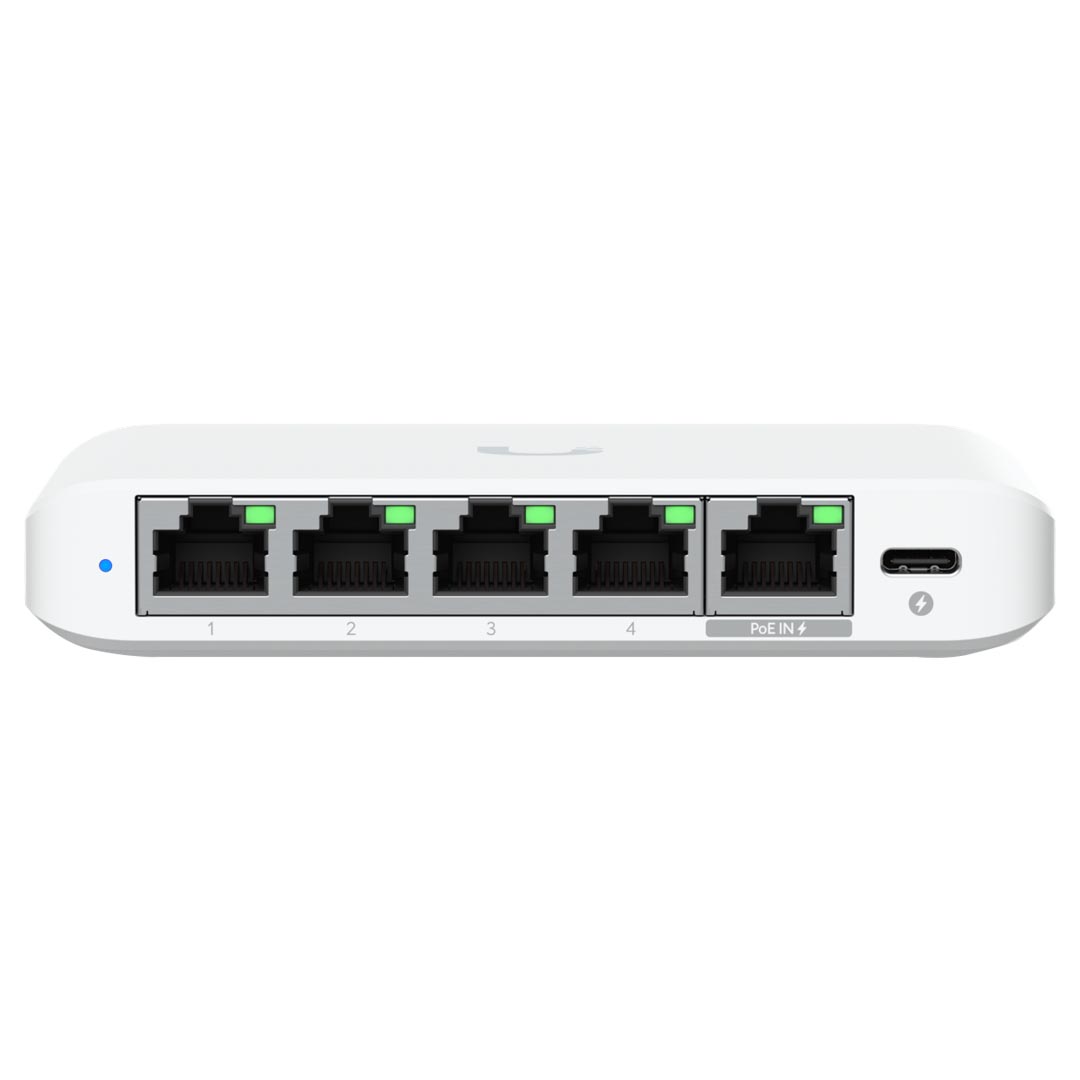

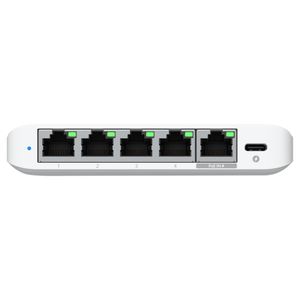

Front

Ubiquiti UniFi Flex Mini 5 Port 2.5G Switch Feature 2

Dimensions

Ubiquiti UniFi Flex Mini 5 Port 2.5G Switch Feature 3

Deployment

Specifications

General Data

Model Number NHU-USW-FLEX-2.5G-5
Dimensions 117.1 x 90 x 21.2 mm
(4.6 x 3.5 x 0.8")
WiFi Standard WiFi 7
Port Layout - 2.5 GbE RJ45 5
Form Factor Compact desktop

Performance

Switching Capacity 24 Gbps
Total Non-Blocking Throughput 12.5 Gbps
Forwarding Rate 19 Mpps
Supported VLANs 256
MAC Address Table Size 4,000

Layer 2 Features

STP & RSTP Yes
Egress Rate Limit Yes
Flow Control Yes
Storm Control Yes
Multicast & Broadcast Rate Limiting Yes
Port Isolation Yes
Port Mirroring Yes
Jumbo Frames Yes
Loop Protection Yes

Hardware

Max. Power Consumption 5W (AC/DC input)
6.4W (PoE input)
Power Method (1) USB Type-C, 5V DC, 1A
(1) PoE
Power Input Method USB Input
PoE
Power Supply AC/DC, external, 5W
Supported Voltage Range 4.8—5.2V DC/USB
44V—57V PoE
Management Ethernet
Weight 206 g (7.3 oz)
Enclosure Material Polycarbonate
Ambient Operating Temperature -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Backed by a 1-year Ubiquiti warranty.
